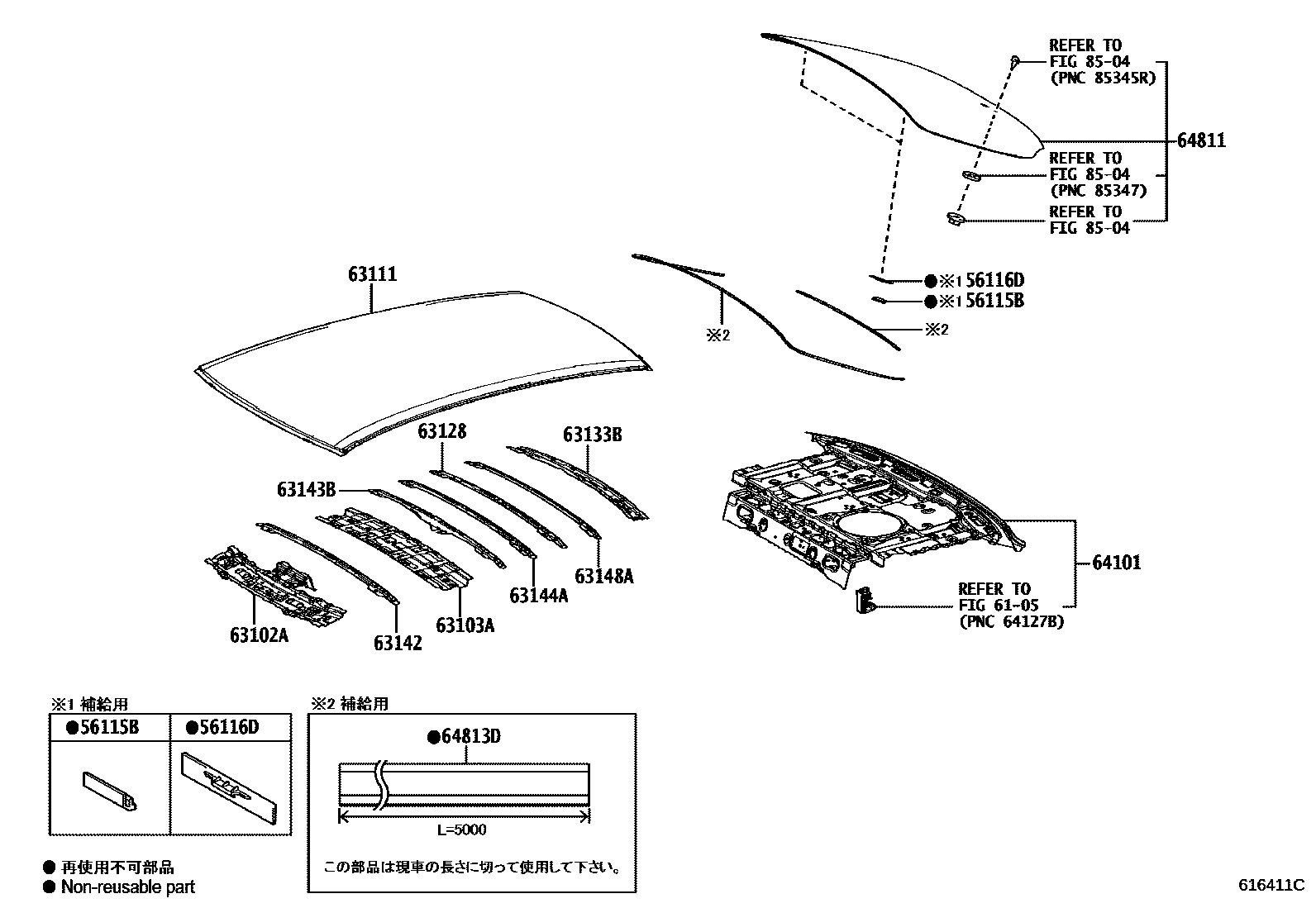

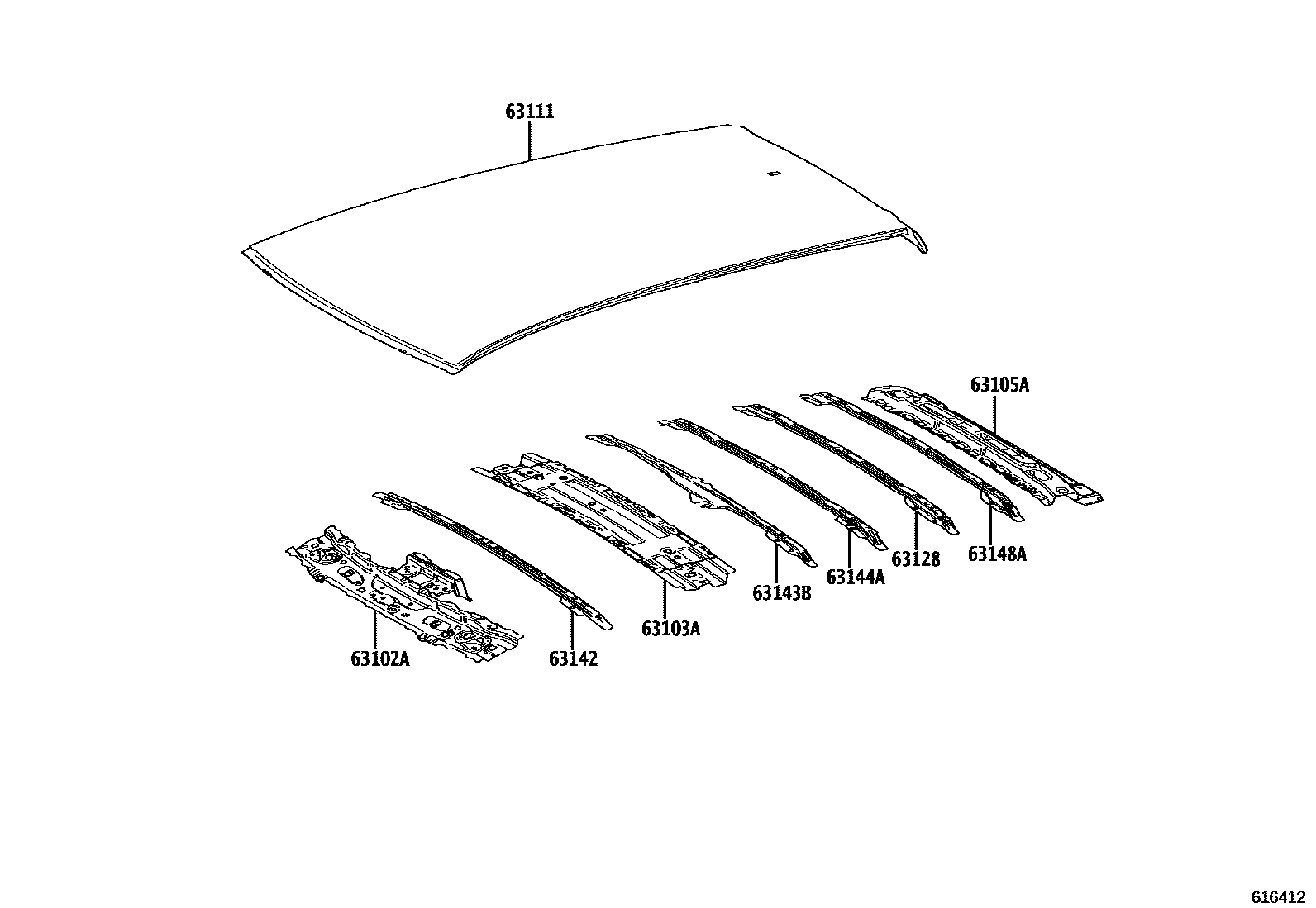

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 63102A | Windshield roof sub-assembly | 63102-12911 |
| 63103A | Roof panel reinforcement sub-assembly | 63103-12160 · 63103-12190 |
| 63105A | Back door opening frame sub-assembly | 63105-12330 |
| 63111 | roof panel | 63111-12B40 · 63111-12B50 · 63111-12B60 |
| 63128 | No. 6 roof panel reinforcement | 63128-12040 · 63128-12070 |
| 63133B | back window frame | 63133-12350 |
| 63142 | No. 2 roof panel reinforcement | 63142-12150 |
| 63143B | No. 3 roof panel reinforcement | 63143-12190 · 63143-12220 |
| 63144A | No. 4 roof panel reinforcement | 63144-12160 · 63144-12190 |
| 63148A | No. 7 roof panel reinforcement | 63148-12090 · 63148-12120 |

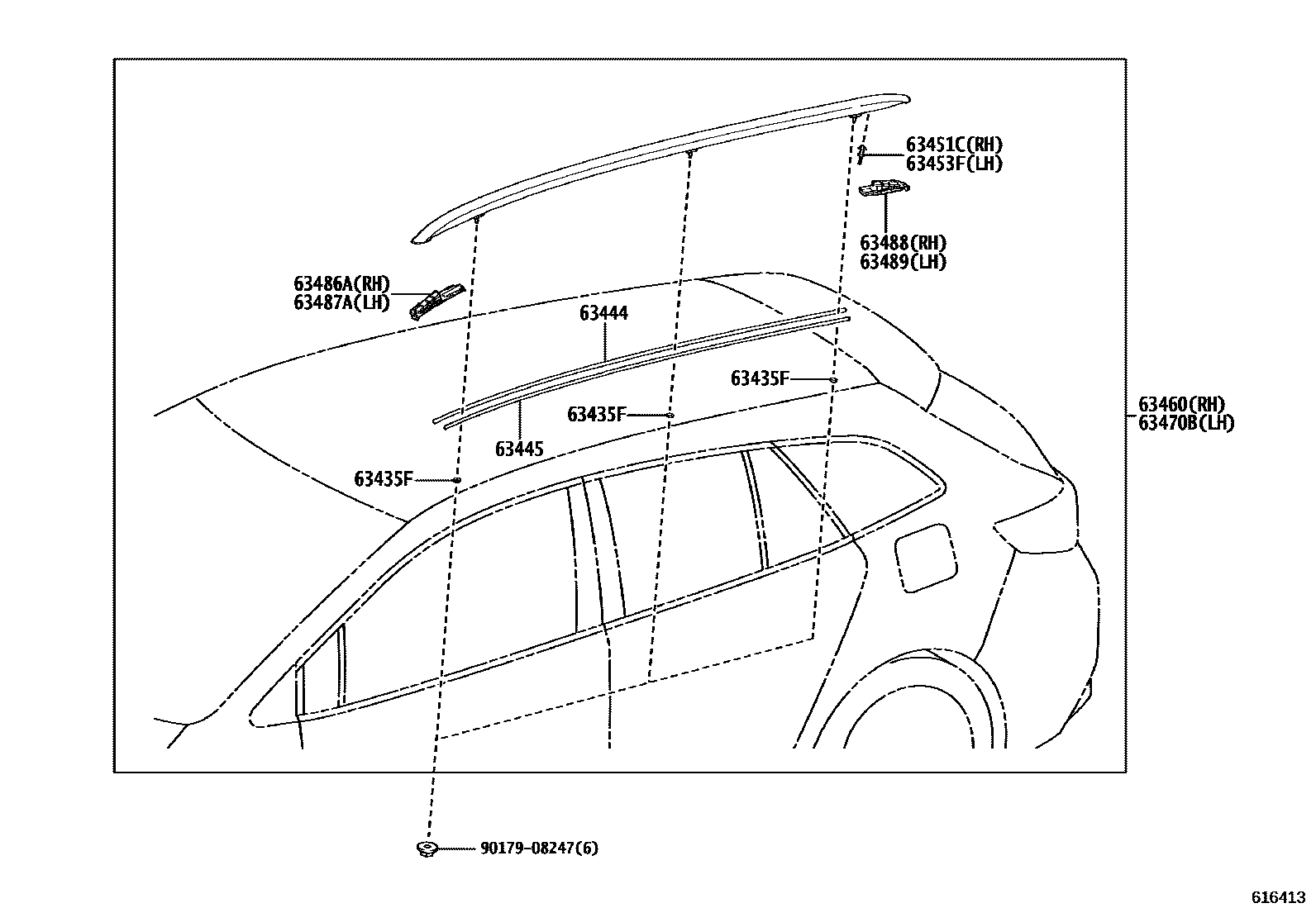

| 63435F | Roof rack No. 1 seal | 63435-48010 |
| 63444 | No. 1 roof rack protector | 63444-12010 |
| 63445 | No. 2 roof rack protector | 63445-12020 |
| 63451C | Right front roof rack fixing | 63451-12010 |
| 63453F | Left front roof rack fixing | 63451-12010 |
| 63460 | Roof rack assembly | 63460-12010 · 63460-12020 |
| 63470B | Roof left luggage rack assembly | 63470-12010 · 63470-12020 |
| 63486A | Right front roof rack support foot cushion | 63486-12010 |
| 63487A | Left front roof rack support foot cushion | 63487-12010 |
| 63488 | Right rear roof rack foot cushion pad | 63488-12010 |
| 63489 | Left rear roof rack support foot cushion pad | 63489-12010 |
| 64101 | Upper back panel sub-assembly | 64101-12A20 · 64101-12A30 · 64101-12A40 · 64101-12A50 |
| 64811 | back window glass | 64811-12C70 · 64811-12C80 · 64811-12C90 · 64811-12D00 |
| 64813D | Back window glass adhesive seal | 56117-50130 |
