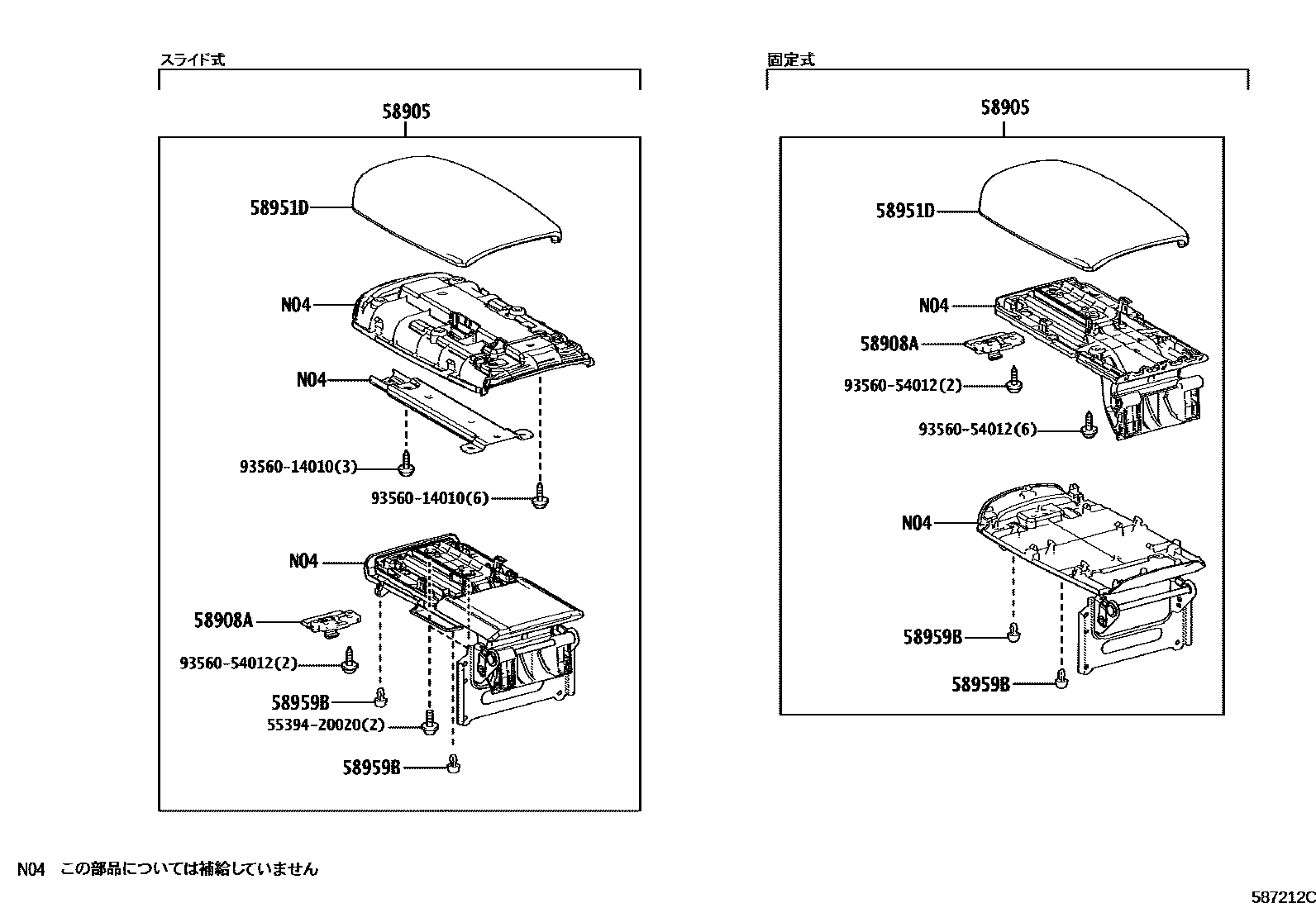

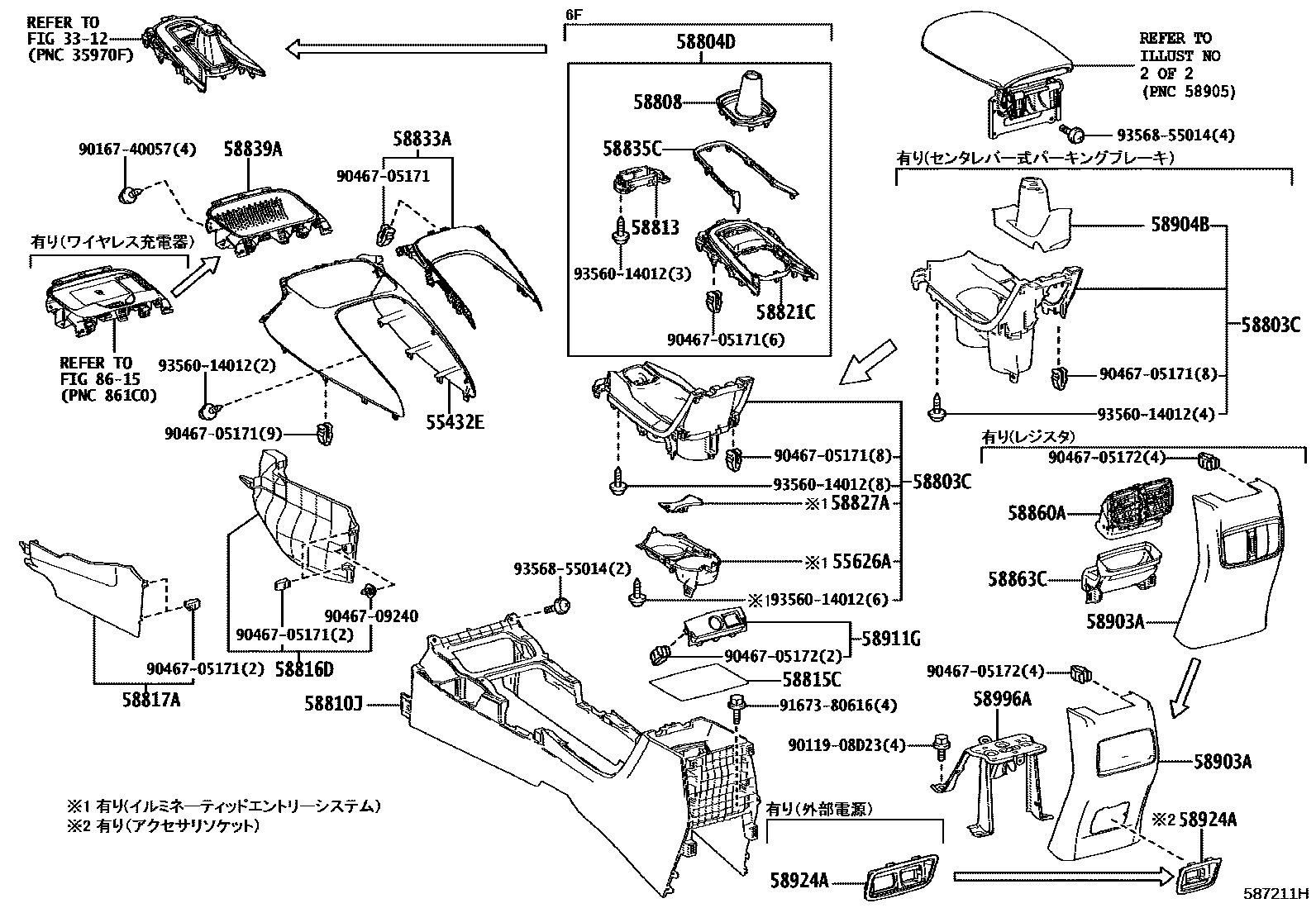

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55626A | Toyota part | 55626-12020 |
| 58803C | Armrest box cup holder sub-assembly | 58803-12050 · 58803-12060 · 58803-12061 · 58803-12110 |
| 58813 | Upper armrest box | 58813-12180 |
| 58815C | Armrest box felt pad | 58815-12240 |
| 58821C | Armrest box upper panel | 58821-12370 |
| 58827A | Armrest box groove decorative parts | 58827-12020 · 58827-12030 |
| 58860A | Armrest box air regulator assembly | 58860-12010 |
| 58863C | Toyota part | 58863-12040 |
| 58908A | Armrest box lid lock assembly | 58908-33030 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-12240 · 58996-12290 |
