Toyota COROLLA Floor stringers — Figure 5305

Toyota COROLLA EPC diagram 5305, Floor stringers, with 2 images and 31 PNC and OE references.

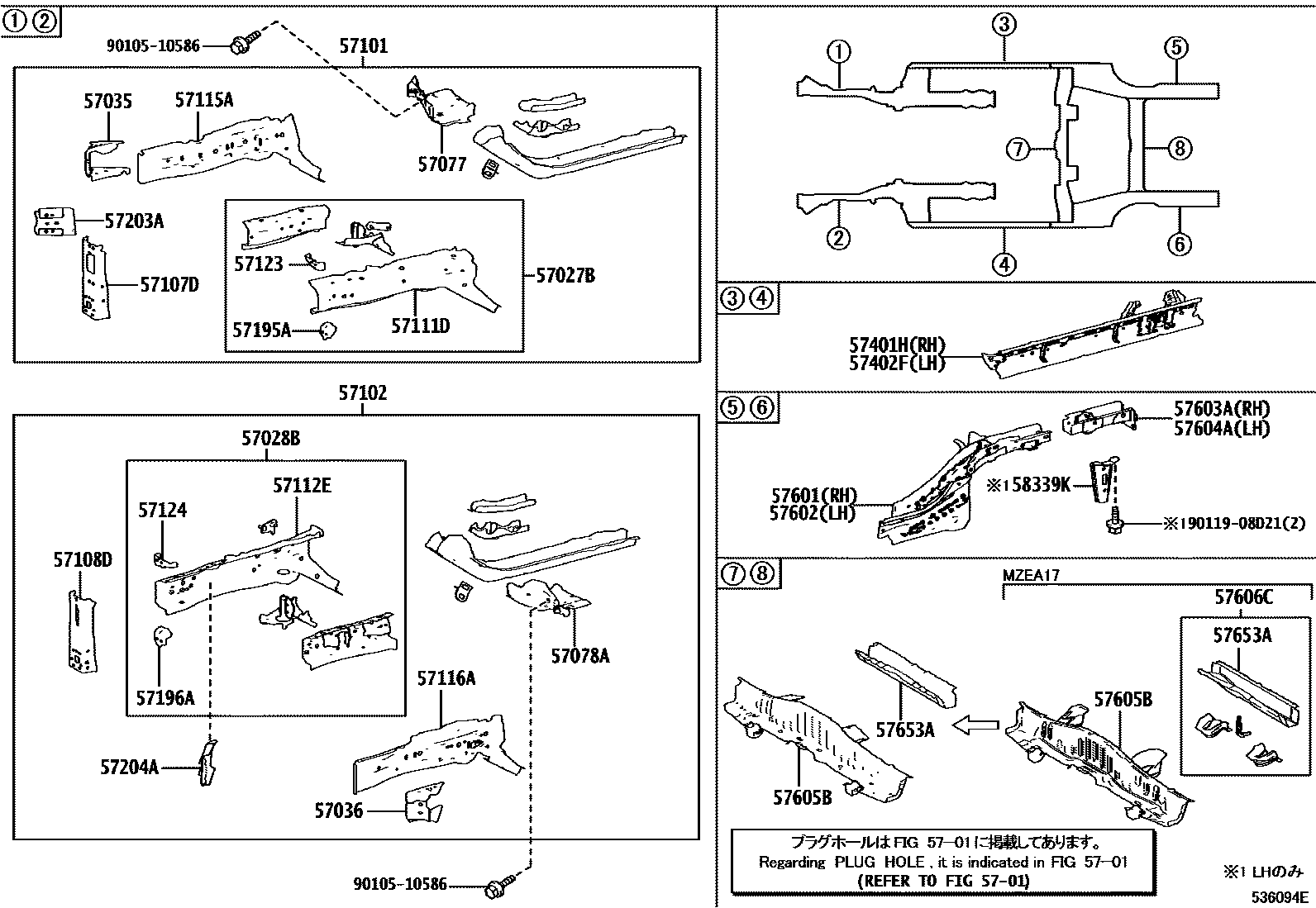

Toyota COROLLA Floor stringers EPC diagram — 536094E
Floor stringers — 536094E (201908 – 999999)

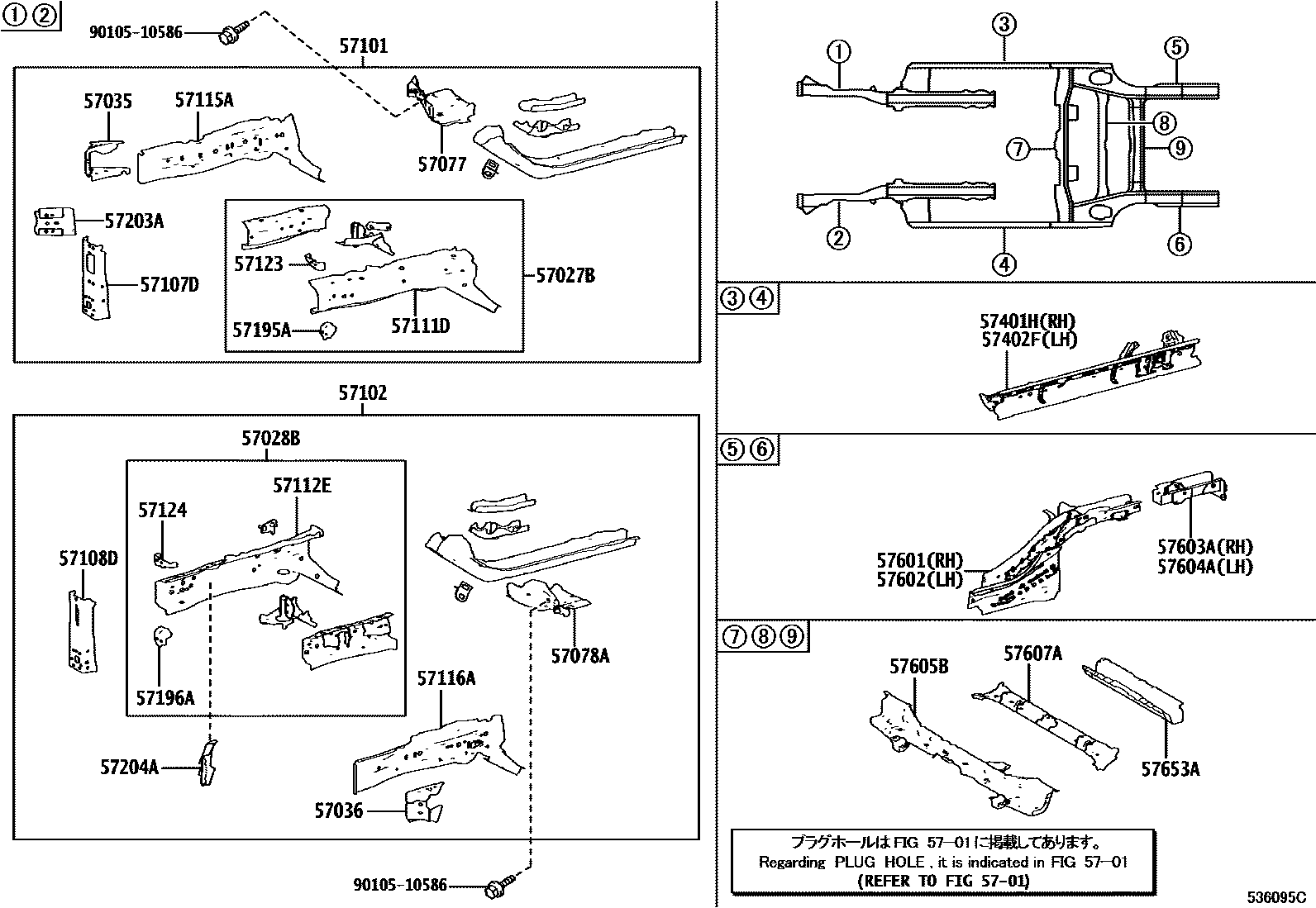

Toyota COROLLA Floor stringers EPC diagram — 536095C
Floor stringers — 536095C (201908 – 999999)

PNC and OE references

PNCPart nameOE numbers
57027BRight front inner longitudinal beam sub-assembly57027-47021
57028BLeft front inner longitudinal beam sub-assembly57028-47040
57035Right front running board panel sub-assembly57035-47021
57036Left front running board panel sub-assembly57036-47031
57077Right front anti-torsion box-section sub-assembly57077-47041
57078ALeft front anti-torsion box-section sub-assembly57078-47041
57101Right front longitudinal beam sub-assembly57101-47071
57102Left front longitudinal beam sub-assembly57102-47091
57107DFront bumper right side installation reinforcement sub-assembly57107-47030
57108DFront bumper left side installation reinforcement sub-assembly57108-47030
57111DInner right front longitudinal beam57111-47030
57112EInboard left front longitudinal beam57112-47030
57115ARight front longitudinal beam outer panel57115-47901
57116ALeft front longitudinal beam outer panel57116-47902
57123Right front longitudinal beam bracket57123-47020
57124Left front longitudinal beam bracket57124-47020
57195ARight front longitudinal beam front reinforcement57195-47010
57196ALeft front longitudinal beam front reinforcement57196-47030
57203ANo. 2 right front longitudinal beam extension sub-assembly57203-47011
57204ANo. 2 left front longitudinal beam extension sub-assembly57204-47011
57401HFloor right inner longitudinal beam sub-assembly57401-12640
57402FFloor left inner longitudinal beam sub-assembly57402-12640
57601Rear floor right longitudinal beam sub-assembly57601-12B70 · 57601-12C30 · 57601-12C40
57602Rear floor left longitudinal beam sub-assembly57602-12C50 · 57602-12D10 · 57602-12D20
57603ARear floor right rear longitudinal beam sub-assembly57603-12120 · 57603-12140 · 57603-16020 · 57603-47060
57604ARear floor left rear longitudinal beam sub-assembly57604-12110 · 57604-12120 · 57604-12140 · 57604-47060
57605BRear floor No. 1 cross member sub-assembly57605-10071 · 57605-16070 · 57605-47080
57606CRear floor No. 2 cross member sub-assembly57606-12390
57607ARear floor No. 3 cross member sub-assembly57607-47020
57653ANo. 2 rear floor cross member57653-12190 · 57653-47040
58339KLift the bracket58339-12070
