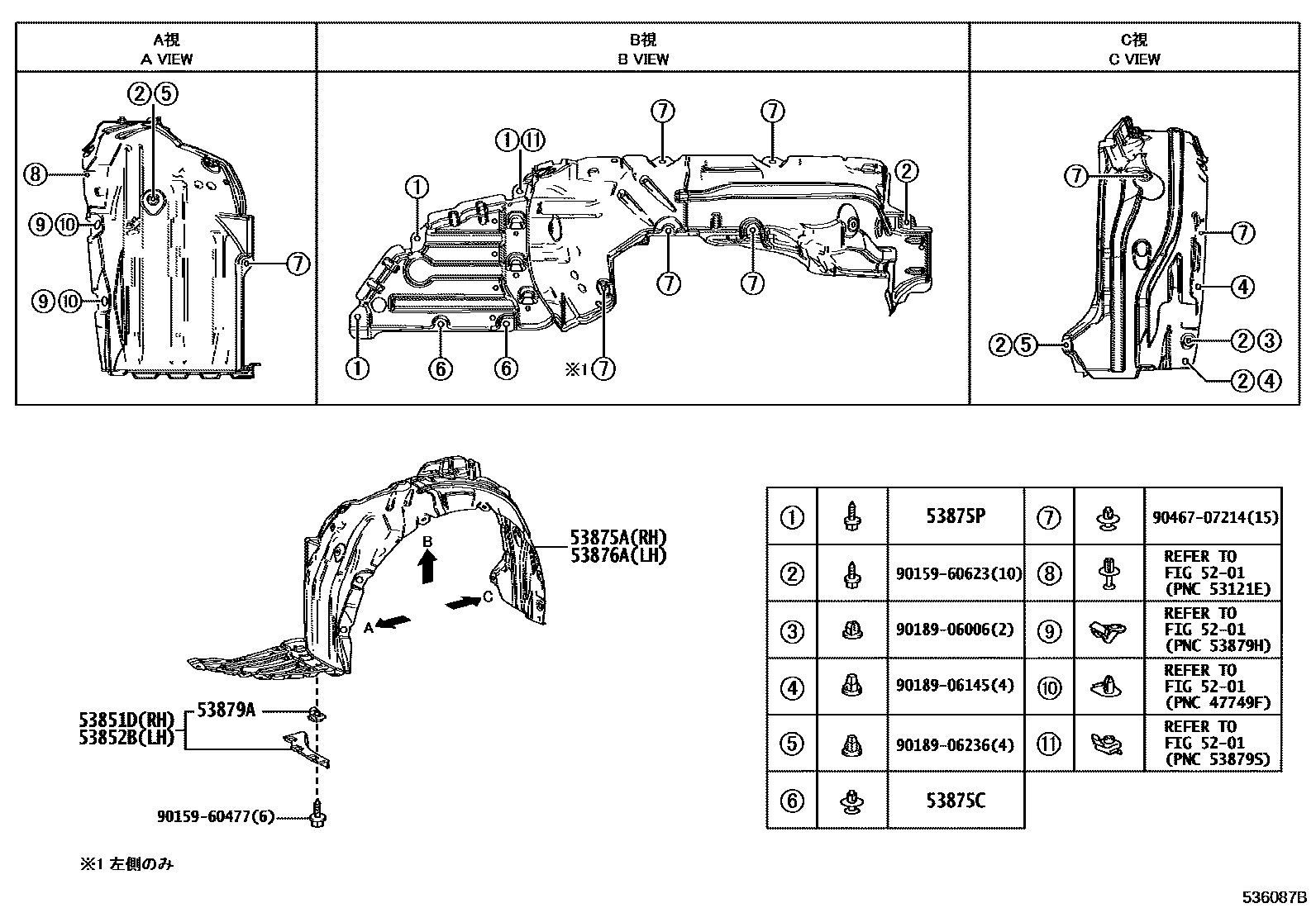

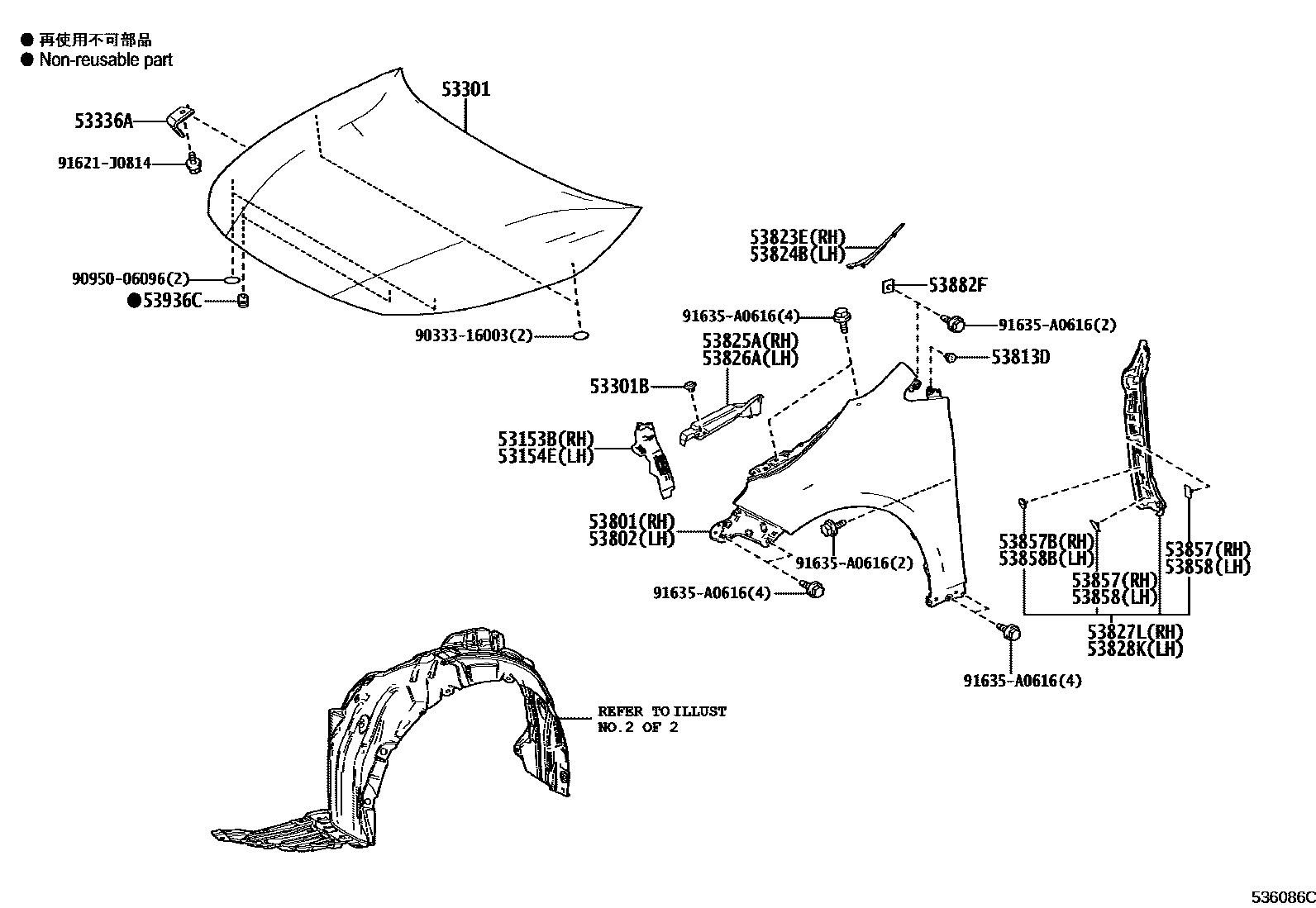

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53153B | front side deflector | 53153-12090 |
| 53154E | Toyota part | 53154-12060 |
| 53301 | Engine cover sub-assembly | 53301-12B70 |
| 53301B | engine cover cushion | 53384-78010 |
| 53336A | Engine cover strut bracket | 53336-12030 |
| 53801 | Right front fender sub-assembly | 53801-12B20 |
| 53802 | Left front fender sub-assembly | 53802-12B20 |
| 53813D | front fender extension | 53813-48011 |
| 53823E | No. 2 right front side panel protector | 53823-12060 |
| 53824B | No. 2 left front side panel protector | 53824-12050 |
| 53825A | Right front fender protection piece | 53825-12100 |
| 53826A | Protection piece on left front fender | 53826-12080 |
| 53827L | Right front fender side panel protector | 53827-12160 |
| 53828K | Left front fender side panel protector | 53828-12170 |
| 53851D | Right front fender outer panel pad | 53851-47061 |
| 53852B | Left front fender exterior panel pad | 53852-47041 |
| 53857 | Right front fender external panel fixing piece | 53857-12010 |
| 53857B | Right front fender external panel fixing piece | 53857-47011 |
| 53858 | Left front fender external panel fixing piece | 53857-12010 |
| 53858B | Left front fender external panel fixing piece | 53857-47011 |
| 53875A | Right front fender lining | 53805-12120 · 53805-12130 |
| 53875C | Front fender lining clip | 90467-07214 · 90467-07220 |
| 53875P | Toyota part | 90159-60477 |
| 53876A | Left front fender lining | 53806-12120 · 53806-12130 |
| 53879A | Front fender lining fixing parts | 53879-47020 |
| 53882F | front fender seal | 53882-33060 |
| 53936C | Cushion pad | 90541-09117 |
