Toyota COROLLA 后保险杠及附件 — Figure 5202

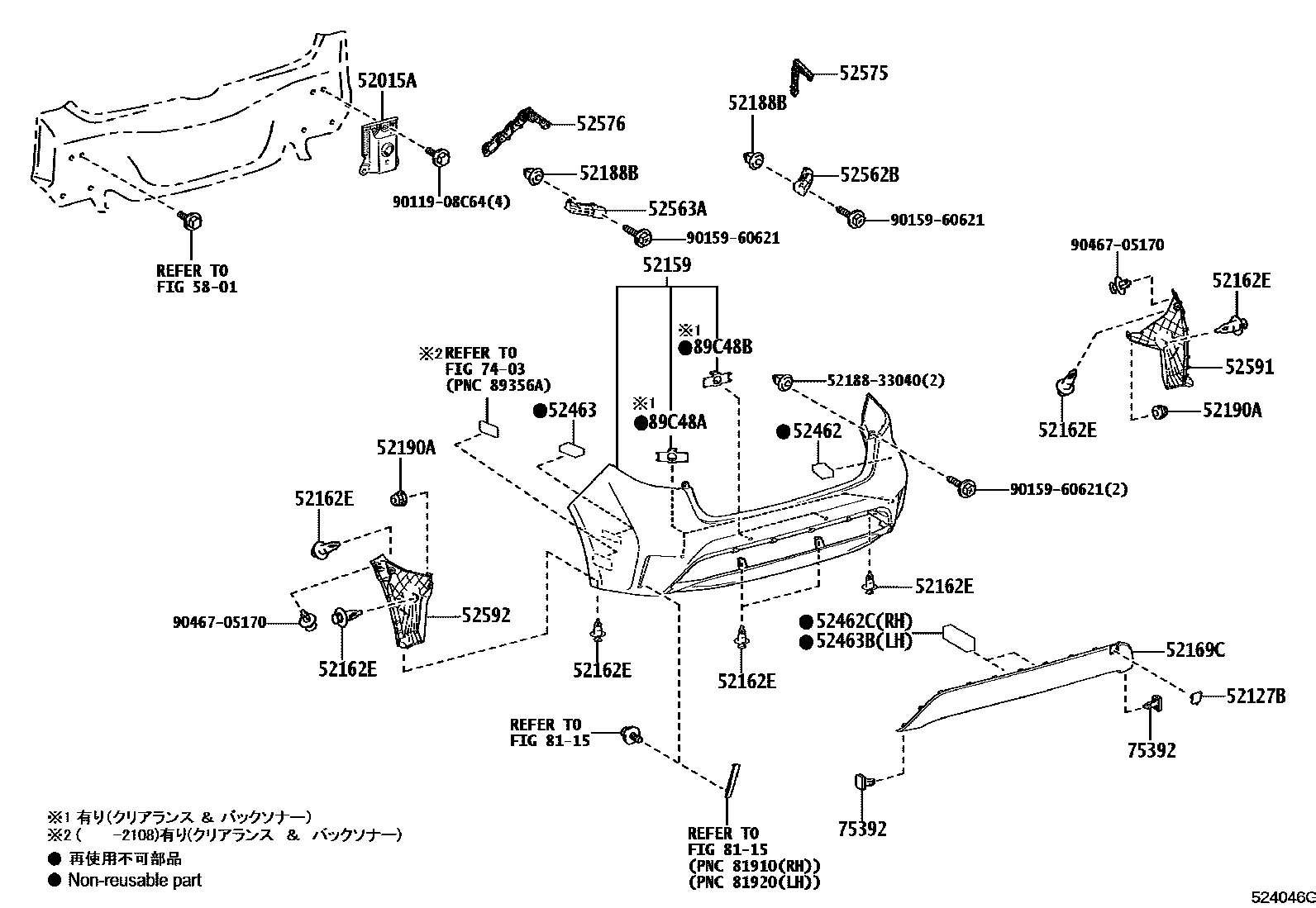

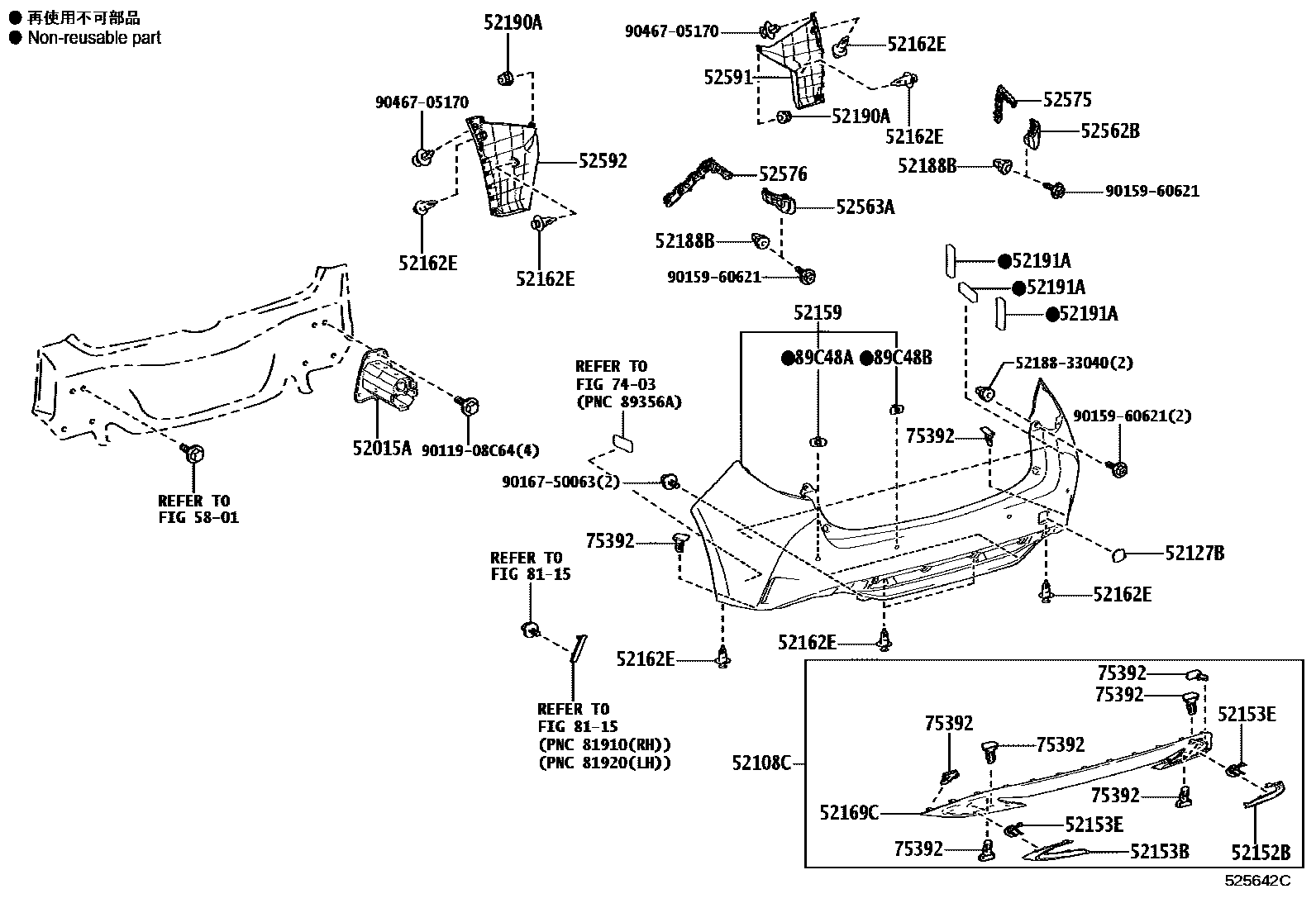

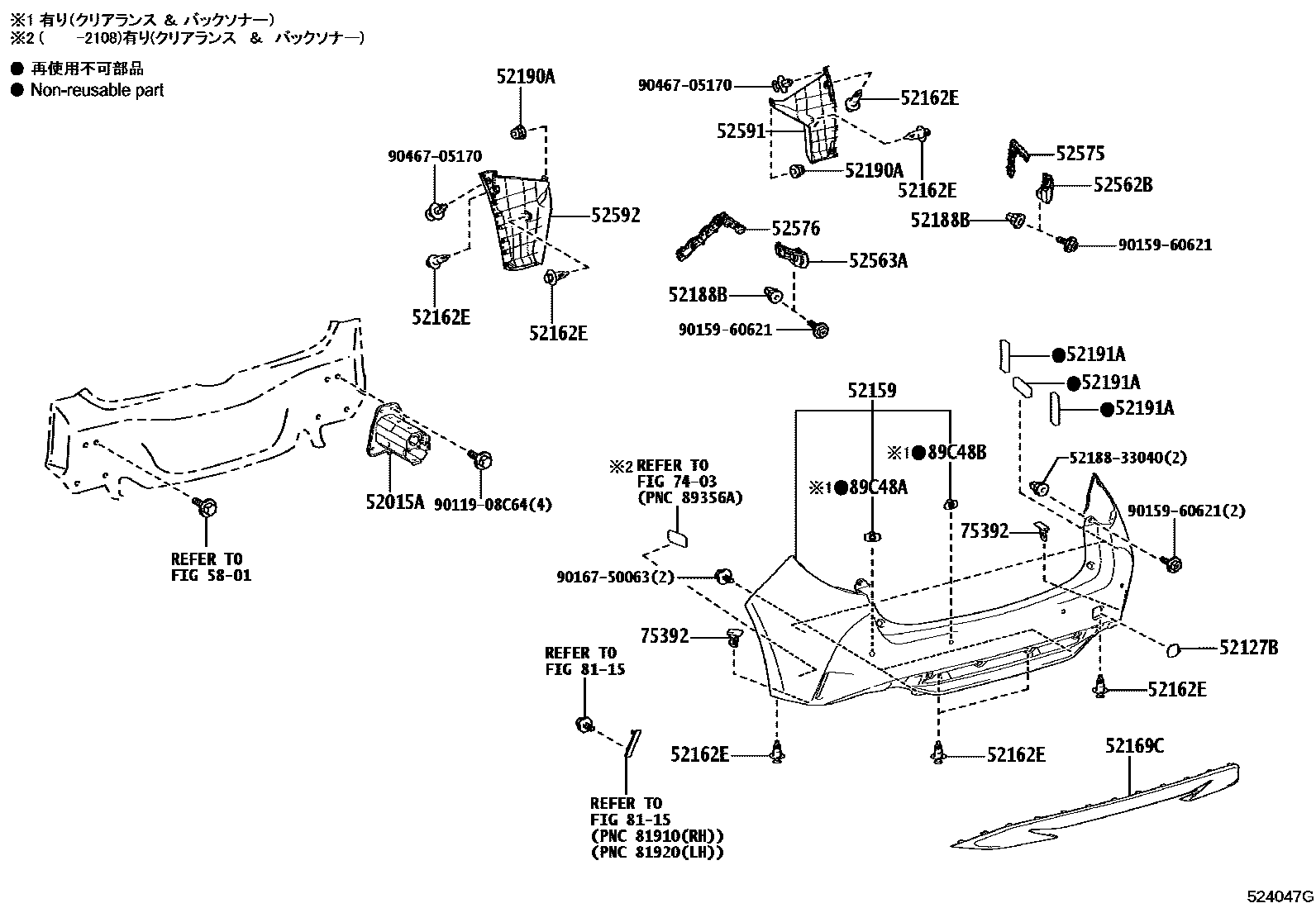

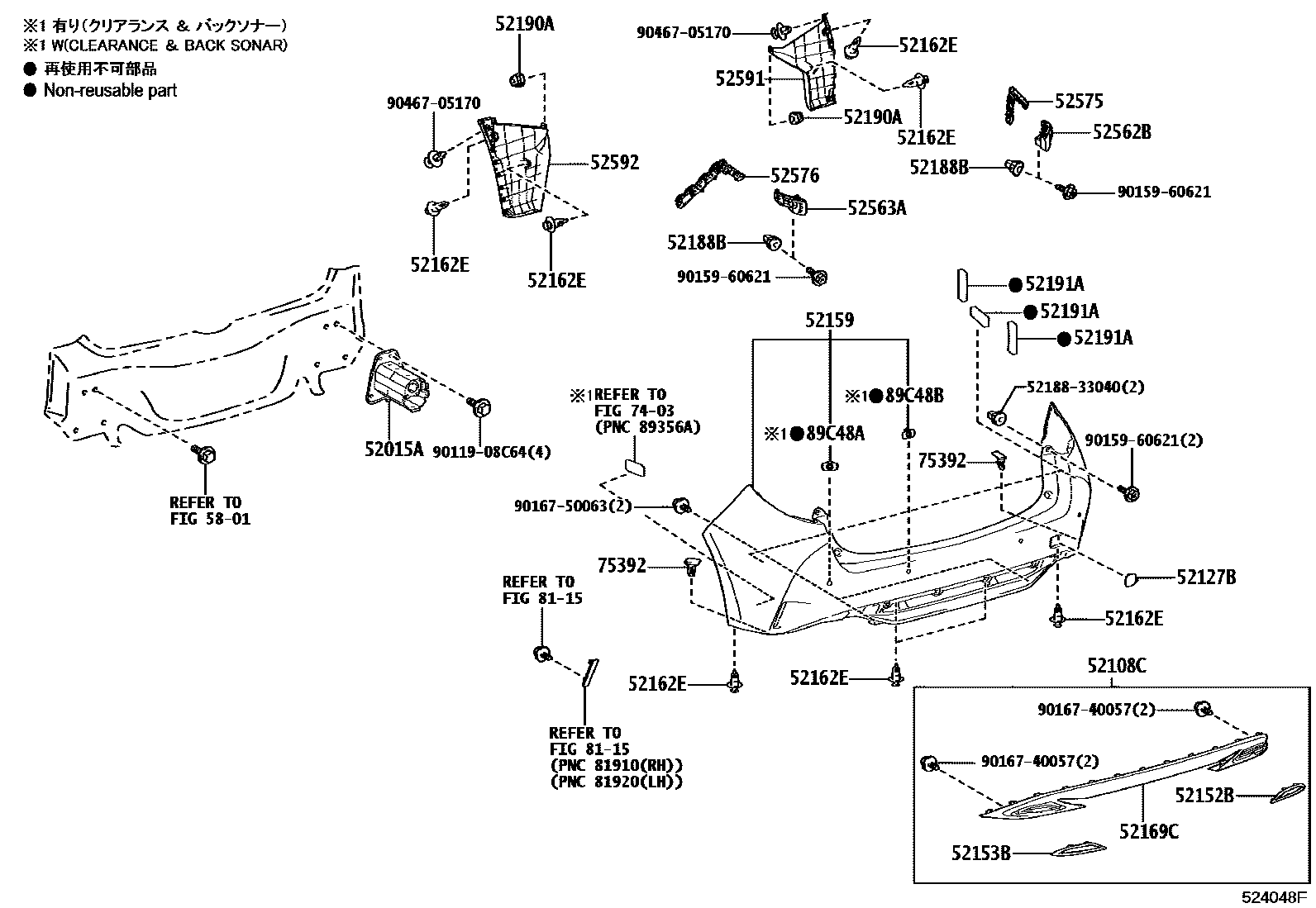

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-12480 · 52015-12500 |
| 52108C | Rear bumper center extension sub-assembly | 52108-12060 · 52108-12070 |
| 52127B | Rear bumper hole cover | 52161-12080 |
| 52152B | Rear bumper right extension | 52152-12290 · 52152-12320 |
| 52153B | Rear bumper left extension | 52153-12290 · 52153-12320 |
| 52153E | Toyota part | 76879-44010 |
| 52162E | Rear bumper insert | 52161-16010 |
| 52169C | Rear bumper lower cover | 52169-12210 · 52169-12230 · 52169-12240 · 52169-12300 |
| 52188B | Rear bumper installation spacer | 52188-33040 · 90189-06228 |
| 52191A | Rear bumper arm seal | 52191-47030 |
| 52462 | Rear bumper right side lining | 52462-12140 |
| 52462C | Toyota part | 52462-24010 |
| 52463 | Rear bumper left lining | 52462-12140 |
| 52463B | Toyota part | 52462-24010 |
| 52562B | Rear bumper upper right fixing bracket | 52562-12220 · 52562-12250 |
| 52563A | Rear bumper upper left fixing bracket | 52563-12140 · 52563-12250 |
| 52575 | Rear bumper right side fixing bracket | 52575-12250 · 52575-12260 |
| 52576 | Rear bumper left side fixing bracket | 52576-12240 · 52576-12250 |
| 52591 | Rear bumper right seal | 52591-12340 |
| 52592 | Rear bumper left seal | 52592-12320 |
| 75392 | External protective strip fixings | 75392-35220 |
| 89C48A | Toyota part | 89348-48311 · 89348-50130 · 89348-K0231 |
| 89C48B | Toyota part | 89348-58110 |
