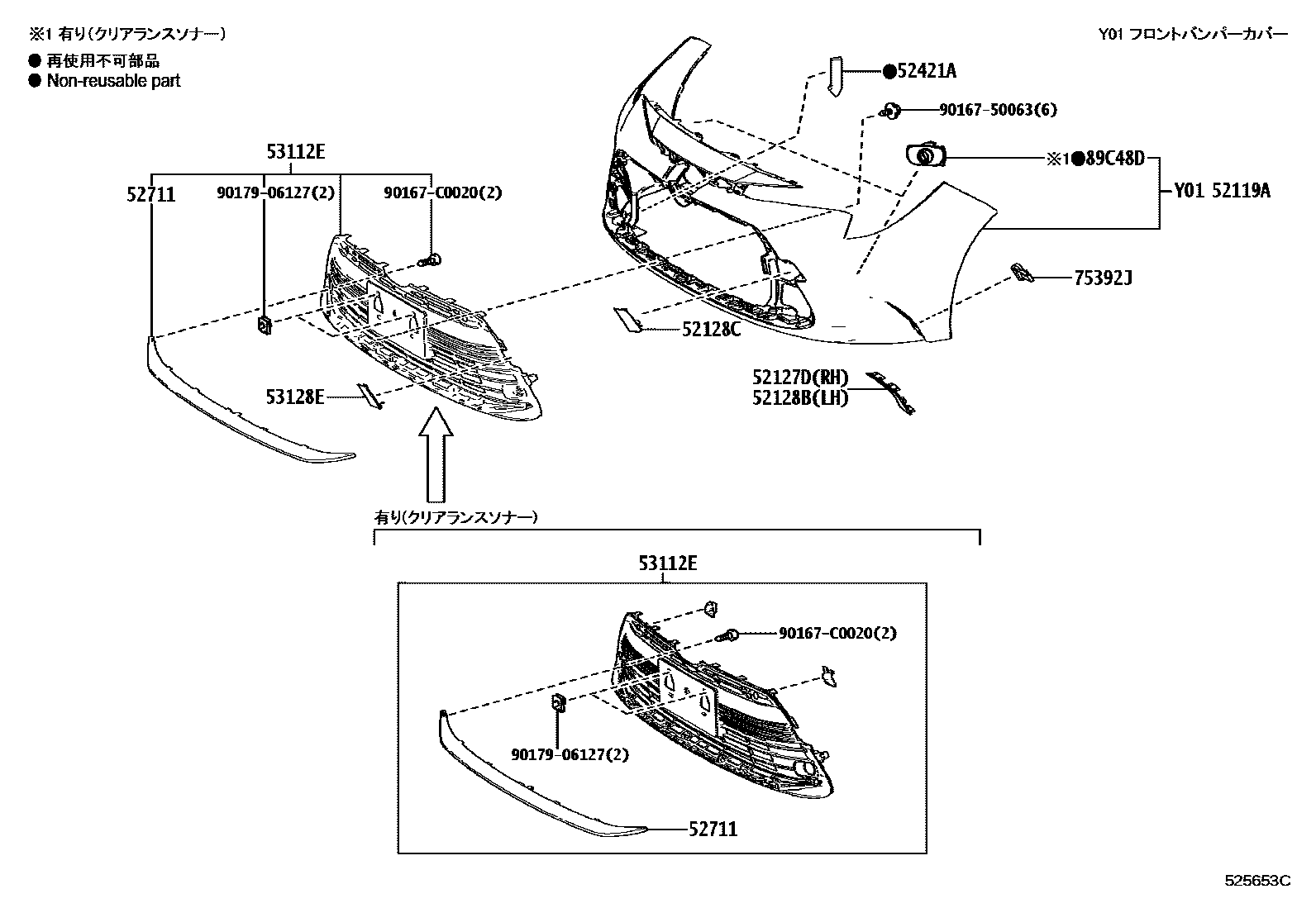

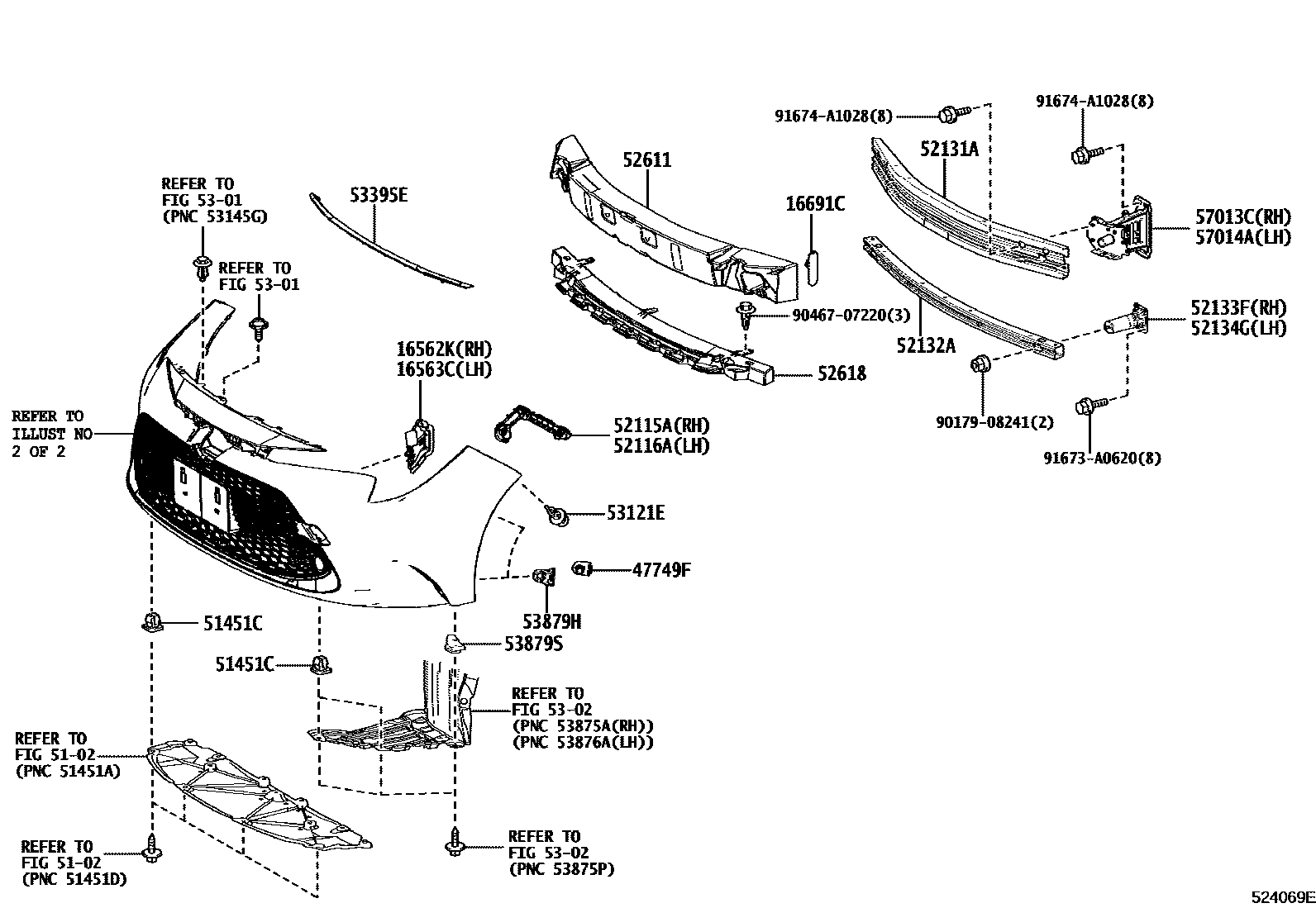

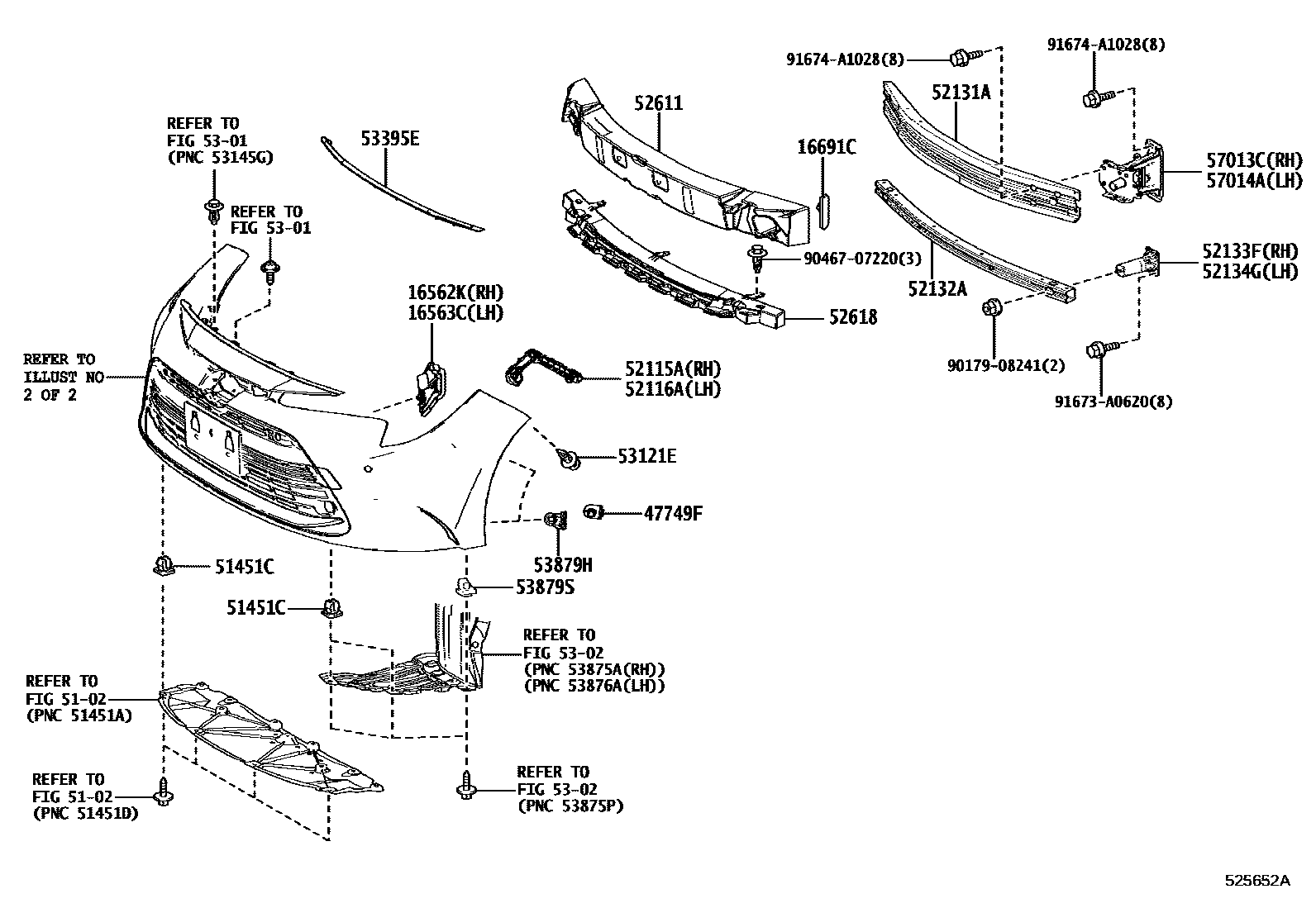

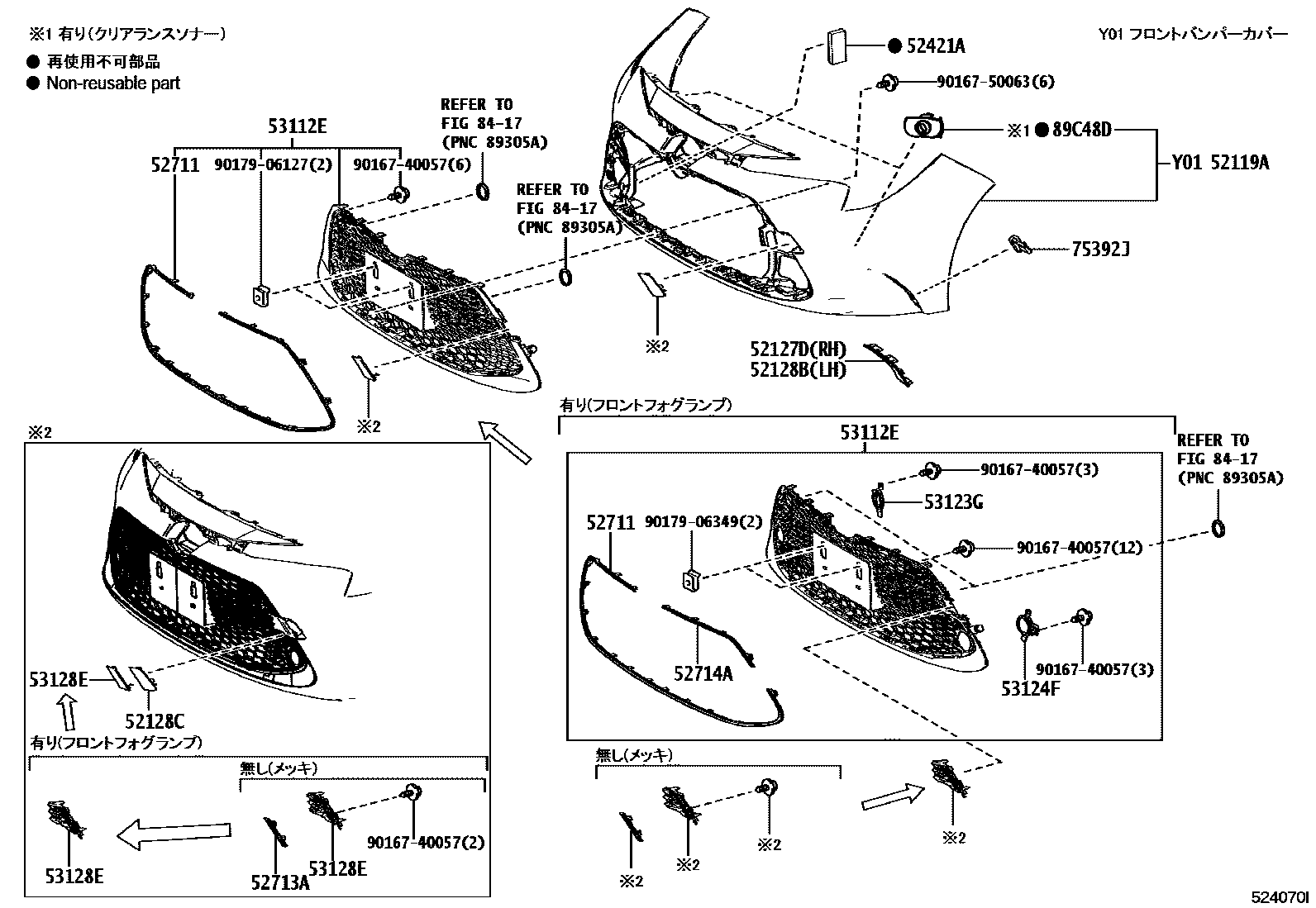

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 4 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16562K | Toyota part | 16562-37040 |
| 16563C | Toyota part | 16563-37040 |
| 16691C | Toyota part | 16691-37020 |
| 47749F | Toyota part | 47749-33030 |
| 51451C | Toyota part | 90189-06237 |
| 52115A | Front bumper right side bracket | 52115-12480 |
| 52116A | Front bumper left bracket | 52116-12440 |
| 52127D | Front bumper right hole cover | 81481-12360 |
| 52128B | Front bumper left hole cover | 81482-12270 |
| 52131A | Front bumper reinforcement | 52131-12320 |
| 52132A | No. 2 front bumper reinforcement | 52132-12150 · 52132-12151 · 52132-12160 · 52132-12161 |
| 52133F | Front bumper right side bracket | 52133-12190 |
| 52134G | Front bumper left bracket | 52133-12190 |
| 52421A | front bumper lining | 52421-12090 |
| 52611 | front bumper energy absorber | 52611-12450 |
| 52618 | Front bumper lower shock absorber | 52618-12130 |
| 52711 | Front bumper protection strip | 52711-12340 · 52711-12410 · 52711-12420 · 52711-12430 · 52711-12450 · 52711-12460 · 52711-12470 · 52711-12480 |
| 52713A | Front bumper left protective strip | 52713-12090 |
| 52714A | Toyota part | 52714-12020 · 52714-12030 · 52714-12040 · 52714-12050 |
| 53112E | No. 1 radiator lower grille | 53102-12200 · 53102-12210 · 53102-12220 · 53102-12250 · 53102-12260 · 53102-12270 · 53102-12280 · 53102-12320 · 53102-12330 · 53102-12340 · 53102-12350 · 53102-12360 · 53102-12420 · 53102-12430 · 53102-12450 · 53102-12460 |
| 53121E | Clamp No. 1 (for front bumper) | 90467-05170 |
| 53123G | Toyota part | 53123-12100 · 53123-12110 · 53123-12120 · 53123-12130 |
| 53124F | Toyota part | 53124-12090 · 53124-12100 · 53124-12110 · 53124-12120 |
| 53128E | Toyota part | 52040-12150 · 52040-12220 · 52040-12230 · 53128-12050 · 53128-12140 · 53128-12190 · 53128-12200 |
| 53395E | Engine cover to front end plate seal | 53395-12140 |
| 53879H | Front fender lining fixing parts | 53879-33030 |
| 53879S | Front fender lining fixing parts | 53879-17020 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-12080 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-12080 |
| 75392J | External protective strip fixings | 75392-35220 |
