Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51107A | Right rear longitudinal beam reinforcement sub-assembly | 51107-47020 |
| 51108A | Left rear longitudinal beam reinforcement sub-assembly | 51108-47020 |

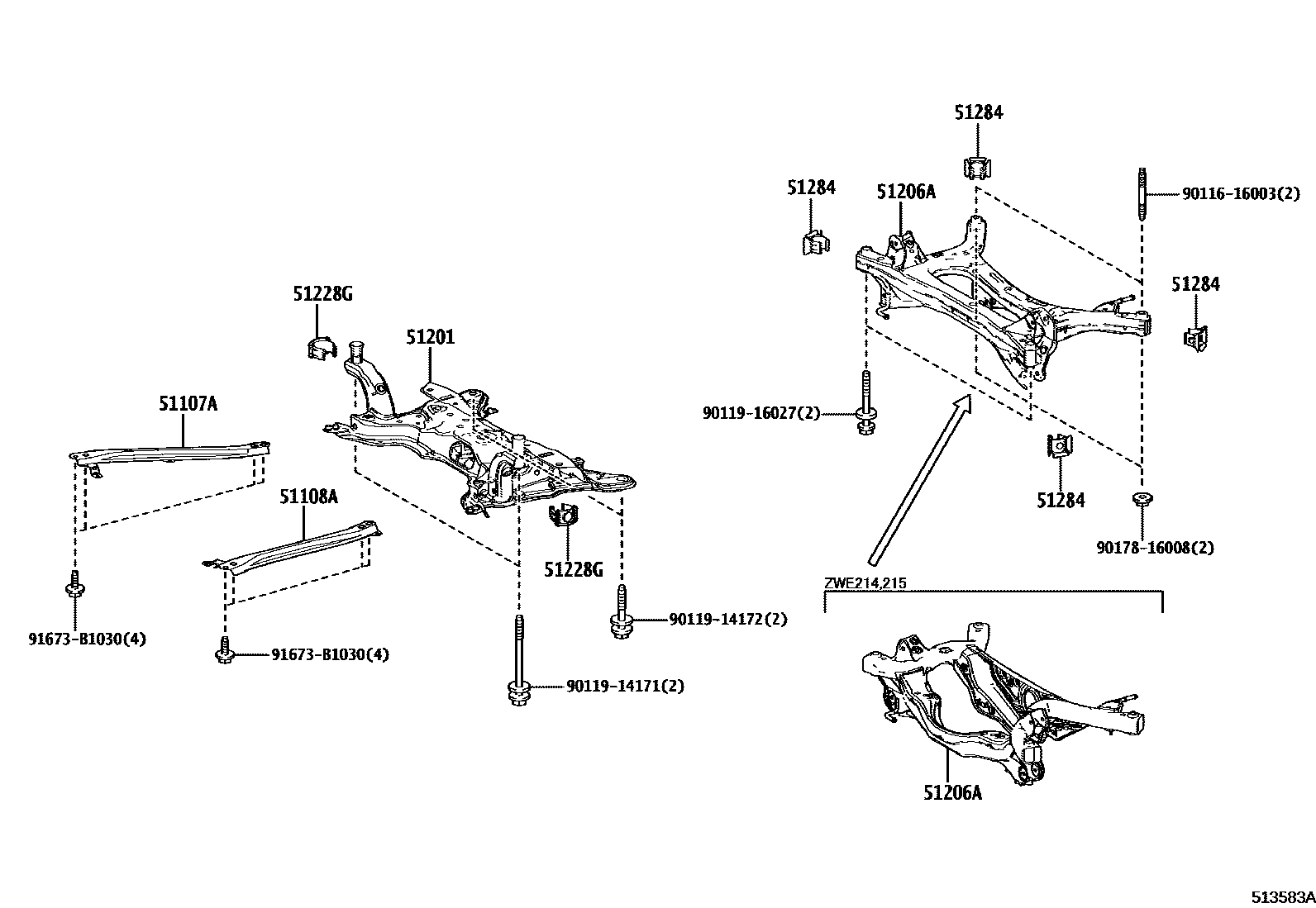

| 51201 | Front suspension cross member sub-assembly | 51201-47072 |
| 51206A | Rear suspension cross member sub-assembly | 51206-47012 · 51206-47013 · 51206-47023 · 51206-47024 · 51206-47025 · 51206-47031 |
| 51228G | Toyota part | 51228-47010 |
| 51284 | Rear suspension cross member hole cover | 51284-47010 |

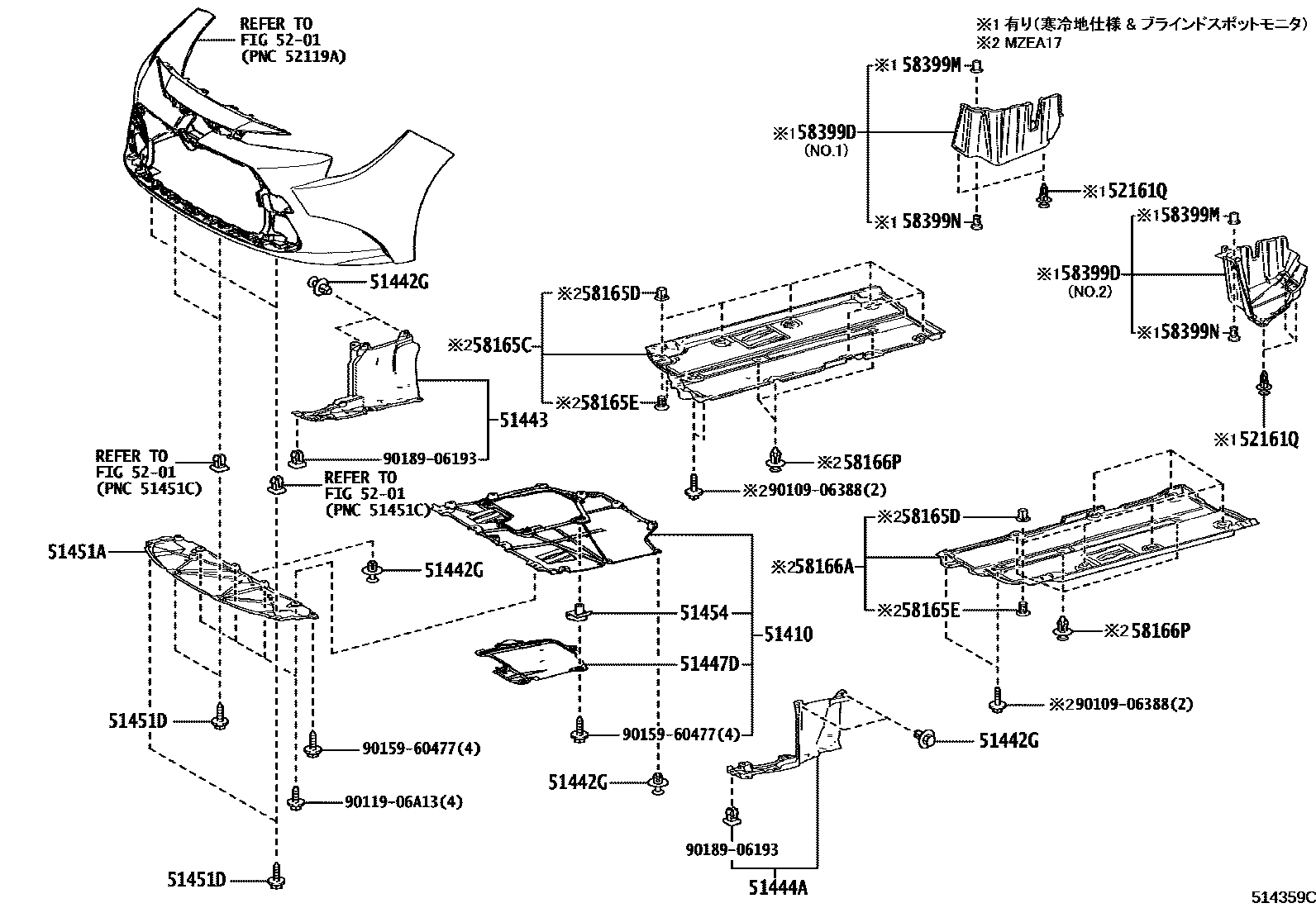

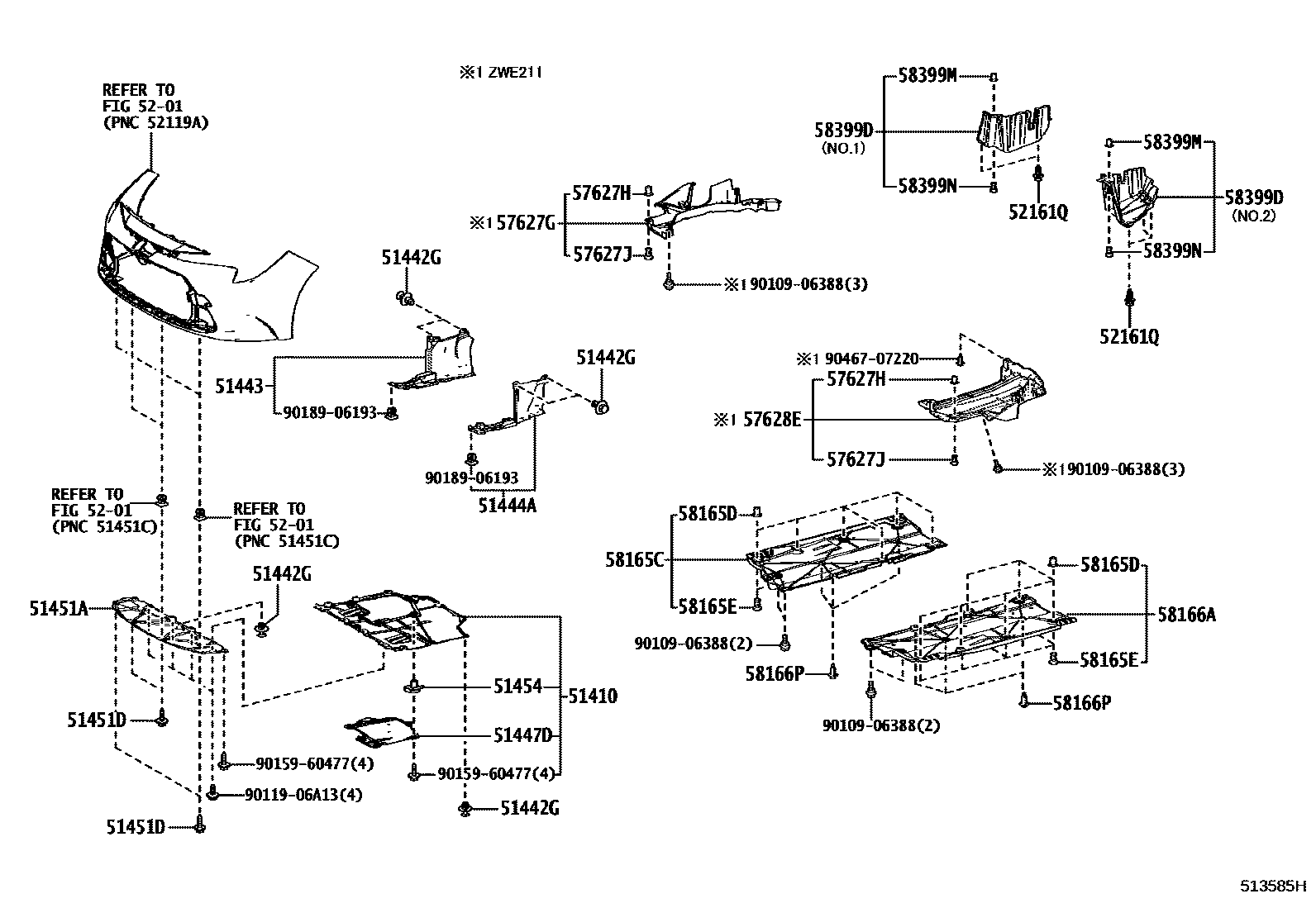

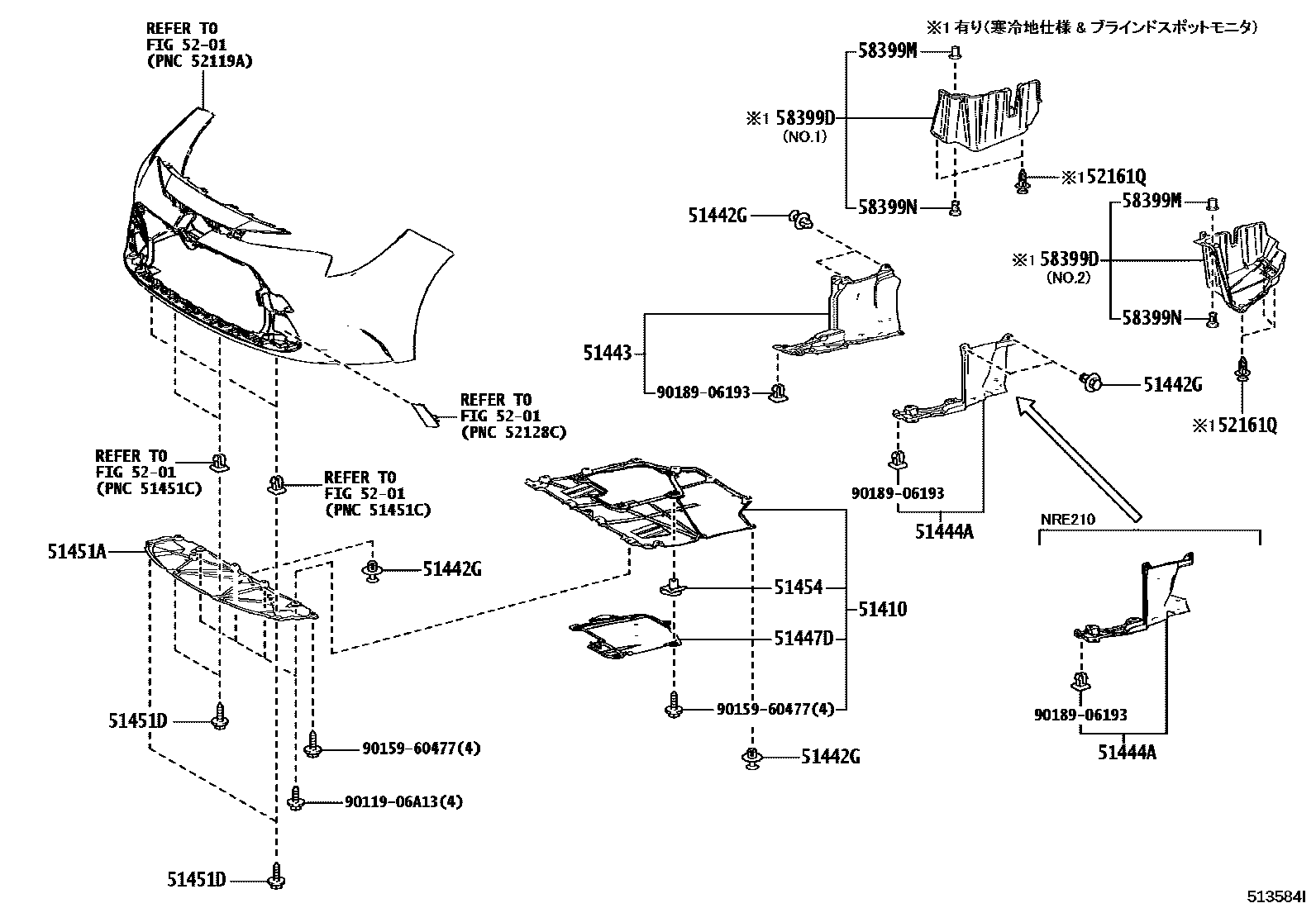

| 51410 | Engine No. 1 bottom cover assembly | 51410-12120 · 51410-12130 · 51410-12181 |
| 51442G | No. 1 engine bottom cover clip | 90467-07220 |
| 51443 | Engine right rear bottom cover | 51443-12110 |
| 51444A | Engine left rear bottom cover | 51444-12080 · 51444-12090 |
| 51447D | No. 4 engine center bottom cover | 51447-12090 · 51447-12121 |
| 51451A | Engine center cover | 51451-12120 |
| 51451D | Toyota part | 90159-60477 |
| 51454 | engine rear cover | 90179-06104 · 90467-05176 |
| 52161Q | front bumper insert | 52161-16010 |
| 57627G | Toyota part | 58390-12010 |
| 57628E | Rear floor left longitudinal member cover | 57628-12160 |
| 58165C | Front floor right cover | 58165-12170 · 58165-12200 |
| 58166A | Front floor left cover | 58166-12060 · 58166-12070 |
| 58166P | Toyota part | 90467-07220 |
| 58399D | Floor No. 2 lower cover | 58398-12090 · 58399-12090 |
