Toyota COROLLA 制动总泵 — Figure 4702

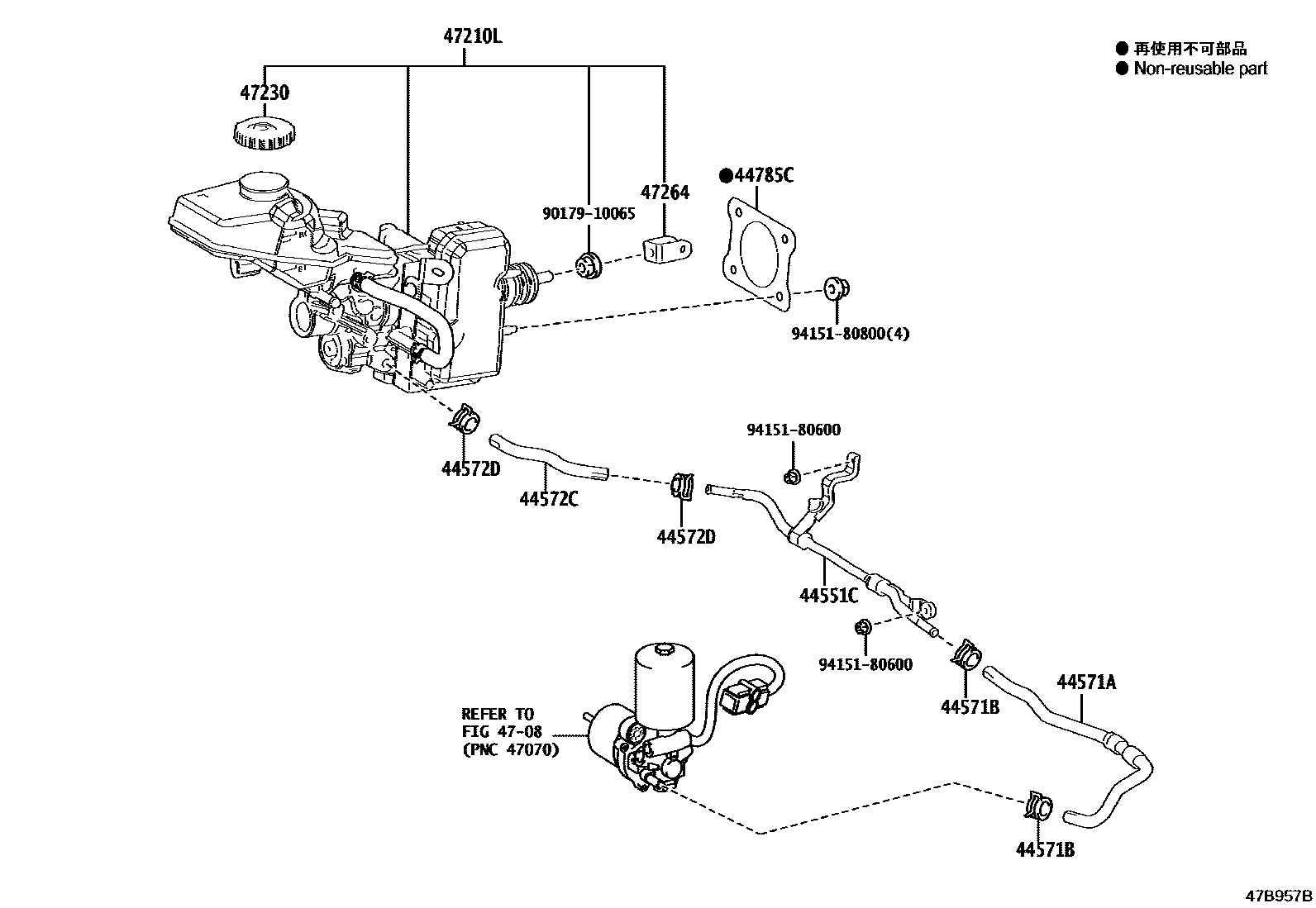

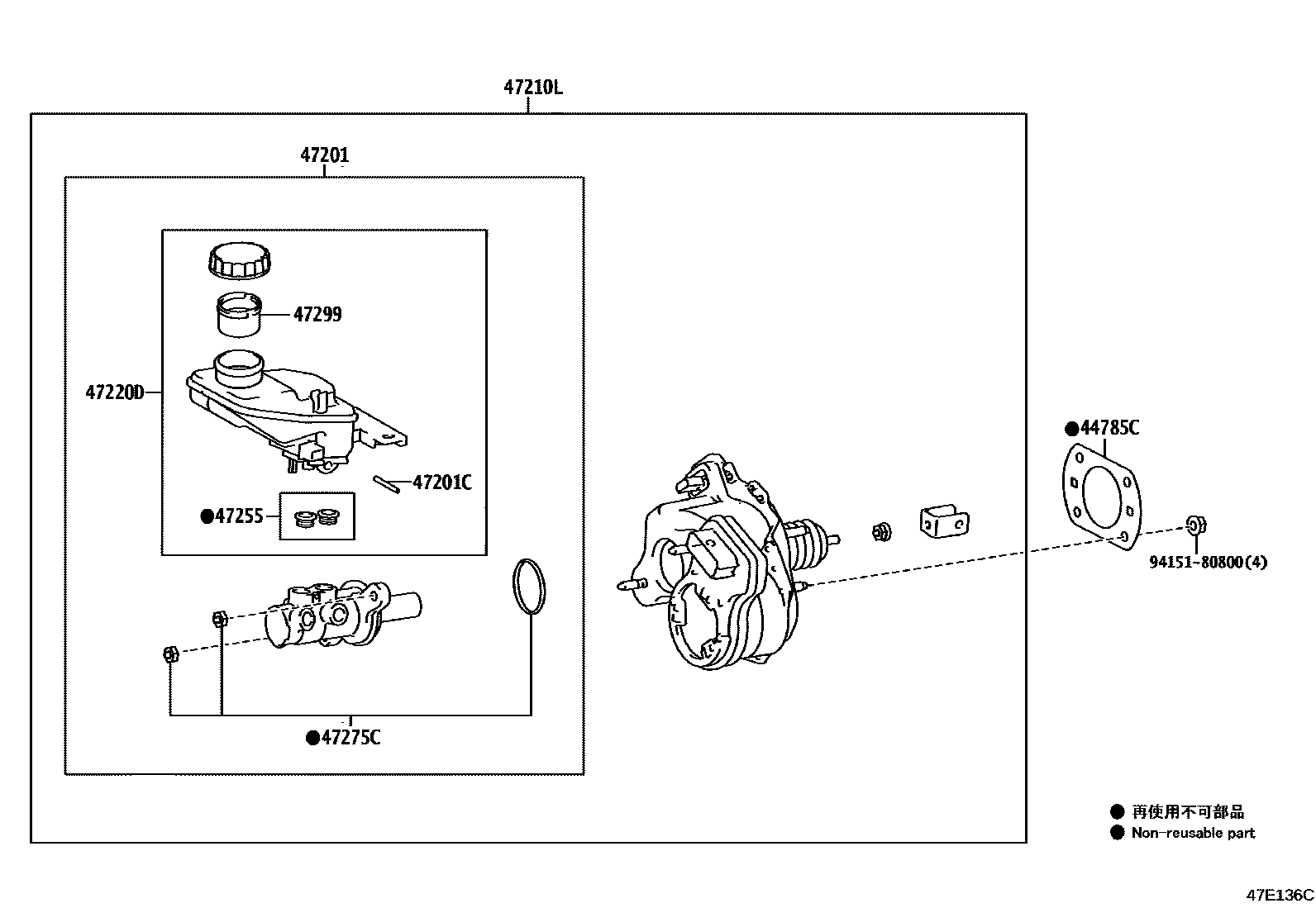

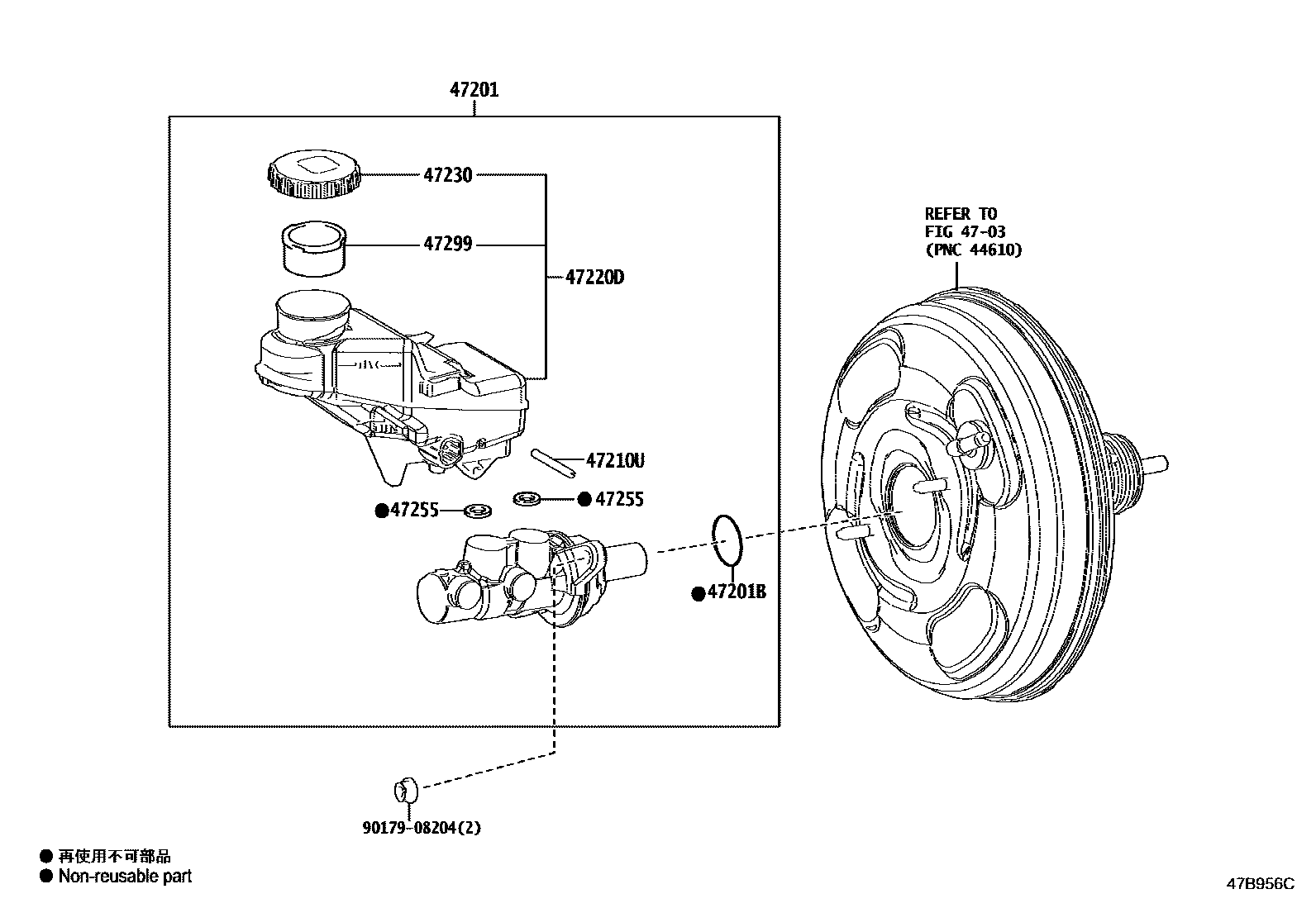

Toyota COROLLA EPC diagram 4702, 制动总泵, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44551C | No. 1 brake actuator pipe | 44551-47060 |
| 44571A | No. 1 brake actuator hose | 44571-47080 |
| 44571B | Toyota part | 96137-41501 |
| 44572C | No. 2 brake actuator hose | 44572-47060 |
| 44572D | Toyota part | 96137-41501 |
| 44785C | brake booster pad | 44785-12040 · 44785-12050 |
| 47201 | Brake master cylinder sub-assembly | 47201-12C50 · 47201-12C60 · 47201-19095 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 |
| 47201C | Brake master cylinder ring pin | 90069-35007 |
| 47210L | Brake booster assembly with master cylinder | 47050-12800 · 47050-12810 · 47050-12840 · 47050-12850 · 47210-12610 |
| 47210U | Direct sales (for brake master cylinder) | 90029-15803 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-12350 · 47220-12360 · 47220-19015 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-33330 · 47230-47090 |
| 47255 | Master pump reservoir seal | 47255-09040 · 90029-48001 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-47010 |
| 47275C | Toyota part | 47275-09010 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 · 47299-52110 |
