Toyota COROLLA 传动桥总成(CVT) — Figure 3401

Toyota COROLLA EPC diagram 3401, 传动桥总成(CVT), with 18 images and 83 PNC and OE references.

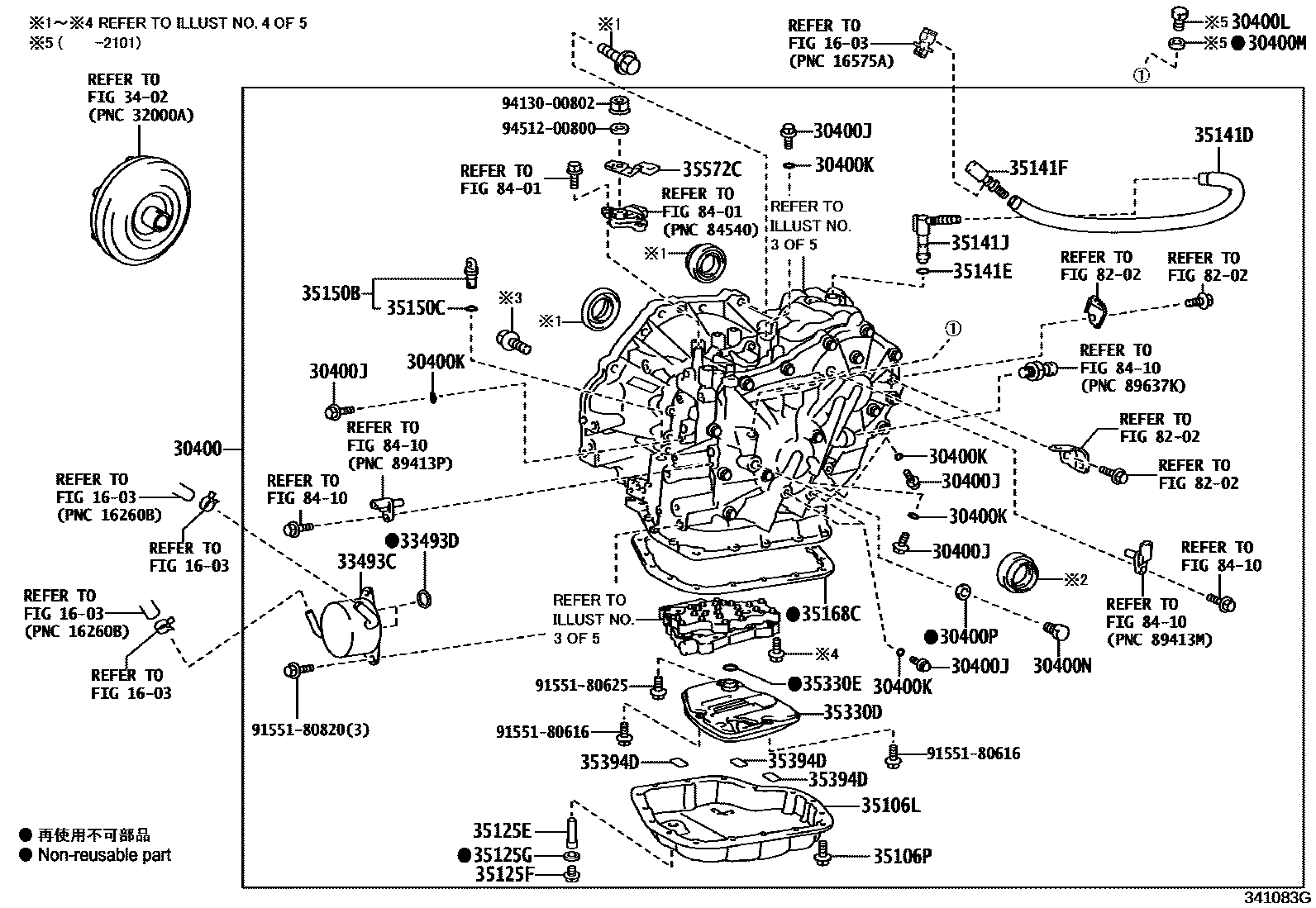

Toyota COROLLA 传动桥总成(CVT) EPC diagram — 341083G
传动桥总成(CVT) — 341083G (201908 – 999999)

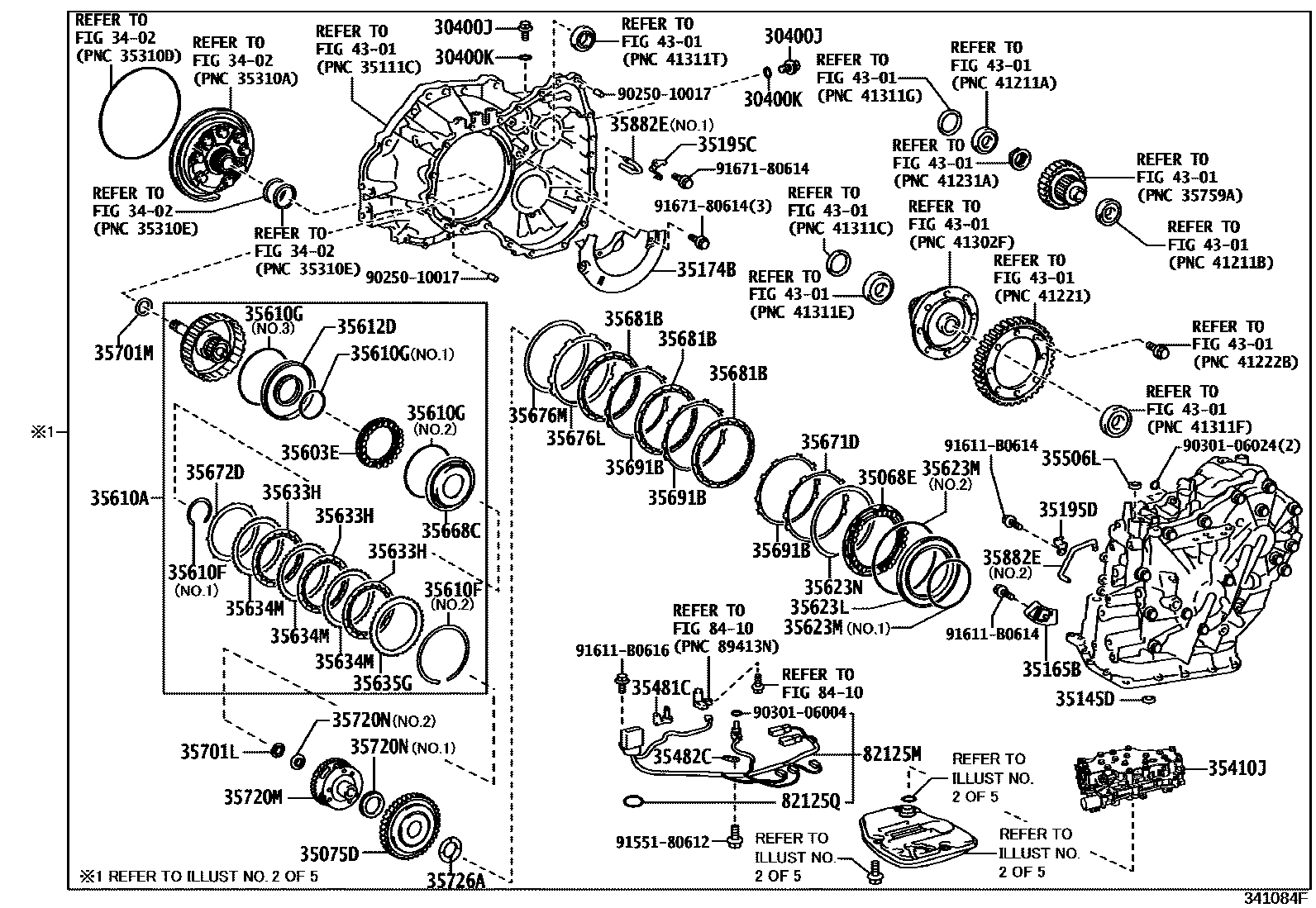

Toyota COROLLA 传动桥总成(CVT) EPC diagram — 341084F
传动桥总成(CVT) — 341084F (201908 – 999999)

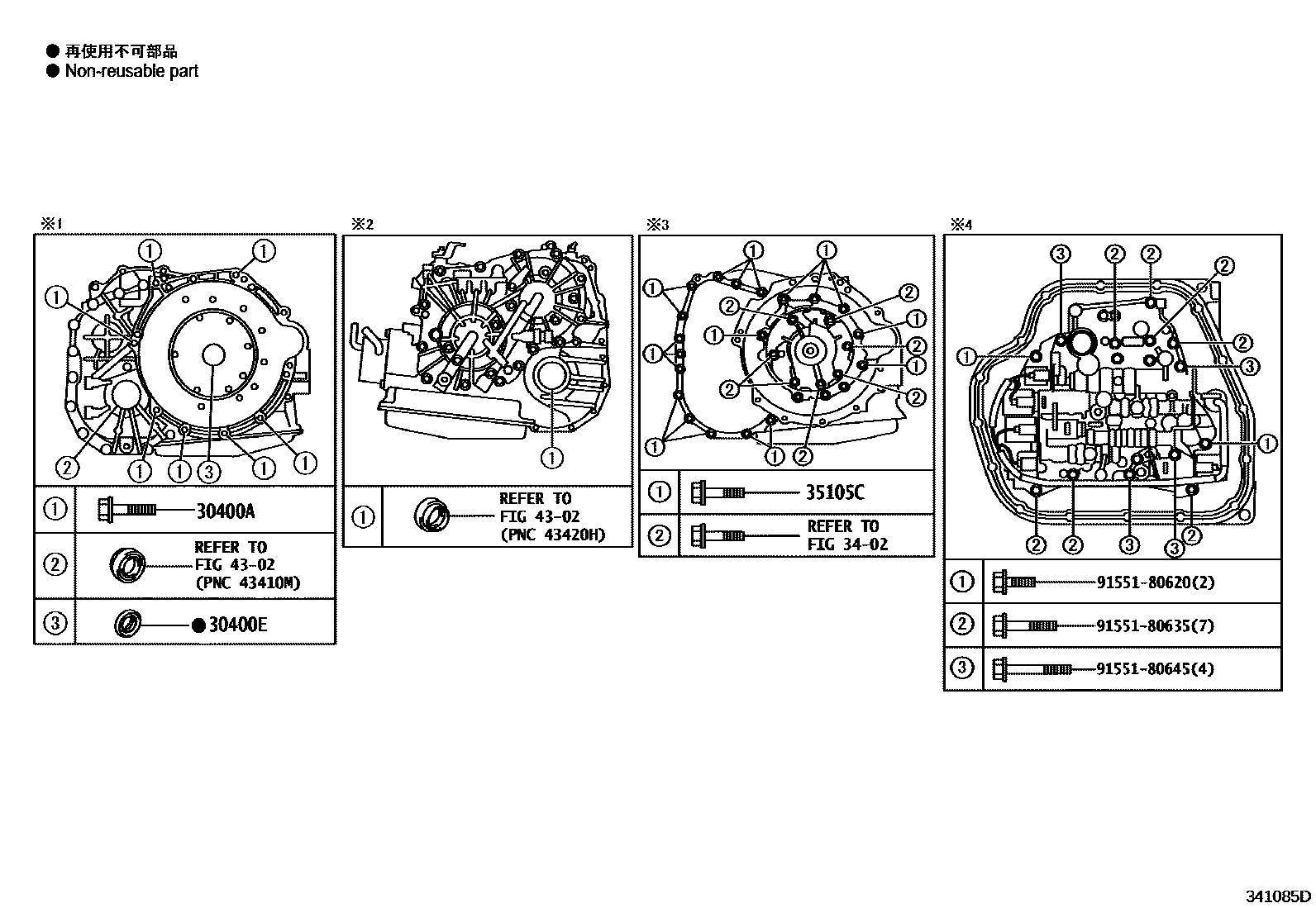

Toyota COROLLA 传动桥总成(CVT) EPC diagram — 341085D
传动桥总成(CVT) — 341085D (201908 – 999999)

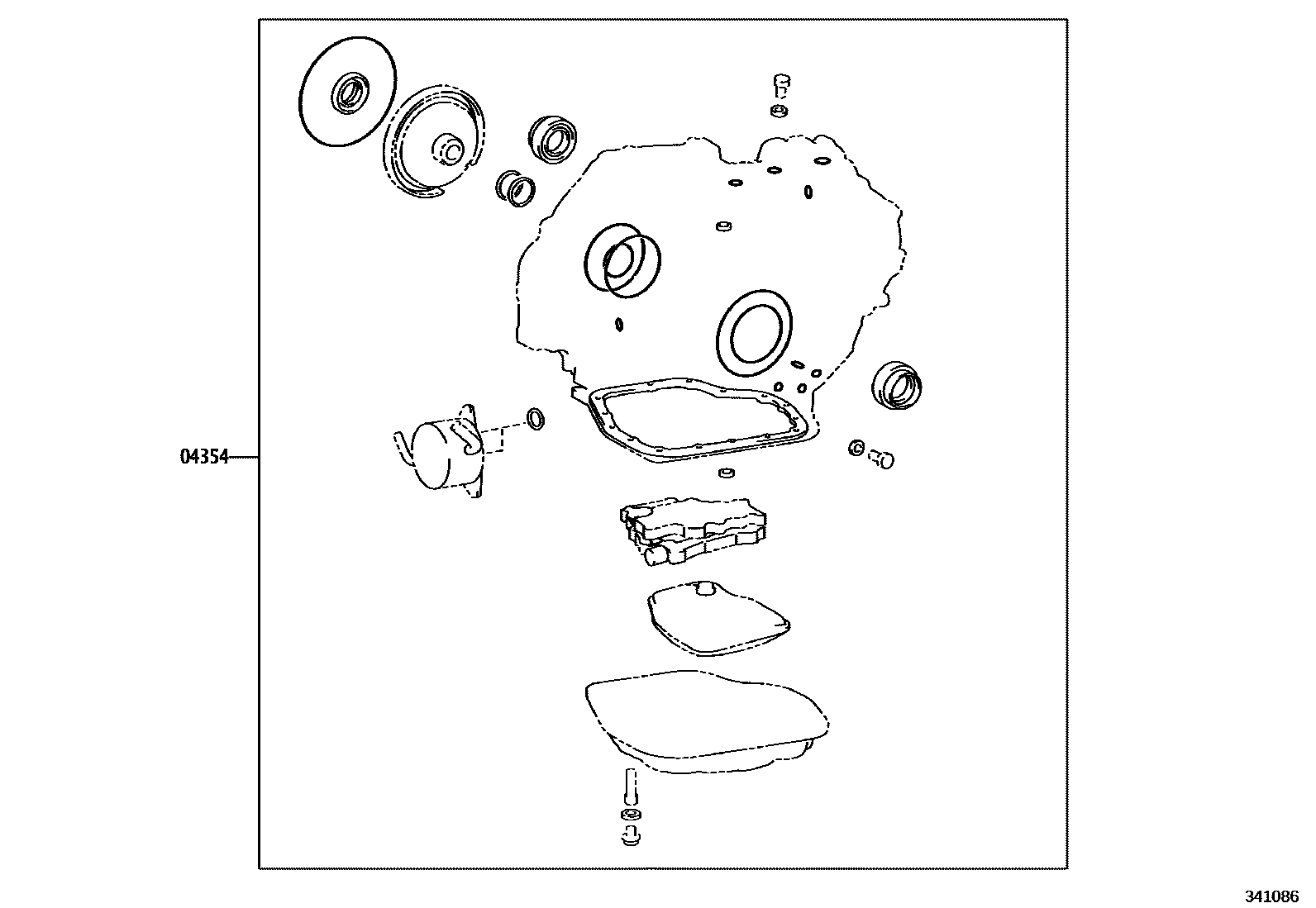

Toyota COROLLA 传动桥总成(CVT) EPC diagram — 341086
传动桥总成(CVT) — 341086 (201908 – 999999)

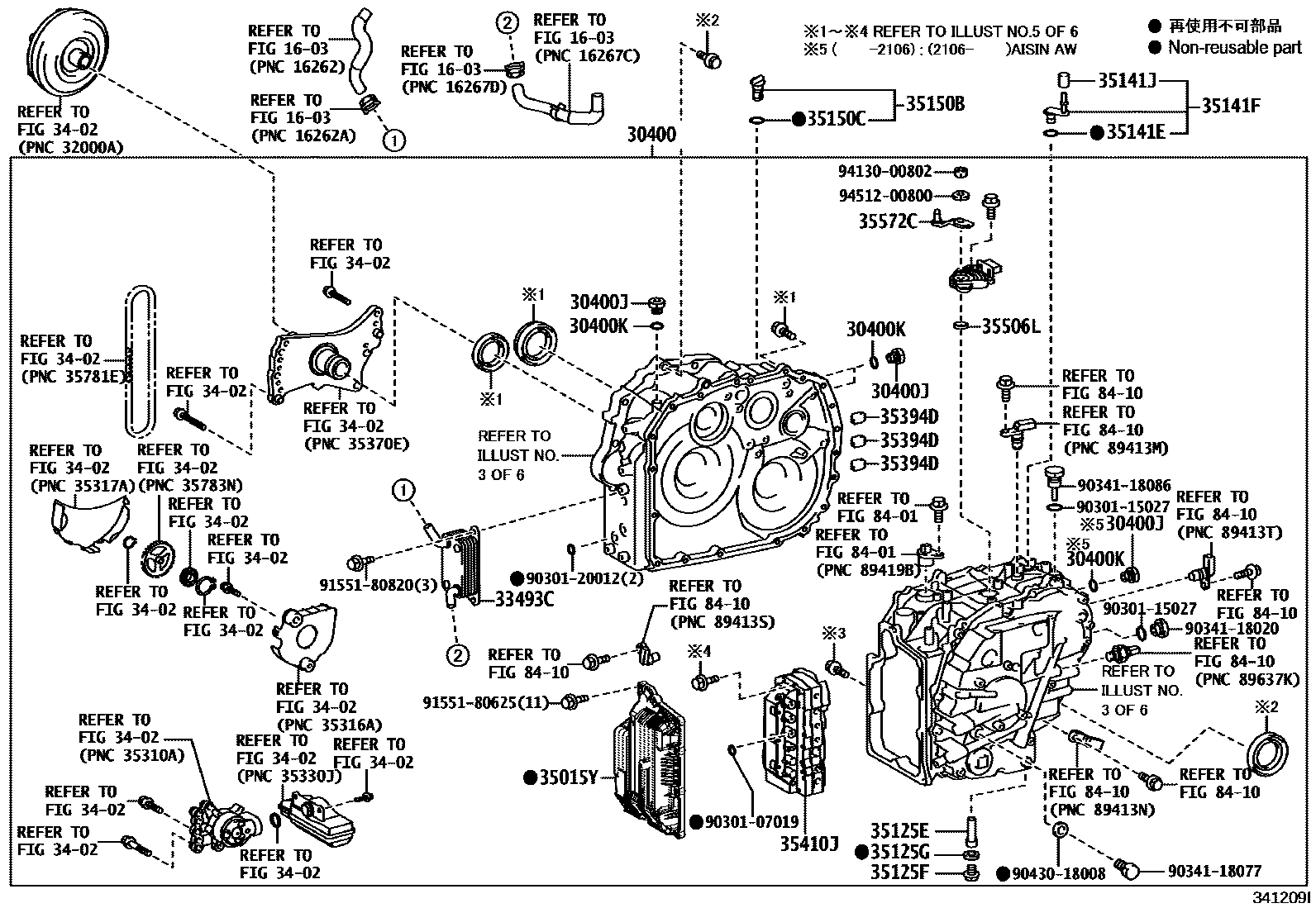

Toyota COROLLA 传动桥总成(CVT) EPC diagram — 341209I
传动桥总成(CVT) — 341209I (202006 – 999999)

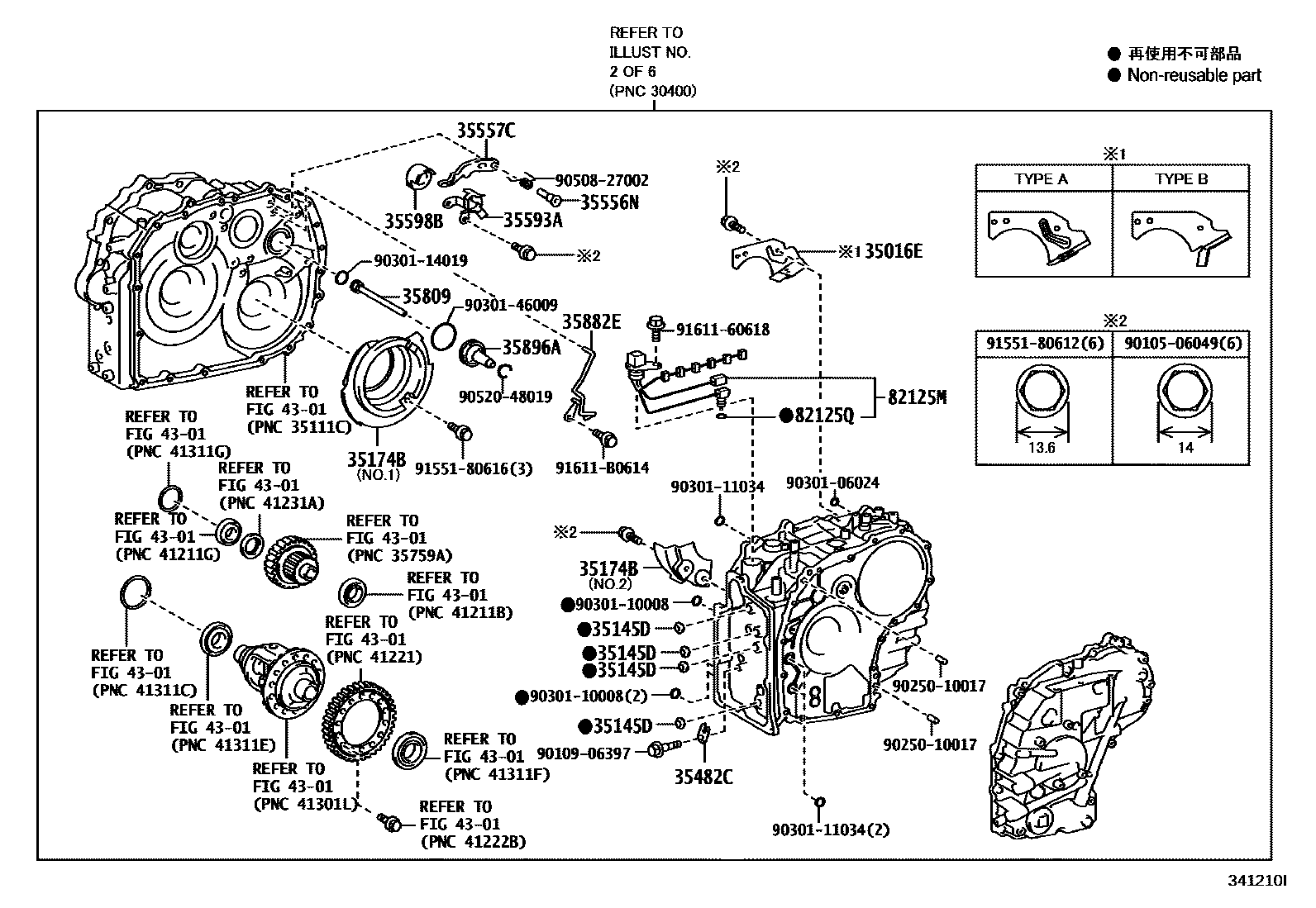

Toyota COROLLA 传动桥总成(CVT) EPC diagram — 341210I
传动桥总成(CVT) — 341210I (202006 – 999999)

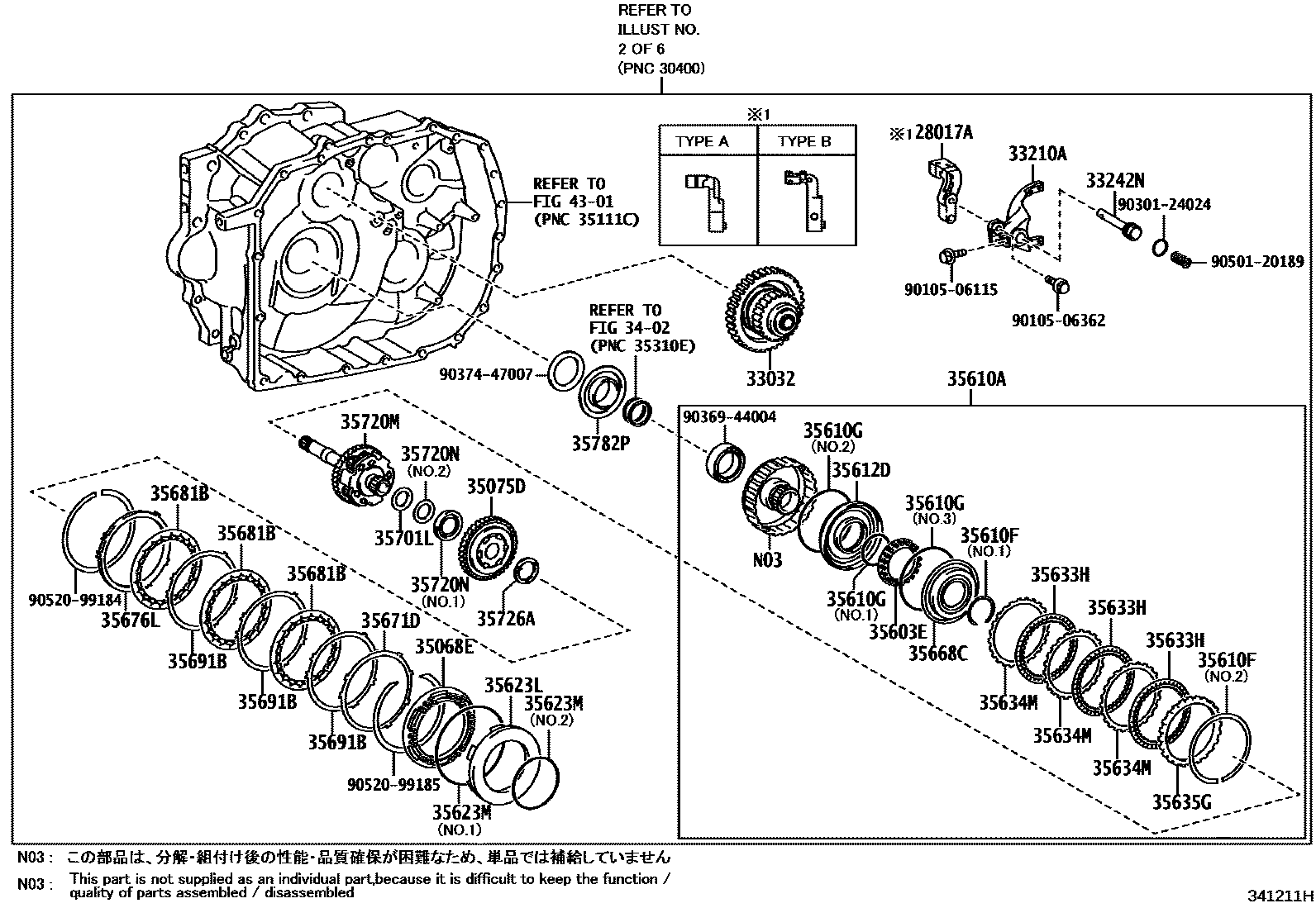

Toyota COROLLA 传动桥总成(CVT) EPC diagram — 341211H
传动桥总成(CVT) — 341211H (202006 – 999999)

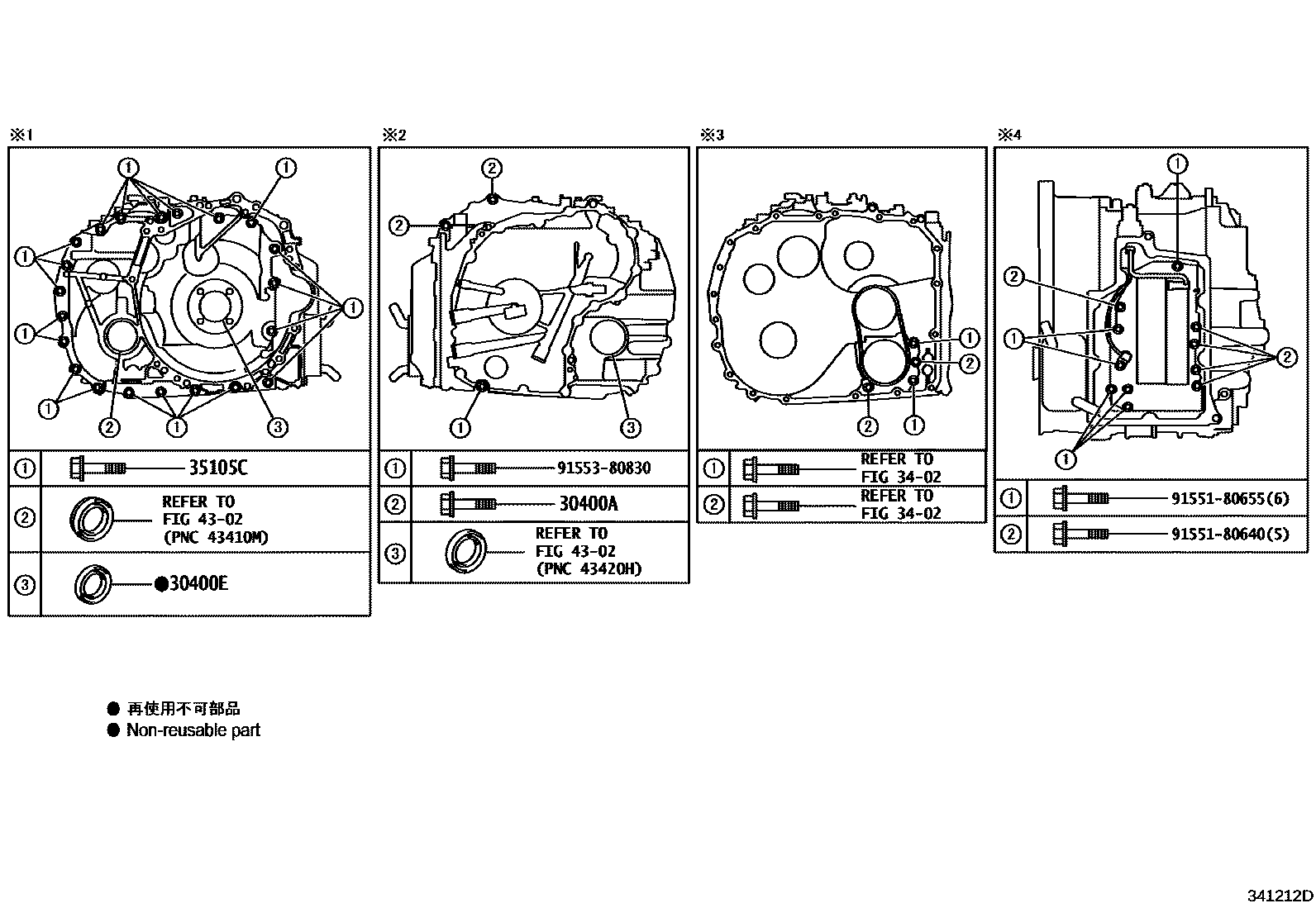

Toyota COROLLA 传动桥总成(CVT) EPC diagram — 341212D
传动桥总成(CVT) — 341212D (202006 – 999999)

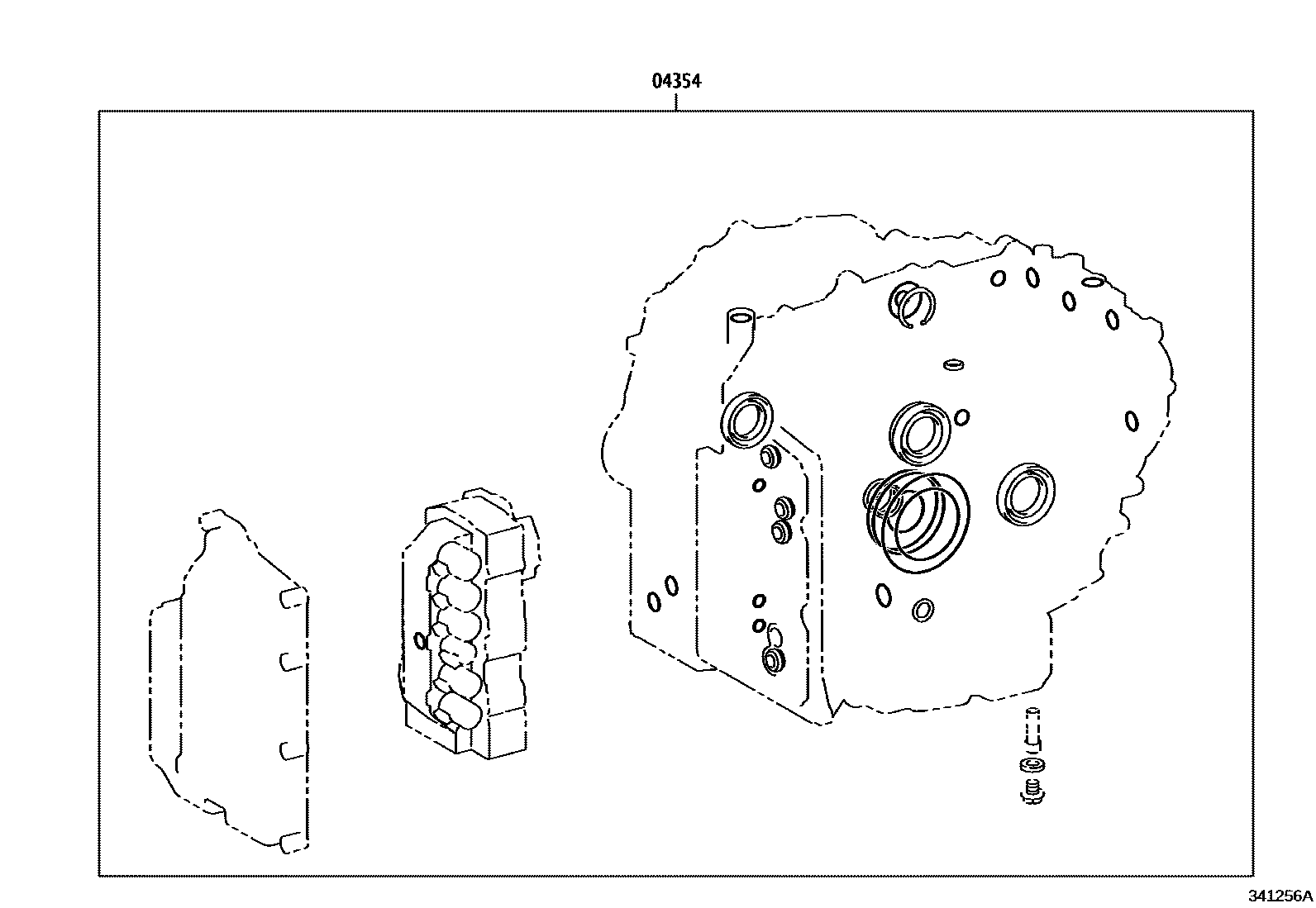

Toyota COROLLA 传动桥总成(CVT) EPC diagram — 341256A
传动桥总成(CVT) — 341256A (202006 – 999999)

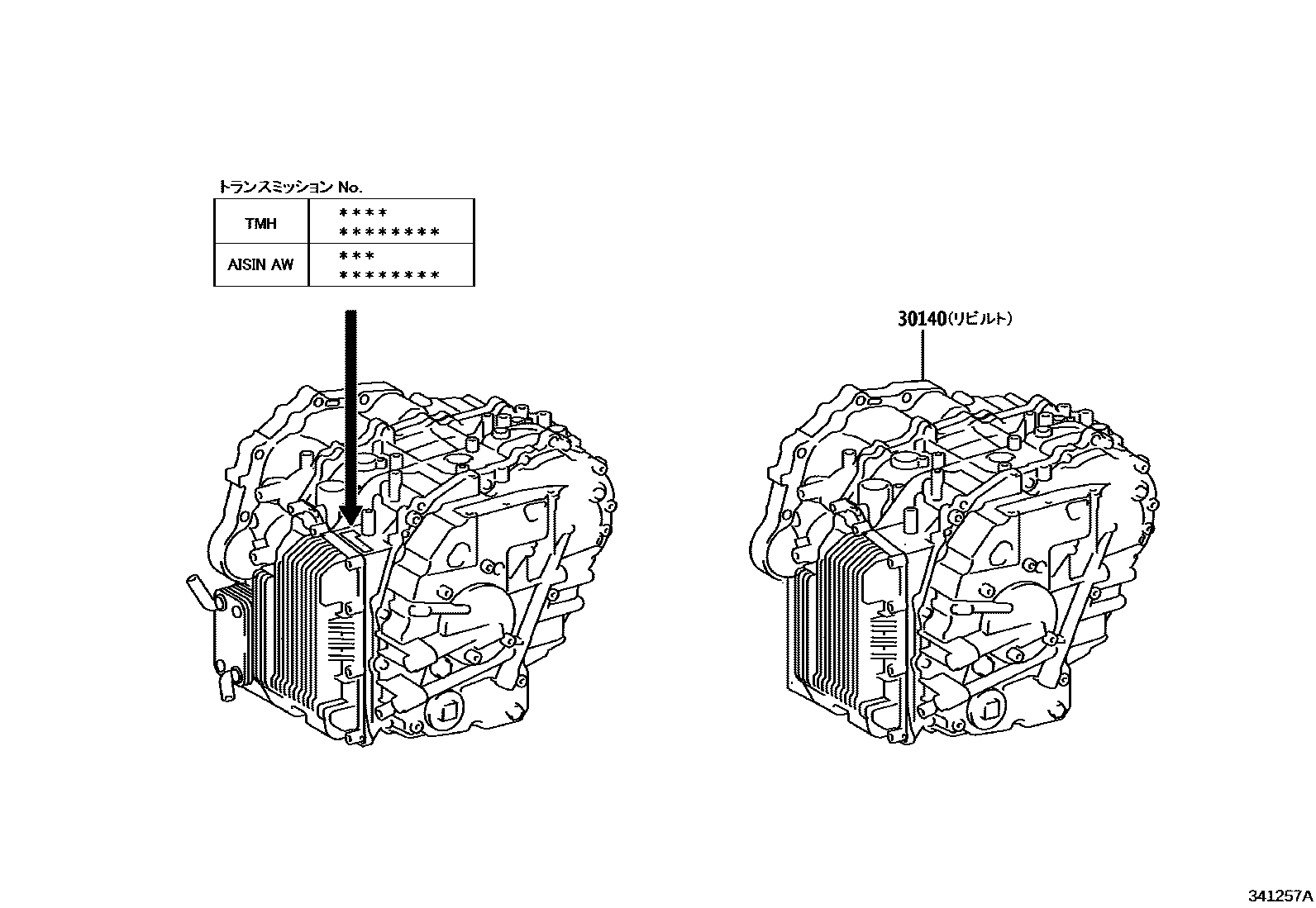

Toyota COROLLA 传动桥总成(CVT) EPC diagram — 341257A
传动桥总成(CVT) — 341257A (202006 – 999999)

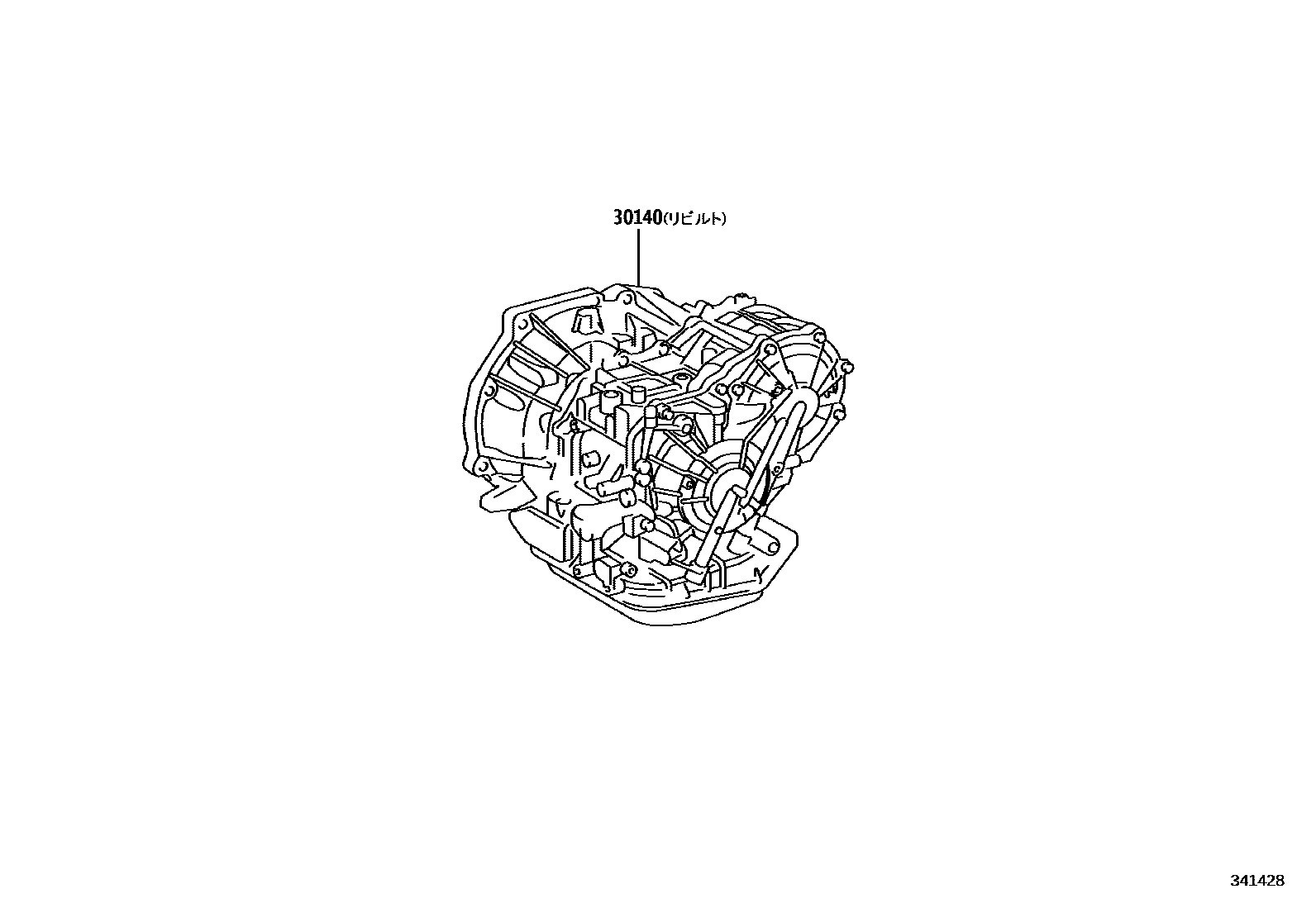

Toyota COROLLA 传动桥总成(CVT) EPC diagram — 341428
传动桥总成(CVT) — 341428 (201908 – 999999)

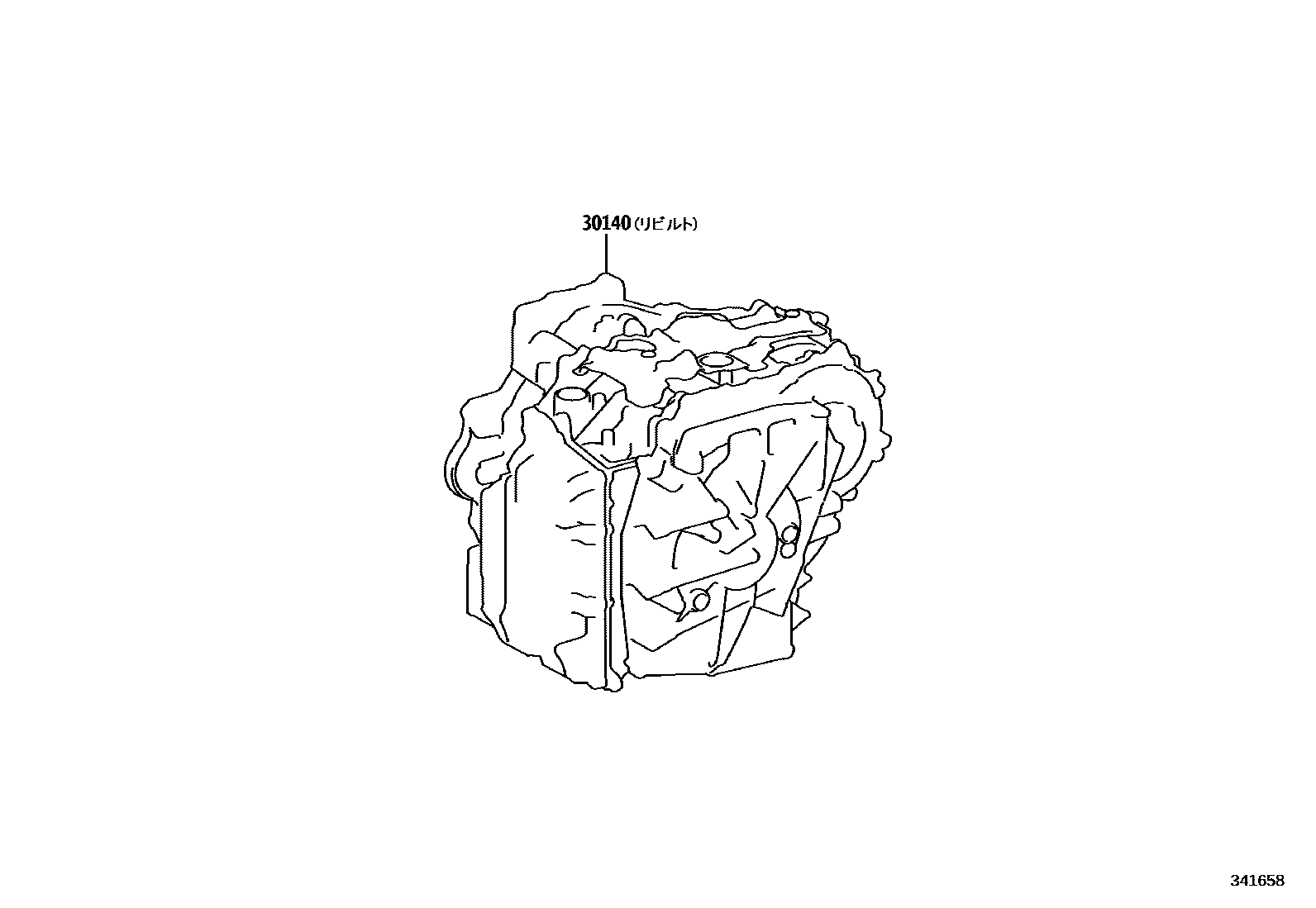

Toyota COROLLA 传动桥总成(CVT) EPC diagram — 341658
传动桥总成(CVT) — 341658 (202210 – 999999)

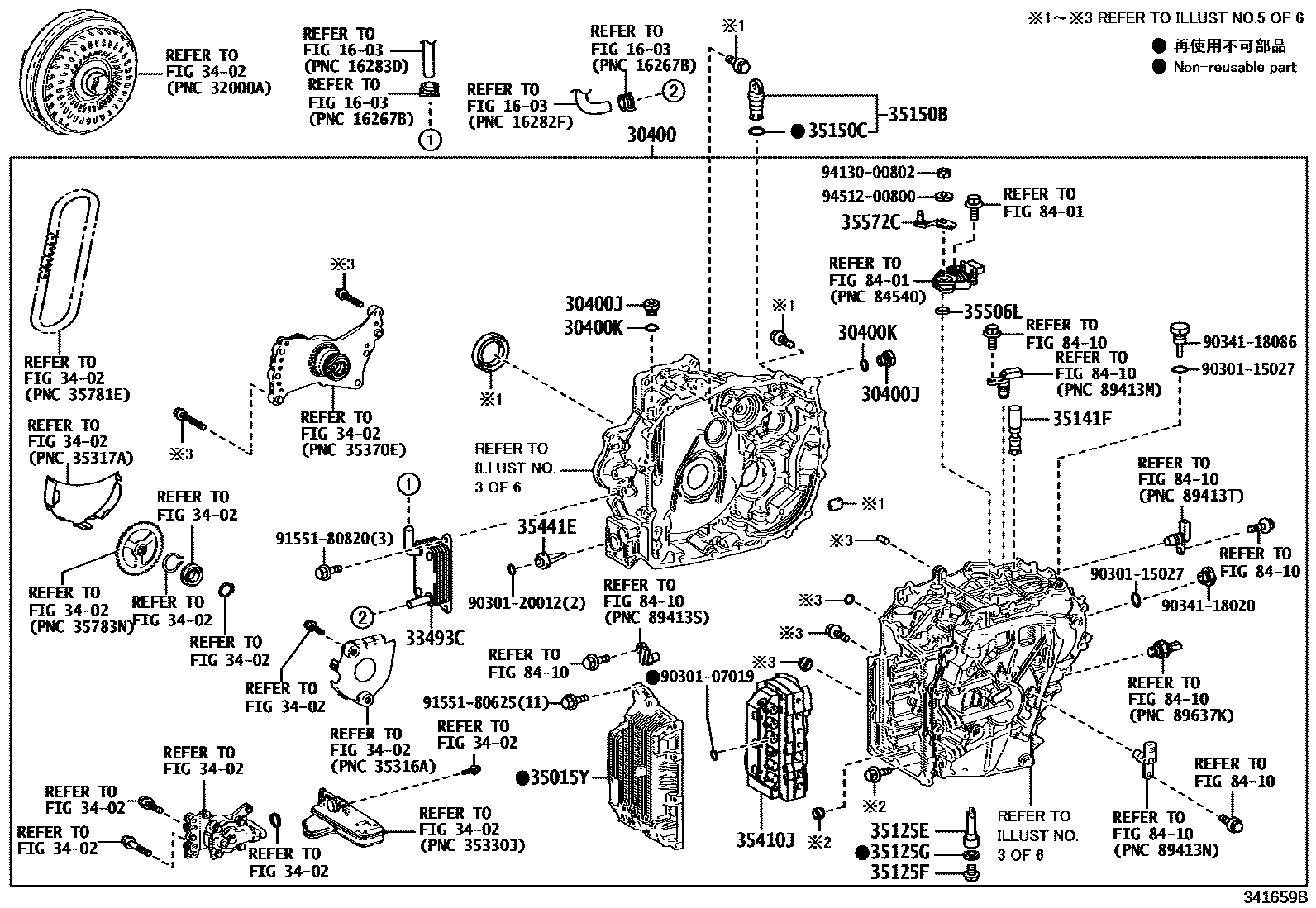

Toyota COROLLA 传动桥总成(CVT) EPC diagram — 341659B
传动桥总成(CVT) — 341659B (202210 – 999999)

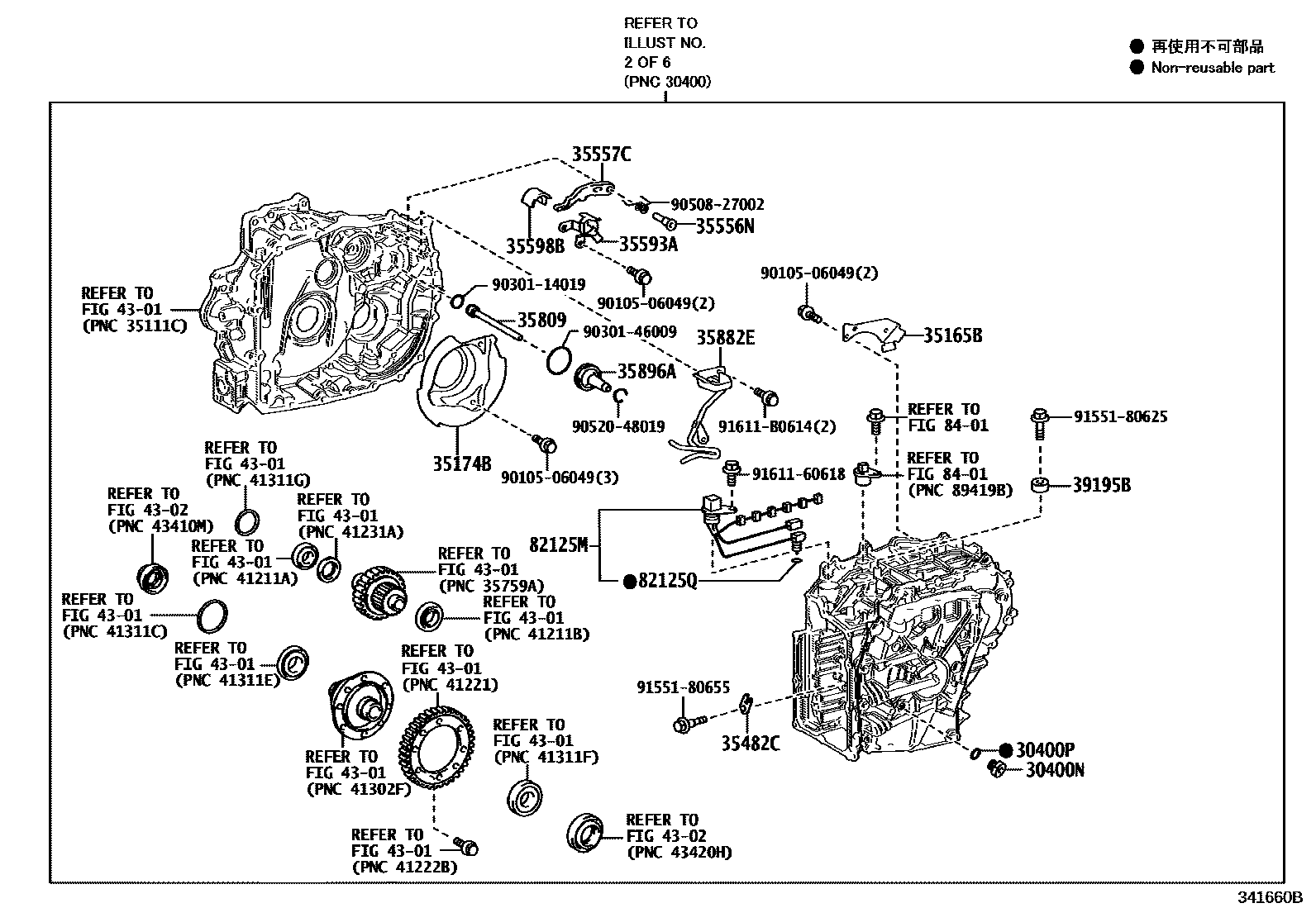

Toyota COROLLA 传动桥总成(CVT) EPC diagram — 341660B
传动桥总成(CVT) — 341660B (202210 – 999999)

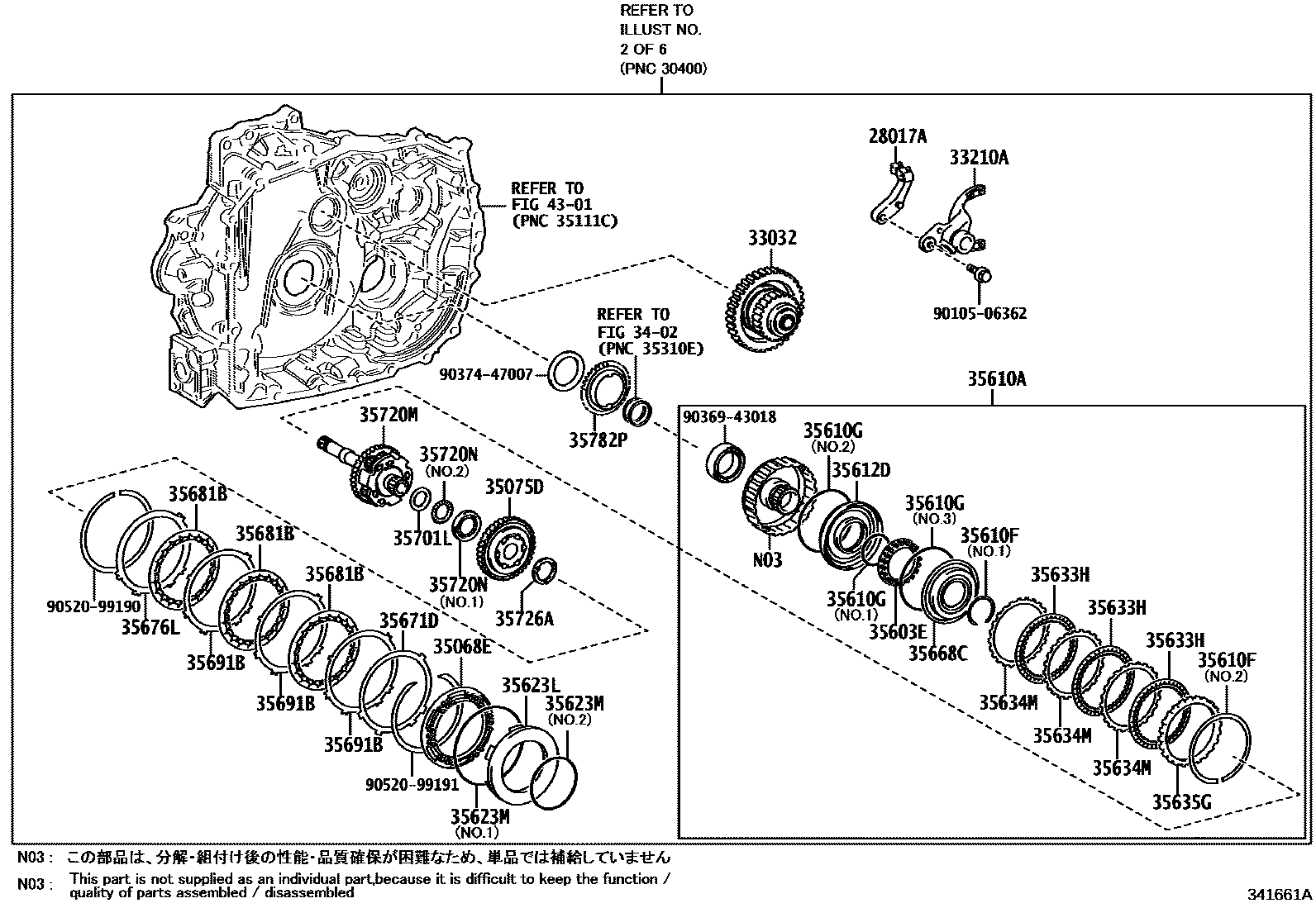

Toyota COROLLA 传动桥总成(CVT) EPC diagram — 341661A
传动桥总成(CVT) — 341661A (202210 – 999999)

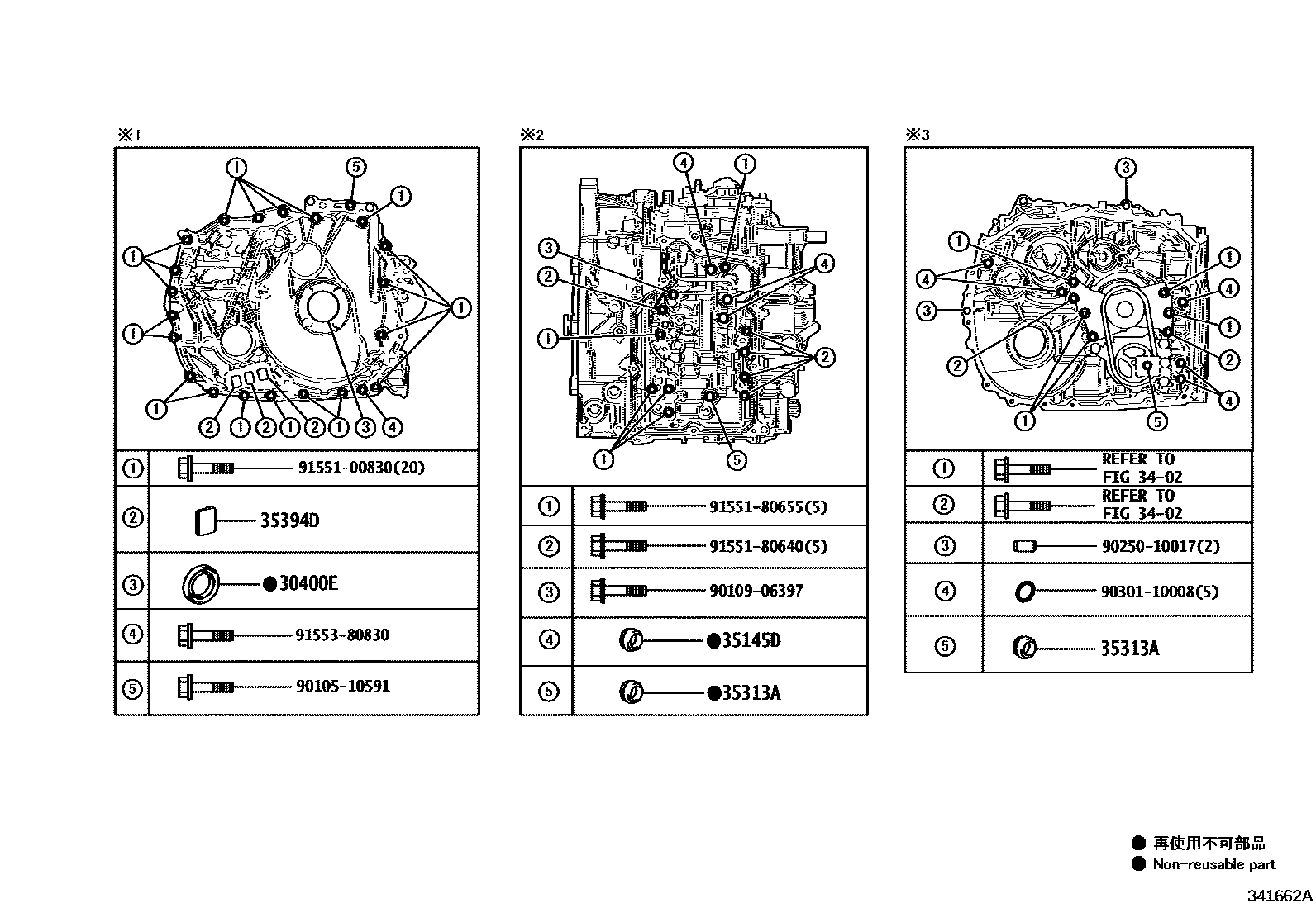

Toyota COROLLA 传动桥总成(CVT) EPC diagram — 341662A
传动桥总成(CVT) — 341662A (202210 – 999999)

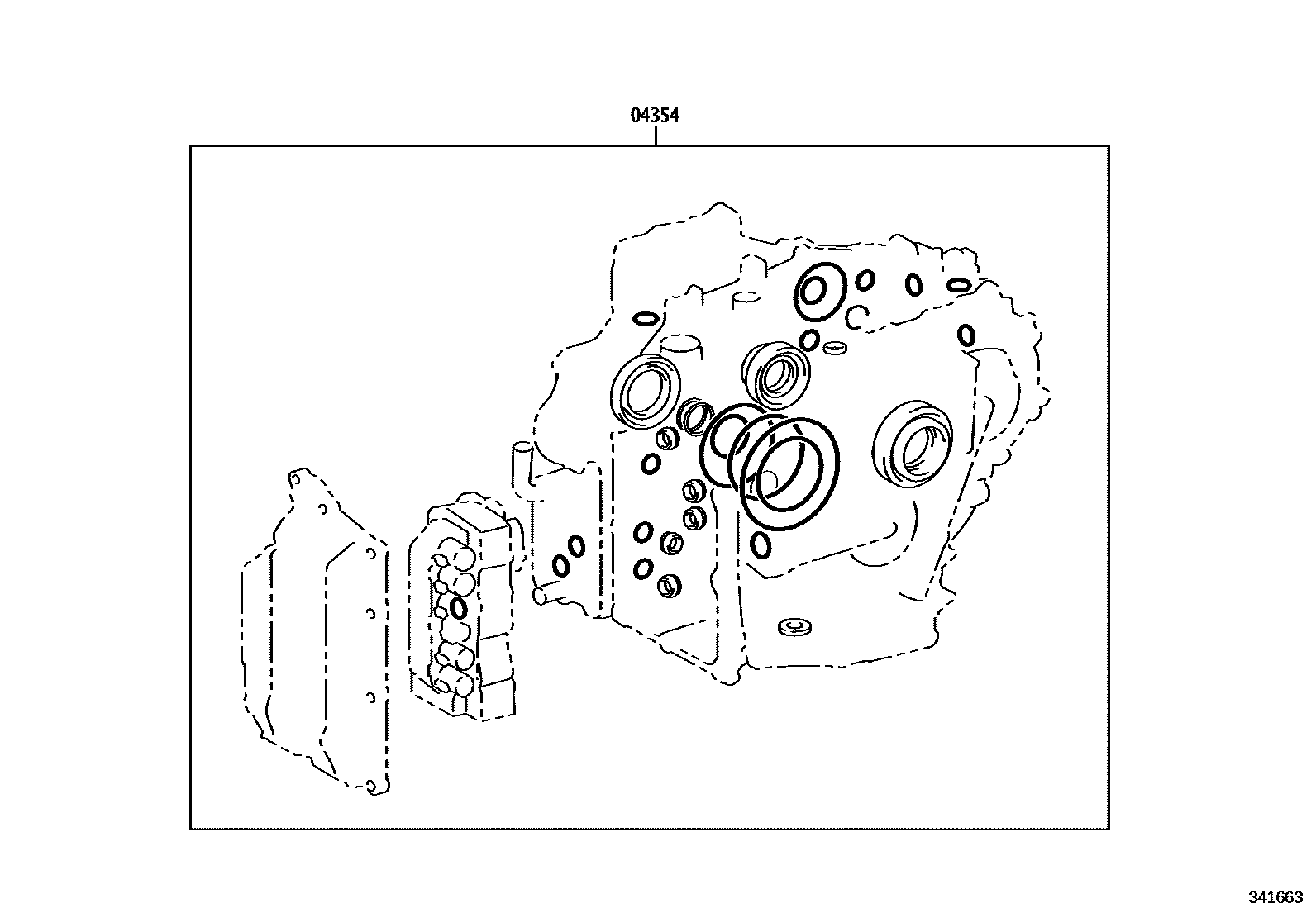

Toyota COROLLA 传动桥总成(CVT) EPC diagram — 341663
传动桥总成(CVT) — 341663 (202210 – 999999)

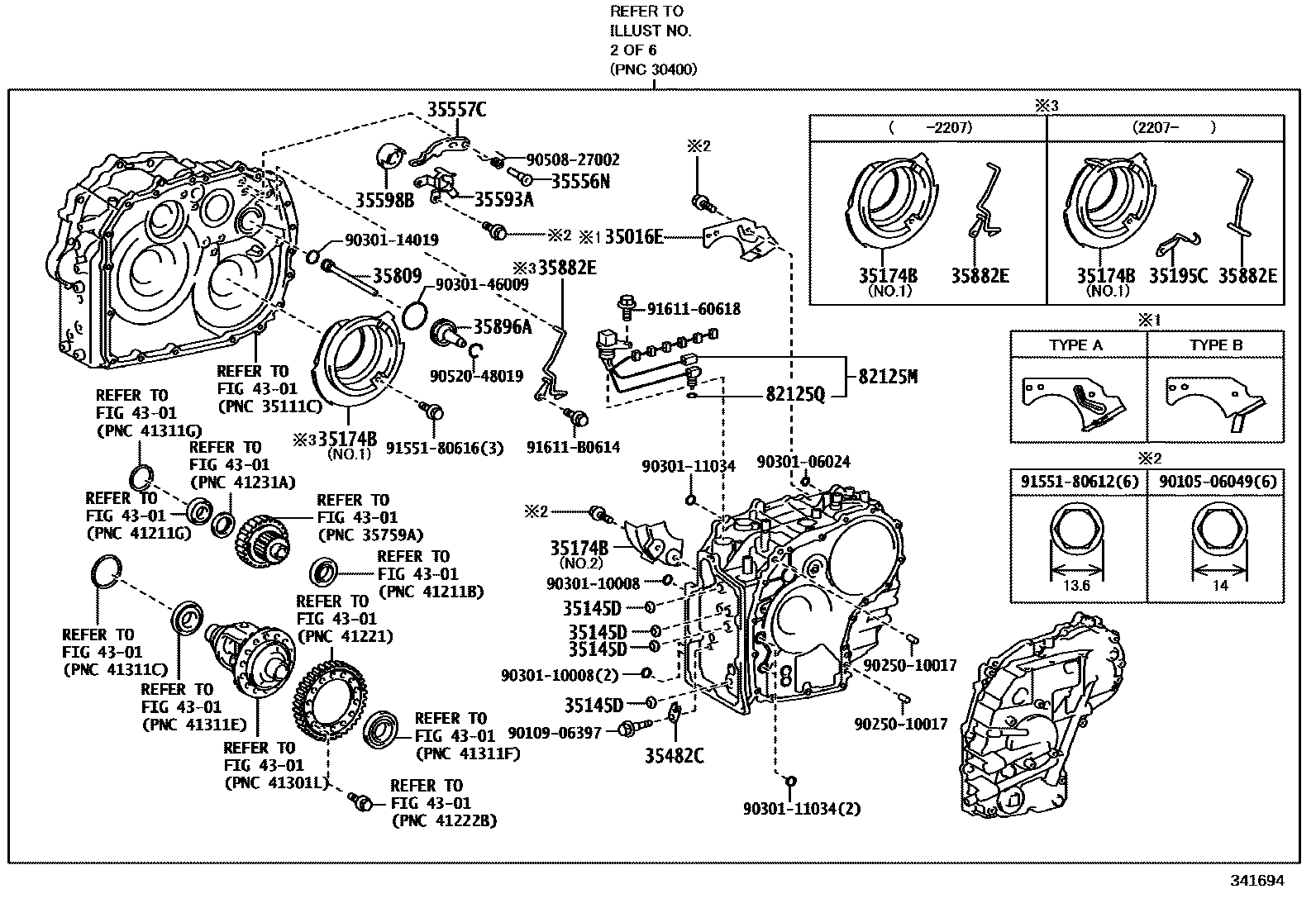

Toyota COROLLA 传动桥总成(CVT) EPC diagram — 341694
传动桥总成(CVT) — 341694 (202006 – 999999)

PNC and OE references

PNCPart nameOE numbers
04354Toyota part04354-12010 · 04354-12011 · 04354-12050 · 04354-K0010
28017AToyota part28017-24110 · 28017-24120 · 28017-K2010
30140Refurbished continuously variable transmission axle assembly (without torque converter)30140-12320 · 30140-12740 · 30140-12760 · 30140-12770
30400Continuously variable transmission axle assembly30400-12320 · 30400-12740 · 30400-12760 · 30400-12770
30400ABolts (for securing transaxle and engine)91552-81250 · 91612-61045
30400ET-type oil seal (for CVT oil pump)90311-41019 · 90311-45027
30400JTransmission axle hole plug90341-08001
30400KTransaxle hole plug gasket90301-06196
30400LToyota part90341-12025
30400MToyota part90430-12221
30400NToyota part90341-18077
30400PToyota part90430-18008
33032Toyota part33032-12110 · 33032-K0010
33210AToyota part33210-12010 · 33210-12040
33242NToyota part33242-12140
33493CTransmission oil cooler33493-12090 · 33493-12100 · 33493-52010
33493DO-ring (for transmission oil cooler)90301-20012
35015YToyota part35015-12010 · 35015-12020 · 35015-33010 · 35015-42010
35016EToyota part35016-12010 · 35165-28010 · 35165-33010
35068EToyota part35068-12020 · 35068-12040 · 35068-12041 · 35068-12061
35075DToyota part35075-12041 · 35075-12050 · 35075-12060 · 35075-K0010
35105CToyota part91551-00828 · 91551-00830 · 91551-10830
35106LTransmission axle oil pan sub-assembly (CVT)35106-12171
35106PBolts (for transaxle oil pan)90119-06173
35125EToyota part35125-12430 · 35125-12490 · 35125-12500
35125FToyota part90341-12034 · 90341-18016
35125GToyota part90430-12008 · 90430-18008
35141DHoses (for breather plug)35121-52020
35141EO-ring (for breather plug)90301-06021 · 90301-09173
35141FNo. 1 vent plug (CVT)90930-03216 · 90930-03233 · 90930-03240
35141JToyota part90930-03191 · 90930-03243
35145DTransmission axle housing gasket35145-33010
35150Bgearbox plug assembly35150-44010 · 35150-48010
35150CO-ring (for gearbox plug)90301-09173
35165BToyota part35165-12050 · 35165-12100
35168CTransaxle oil pan gasket (CVT)35168-12091
35174BToyota part35174-12010 · 35174-12030 · 35174-12040 · 35174-33050 · 35174-K0020
35195CToyota part35195-12040 · 35195-33010
35195DToyota part35195-12050
35313AToyota part35313-48020
35330DToyota part35330-0W110
35330EToyota part90301-22019
35394DOil filter magnet (CVT)35394-30011 · 35394-48010
35410JTransmission valve body assembly35410-12862 · 35410-12881 · 35410-52290
35441EToyota part35441-12130
35481CToyota part35481-12020
35482CToyota part35482-73010
35506LToyota part90311-12002
35556NToyota part35556-12040 · 35556-12050
35557CToyota part35557-12061 · 35557-12080
35572Ctransmission control lever35572-12170 · 35572-12190
35593AToyota part35593-12040 · 35593-12050
35598BToyota part35598-12040 · 35598-12050 · 35598-12060
35603EToyota part35603-12040 · 35603-12050 · 35603-12051 · 35603-12071
35610AToyota part35610-12253 · 35610-12290 · 35610-12300 · 35610-K0010
35610FToyota part90520-44041 · 90520-99087 · 90520-99187 · 90520-99192
35610GToyota part90301-48007 · 90301-50001 · 90301-52007 · 90301-95003 · 90301-99155 · 90302-89002 · 90302-92001 · 90302-99006 · 90302-99007
35612DToyota part35612-12072 · 35612-12090 · 35612-12100 · 35612-12110
35623LToyota part35623-12090 · 35623-12100 · 35623-12110 · 35623-12120
35623MToyota part90301-93002 · 90301-95004 · 90301-98002 · 90301-99087 · 90301-99208 · 90301-99238
35623NToyota part90520-99090
35633HToyota part35633-12091 · 35633-12150 · 35633-12160 · 35633-12170
35634MToyota part35634-12050 · 35634-12100 · 35634-12110 · 35634-12120
35635GToyota part35635-12040 · 35635-12050 · 35635-12060 · 35635-12280 · 35635-12290 · 35635-12300 · 35635-12310 · 35635-12320 · 35635-12330 · 35635-12410 · 35635-12480 · 35635-12490 · 35635-12500 · 35635-12510 · 35635-12520 · 35635-12530 · 35635-12540 · 35635-12550 · 35635-12560 · 35635-12570 · 35635-12580 · 35635-12590
35668CToyota part35668-12011 · 35668-12050 · 35668-12051 · 35668-12060 · 35668-12071
35671DToyota part35671-12030 · 35671-12050 · 35671-12070
35672DToyota part35672-12040
35676LToyota part35676-12100 · 35676-12120 · 35676-12140
35676MToyota part90520-99086
35681BToyota part35681-12040 · 35681-12060 · 35681-12070 · 35681-12080
35691BToyota part35691-12030 · 35691-12050 · 35691-12060 · 35691-12070
35701LToyota part35789-12090 · 35789-12110 · 35789-12120
35701MToyota part90374-20005
35720MToyota part35720-12071 · 35720-12090 · 35720-12100 · 35720-K0010
35720NToyota part90374-18008 · 90374-24008 · 90374-29012 · 90374-34014
35726AToyota part35726-12010 · 35726-12020
35782PToyota part35782-12070
35809Toyota part35809-12010 · 35809-12030
35882EToyota part35882-12030 · 35882-12040 · 35882-12060 · 35882-12070 · 35882-12080 · 35882-33050
35896AToyota part35896-12010 · 35896-12030
39195BToyota part39195-52010
82125MTransmission wiring harness82125-12642 · 82125-12670
82125QO-ring (for transmission wiring harness)90301-06004 · 90301-21009
