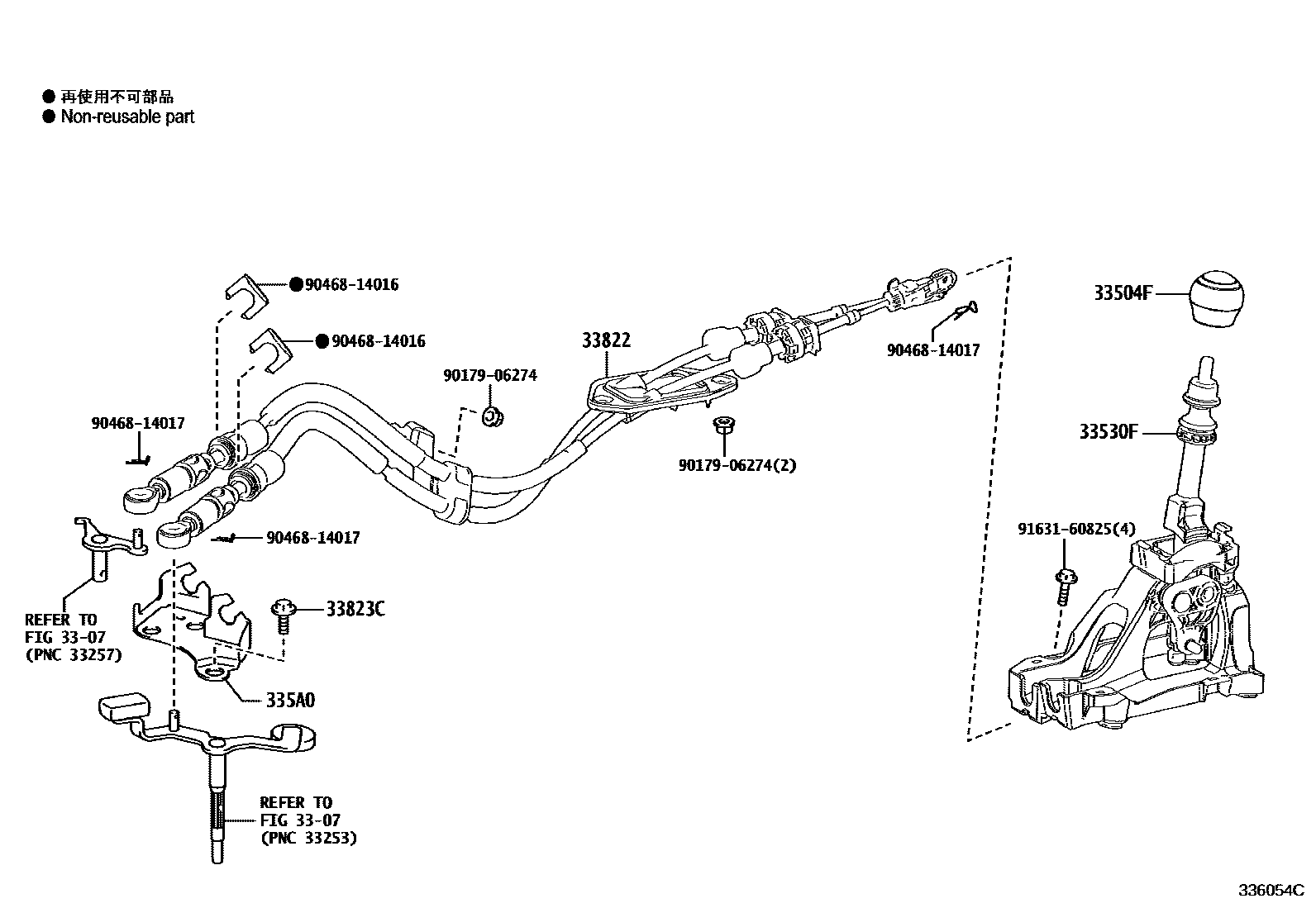

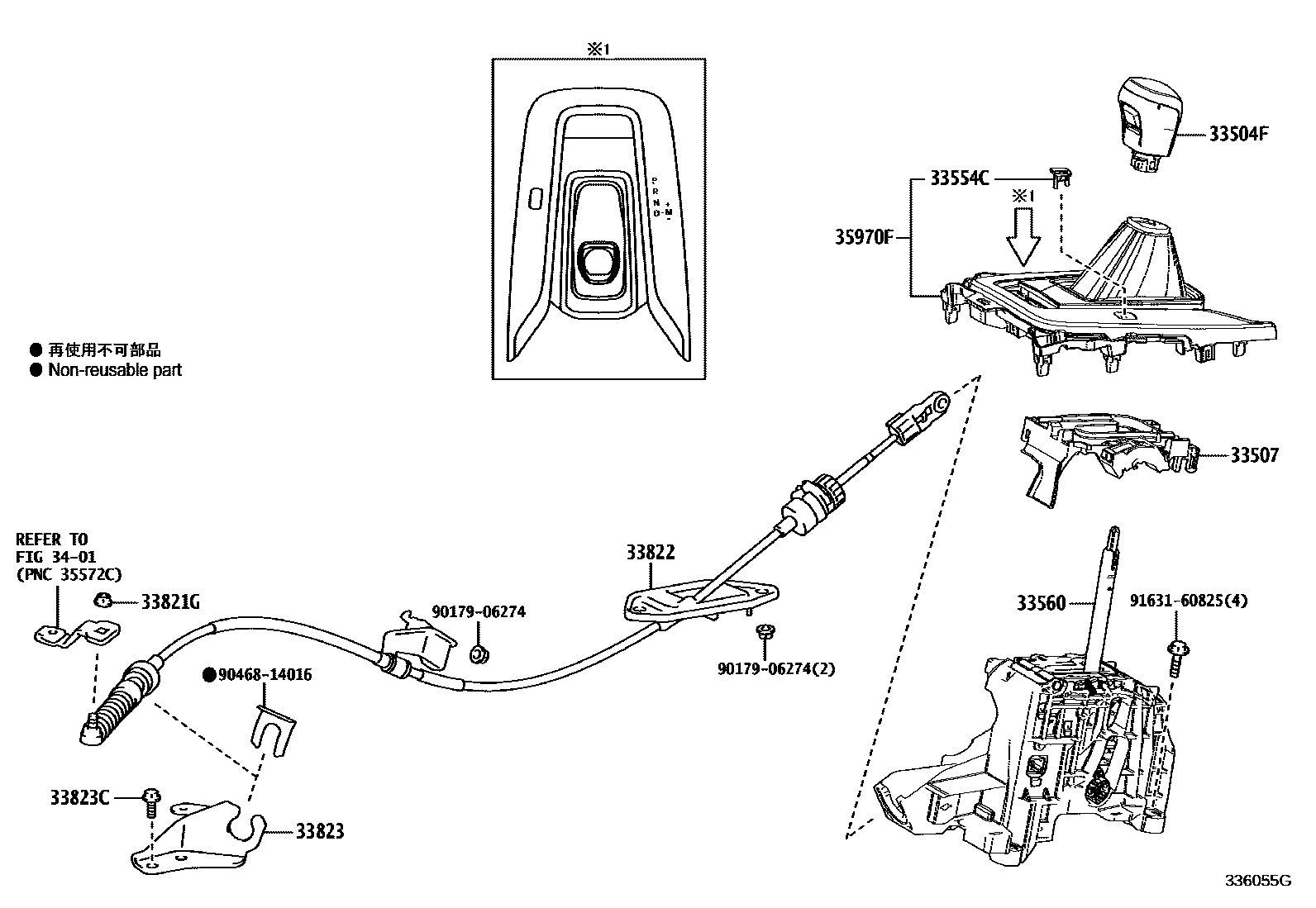

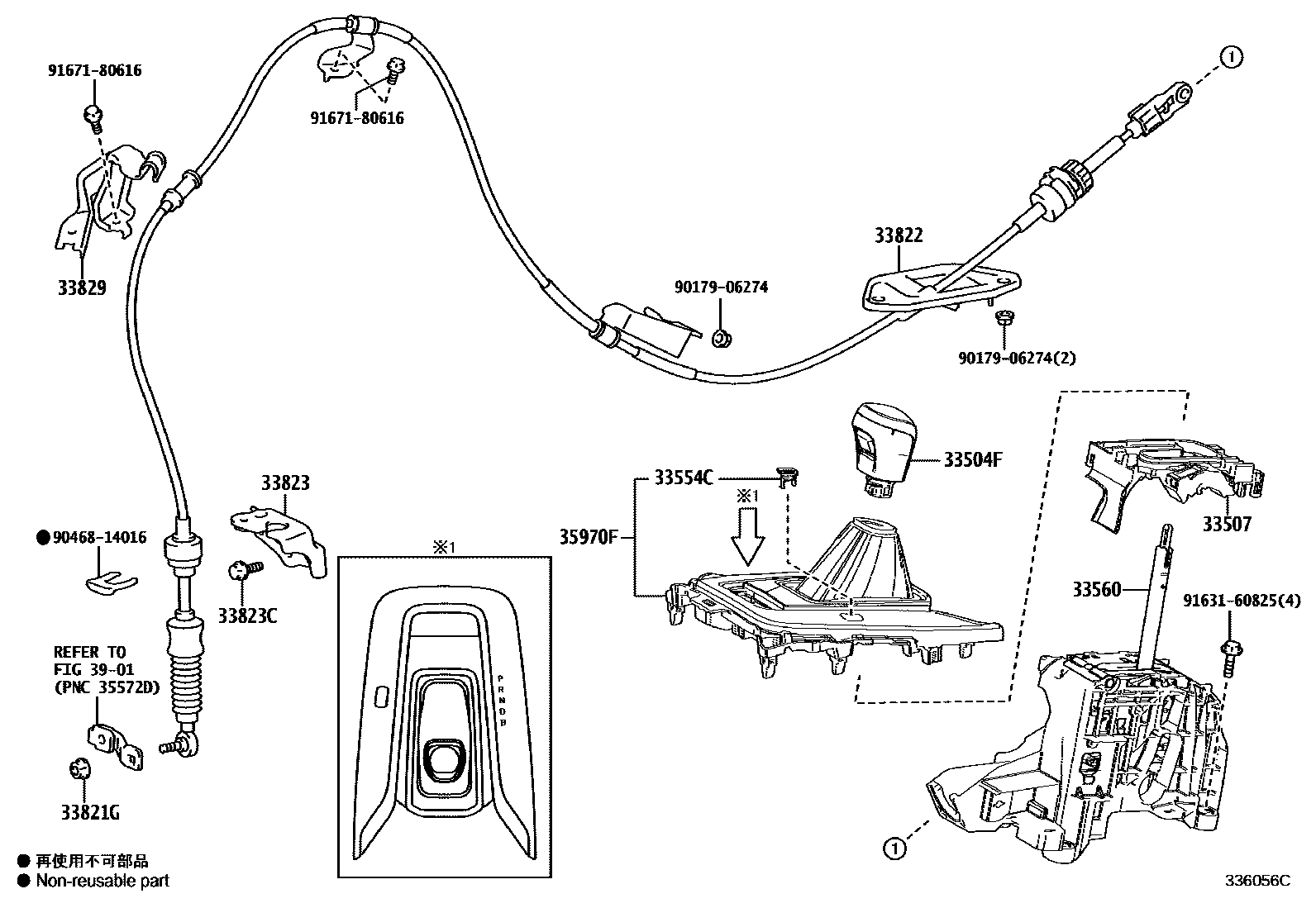

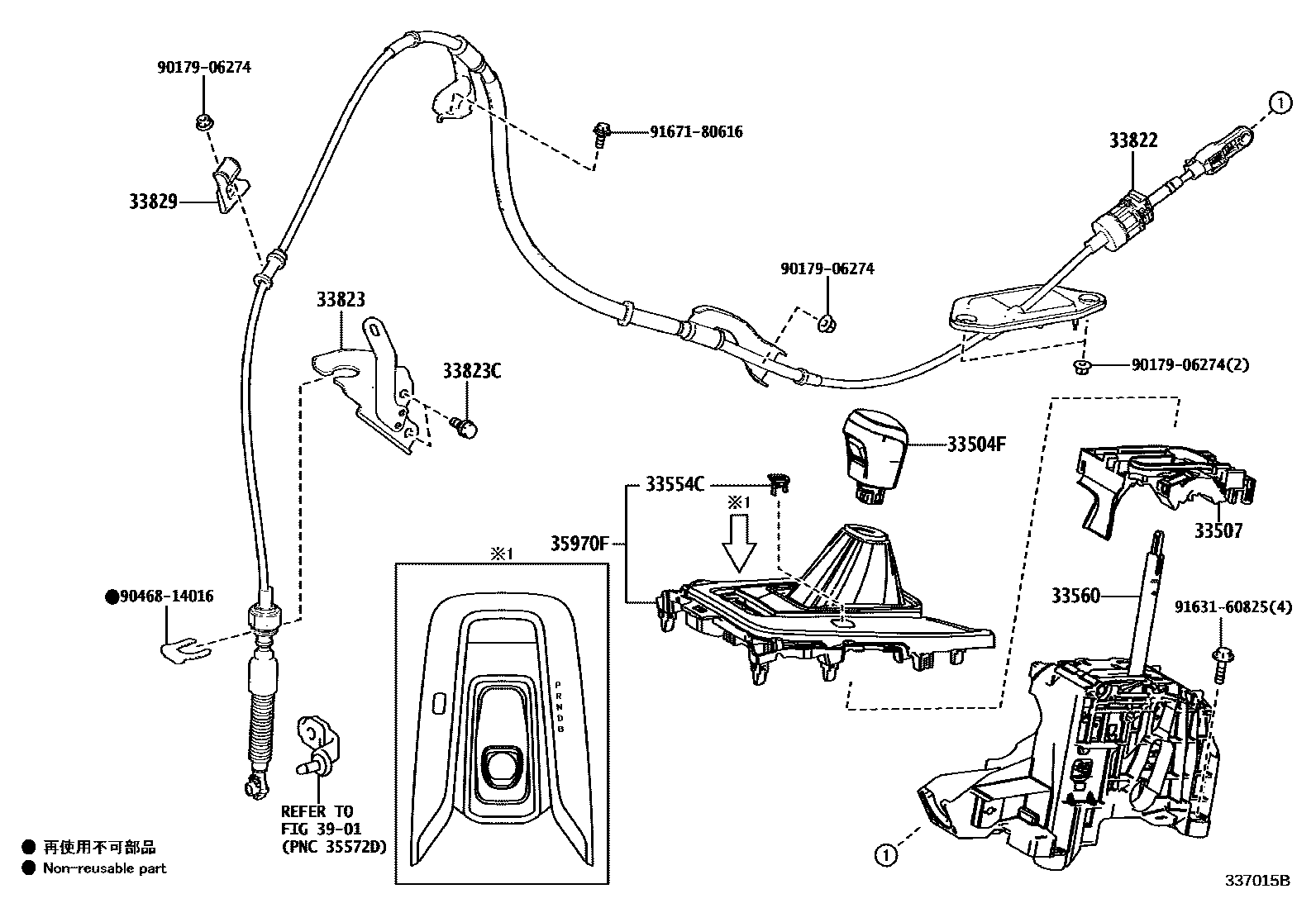

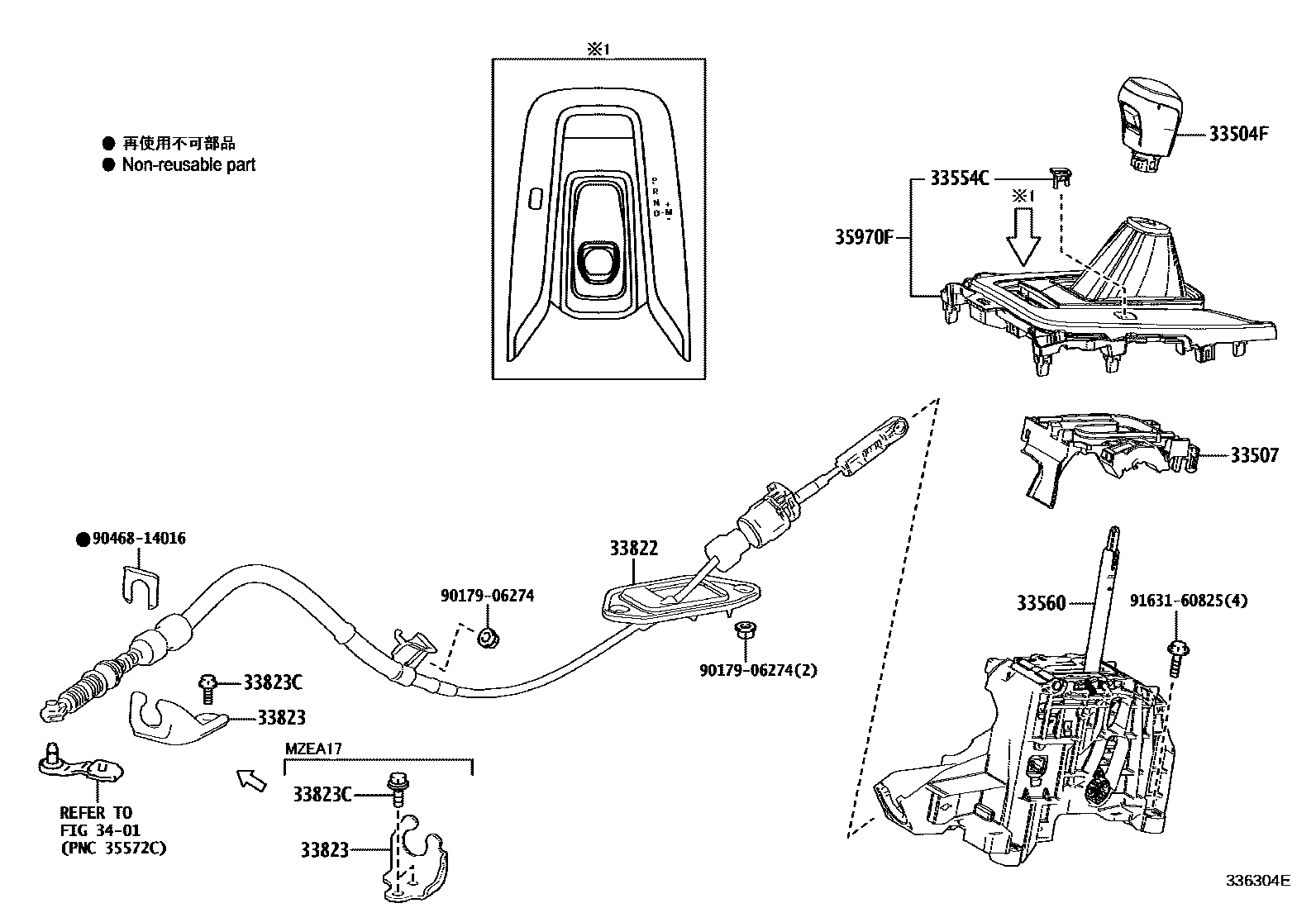

Toyota COROLLA Shift Lever & Retainer — Figure 3312
Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 5 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33507 | Shift lever housing bracket sub-assembly | 33507-12040 |
| 33530F | Shift lever assembly (for floor shift) | 33530-12C50 |
| 33554C | Shift lock release button cover | 33554-12220 |
| 33560 | Shift lock control unit assembly | 33560-10020 · 33560-10030 |
| 335A0 | Control cable bracket assembly | 335A0-0D010 |
| 33821G | Nut (for transmission control cable) | 94151-80800 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33820-12J30 · 33820-12J40 · 33820-12J50 · 33820-12J60 · 33820-12K00 · 33820-12K10 |
| 33823 | No. 1 transmission control cable bracket | 33823-10030 · 33823-12310 · 33823-12340 · 33823-12360 · 33823-K0040 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08079 · 90119-08C60 · 90119-W0255 · 91671-80820 |
| 33829 | Transmission control cable bracket | 33829-10011 · 33829-12190 |
| 35970F | Position indicator light housing assembly | 35970-12560 · 35970-12630 · 35970-12640 · 35970-12650 |
