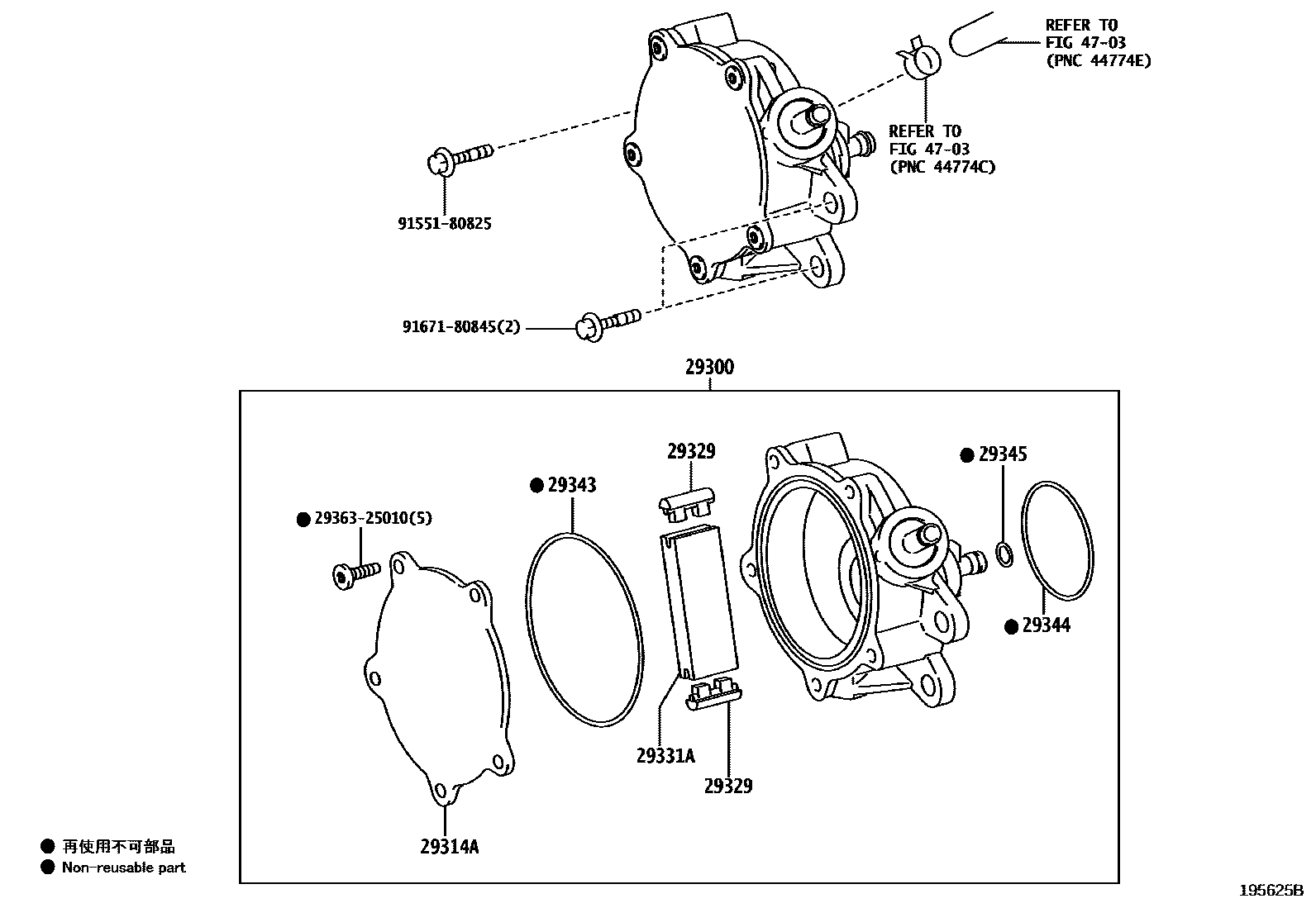

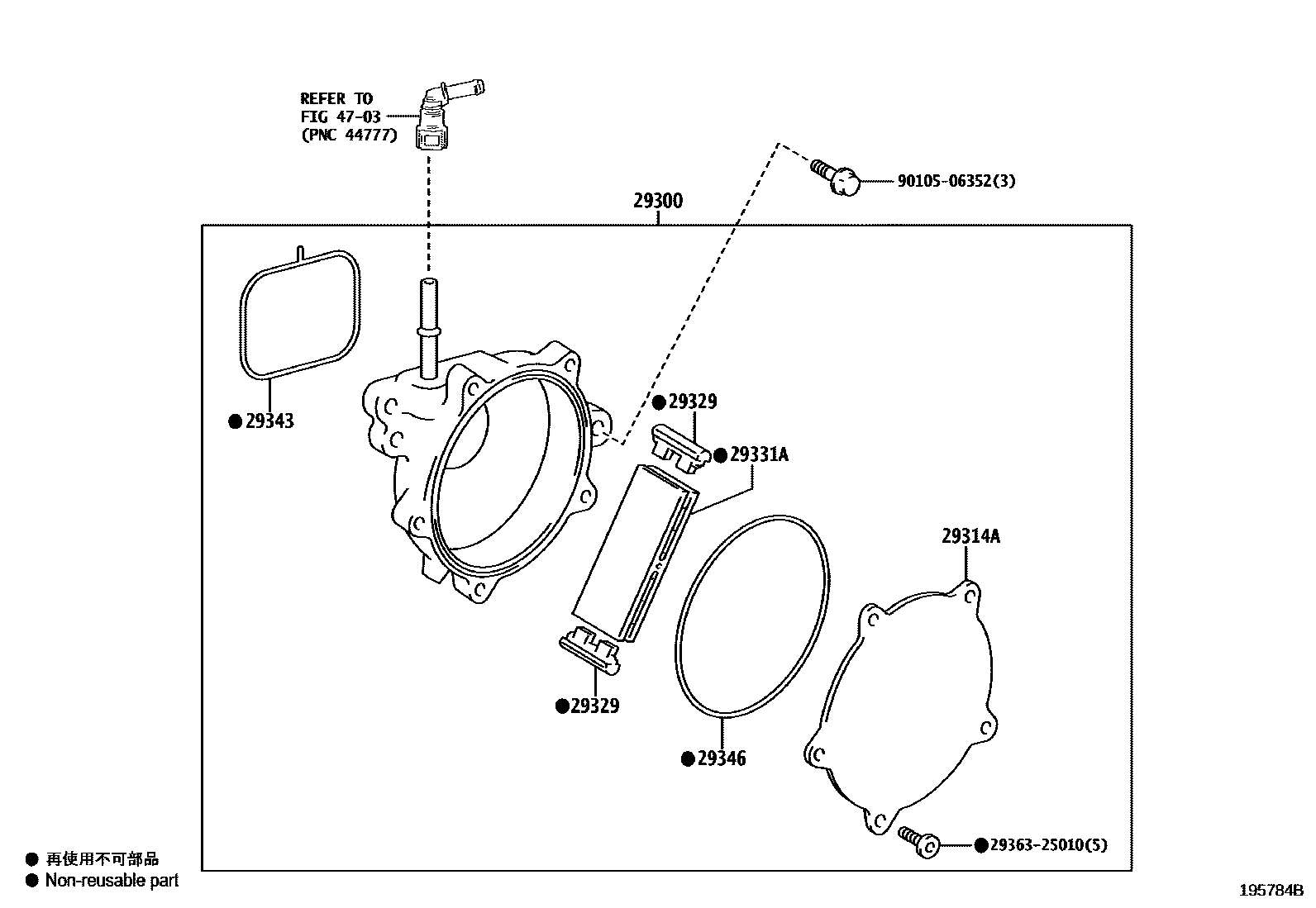

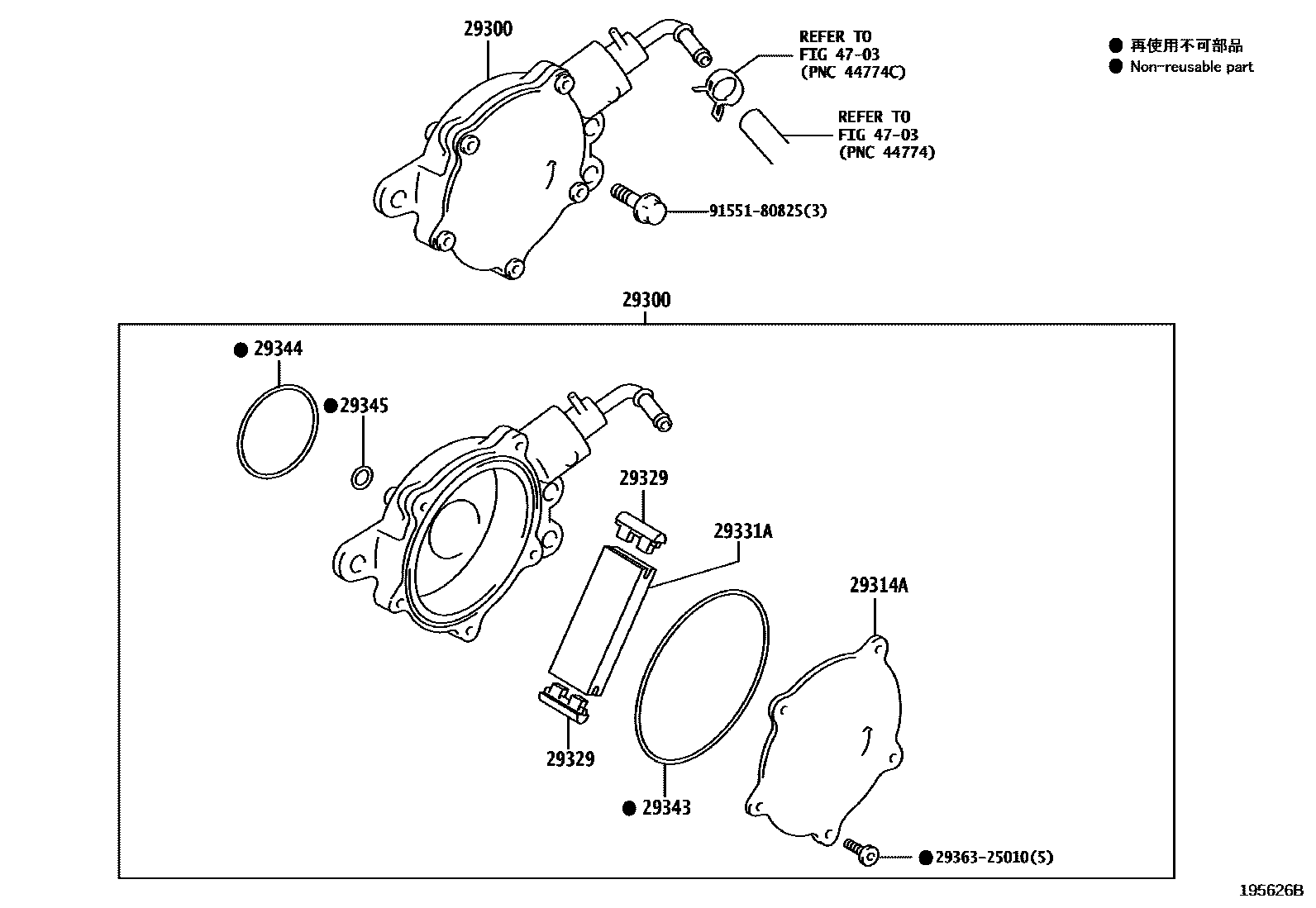

Toyota COROLLA 真空泵 — Figure 1905
Toyota COROLLA EPC diagram 1905, 真空泵, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 29300 | Vacuum pump assembly | 29300-24011 · 29300-37011 · 29300-47050 |
| 29314A | end cap | 29314-25010 · 29314-37011 · 29314-47040 |
| 29329 | Vane vacuum pump cover | 29329-24011 · 29329-37010 |
| 29331A | vacuum pump blades | 29331-24010 · 29331-37010 |
| 29343 | Toyota part | 29343-22011 · 29343-25010 · 29343-47040 |
| 29344 | Toyota part | 29344-22011 |
| 29345 | Toyota part | 29345-22011 |
| 29346 | Toyota part | 29346-25010 |
