Toyota COROLLA 点火线圈和火花塞 — Figure 1901

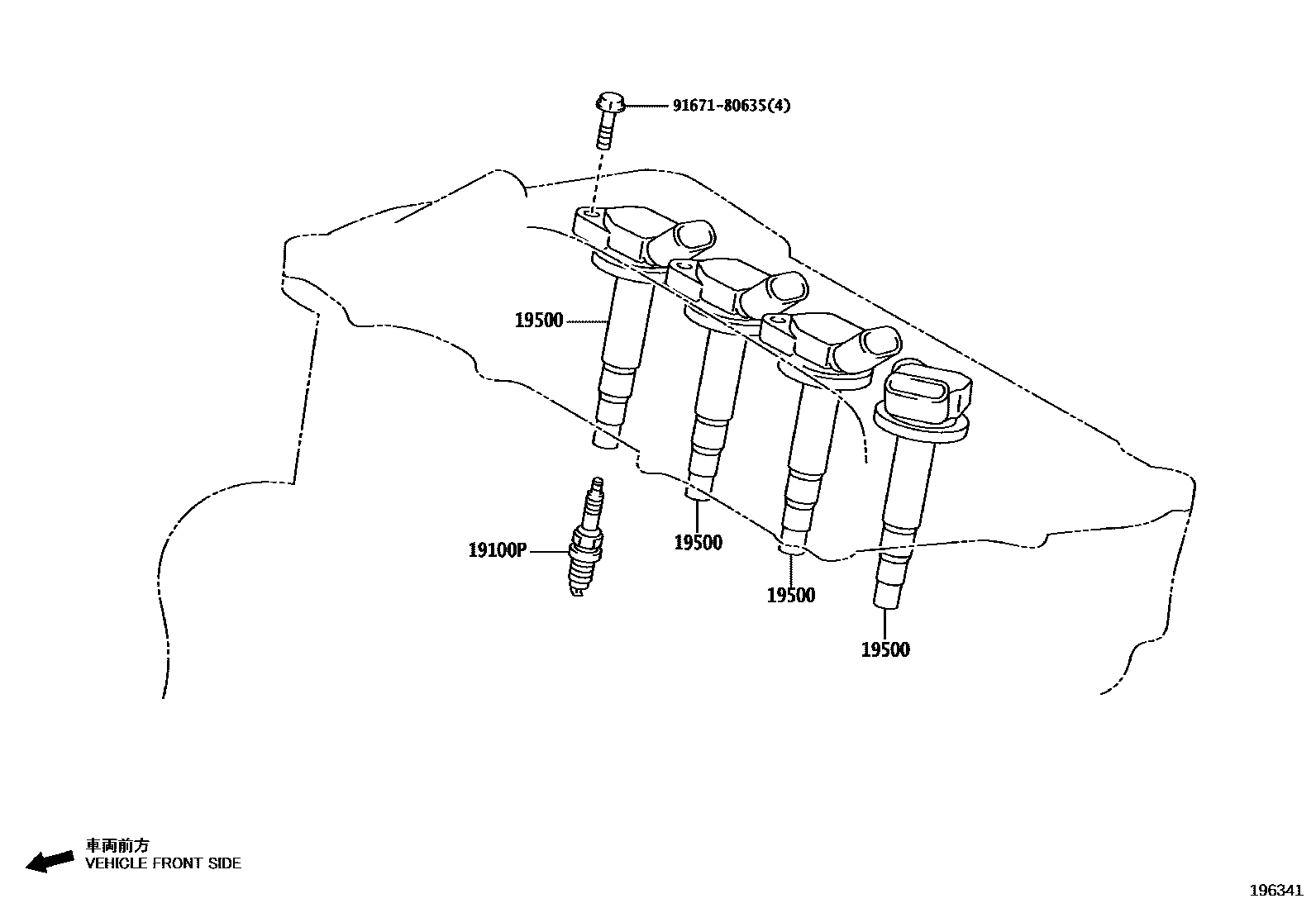

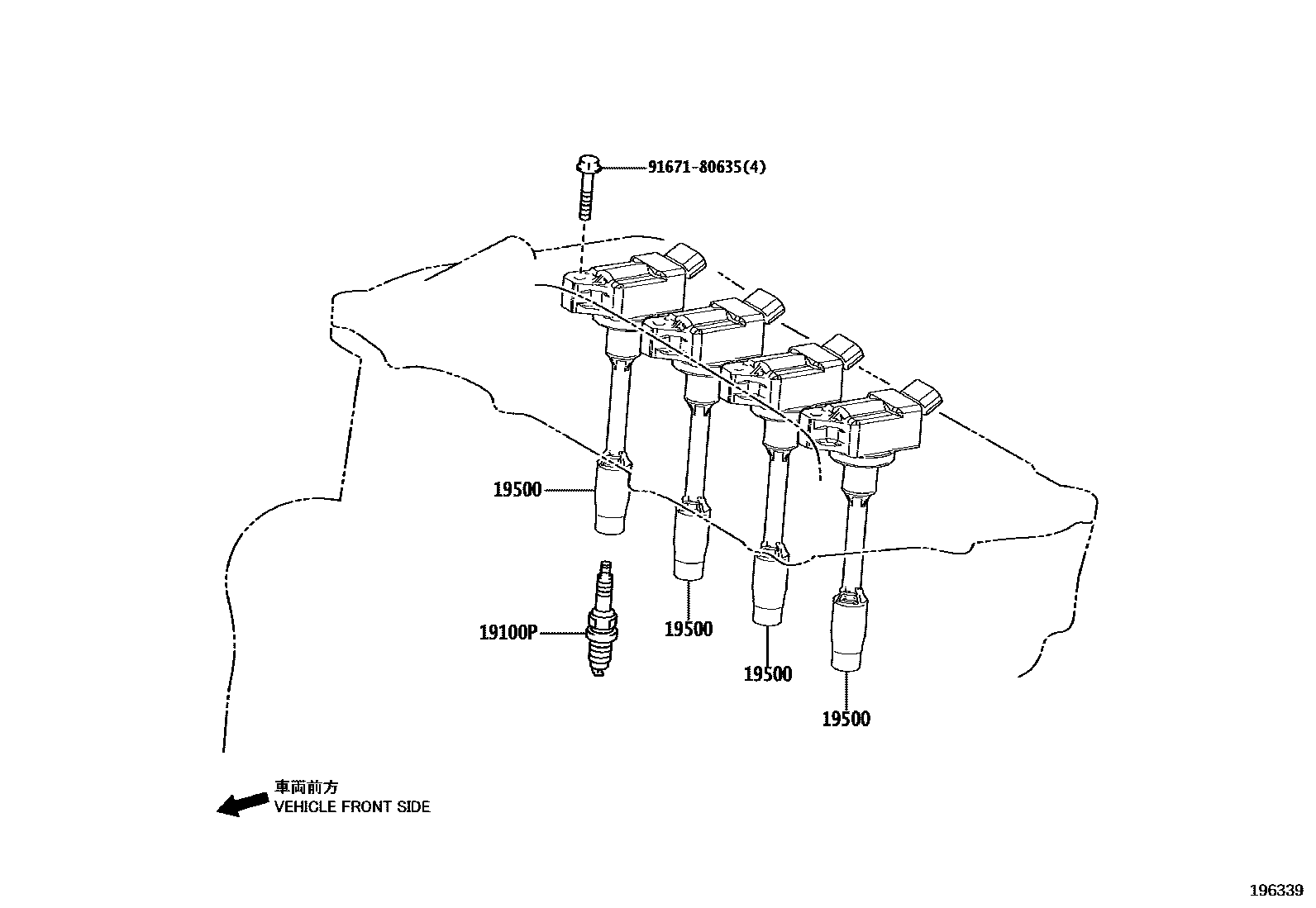

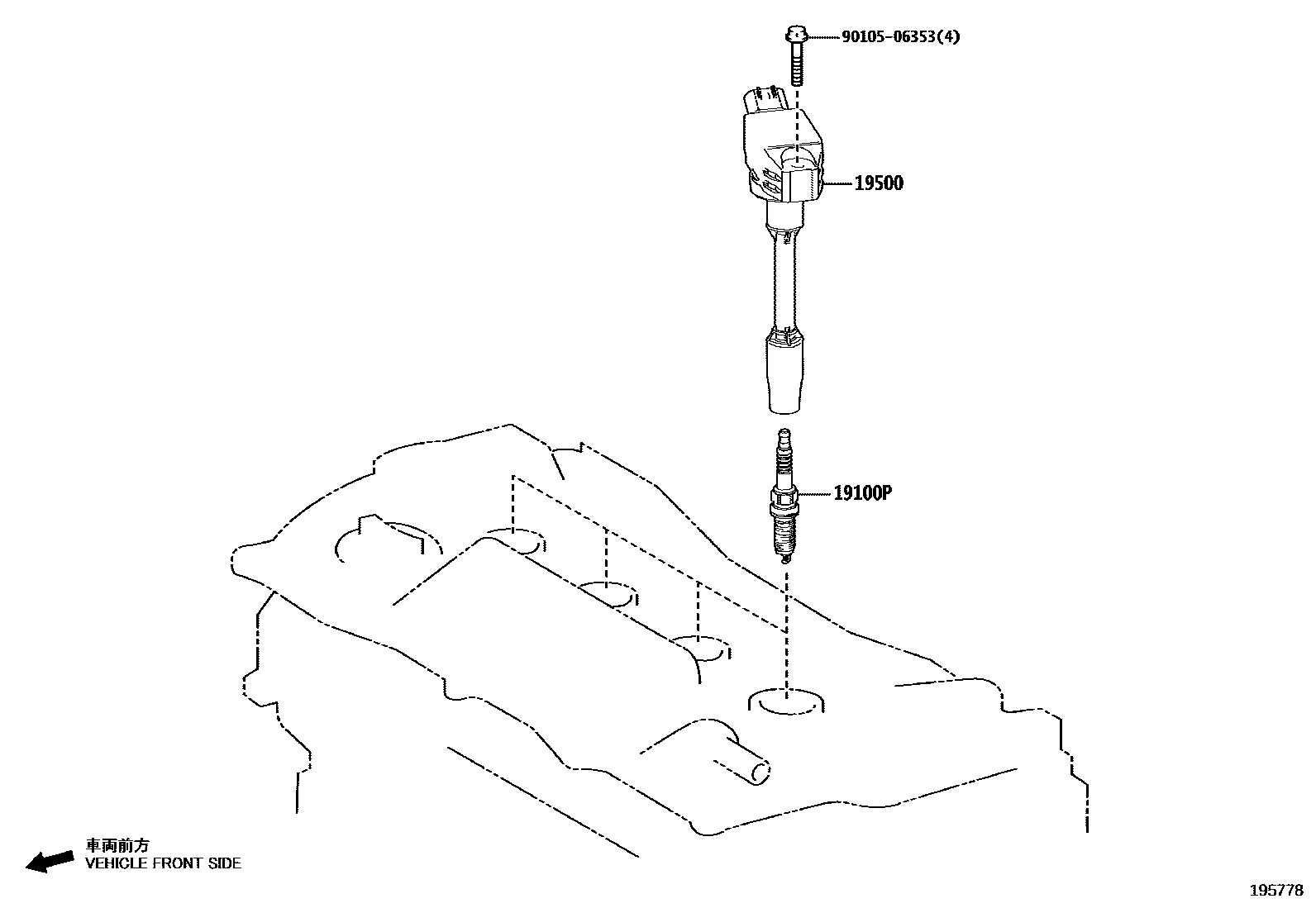

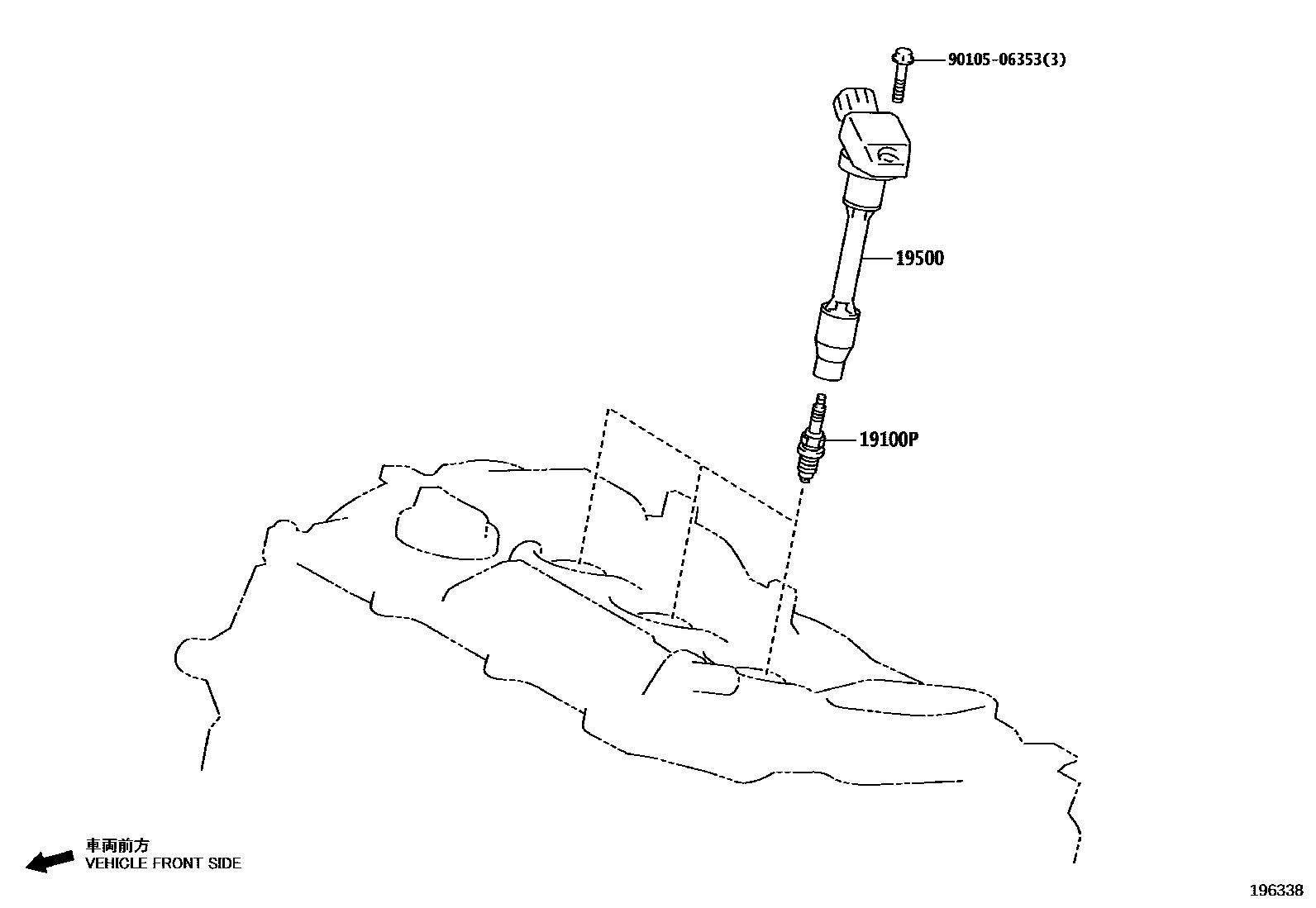

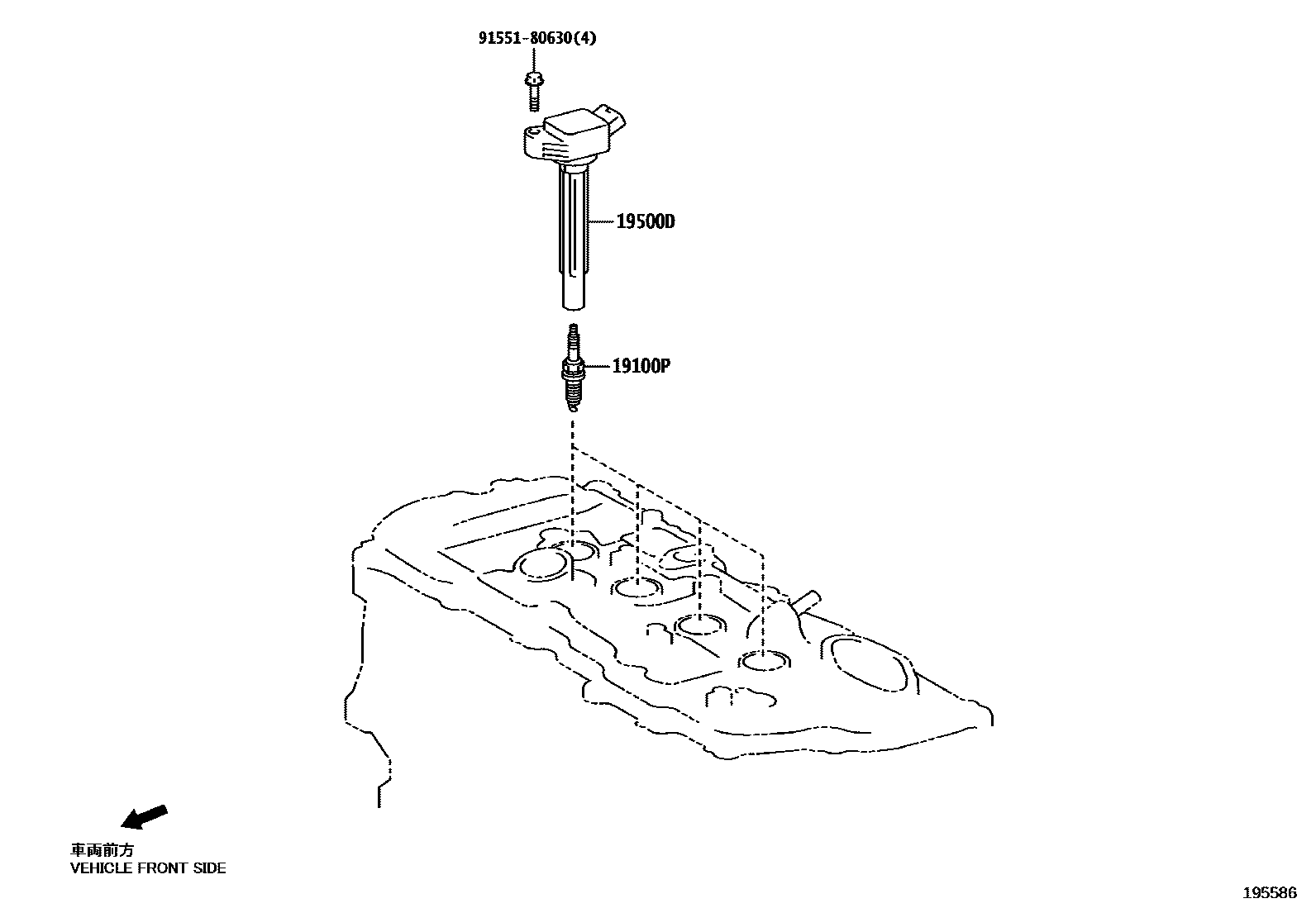

Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 5 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01285 · 90919-01289 · 90919-01297 · 90919-01298 · 90919-01301 |
| 19500 | Ignition coil assembly | 90919-02272 · 90919-02276 · 90919-02277 |
| 19500D | No. 1 ignition coil | 90919-02271 |
