Toyota COROLLA vacuum tube — Figure 1708

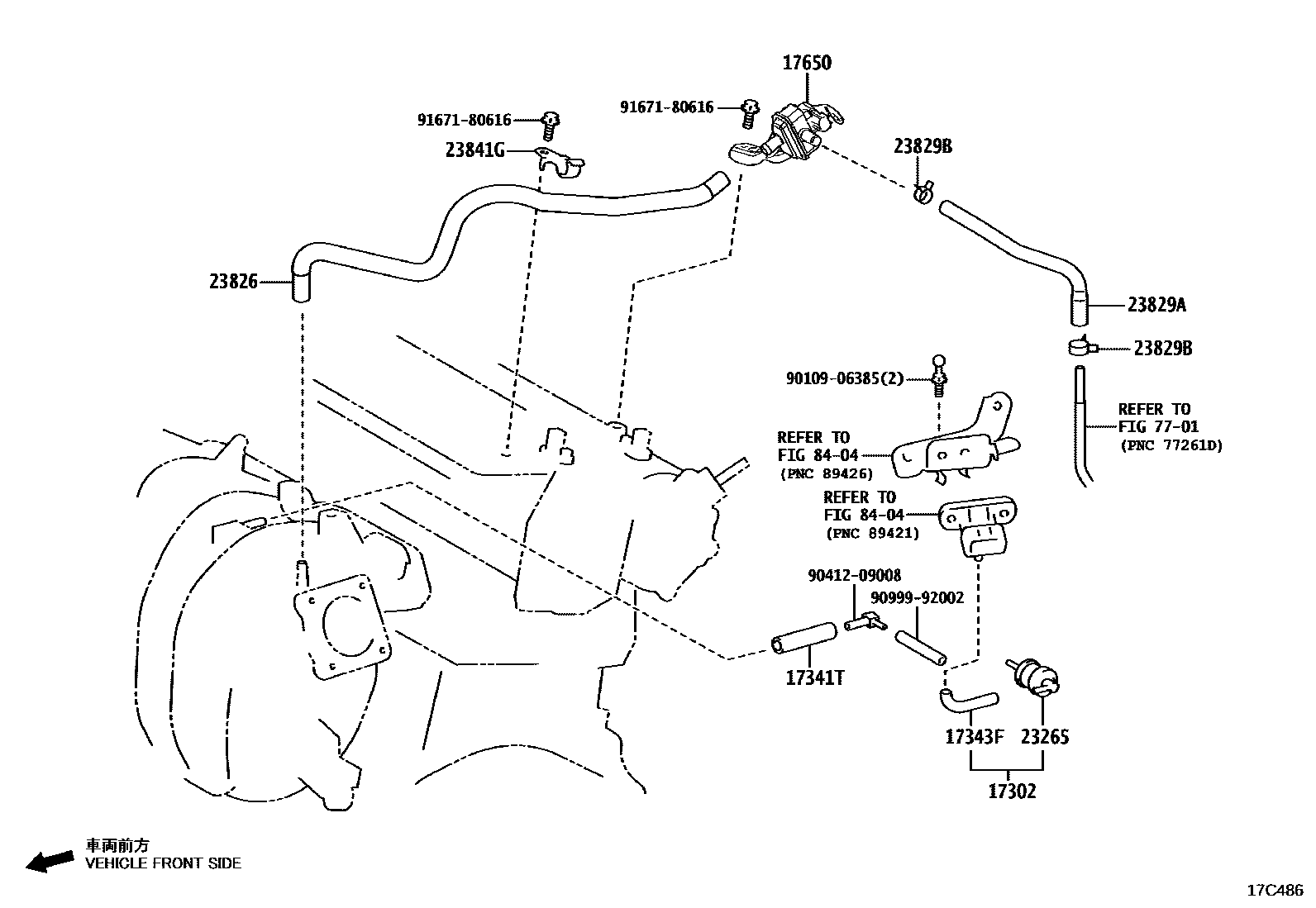

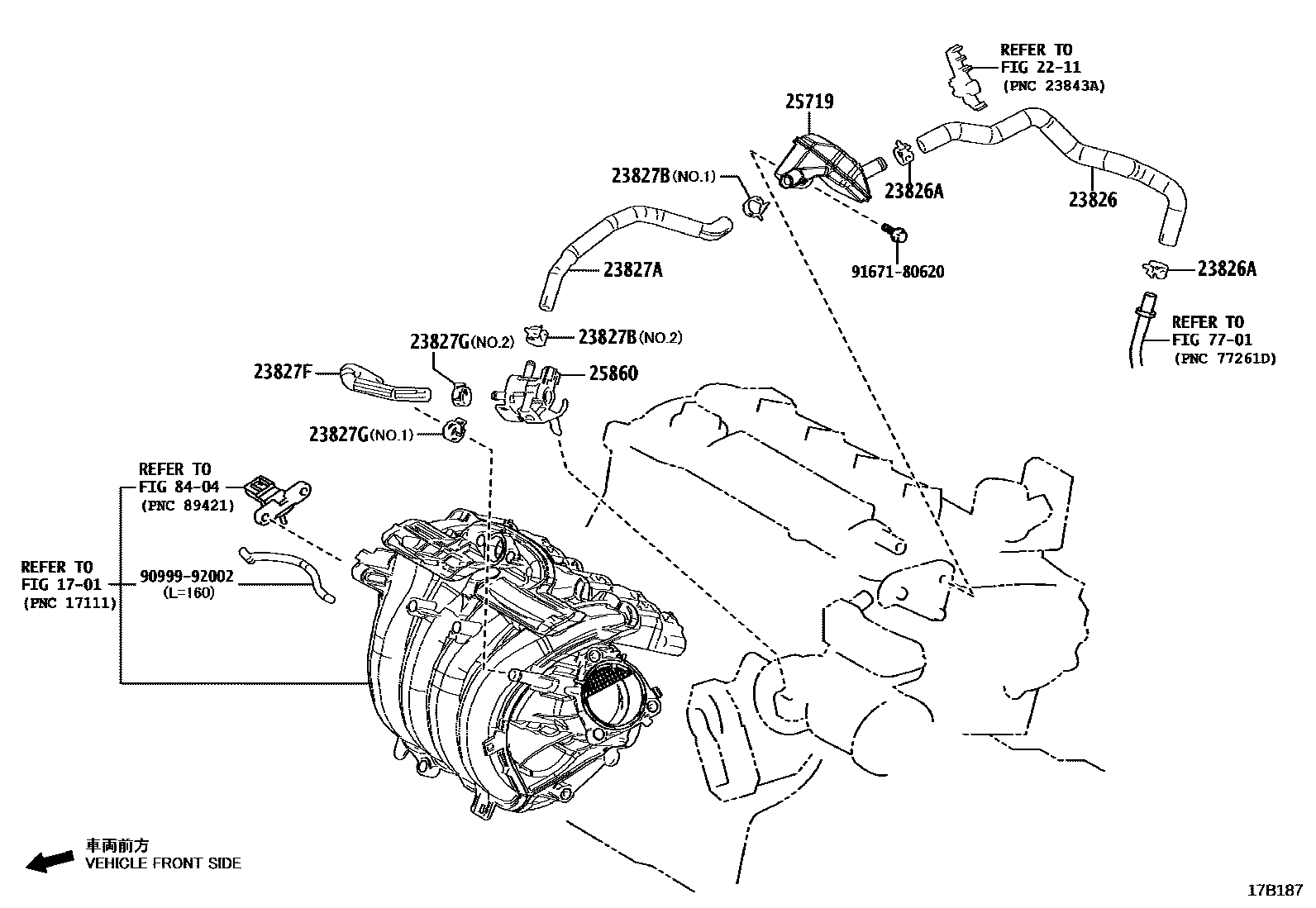

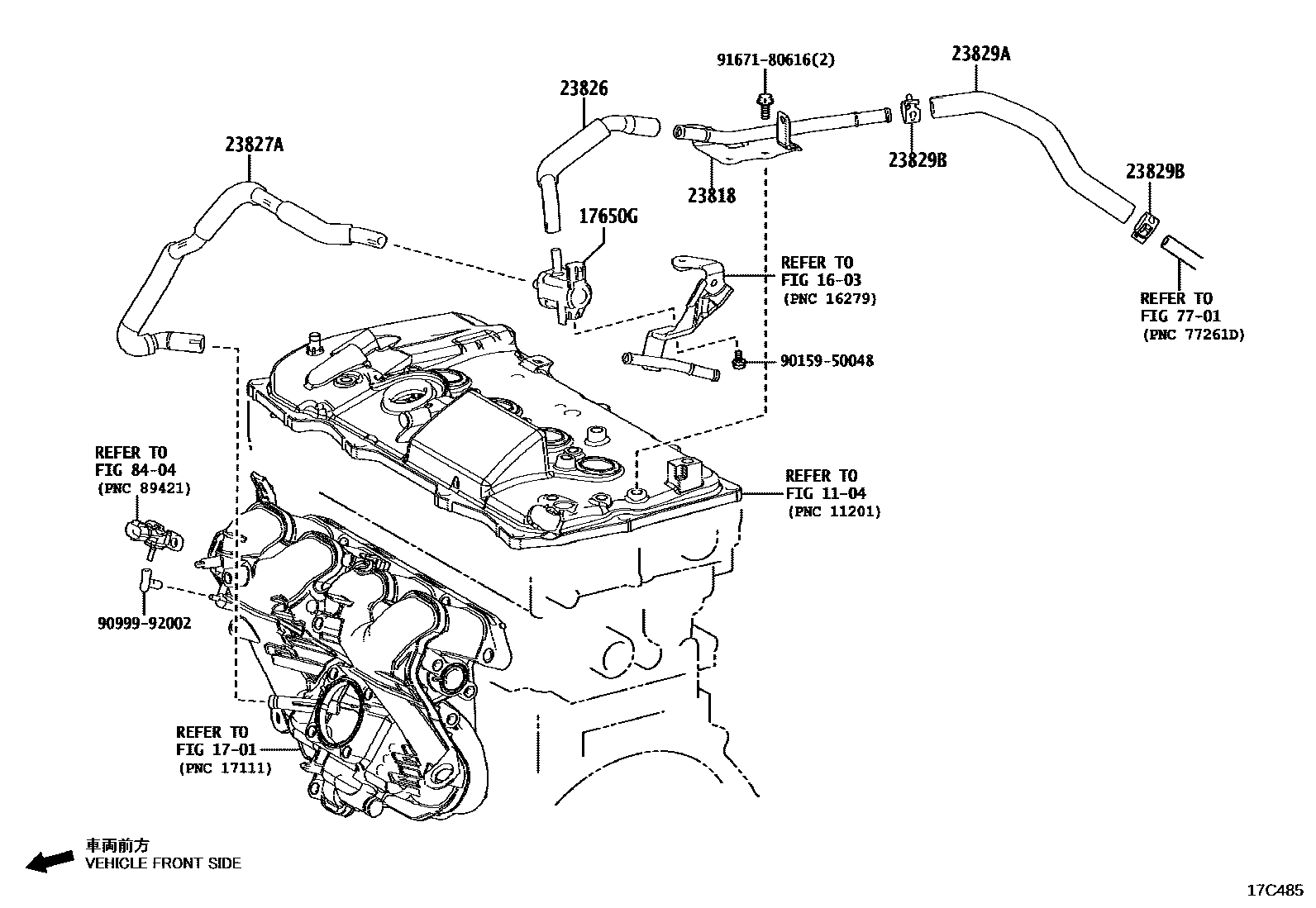

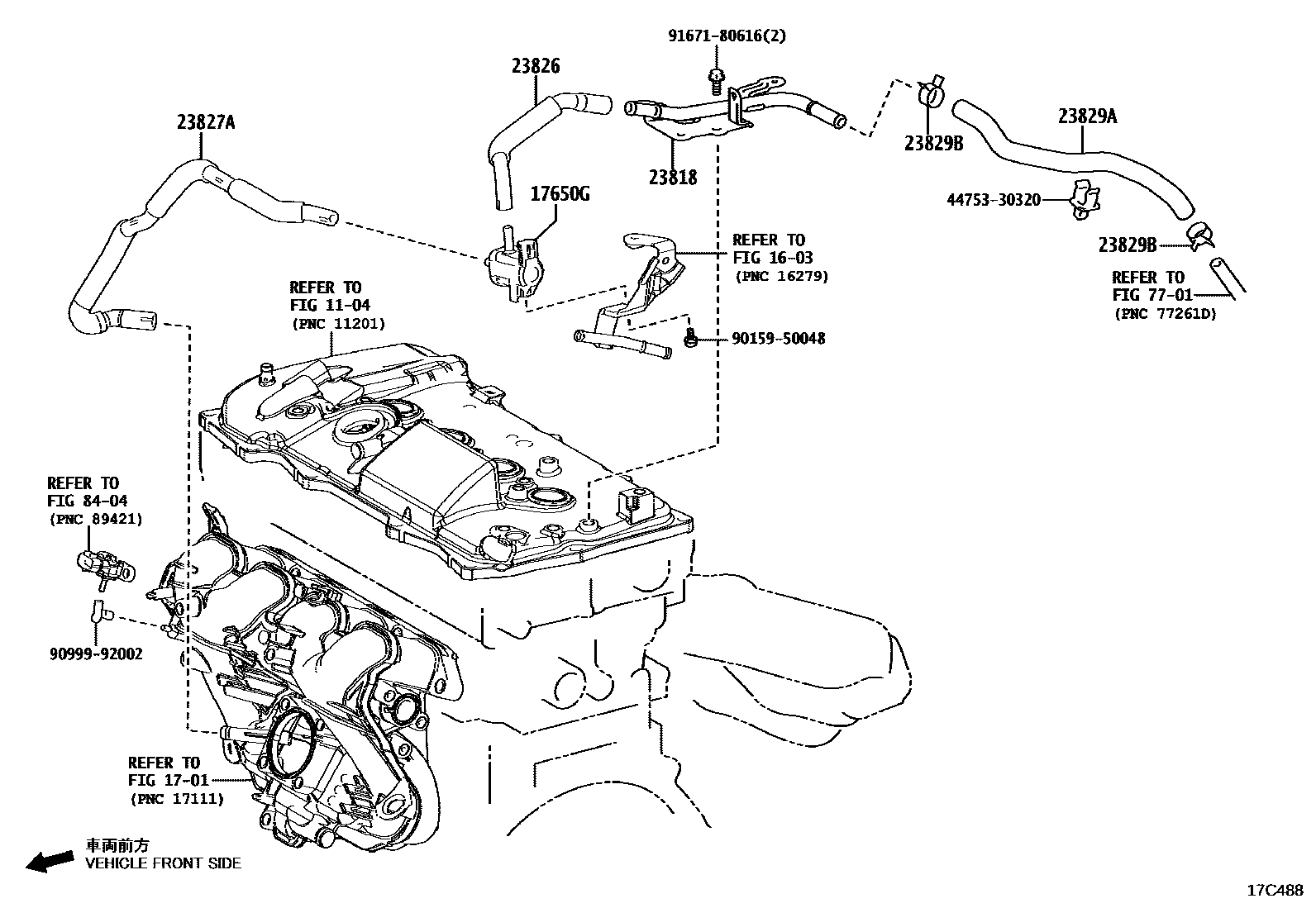

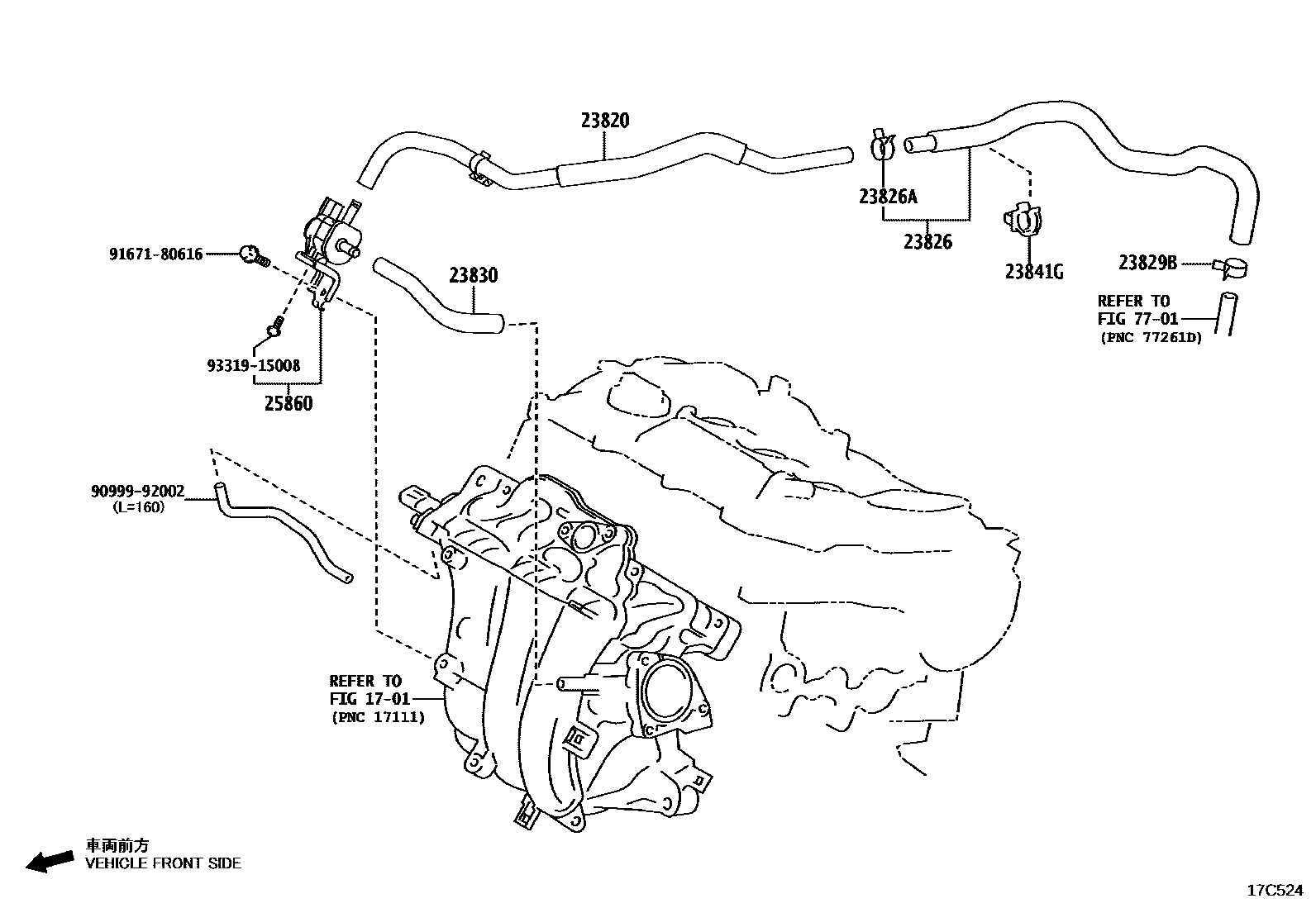

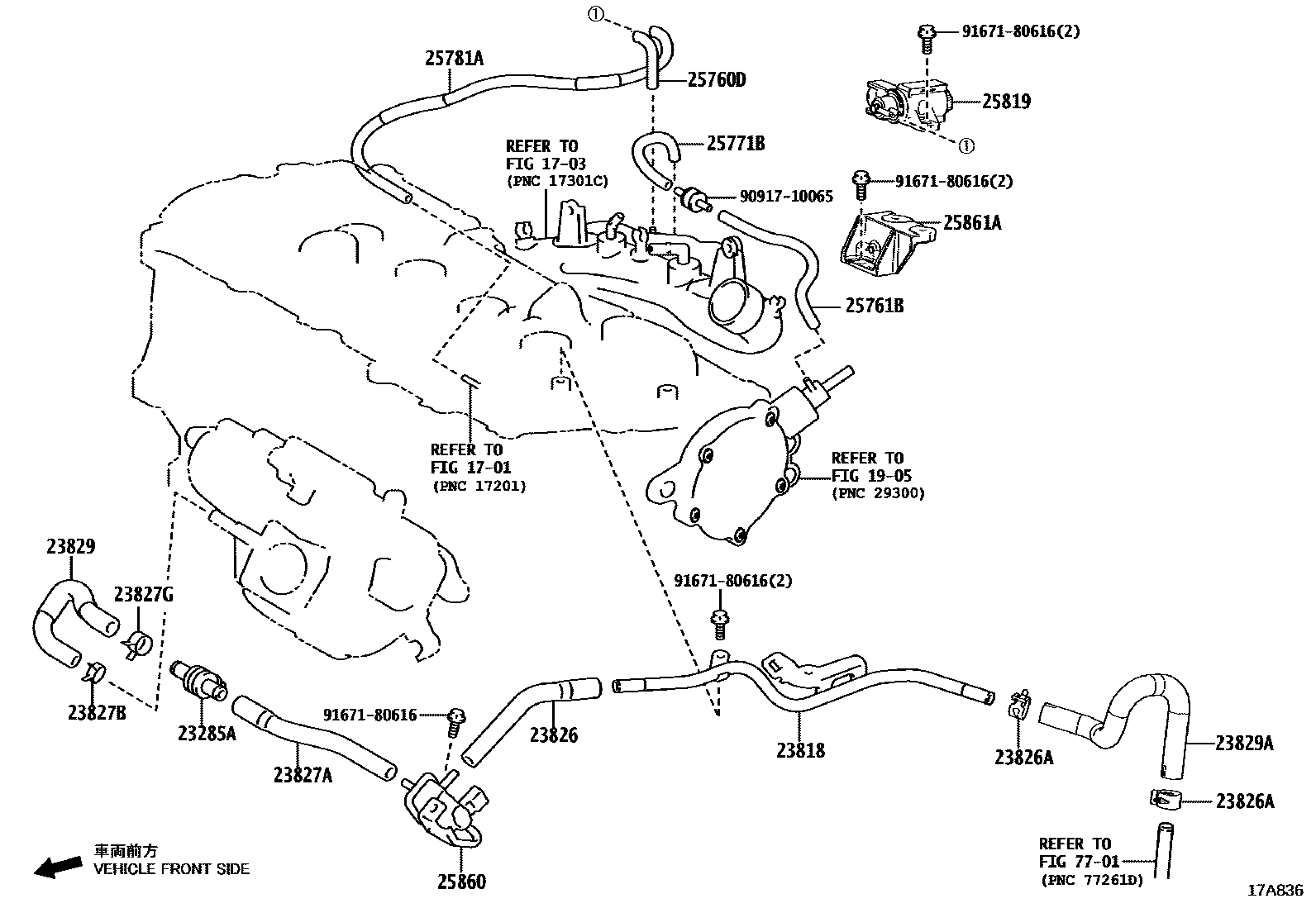

Toyota COROLLA EPC diagram 1708, vacuum tube, with 6 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17302 | Air hose sub-assembly | 17302-37010 |
| 17341T | Air hose No. 1 | 17341-37070 |
| 17343F | No. 3 air hose | 17343-37050 |
| 17650 | Vacuum switch valve assembly | 25860-37130 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12276 |
| 23265 | No. 1 gas filter | 90917-11038 |
| 23285A | No. 1 one-way valve | 25748-36010 |
| 23818 | Fuel vapor supply pipe | 23818-37030 · 23818-37040 · 23818-47020 |
| 23820 | Fuel vapor supply hose assembly | 23820-15040 |
| 23826 | No. 1 fuel vapor supply hose | 23826-24030 · 23826-24091 · 23826-37220 · 23826-37250 · 23826-37340 · 23826-37360 · 23826-47090 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96136-41901 |
| 23827A | No. 2 fuel vapor supply hose | 23826-24100 · 23827-37070 · 23827-47130 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96136-41801 · 96136-41901 · 96138-41501 |
| 23827F | Toyota part | 23826-24110 |
| 23827G | Toyota part | 96136-41801 · 96136-42201 · 96138-41501 |
| 23829 | No. 3 fuel vapor supply hose | 23829-47010 |
| 23829A | Fuel vapor supply hose | 23826-37241 · 23826-37300 · 23826-37420 · 23826-47150 |
| 23829B | Clamp (for fuel vapor supply hose) | 96132-51300 · 96136-41901 |
| 23830 | No. 2 fuel vapor supply hose assembly | 23826-15010 |
| 23841G | fuel hose clamp | 23841-0T060 · 23841-37180 · 77196-12100 |
| 25719 | Vacuum pressure tank | 25719-24020 |
| 25760D | No. 4 vacuum transmission hose assembly | 25791-47020 |
| 25761B | No. 1 Vacuum Transfer Hose | 25761-47010 |
| 25771B | No. 2 vacuum transfer hose | 25771-47010 |
| 25781A | No. 3 vacuum transfer hose | 25781-47050 |
| 25819 | Vacuum regulating valve assembly | 25819-0W020 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-15040 · 25860-24050 · 25860-47050 |
| 25861A | No. 2 vacuum switch valve bracket | 25862-47020 |
