Toyota COROLLA Manifold — Figure 1701

Toyota COROLLA EPC diagram 1701, Manifold, with 7 images and 26 PNC and OE references.

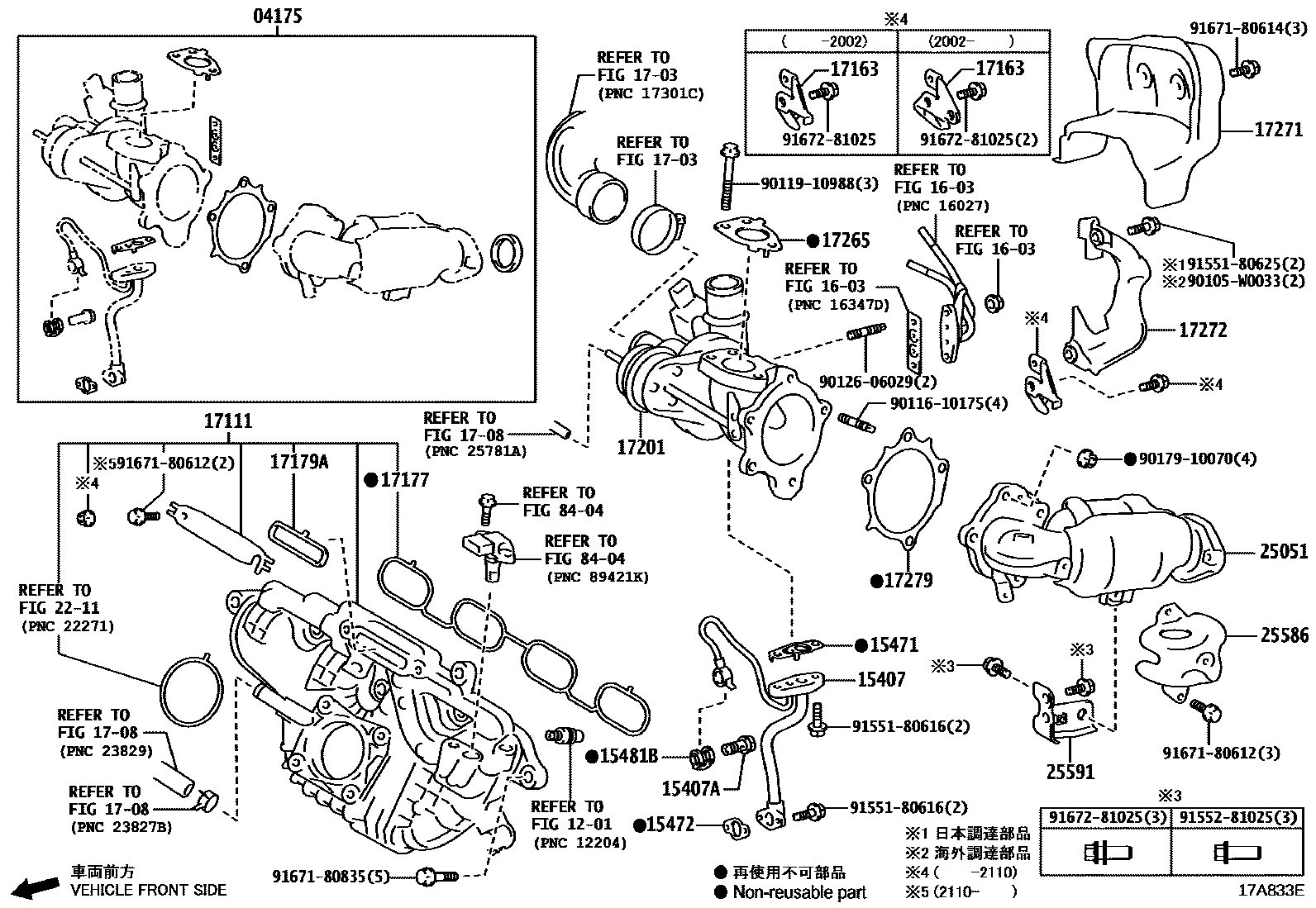

Toyota COROLLA Manifold EPC diagram — 17A833E — Manifold — 17A833E (201908 – 999999)

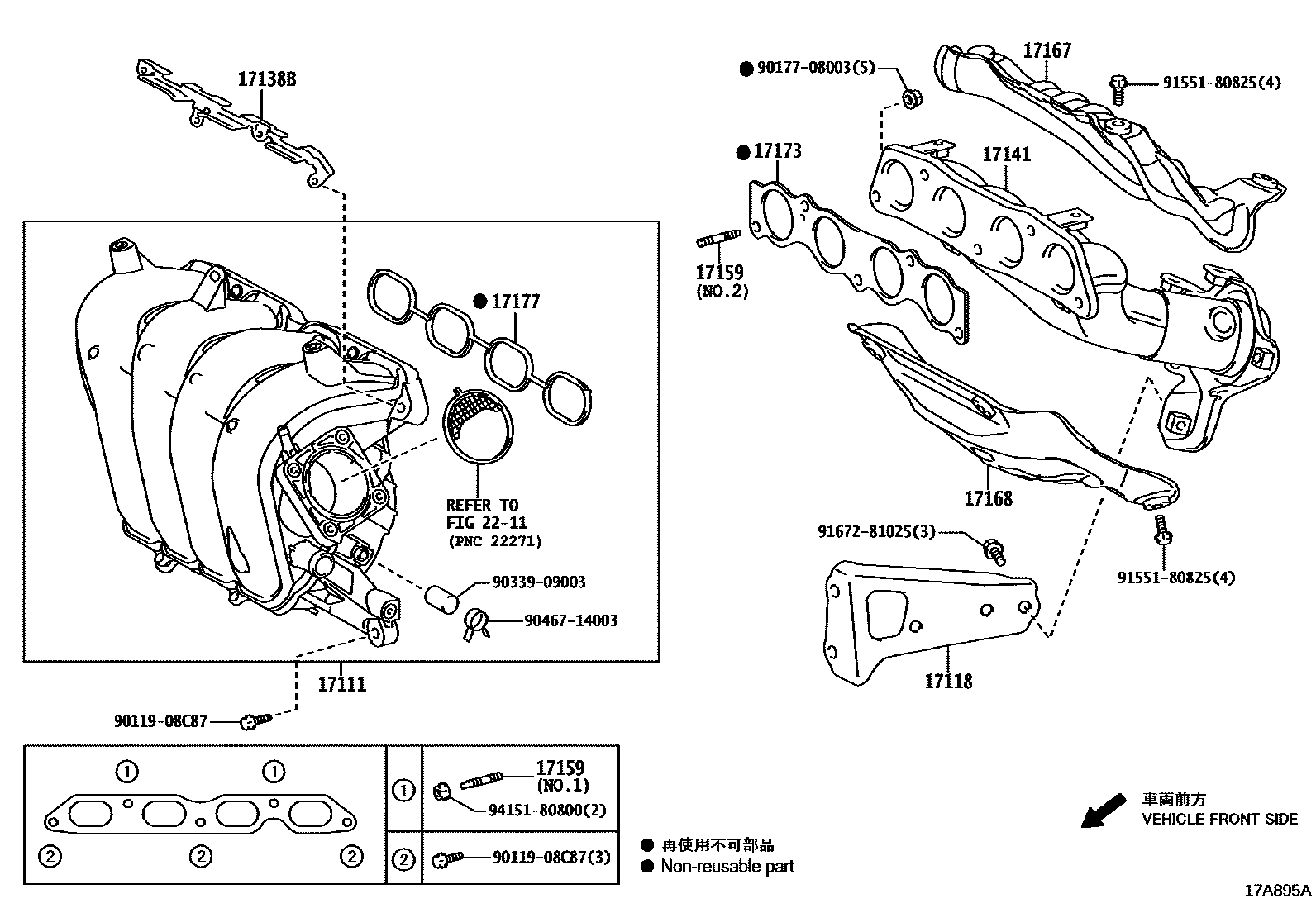

Toyota COROLLA Manifold EPC diagram — 17A895A — Manifold — 17A895A (201908 – 999999)

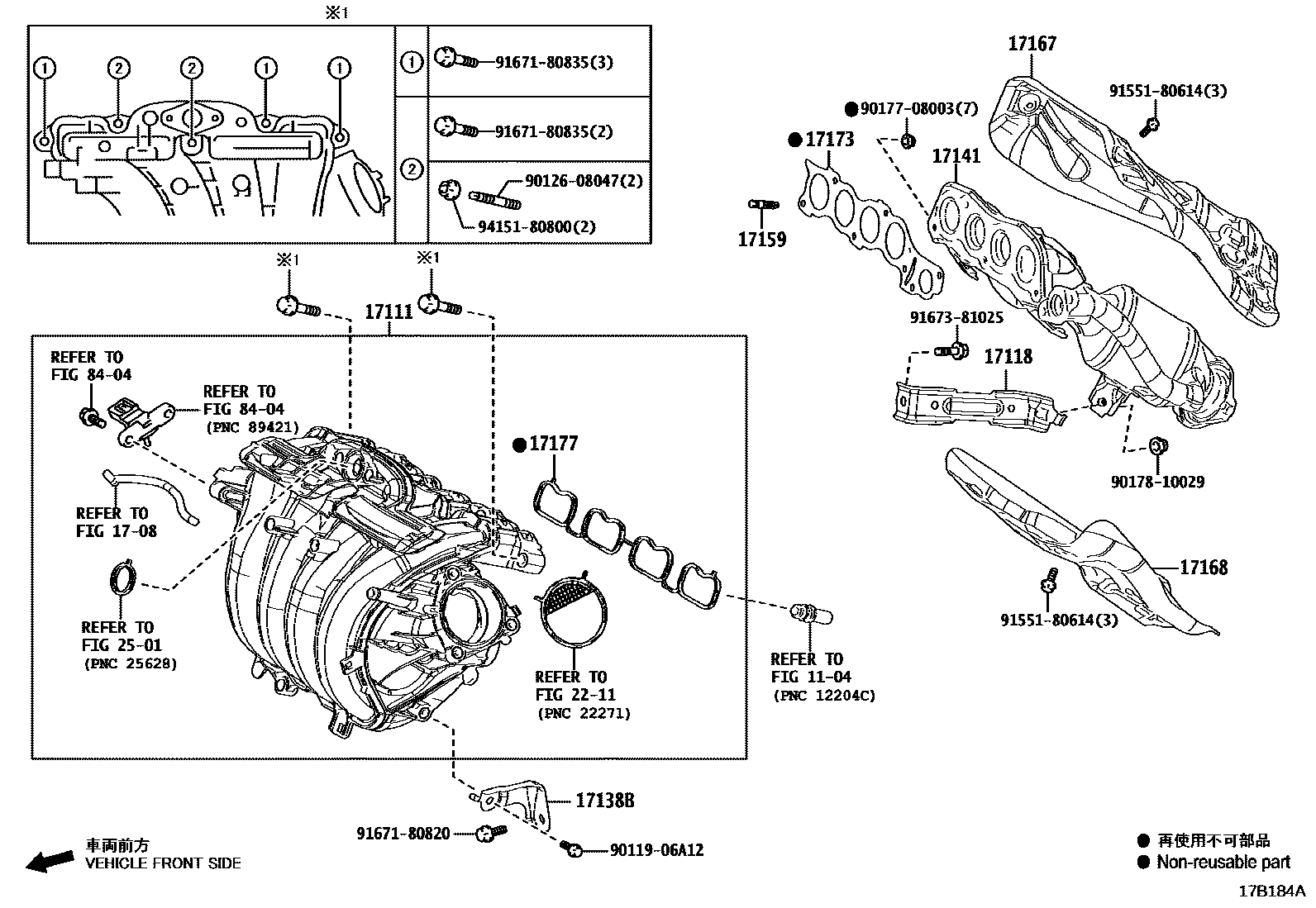

Toyota COROLLA Manifold EPC diagram — 17B184A — Manifold — 17B184A (202006 – 999999)

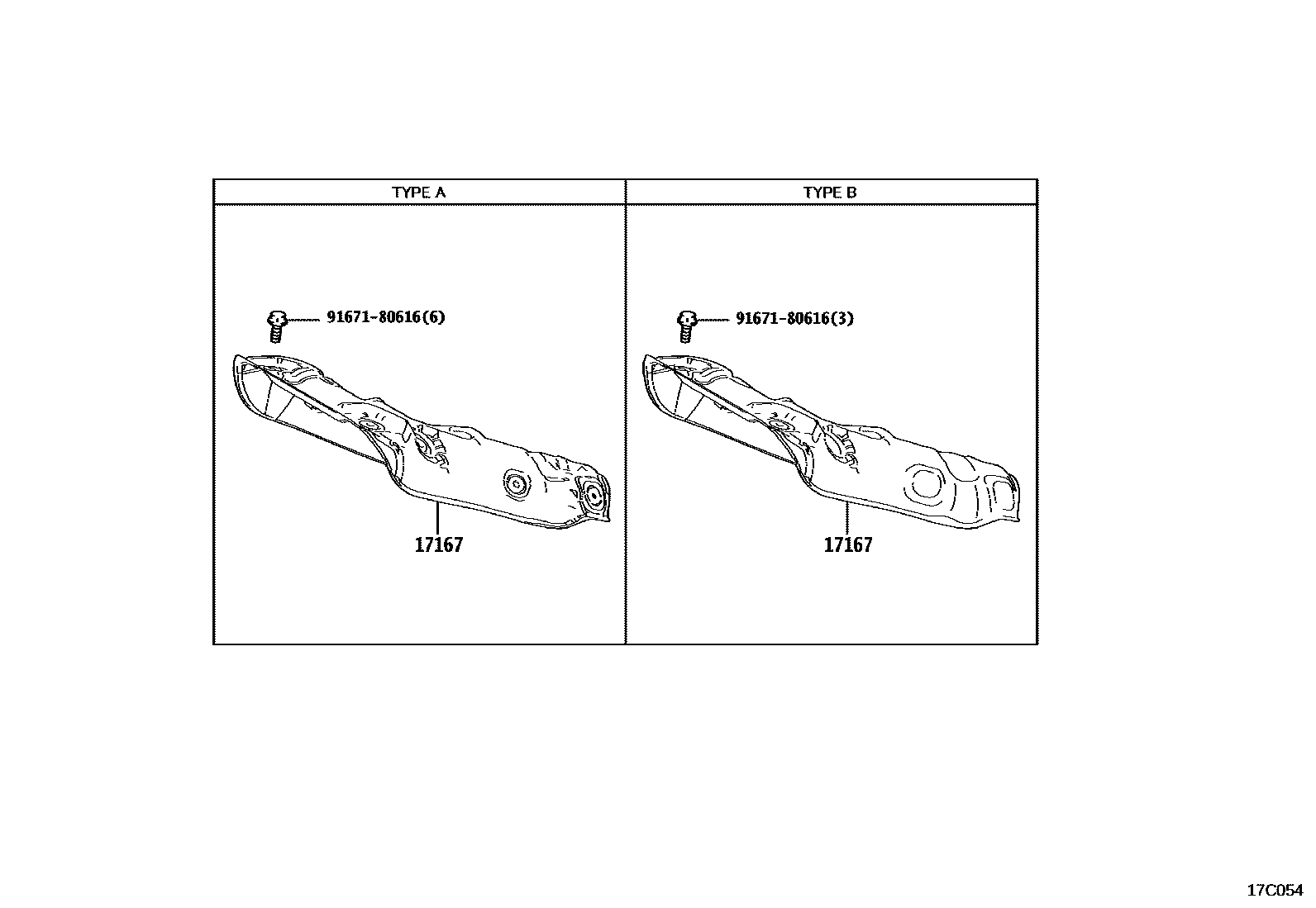

Toyota COROLLA Manifold EPC diagram — 17C054 — Manifold — 17C054 (201908 – 999999)

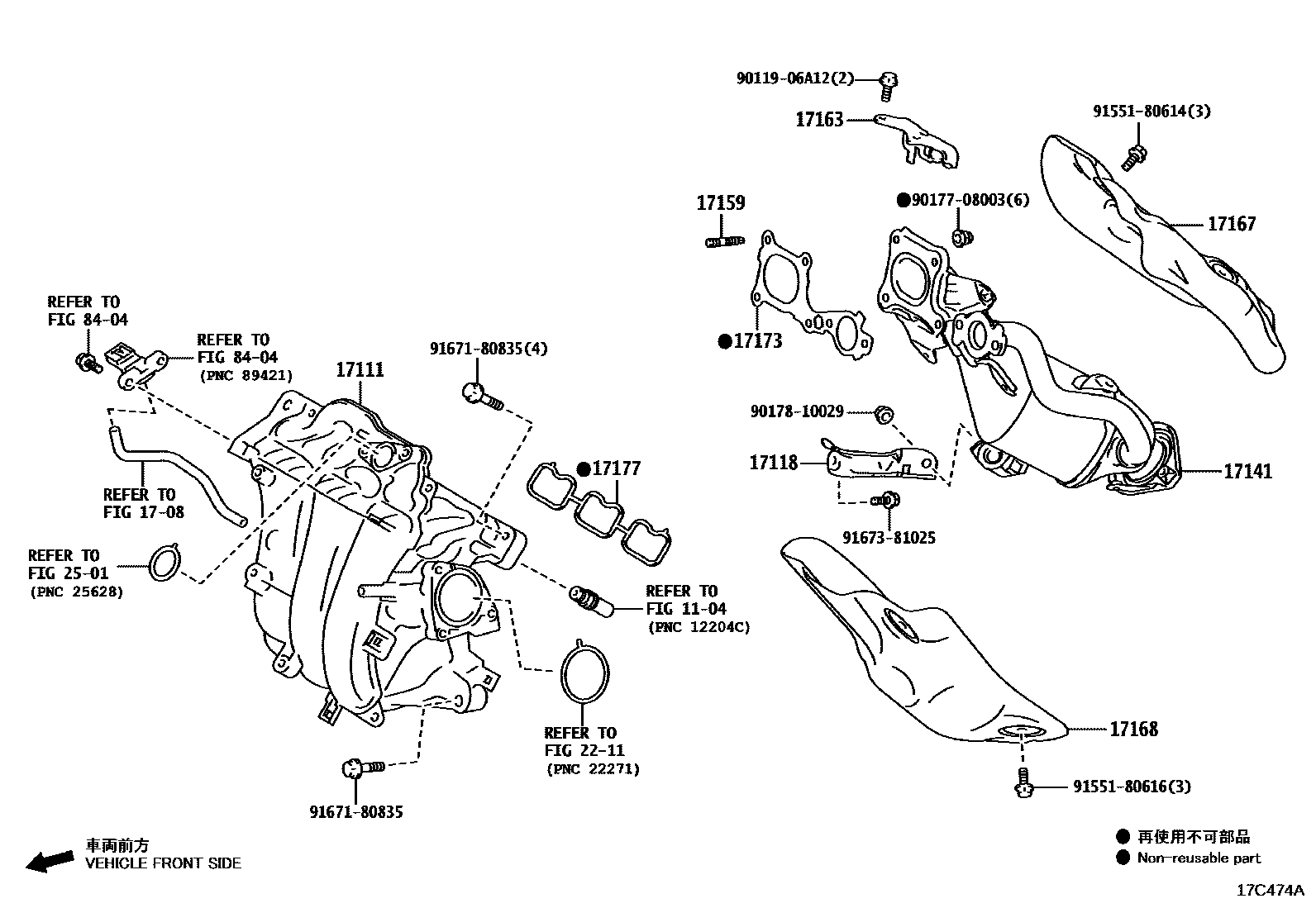

Toyota COROLLA Manifold EPC diagram — 17C474A — Manifold — 17C474A (202210 – 999999)

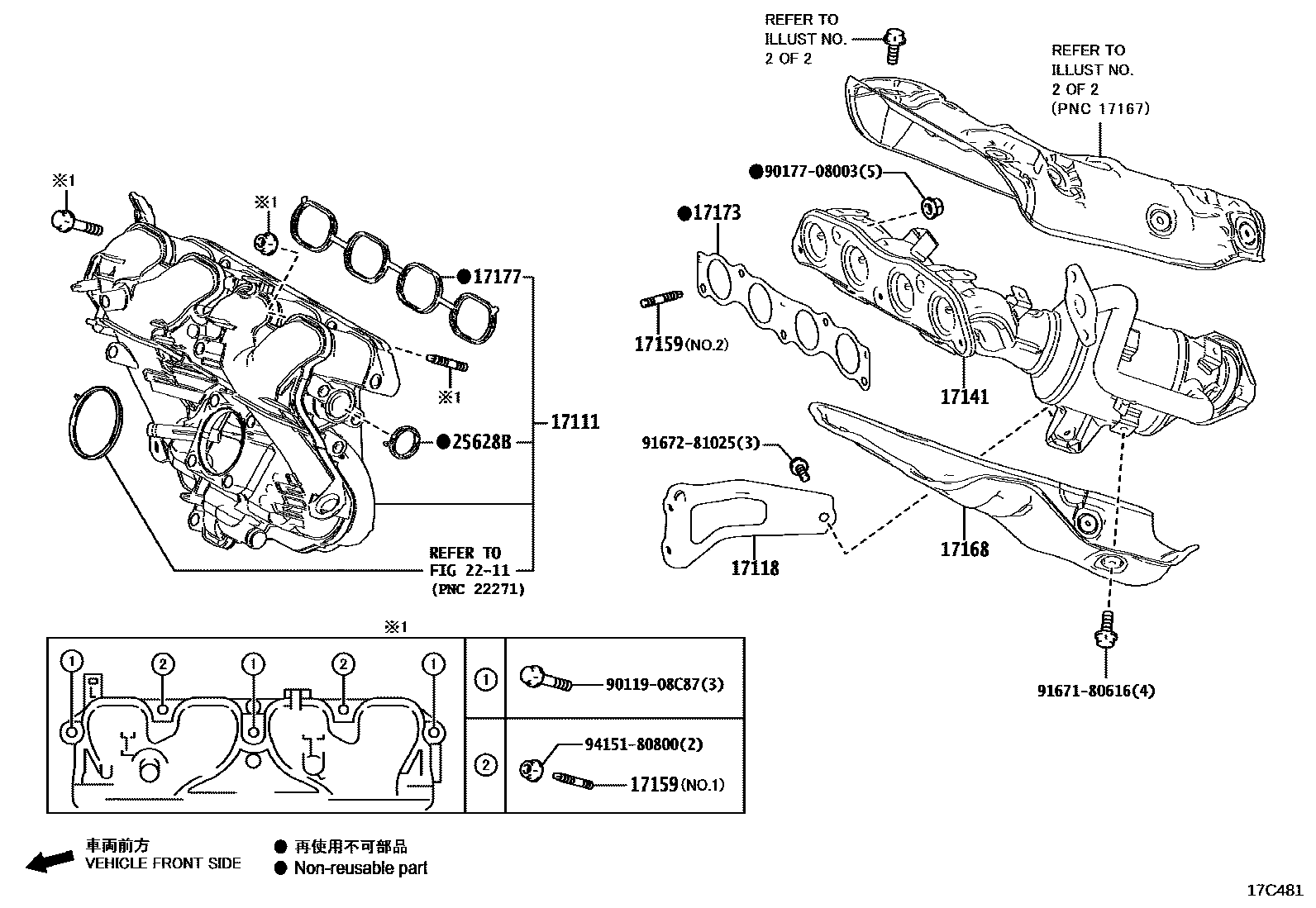

Toyota COROLLA Manifold EPC diagram — 17C481 — Manifold — 17C481 (201908 – 999999)

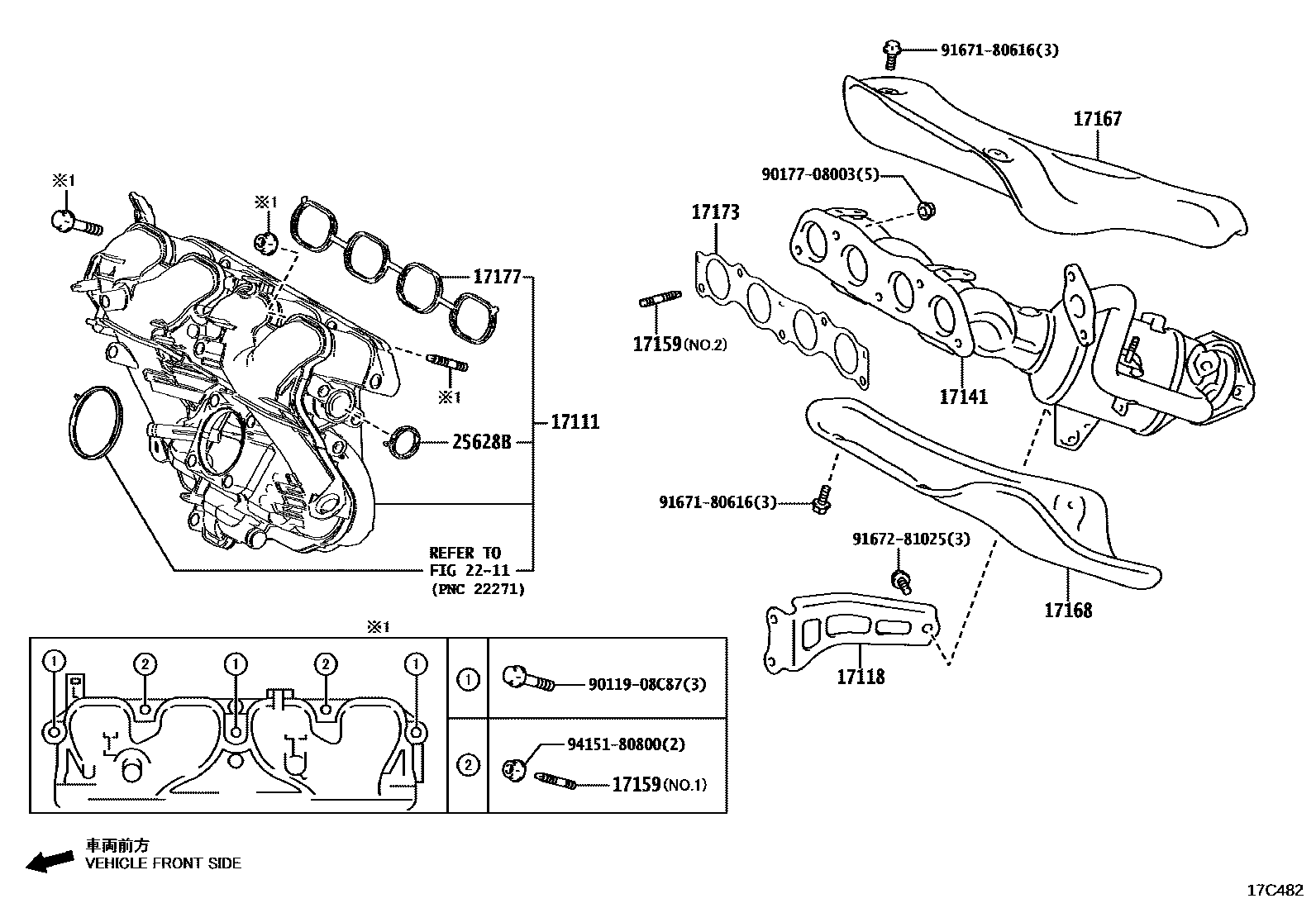

Toyota COROLLA Manifold EPC diagram — 17C482 — Manifold — 17C482 (202210 – 999999)

PNC and OE references

PNC	Part name	OE numbers
04175	Turbocharger gasket assembly	04175-47010
15407	Turbine oil inlet pipe sub-assembly	15407-47011
15407A	Connector bolt (for turbine oil inlet pipe)	96341-11200
15471	Turbine oil inlet pipe gasket	15471-47010
15472	No. 1 turbine oil outlet pipe gasket	15472-47010
15481B	Gasket (for No. 1 joint bolt)	90430-12037
17111	Intake Manifold	17101-15120 · 17101-F3010 · 17101-F3020 · 17120-24010 · 17120-37031 · 17120-37110 · 17120-47100
17118	Manifold stays	17118-15090 · 17118-24010 · 17118-37010 · 17118-37090 · 17118-37100
17138B	Intake manifold stay	17138-24010 · 17138-37011
17141	exhaust manifold	17141-15180 · 17141-15250 · 17141-24070 · 17141-37220 · 17141-37221 · 17141-37230 · 17141-37280 · 17141-37350
17159	Studs (for manifold to cylinder head)	90126-08026 · 90126-08052
17163	No. 1 insulation pad bracket	17163-15010 · 17586-47011 · 17586-47020
17167	Exhaust manifold No. 1 heat shield	17167-15100 · 17167-24030 · 17167-37040 · 17167-37110 · 17167-37120 · 17167-37140
17168	Exhaust manifold No.2 insulation pad	17168-15040 · 17168-24030 · 17168-37120 · 17168-37130 · 17168-37150 · 17168-F2050
17173	Gasket (exhaust manifold to cylinder head)	17173-15050 · 17173-24010 · 17173-37010
17177	No. 1 gasket (intake manifold to cylinder head)	17171-15040 · 17171-24020 · 17177-37030 · 17177-47050
17179A	No. 2 intake manifold gasket	17179-47010
17201	Turbocharger sub-assembly	17201-47011
17265	Toyota part	17265-47010
17271	No. 1 turbine vibration isolation pad	17271-47010
17272	No. 2 turbine vibration isolation pad	17272-47010
17279	Turbine outlet elbow gasket	17279-47010
25051	Exhaust manifold three-way catalytic converter sub-assembly	25051-47210
25586	No. 1 manifold three-way catalytic converter vibration isolation pad	25586-47010
25591	Manifold bracket	25591-47010
25628B	EGR air intake gasket	25628-36020
