Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603

Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 14 images and 152 PNC and OE references.

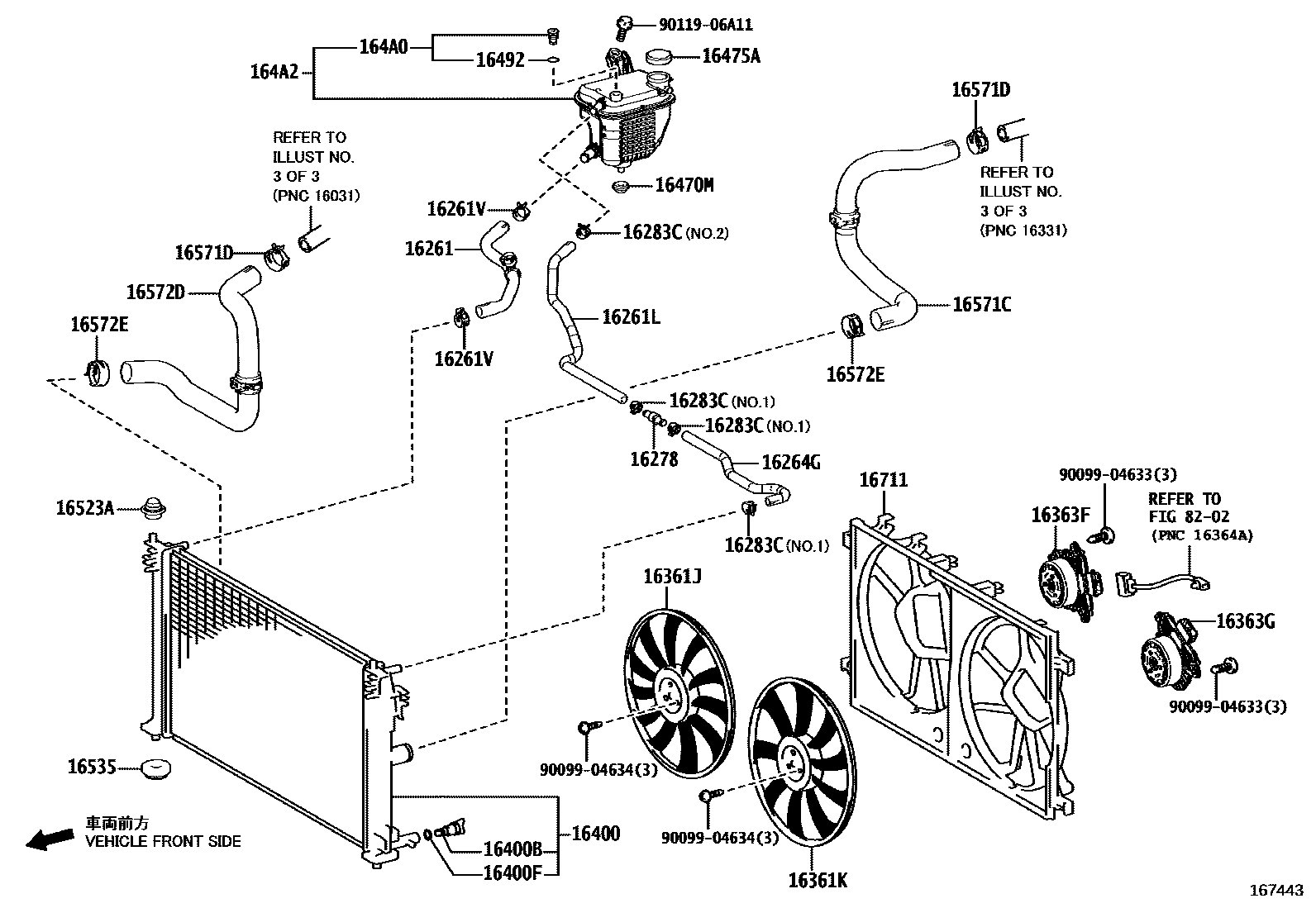

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 167443
RADIATOR & WATER OUTLET — 167443 (201908 – 999999)

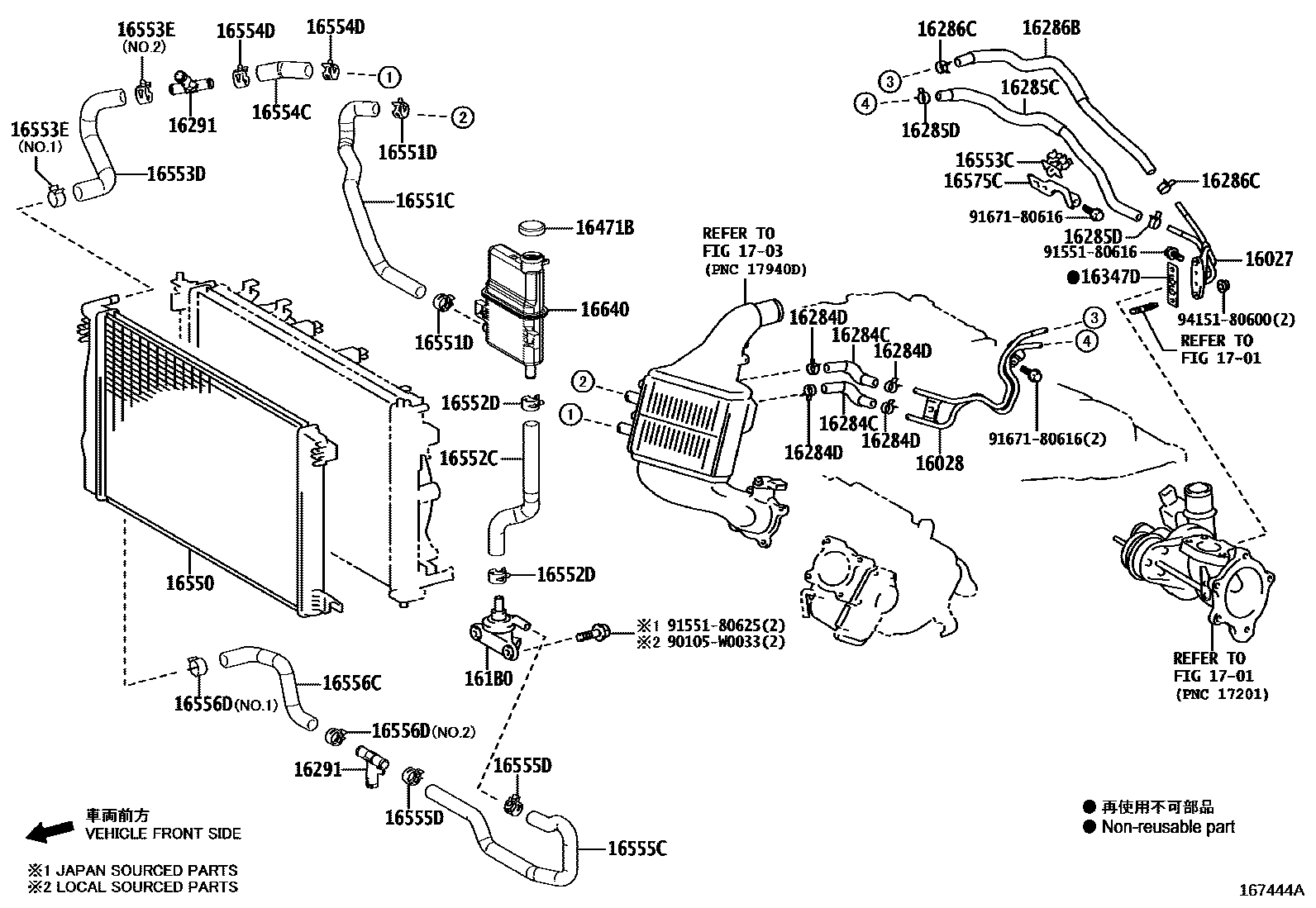

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 167444A
RADIATOR & WATER OUTLET — 167444A (201908 – 999999)

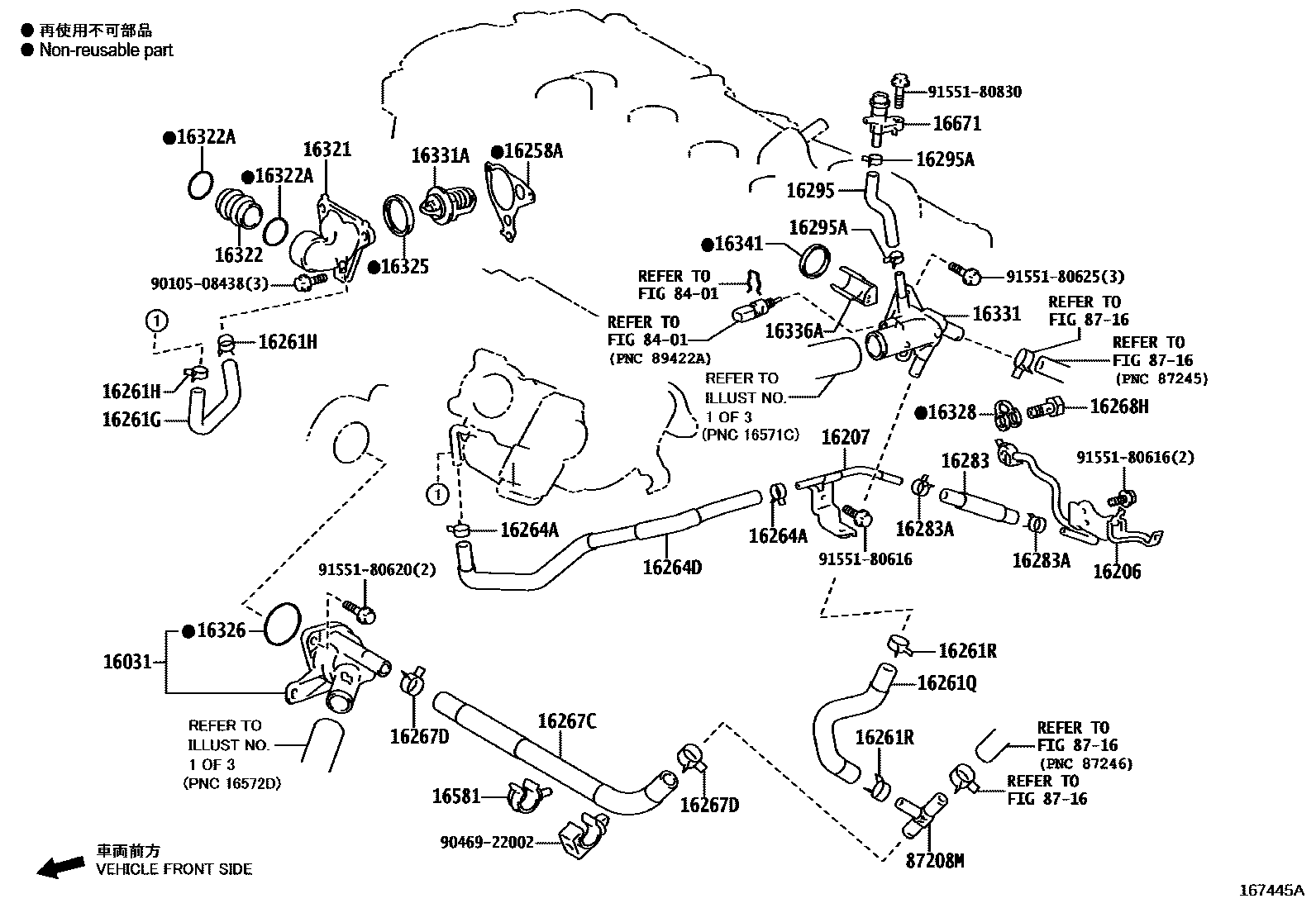

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 167445A
RADIATOR & WATER OUTLET — 167445A (201908 – 999999)

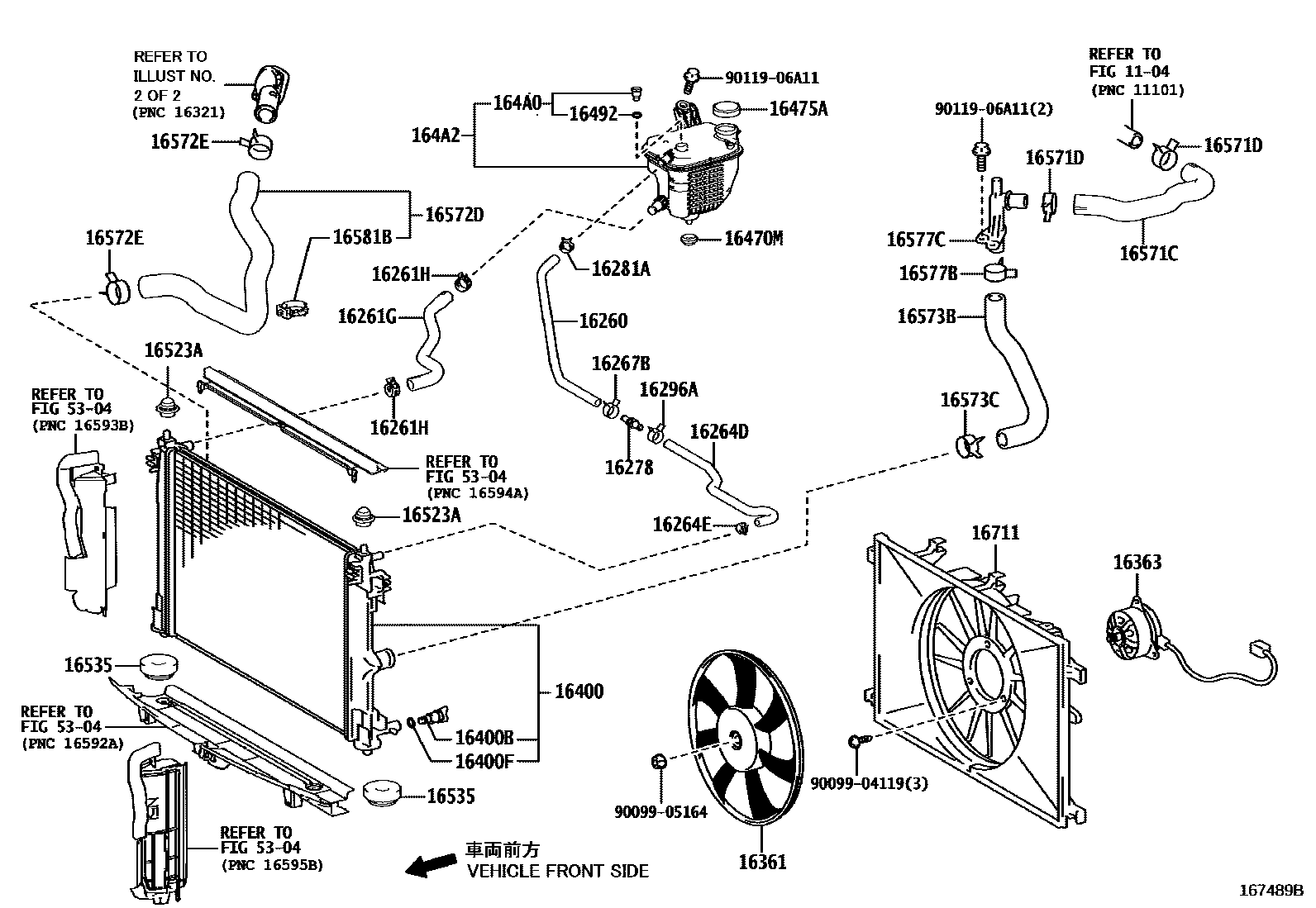

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 167489B
RADIATOR & WATER OUTLET — 167489B (201908 – 999999)

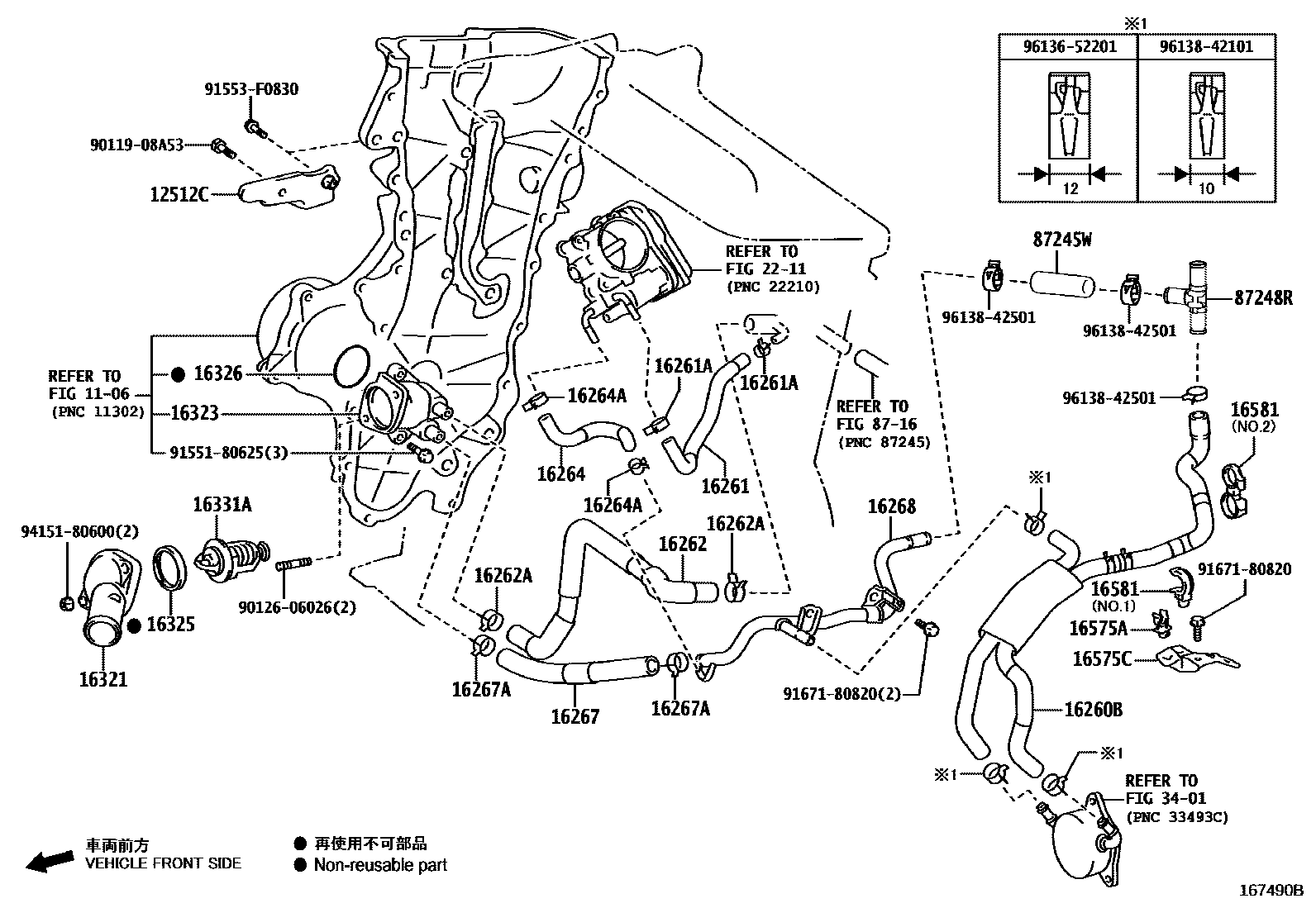

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 167490B
RADIATOR & WATER OUTLET — 167490B (201908 – 999999)

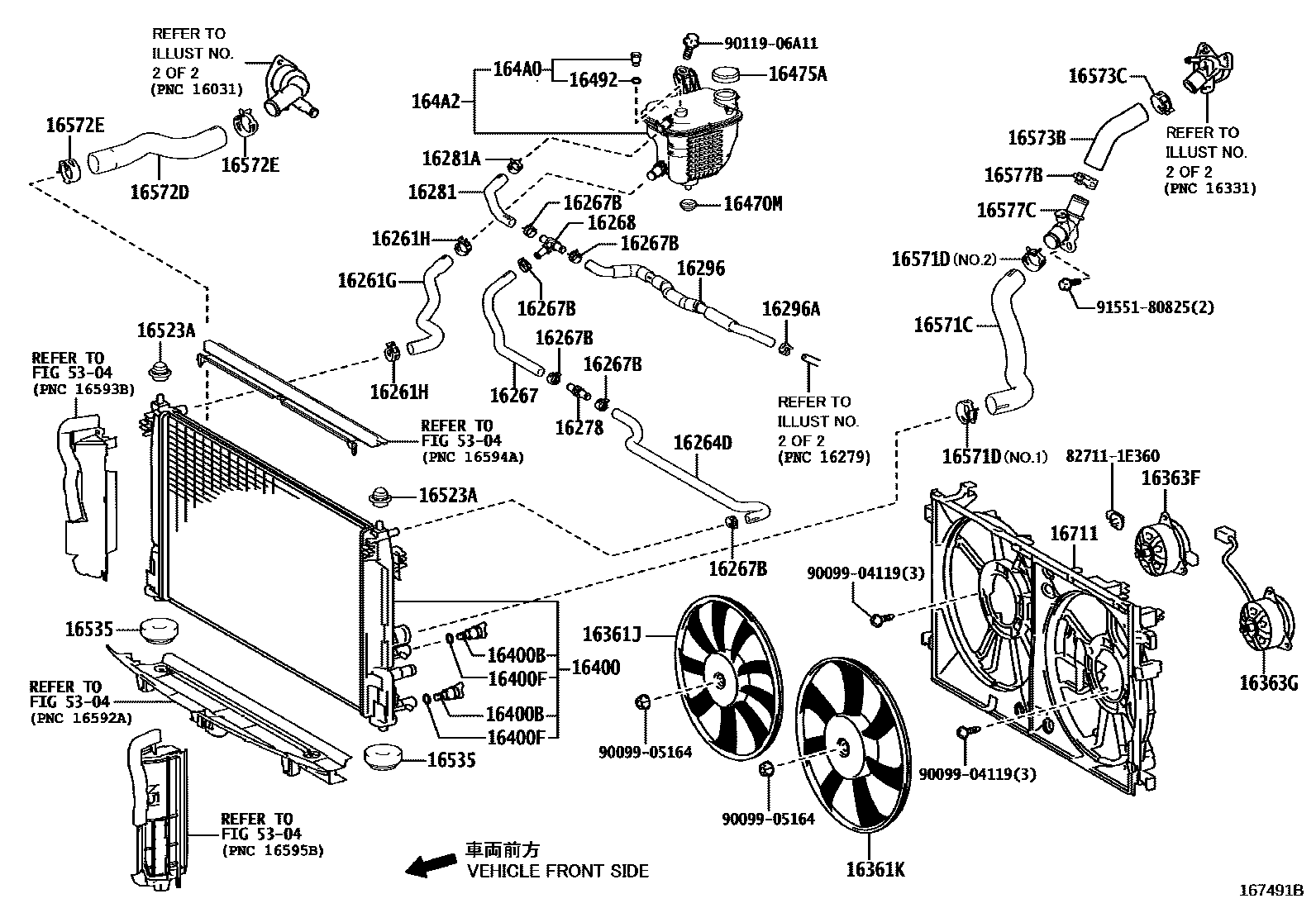

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 167491B
RADIATOR & WATER OUTLET — 167491B (201908 – 202010)

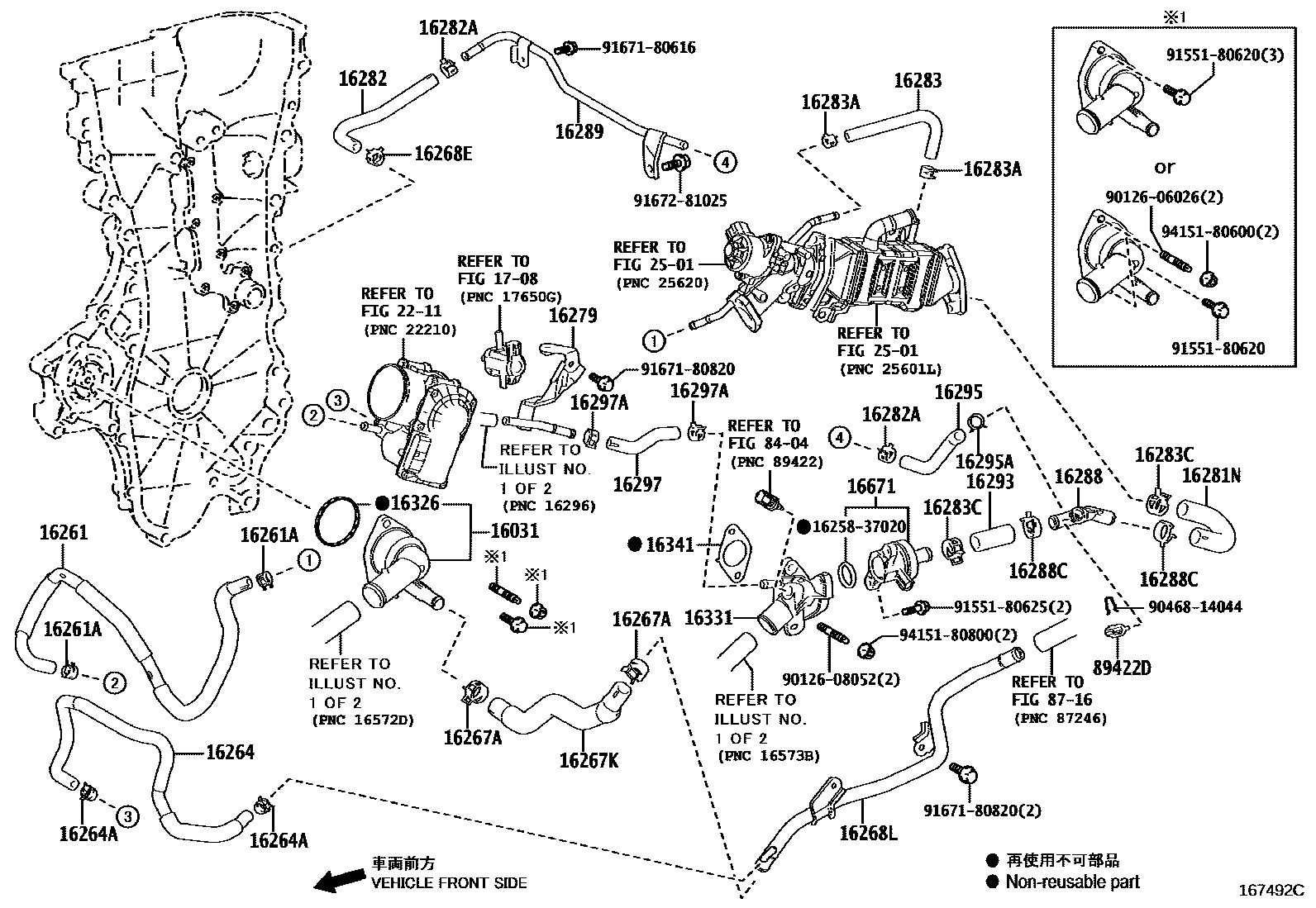

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 167492C
RADIATOR & WATER OUTLET — 167492C (201908 – 999999)

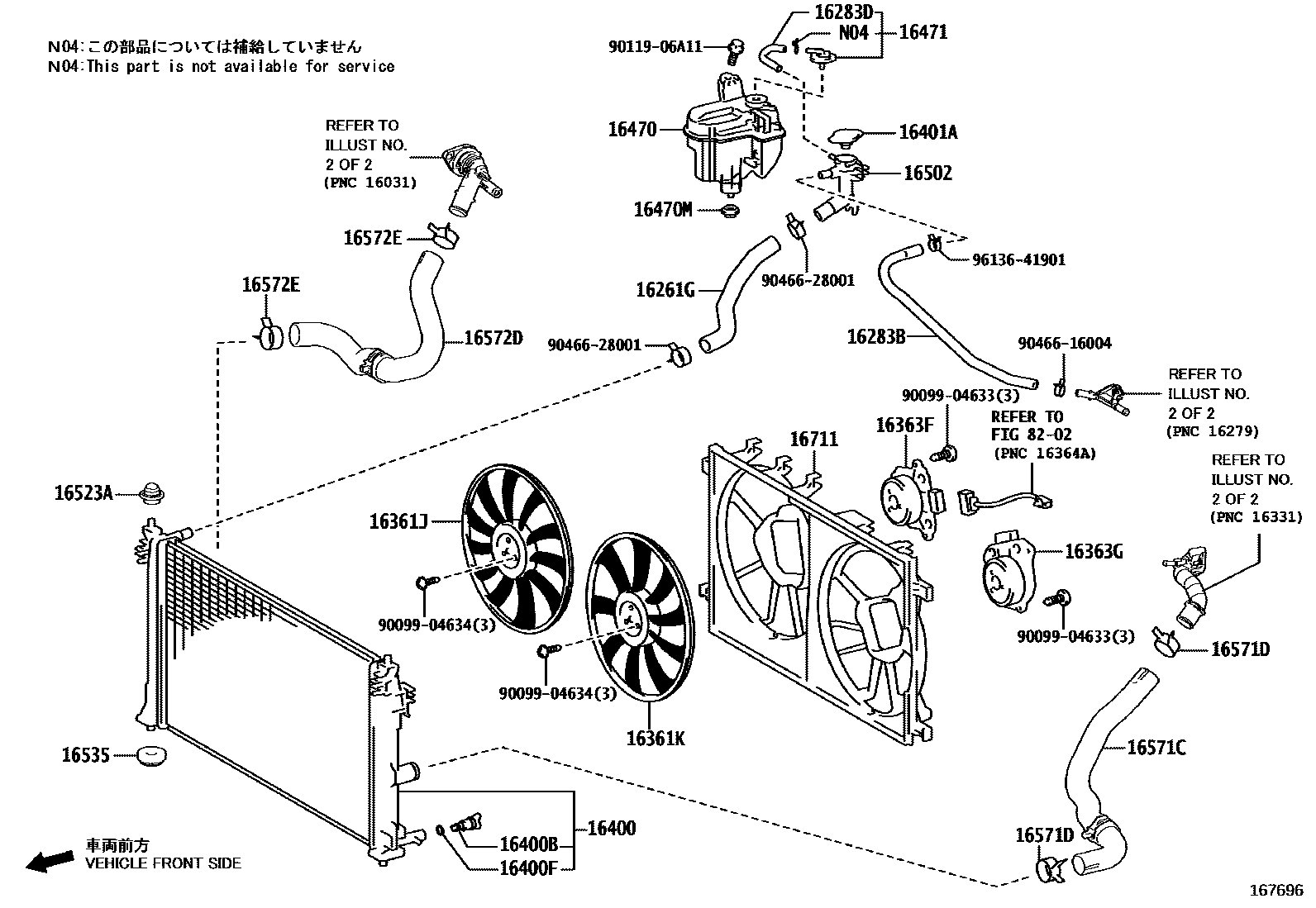

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 167696
RADIATOR & WATER OUTLET — 167696 (202006 – 999999)

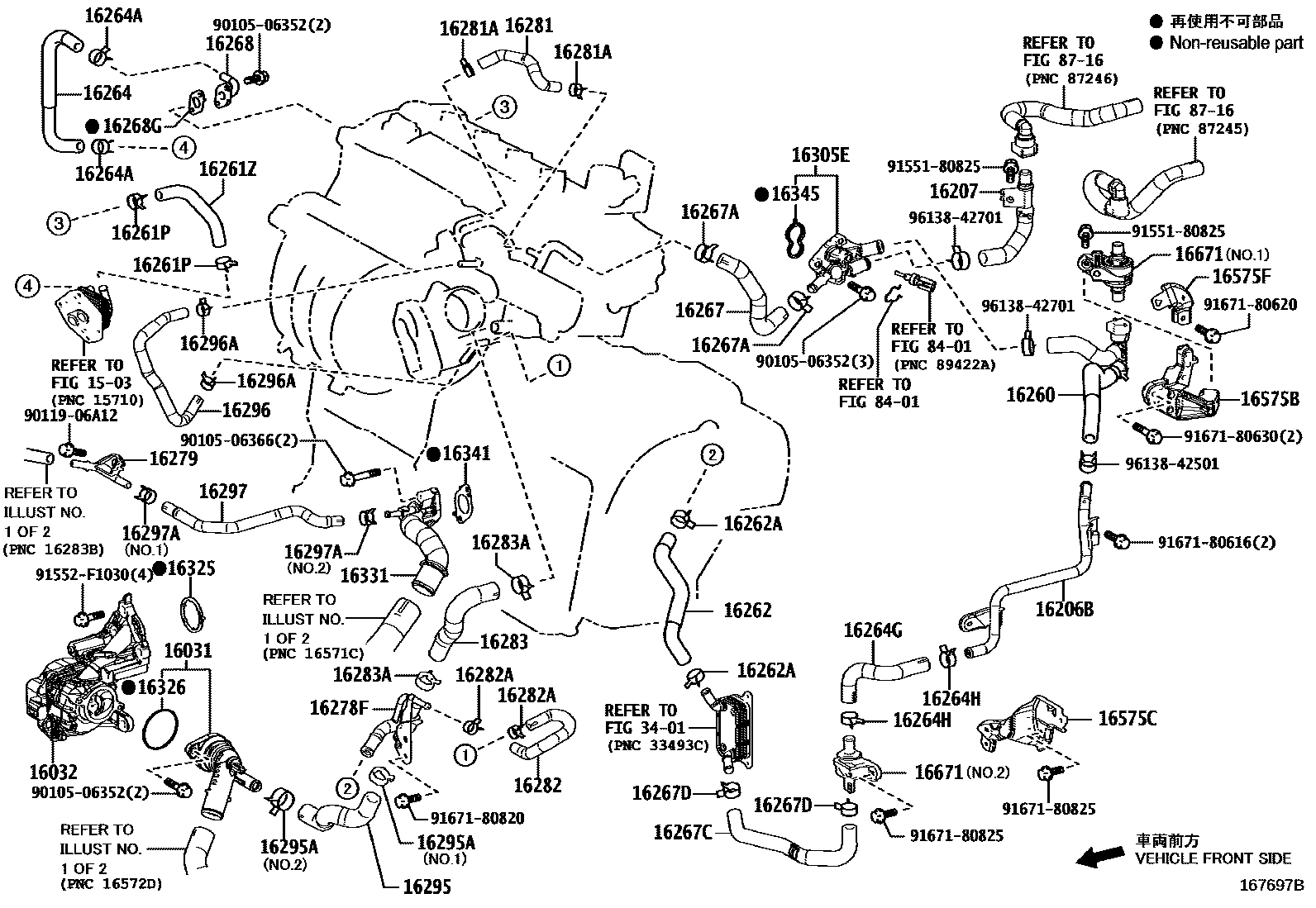

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 167697B
RADIATOR & WATER OUTLET — 167697B (202006 – 999999)

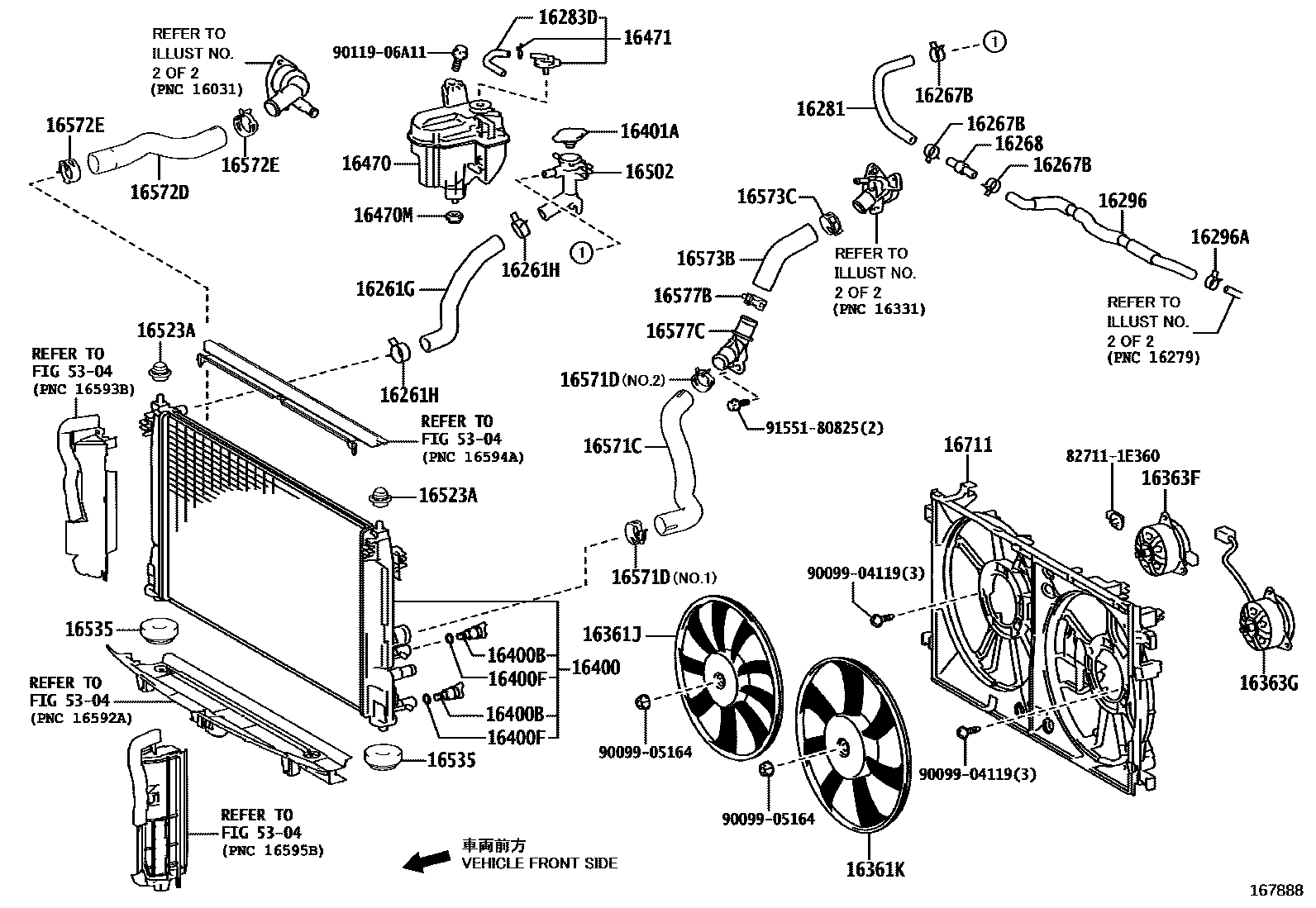

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 167888
RADIATOR & WATER OUTLET — 167888 (202010 – 999999)

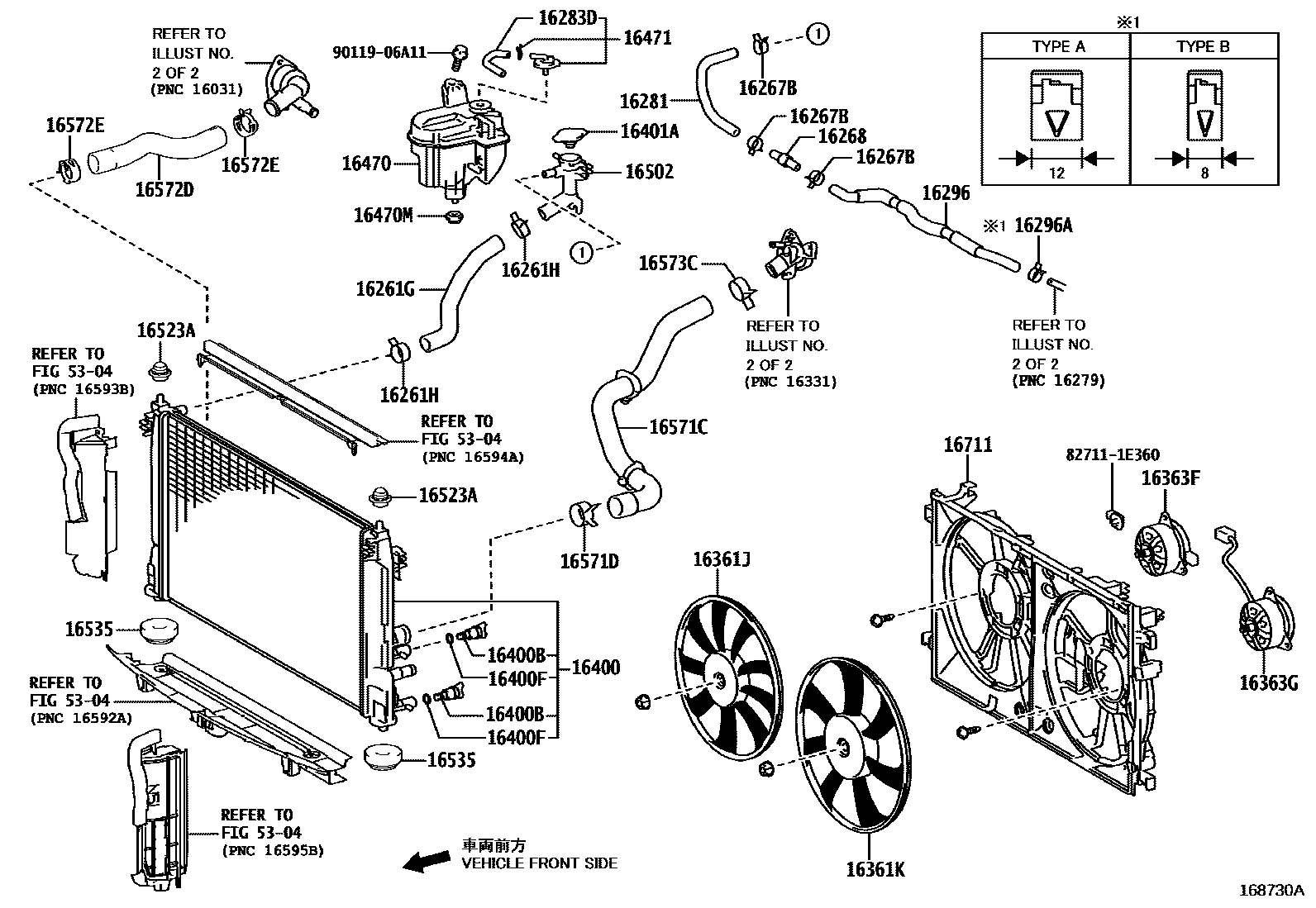

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 168730A
RADIATOR & WATER OUTLET — 168730A (202210 – 999999)

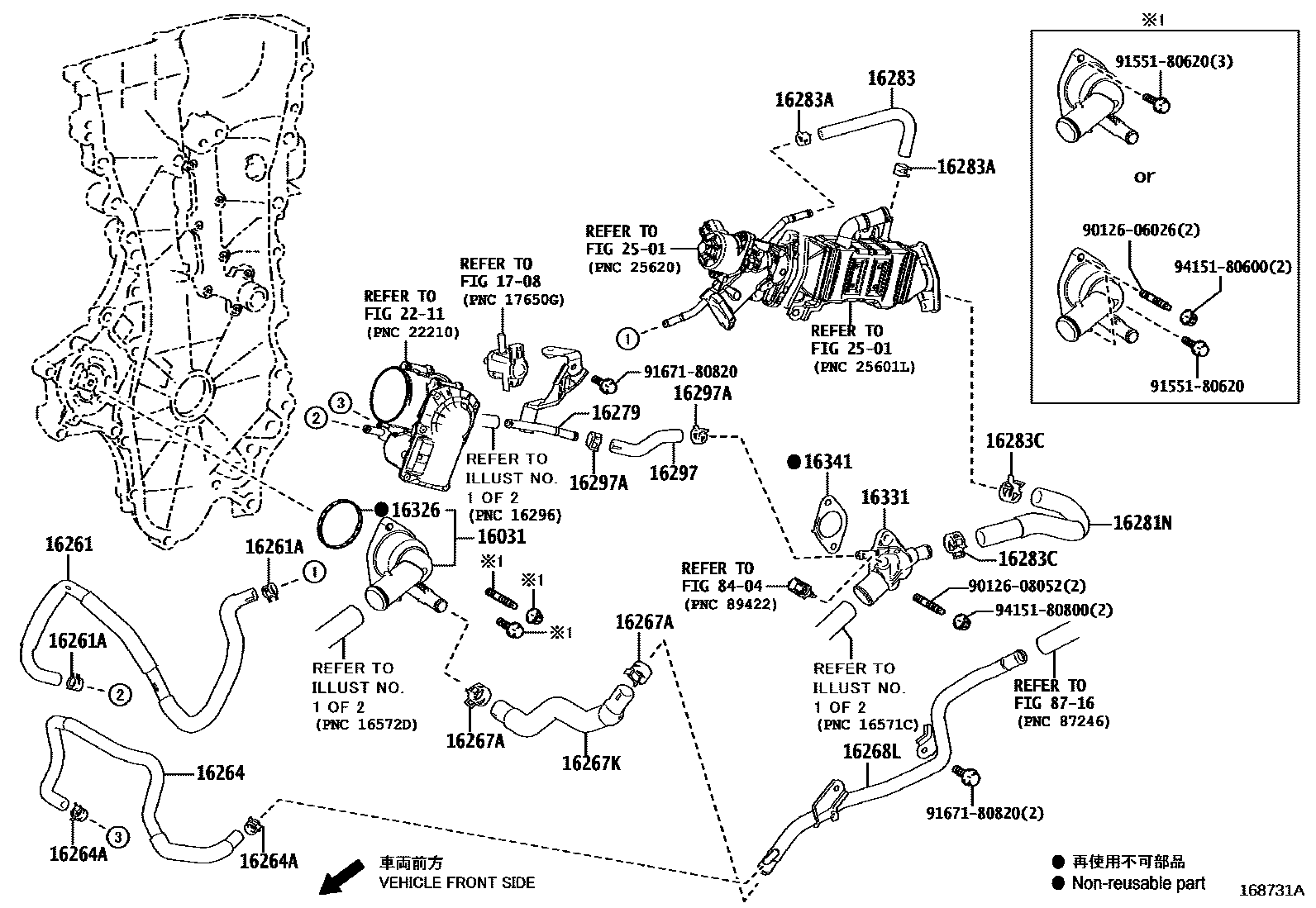

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 168731B
RADIATOR & WATER OUTLET — 168731B (202210 – 999999)

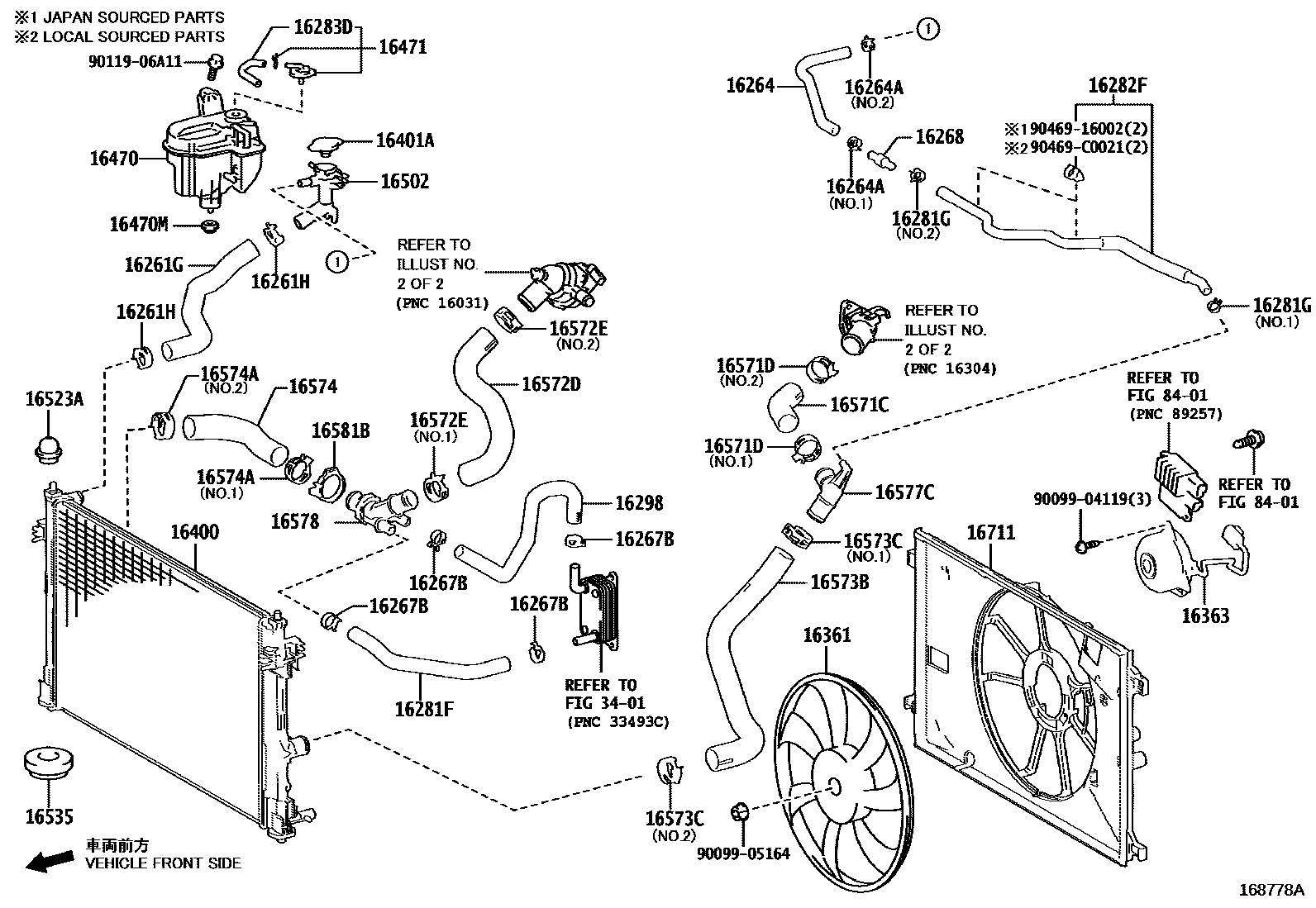

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 168778A
RADIATOR & WATER OUTLET — 168778A (202210 – 999999)

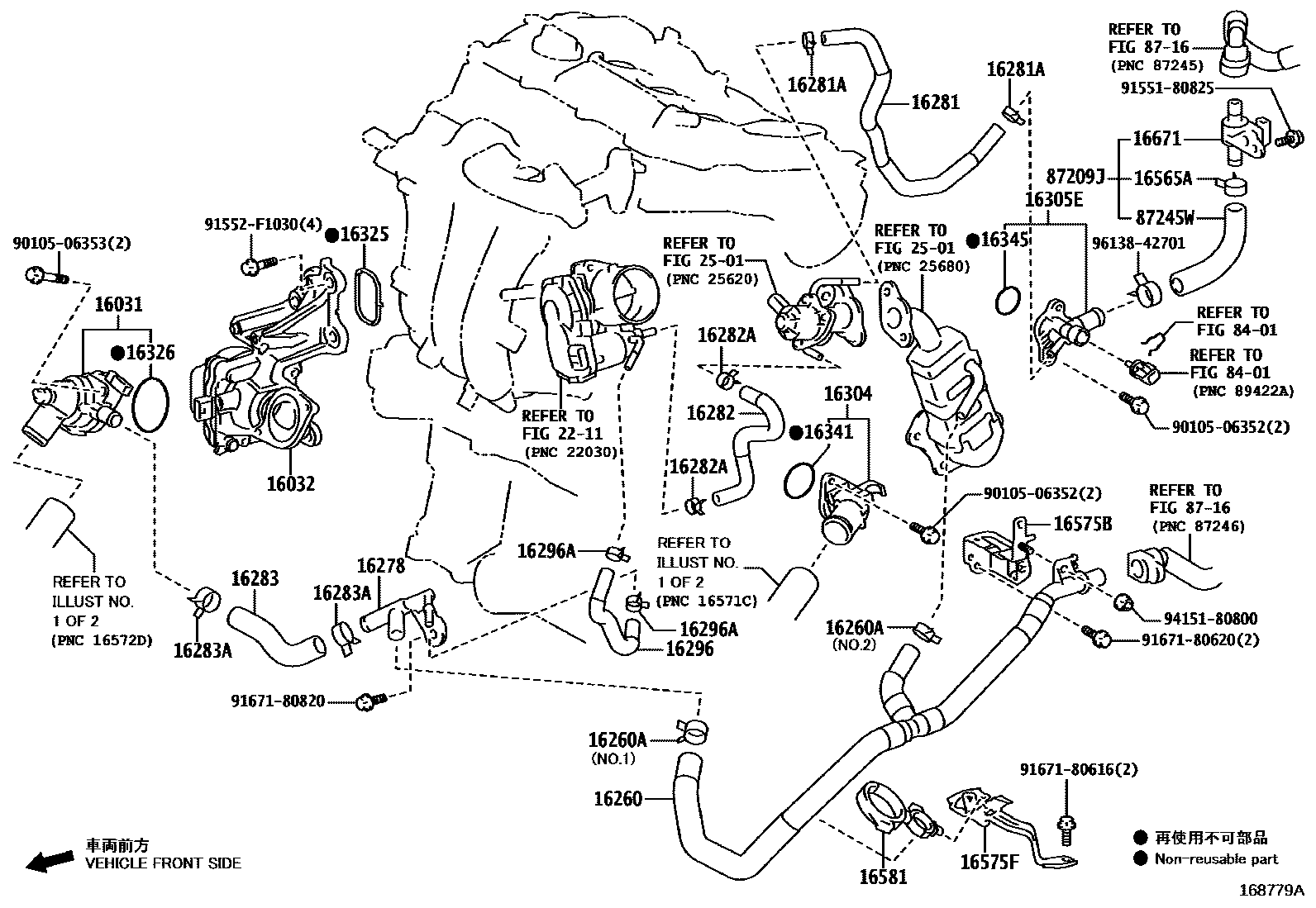

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 168779A
RADIATOR & WATER OUTLET — 168779A (202210 – 999999)

PNC and OE references

PNCPart nameOE numbers
12512CNo. 2 generator bracket12512-37010
16027No. 1 turbine water pipe sub-assembly16027-47010
16028No. 2 turbine water pipe sub-assembly16028-47010
16031INLET SUB-ASSY, WATER W/THERMOSTAT16031-15010 · 16031-24011 · 16031-37010 · 16031-47030
16032Toyota part16032-15190 · 16032-24010
161B0Toyota part161B0-47010
16206PIPE SUB-ASSY, WATER BY-PASS16206-47010
16206BNo. 3 water bypass pipe sub-assembly16207-24010
16207No. 2 water bypass pipe sub-assembly16207-24020 · 16207-47010
16258APad (for heater return)16258-47010
16260Water bypass hose assembly16260-15020 · 16260-24080 · 16267-37140
16260AClamp (for water bypass hose assembly)96138-42101 · 96138-42501
16260BToyota part16260-37160
16261HOSE, WATER BY-PASS16261-37031 · 16261-37160 · 16261-47160
16261ACLAMP OR CLIP, WATER BY-PASS HOSE96137-41501
16261GHOSE, WATER BY-PASS, NO.116261-24020 · 16261-37150 · 16261-37180 · 16261-37190 · 16261-47140
16261HCLIP, WATER BY-PASS HOSE NO.190466-28001 · 96136-41501 · 96138-42501
16261LHOSE, WATER BY-PASS16267-47050
16261PCLIP, WATER BY-PASS HOSE NO.296138-42101
16261QHOSE, WATER BY-PASS162A0-47010
16261RClip or clip (for water bypass hose)96138-42501
16261VCLAMP OR CLIP, WATER BY-PASS HOSE96138-42501
16261ZToyota part16261-24080
16262water inlet hose16262-24010 · 16262-37010
16262AClamp (for water inlet hose)96136-42501 · 96138-42501
16264HOSE, WATER BY-PASS, NO.216264-15070 · 16264-24060 · 16264-37031 · 16264-37130
16264ACLAMP OR CLIP, WATER BY-PASS HOSE NO.296136-41501 · 96136-41901 · 96137-41501 · 96138-42101
16264DHOSE, WATER BY-PASS, NO.216264-37120 · 16264-37190 · 16264-47060
16264ECLIP, WATER BY-PASS HOSE NO.296136-41901
16264GHOSE, WATER BY-PASS, NO.316264-24010 · 16264-47080
16264HClamp (for No. 3 water bypass hose)96138-42501
16267HOSE, WATER BY-PASS, NO.316267-24040 · 16267-37010 · 16267-37090
16267ACLAMP OR CLIP, WATER BY-PASS HOSE NO.396136-42501 · 96138-42101
16267BClip (for water bypass hose)96136-41901 · 96138-42501
16267CHOSE, WATER BY-PASS, NO.416267-24010 · 16281-47071
16267DCLIP, WATER BY-PASS HOSE NO.496136-42201 · 96138-42501
16267KHOSE, WATER BY-PASS, NO.316267-37100
16268PIPE, WATER BY-PASS, NO.116268-24010 · 16268-37021 · 16268-37060 · 16268-37100 · 16268-37120
16268EHose clamp (for water bypass pipe)90466-16005 · 96137-51701
16268GGasket (for water bypass pipe)16258-24010
16268HJoint bolts (for water bypass pipe)90401-14003
16268LPIPE, WATER BY-PASS16268-37110 · 16268-37150
16278PIPE, WATER BY-PASS, NO.216268-37120 · 16278-15080
16278FHOSE, WATER BY-PASS, NO.216278-24010
16279No. 3 water bypass pipe16279-24010 · 16279-37020
16281HOSE, WATER BY-PASS, NO.416281-15010 · 16281-24030 · 16281-37100 · 16281-37180
16281ACLAMP OR CLIP, WATER BY-PASS HOSE NO.496138-41501 · 96138-42101
16281FHOSE, WATER BY-PASS, NO.516282-15040
16281GCLIP, WATER BY-PASS HOSE NO.596136-41901 · 96138-41701
16281NToyota part16281-37070 · 16281-37071 · 16281-37191
16282HOSE, WATER BY-PASS, NO.516282-15010 · 16282-24020 · 16282-37090
16282AClip or clip (for No. 5 water bypass hose)90466-16005 · 96137-51701 · 96138-41501
16282FToyota part16282-F3030
16283HOSE, WATER BY-PASS, NO.616283-15010 · 16283-24010 · 16283-37021 · 16283-47040
16283ACLAMP OR CLIP, WATER BY-PASS HOSE NO.696136-41501 · 96137-41501 · 96138-42501
16283BHOSE, WATER BY-PASS16281-24060
16283CClip or clip (for water bypass hose)96136-41901 · 96136-42501 · 96138-42101
16283DHOSE, WATER BY-PASS, NO.616283-37030
16284CToyota part16284-47010
16284DToyota part96136-41501
16285CToyota part16285-47010
16285DToyota part96136-41501
16286BToyota part16286-47010
16286CToyota part96136-41501
16288No. 4 water bypass pipe16288-37010
16288CClamp (for No. 4 water bypass pipe)96138-42501
16289No. 5 water bypass pipe16278-37020 · 16278-37021
16291water hose connector16291-47050
16293No. 10 water bypass hose16293-37010
16295HOSE, WATER BY-PASS, NO.716295-24010 · 16295-37020 · 16295-37021 · 16295-47030
16295ACLIP, WATER BY-PASS HOSE NO.790466-16004 · 90466-16005 · 90467-15022 · 96137-41901 · 96138-42501 · 96138-42701
16296HOSE, WATER BY-PASS, NO.816296-15010 · 16296-24020 · 16296-37010
16296ACLIP, WATER BY-PASS HOSE NO.890466-16004 · 96136-41901 · 96138-41501 · 96138-51701
16297No. 9 water bypass hose16297-24010 · 16297-37010
16297AClamp (for No. 9 water bypass hose)90466-16005 · 90467-15022 · 96137-51701 · 96138-41501
16298HOSE, WATER BY-PASS, NO.1216283-15020
16304Water outlet sub-assembly16304-15010
16305EWater bypass outlet sub-assembly16305-15010 · 16305-24010
16321water inlet16321-37010 · 16321-47040
16322PIPE, WATER INLET16322-47010
16322AO-RING, WATER INLET96761-35031
16323HOUSING, WATER INLET16323-37040
16325GASKET, WATER INLET HOUSING, NO.116325-15030 · 16325-25010 · 16325-28010 · 16325-36040
16326GASKET, WATER INLET HOUSING, NO.216326-15010 · 16326-37020 · 16326-37030 · 16326-47020
16328Inlet pipe gasket16328-47010
16331Water outlet16331-24030 · 16331-37090 · 16331-37100 · 16331-47050
16331Athermostat90916-03148 · 90916-03154
16336AToyota part16336-47010
16341GASKET, WATER OUTLET16341-15020 · 16341-24010 · 16341-37010 · 16341-47030
16345Outlet pipe gasket16345-15010 · 16345-24010
16347Dwater bypass liner16347-47010
16361Fan16361-24130 · 16361-37130
16361JToyota part16361-37070 · 16361-37110
16361KToyota part16361-37060 · 16361-37100
16363cooling fan motor16363-24120 · 16363-37220
16363FToyota part16363-24160 · 16363-36160 · 16363-47050
16363GToyota part16363-24170 · 16363-37060 · 16363-47060
16400Radiator assembly16400-15650 · 16400-24340 · 16400-24390 · 16400-37311 · 16400-37340 · 16400-37380 · 16400-37400 · 16400-37410 · 16400-47150
16400BRadiator drain switch screw plug16417-21280
16400FSeal (for radiator drain switch)16492-21050
16401ARadiator reservoir cap sub-assembly16401-36030
16470Radiator reservoir assembly16470-37040
16470Mgasket90480-18010
16471Liquid storage tank cover sub-assembly16405-37020
16471BReservoir tank cover16475-28140
16475AReservoir tank cover16475-28140
16492Toyota part16492-21050
164A0Toyota part164A0-37010
164A2Closed reservoir water tank without lid164A2-37012
16502Water injection port sub-assembly16502-37040
16523ARadiator bracket cushion16523-37010
16535Radiator lower support16535-28030 · 90480-40021
16550Toyota part16550-47020
16551CToyota part16551-47020
16551DToyota part96138-42501
16552CToyota part16552-47010
16552DToyota part96138-42501
16553Chose clamp16581-47090
16553DToyota part16553-47010
16553EToyota part96138-42501 · 96138-42701
16554CToyota part16554-47010
16554DToyota part96138-42501
16555CToyota part16555-47020
16555DToyota part96138-42501
16556CToyota part16556-47010
16556DToyota part96138-42501 · 96138-42701
16565Aclip96138-42501
16571CRadiator hose No. 116571-24060 · 16571-37210 · 16571-37211 · 16571-37240 · 16571-37290 · 16571-47111 · 16571-F3020
16571DNo. 1 radiator hose clip90466-40001 · 90466-43002 · 90466-C0008 · 96136-43901
16572DRadiator hose No. 216572-24030 · 16572-37190 · 16572-37210 · 16572-37250 · 16572-47130 · 16572-F3030
16572ENo. 2 radiator hose clip90466-43002 · 90466-C0008 · 96136-43901
16573BRadiator hose No. 316573-37020 · 16573-37070 · 16573-F3060
16573CNo. 3 radiator hose clamp or clip90466-40001 · 90466-43002 · 90466-C0008 · 96136-44301
16574Radiator hose No. 416574-F3010
16574ANo. 4 radiator hose clip90466-C0008 · 96136-44301
16575ANo. 5 radiator hose clip90949-01C99
16575BNo. 2 water hose clamp bracket16575-15040 · 16575-24050
16575CNo. 1 water hose clamp bracket16575-24010 · 16575-37030 · 16575-47020
16575FToyota part16575-15050 · 16575-24060
16577BHose clamps or clips (for radiator pipes)90466-40001
16577Cradiator pipe16577-37070 · 16577-37090 · 16577-F3020
16578Radiator pipe No. 216578-F3010
16581Hose clamp (for water hose)16581-15090 · 16581-21060 · 16581-37130 · 16581-47080
16581BHose clamp (for radiator hose)16581-31040 · 16581-36030
16640Toyota part16640-47020
16671water valve16671-24010 · 16671-24020 · 16671-25070 · 16671-37010 · 16671-47010
16711fan cover16711-24150 · 16711-24160 · 16711-37150 · 16711-37160 · 16711-37190 · 16711-47110
87208MWater pipe sub-assembly87248-52010
87209JToyota part87209-12760
87245WToyota part87245-12G50 · 87245-12J50
87248RToyota part87248-12330
89422Dwater temperature sensor89422-47010
