Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 5 images and 6 PNC and OE references.

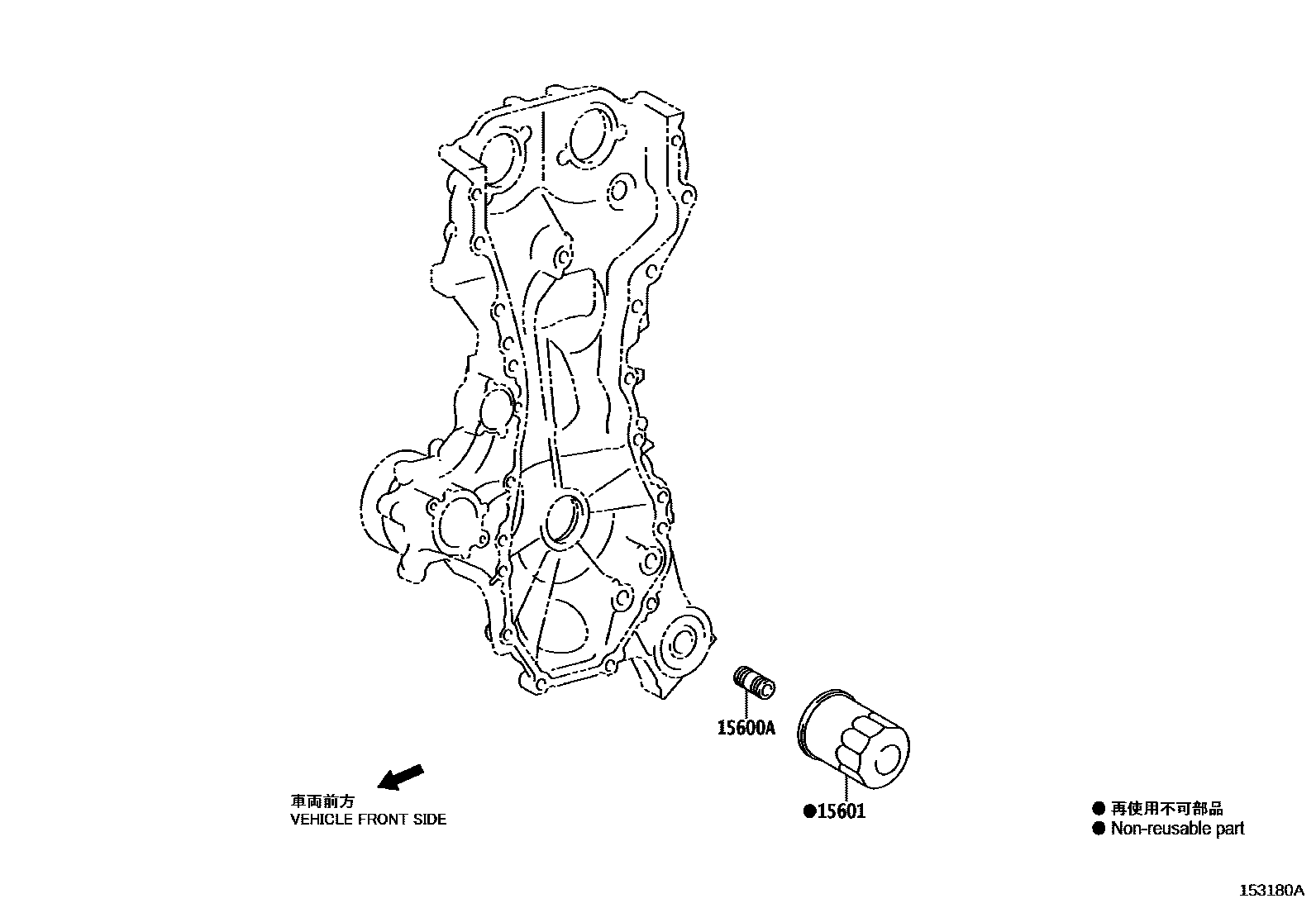

Toyota COROLLA Oil Filter EPC diagram — 153180A
Oil Filter — 153180A (201908 – 999999)

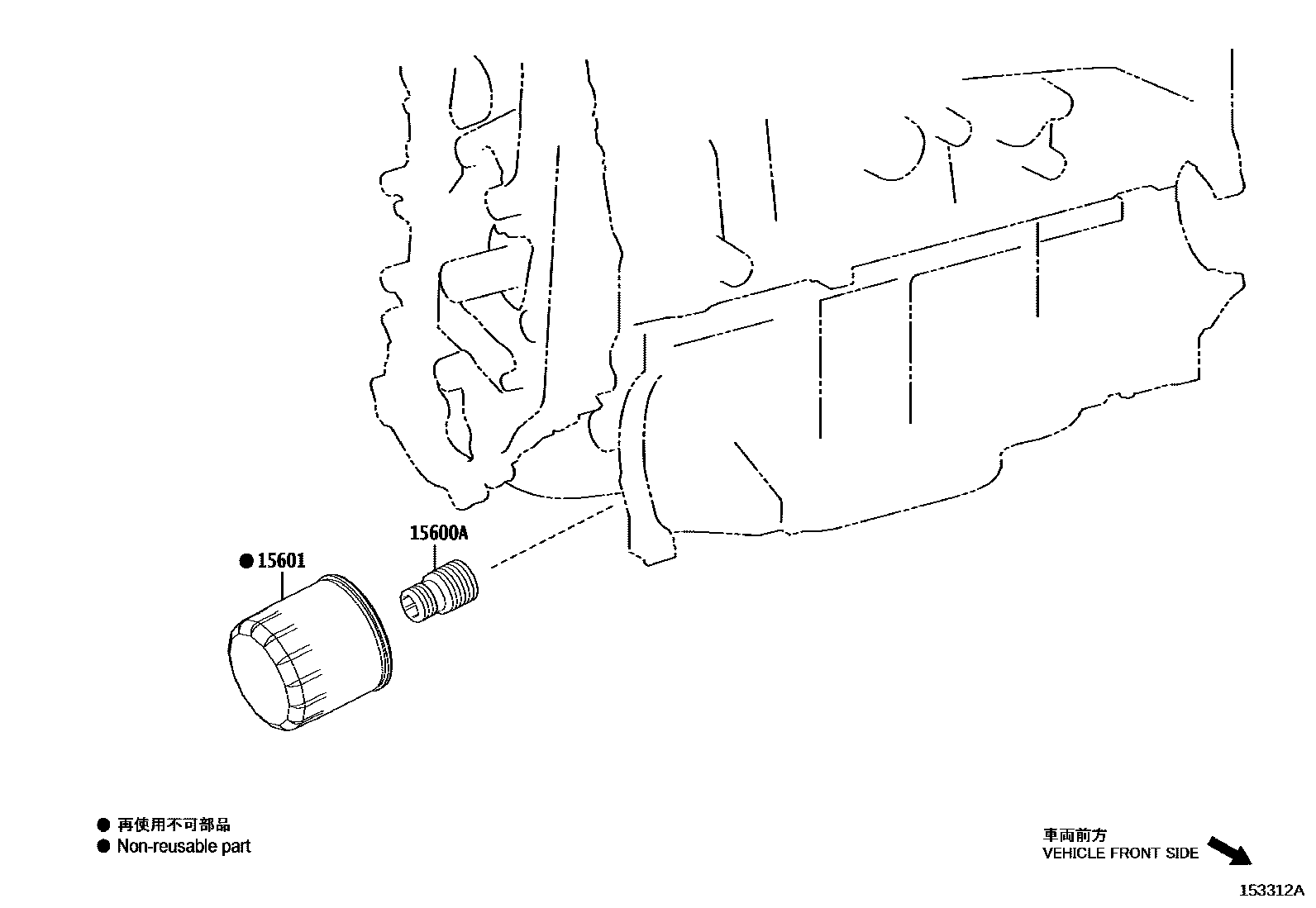

Toyota COROLLA Oil Filter EPC diagram — 153312A
Oil Filter — 153312A (202006 – 999999)

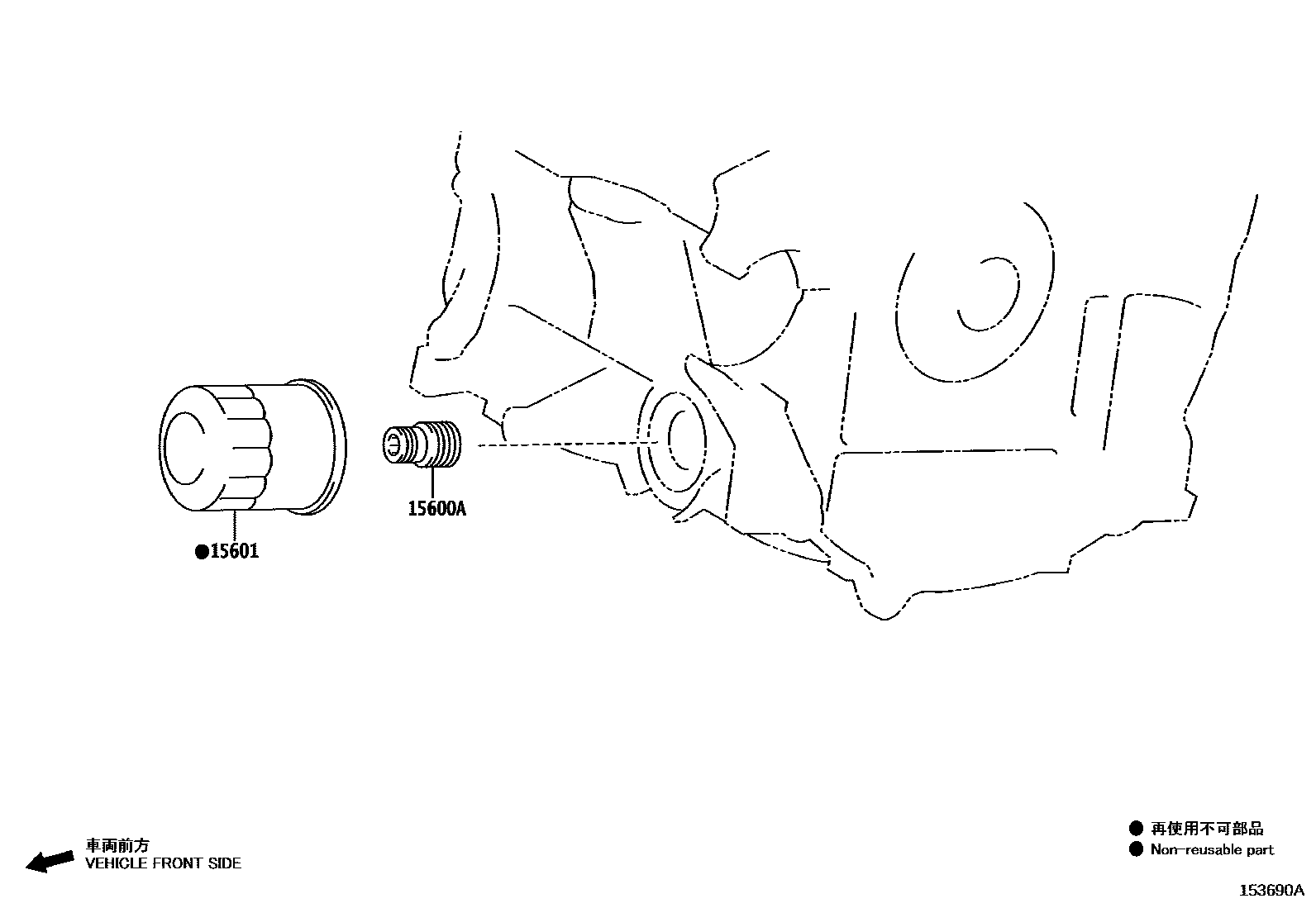

Toyota COROLLA Oil Filter EPC diagram — 153690A
Oil Filter — 153690A (202210 – 999999)

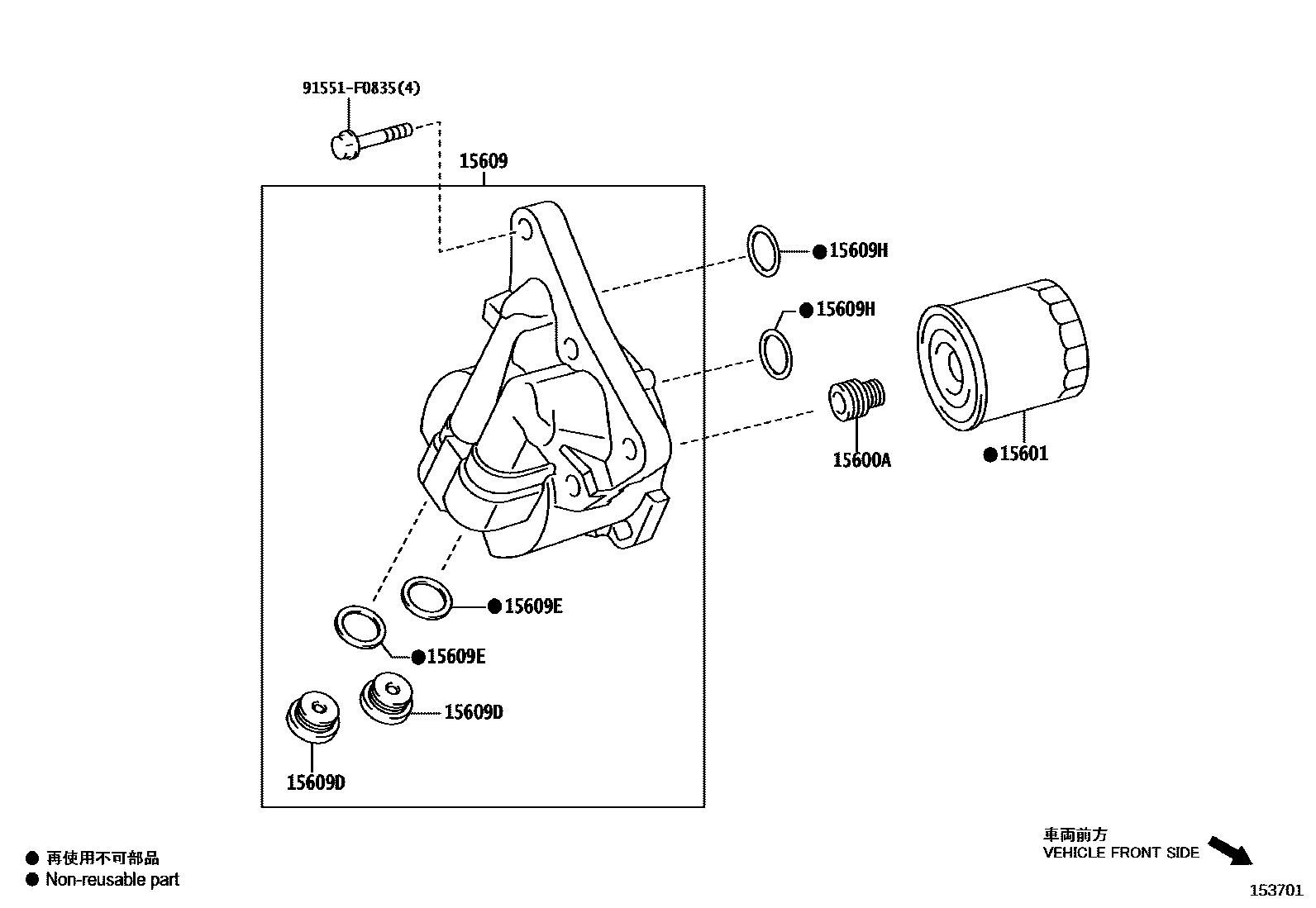

Toyota COROLLA Oil Filter EPC diagram — 153701
Oil Filter — 153701 (201908 – 999999)

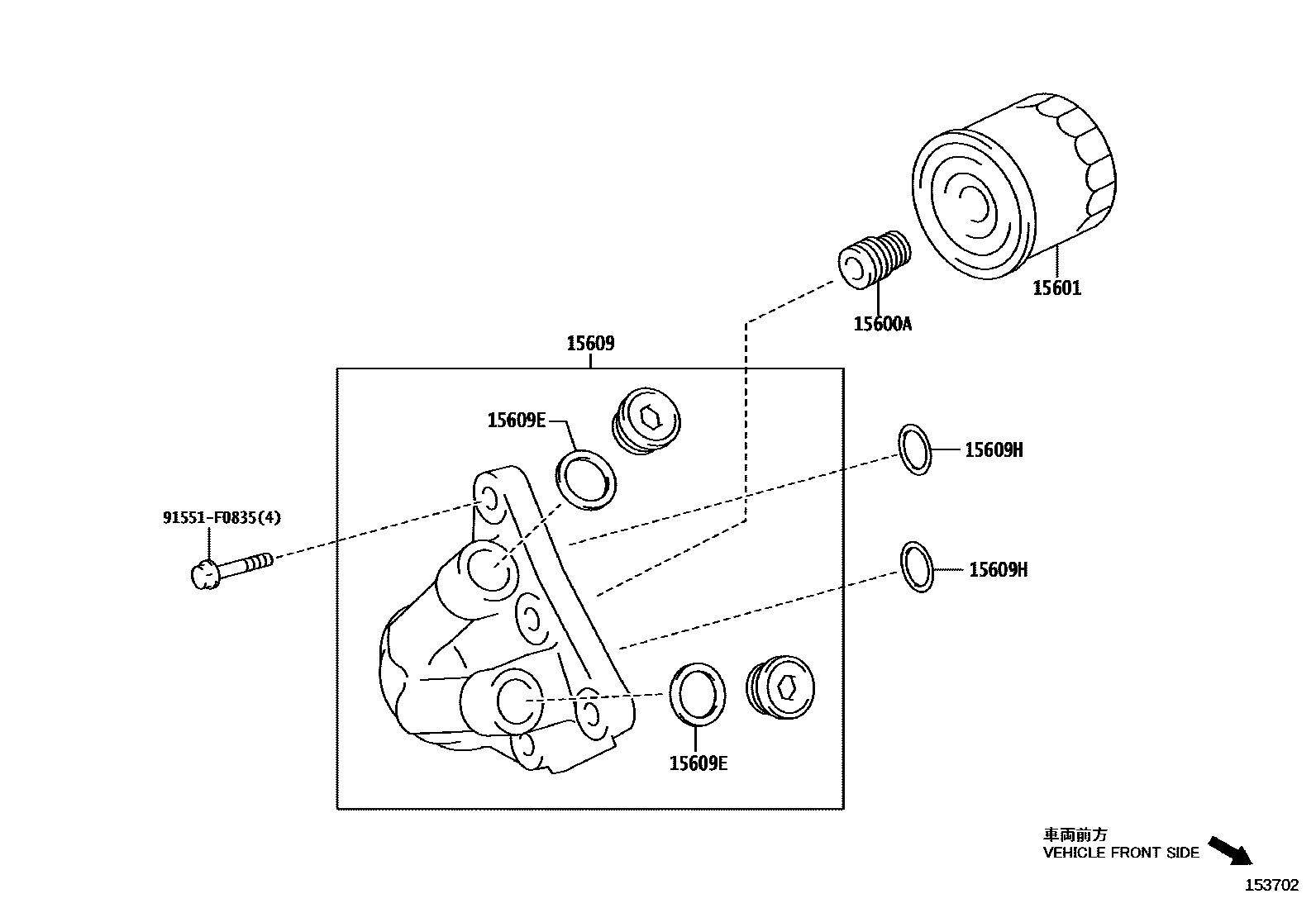

Toyota COROLLA Oil Filter EPC diagram — 153702
Oil Filter — 153702 (202210 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90404-19011 · 90904-04006
15601Oil filter sub-assembly90915-10003 · 90915-10009
15609Oil filter bracket sub-assembly15609-37060 · 15609-37070
15609DStraight threaded plug with head (for oil filter bracket)90341-20002
15609EHeaded straight thread plug liner90430-20004 · 90430-20018
15609HO-ring (for oil filter bracket)96723-24020
