Toyota COROLLA Camshaft & Valve — Figure 1302

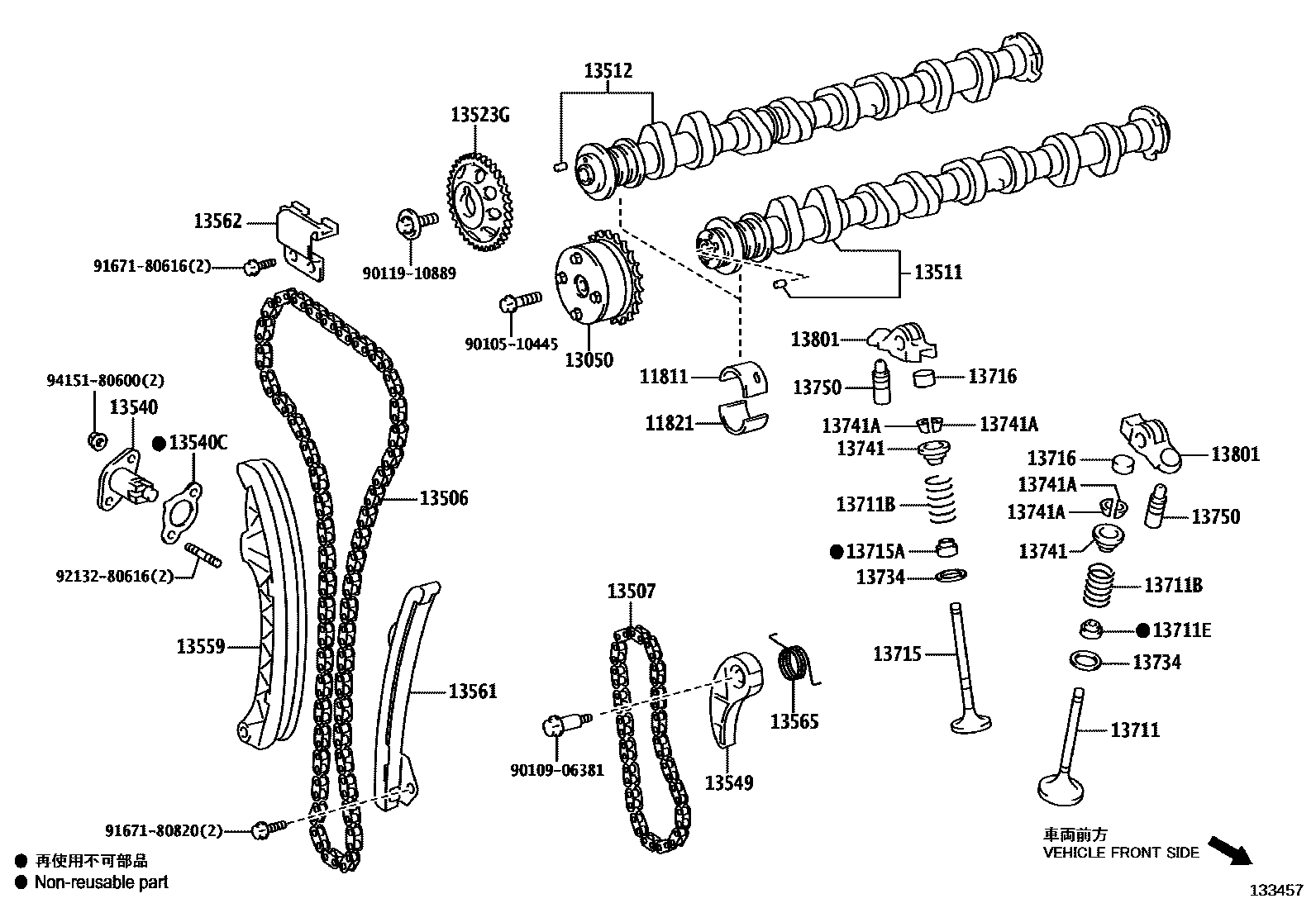

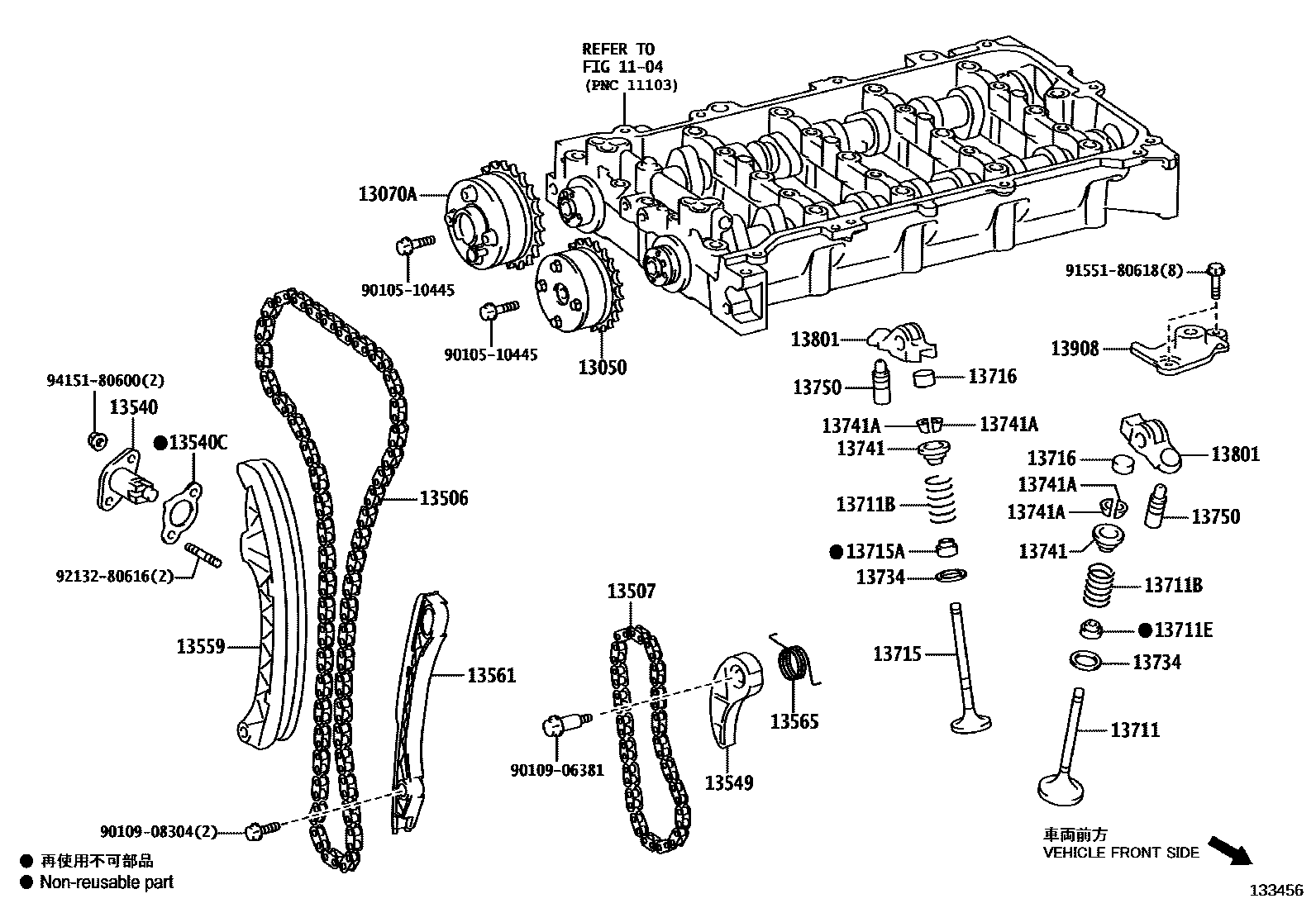

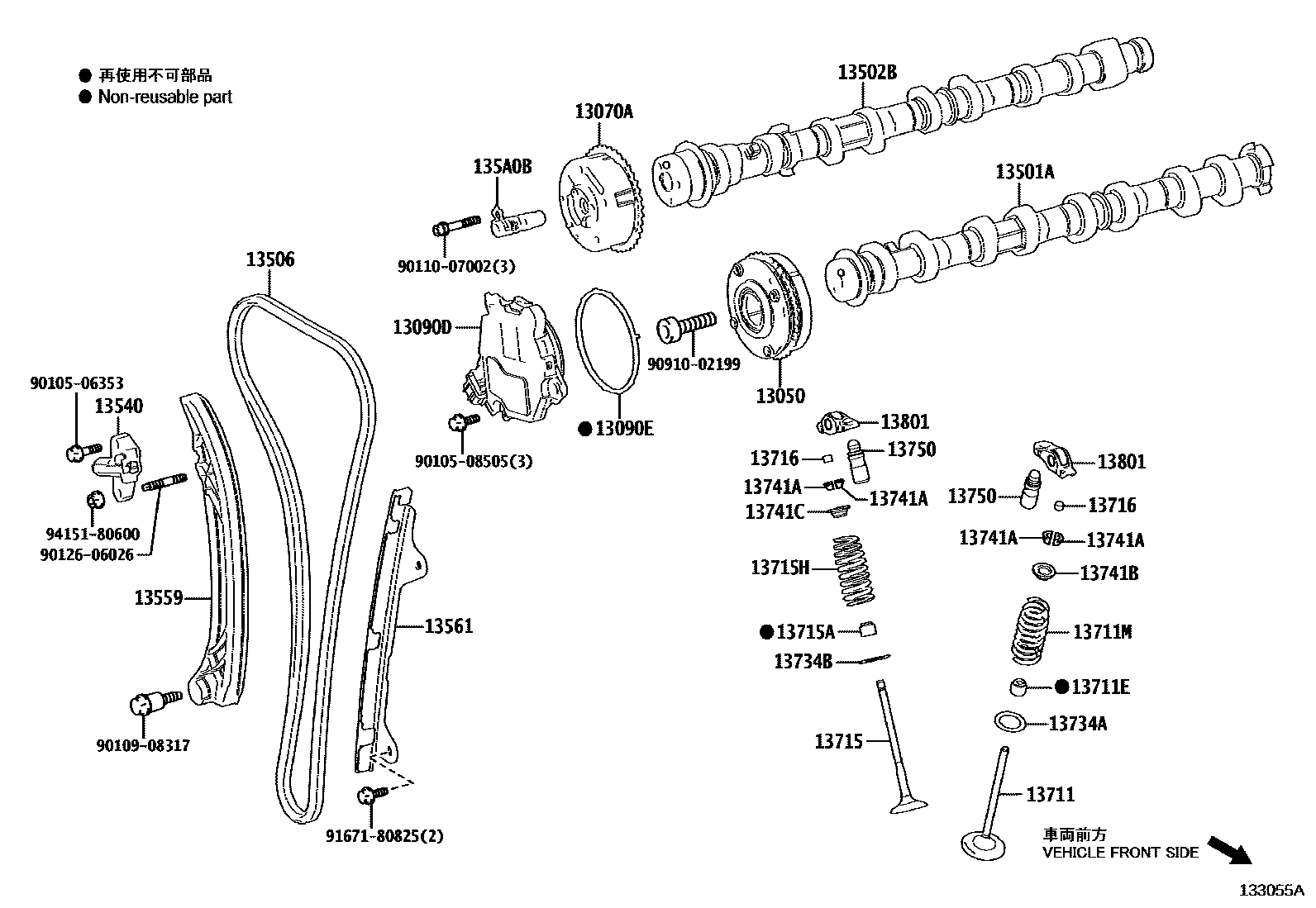

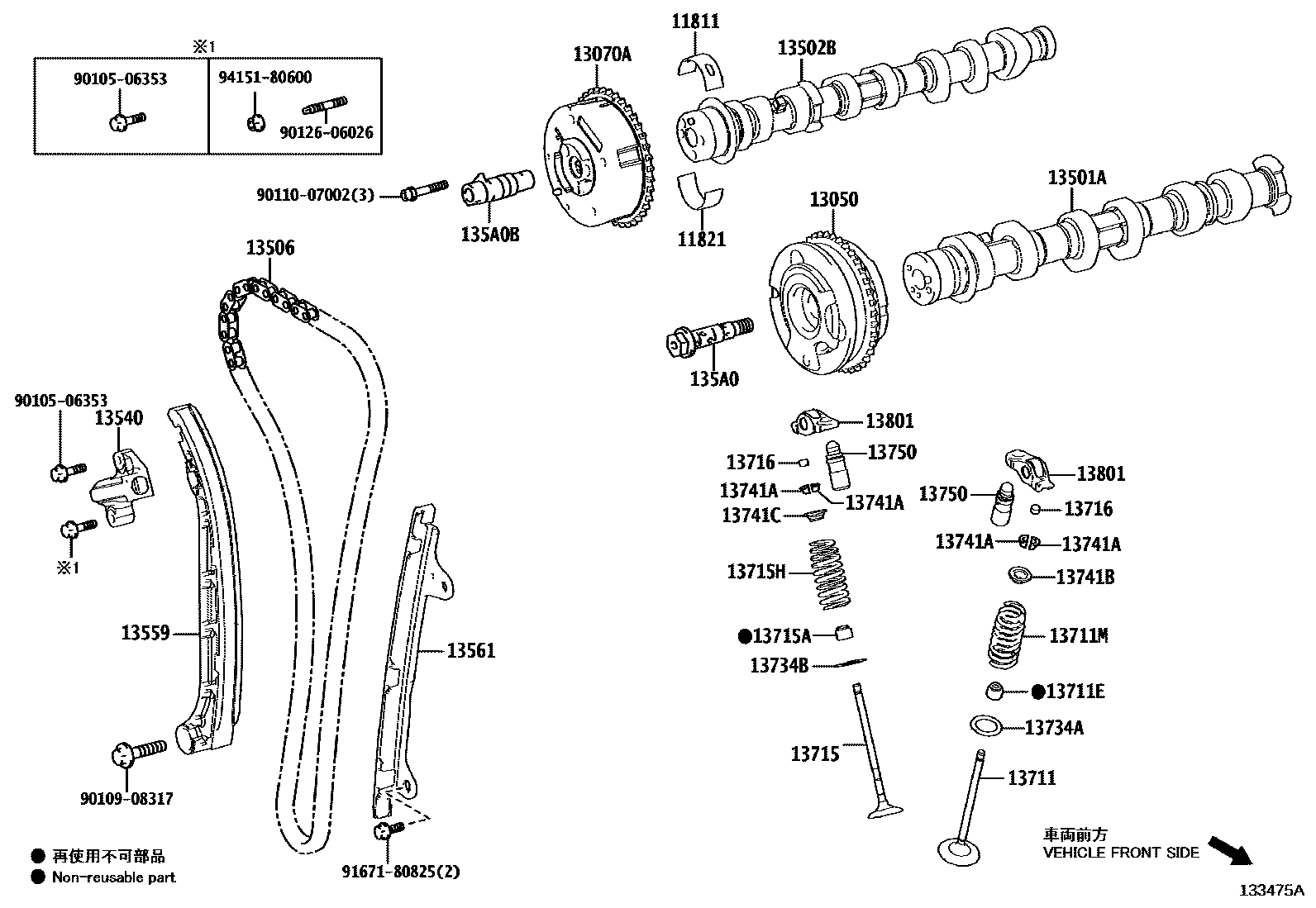

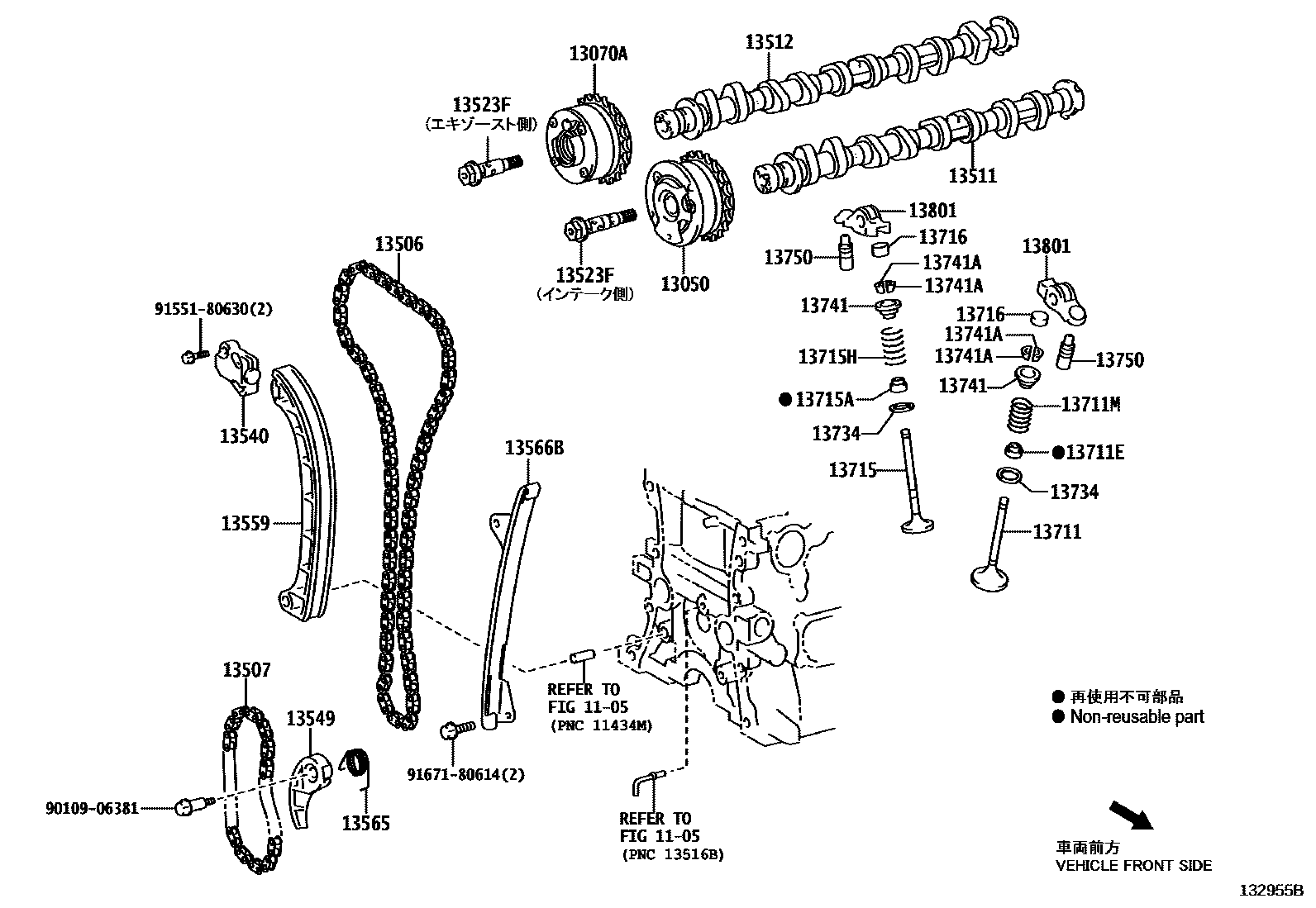

Toyota COROLLA EPC diagram 1302, Camshaft & Valve, with 6 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11811 | No. 1 camshaft bearing | 11811-15010 · 11811-37010 · 11811-37020 |
| 11821 | No. 2 camshaft bearing | 11821-15010 · 11821-37010 · 11821-37020 |
| 13050 | Camshaft timing gear assembly | 13050-15010 · 13050-25010 · 13050-37050 · 13050-47030 |
| 13070A | Exhaust camshaft timing gear assembly | 13070-25020 · 13070-25030 · 13070-37020 · 13070-47030 |
| 13090D | Toyota part | 13090-25010 |
| 13090E | Toyota part | 90301-92005 |
| 13501A | Toyota part | 13501-15060 · 13501-24020 |
| 13502B | Toyota part | 13502-15060 · 13502-24010 |
| 13506 | Chain sub-assembly | 13506-24020 · 13506-37050 · 13506-37070 · 13506-47040 |
| 13507 | No. 2 chain sub-assembly | 13507-28010 · 13507-47010 |
| 13511 | camshaft | 13501-37080 · 13501-47070 |
| 13511A | Direct pin (for camshaft locking pin) | 90250-05027 |
| 13512 | Camshaft No. 2 | 13502-37070 · 13502-47060 |
| 13523F | Bolt (for camshaft timing gear) | 135A0-36011 · 135A0-47020 |
| 13523G | Camshaft timing sprocket | 13523-22020 |
| 13540 | No. 1 chain tensioner assembly | 13540-15010 · 13540-25020 · 13540-37030 · 13540-47060 |
| 13540C | Pad (for chain tensioner) | 13552-37010 |
| 13549 | chain tensioner pressure plate | 13549-37020 · 13549-47010 |
| 13559 | chain tensioner guide plate | 13559-0Y010 · 13559-15010 · 13559-24010 · 13559-37050 |
| 13561 | No. 1 chain shock absorber | 13561-15010 · 13561-37050 · 13561-37060 |
| 13562 | No. 2 chain shock absorber | 13562-37020 |
| 13565 | chain damper spring | 13565-37010 |
| 13566B | Timing chain guide plate | 13566-0Y030 |
| 135A0 | Toyota part | 135A0-31020 |
| 135A0B | Toyota part | 135A0-25010 · 135A0-25020 · 135A0-70020 |
| 13711 | intake valve | 13711-24040 · 13711-37020 · 13711-47010 |
| 13711B | Compression spring (for inner side) | 90501-30039 · 90501-32072 |
| 13711E | Intake valve stem oil seal | 90913-02101 · 90913-02126 |
| 13711M | Toyota part | 90501-30035 · 90501-32076 · 90501-33034 |
| 13715 | exhaust valve | 13715-15090 · 13715-24040 · 13715-37030 · 13715-47040 |
| 13715A | Exhaust valve stem oil seal | 90913-02112 · 90913-02127 · 90913-02131 |
| 13715H | Toyota part | 90501-30036 · 90501-32076 · 90501-33035 |
| 13716 | valve stem cover | 13716-25010 · 13716-75020 |
| 13734 | Valve spring seat | 13734-62020 |
| 13734A | Intake valve spring seat | 13734-62020 |
| 13734B | Exhaust valve spring seat | 13734-62020 |
| 13741 | Valve spring seat ring | 13741-36010 |
| 13741A | Valve spring seat lock plate | 90913-03028 |
| 13741B | Intake valve spring seat ring | 13741-36010 |
| 13741C | Exhaust valve spring seat ring | 13741-36010 |
| 13750 | Valve lash adjuster assembly | 13750-21010 · 13750-25010 · 13750-36020 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-25010 · 13801-36020 |
| 13908 | Valve rocker arm lost motion damper sub-assembly | 13908-37012 |
