Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 5 images and 15 PNC and OE references.

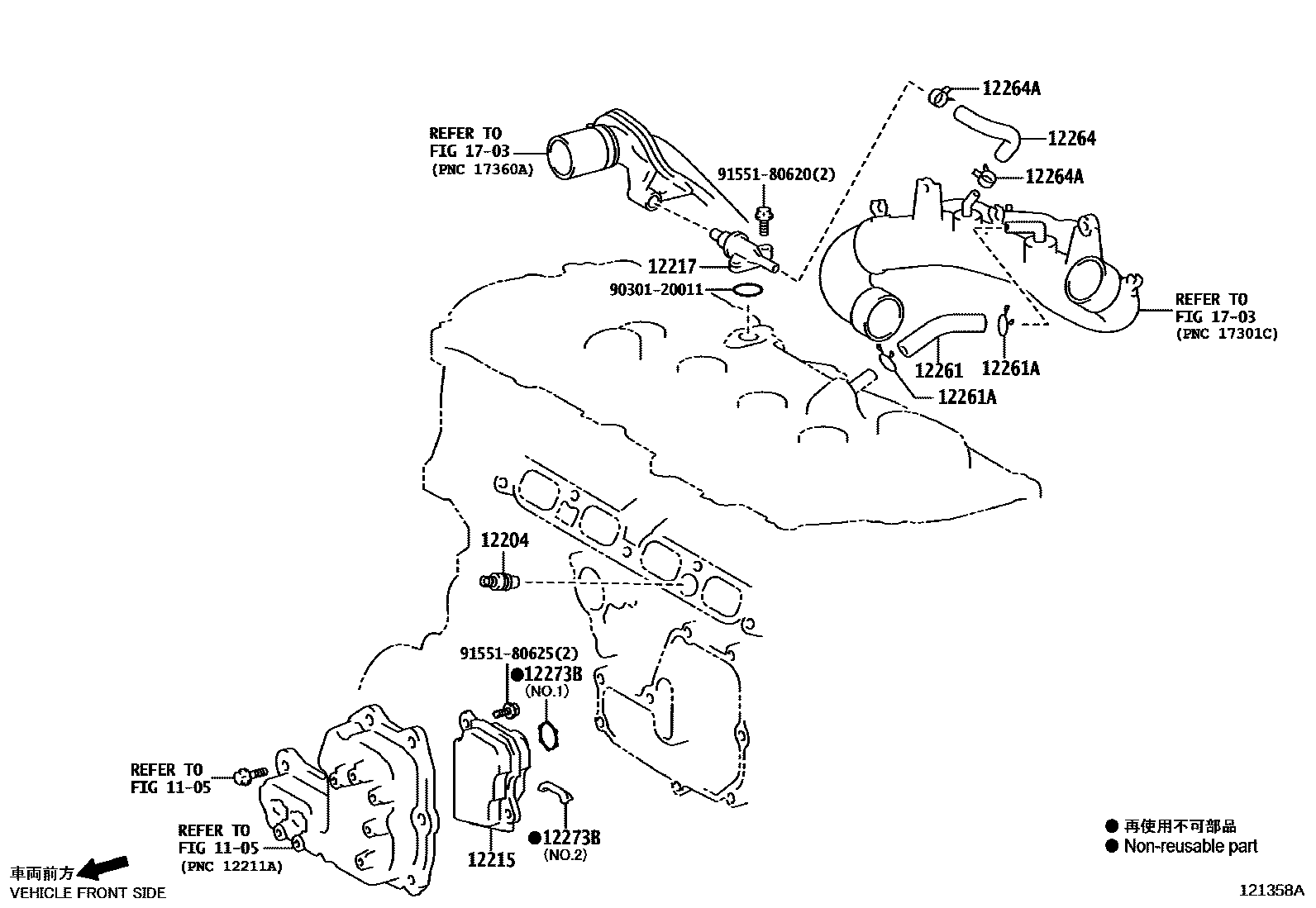

Toyota COROLLA Ventilation Hose EPC diagram — 121358A
Ventilation Hose — 121358A (201908 – 999999)

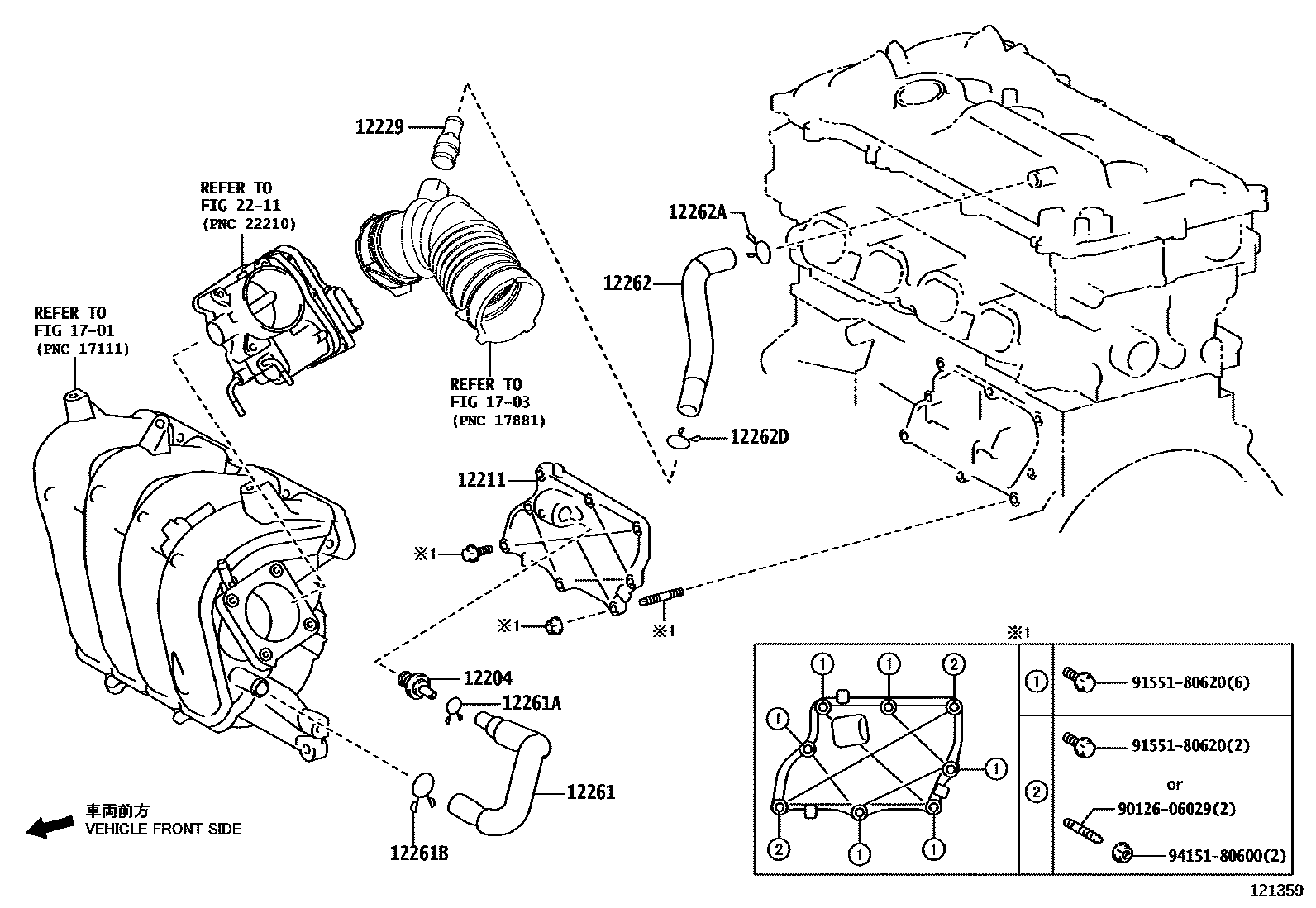

Toyota COROLLA Ventilation Hose EPC diagram — 121359
Ventilation Hose — 121359 (201908 – 999999)

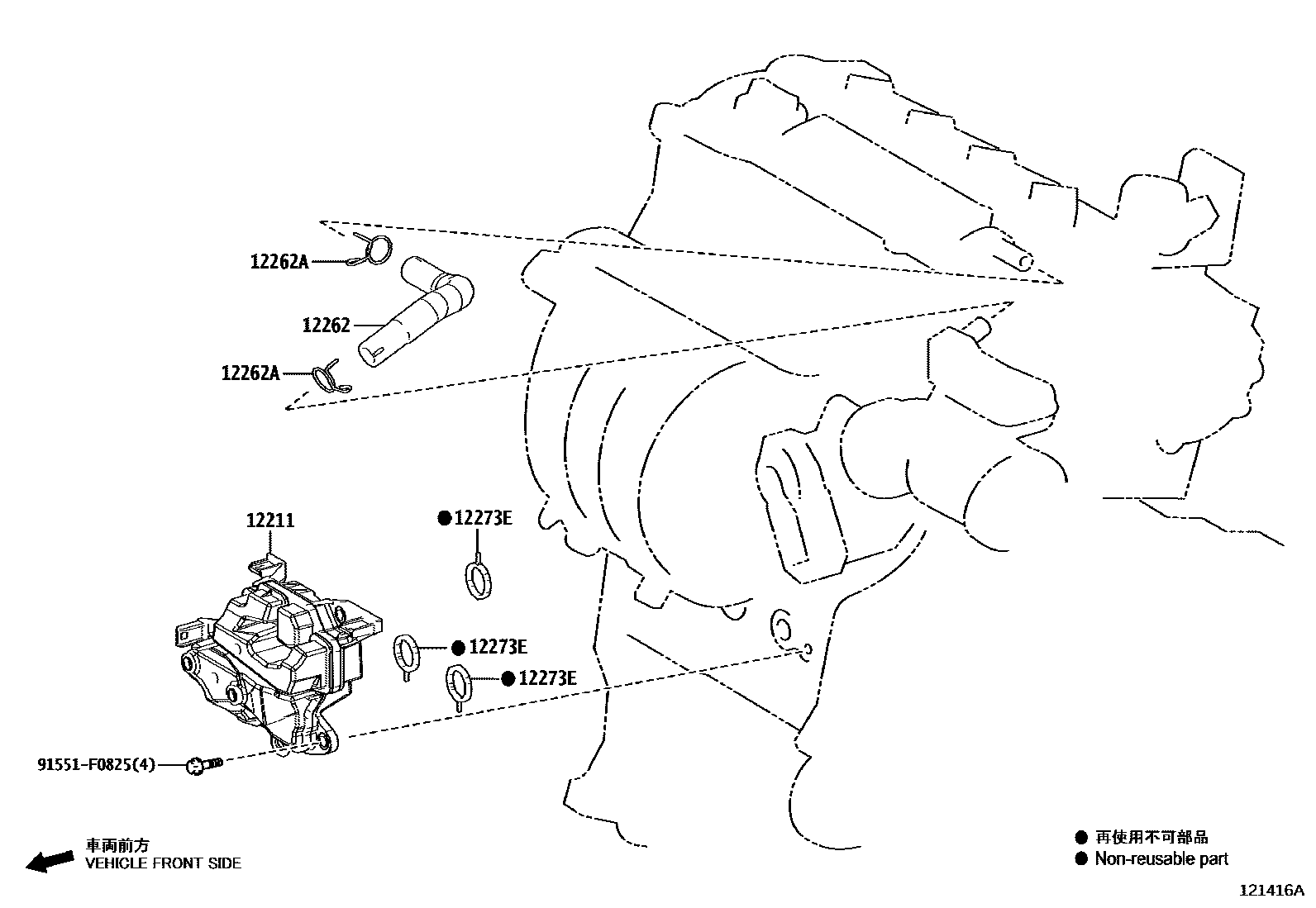

Toyota COROLLA Ventilation Hose EPC diagram — 121416A
Ventilation Hose — 121416A (202006 – 999999)

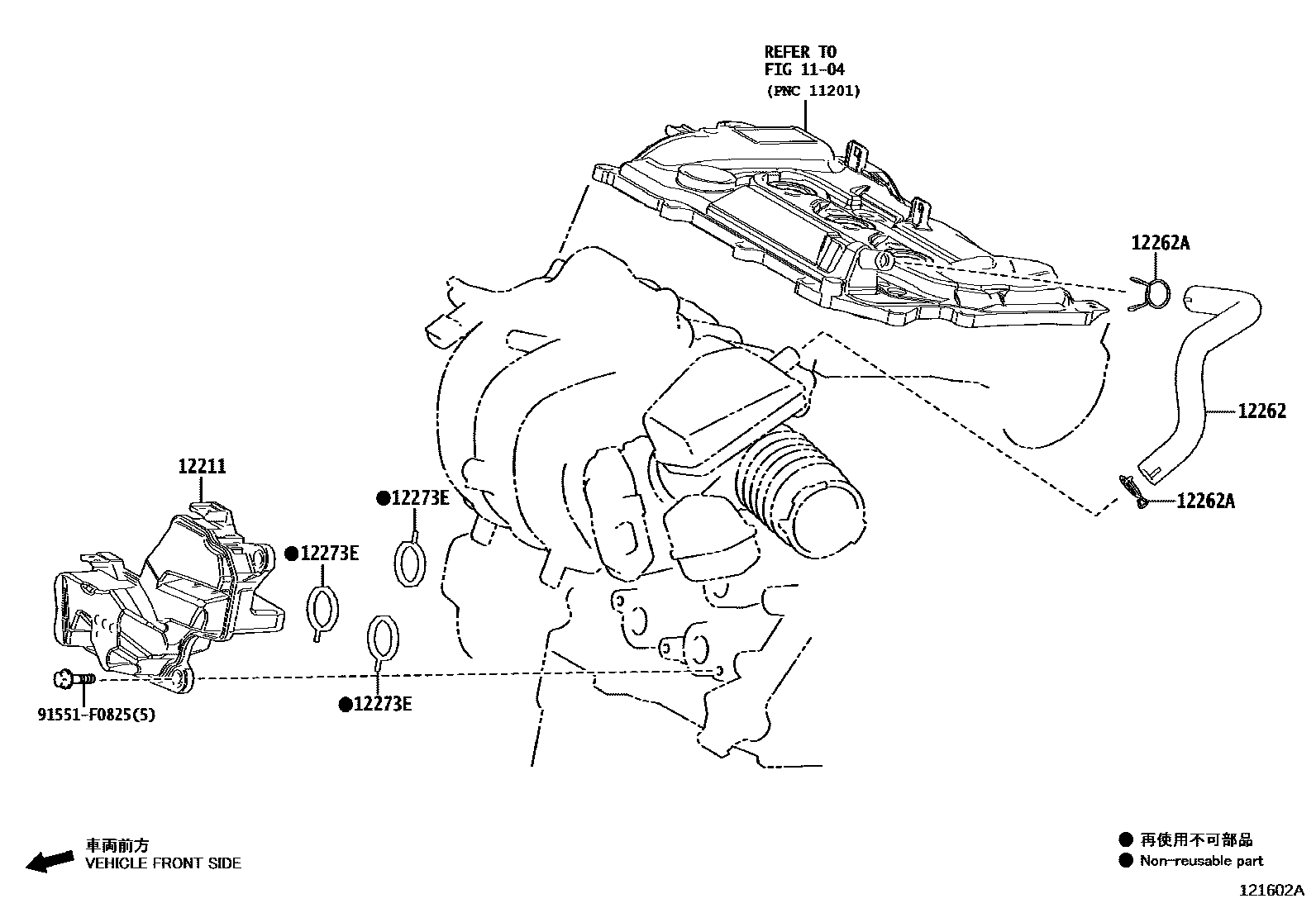

Toyota COROLLA Ventilation Hose EPC diagram — 121602A
Ventilation Hose — 121602A (202210 – 999999)

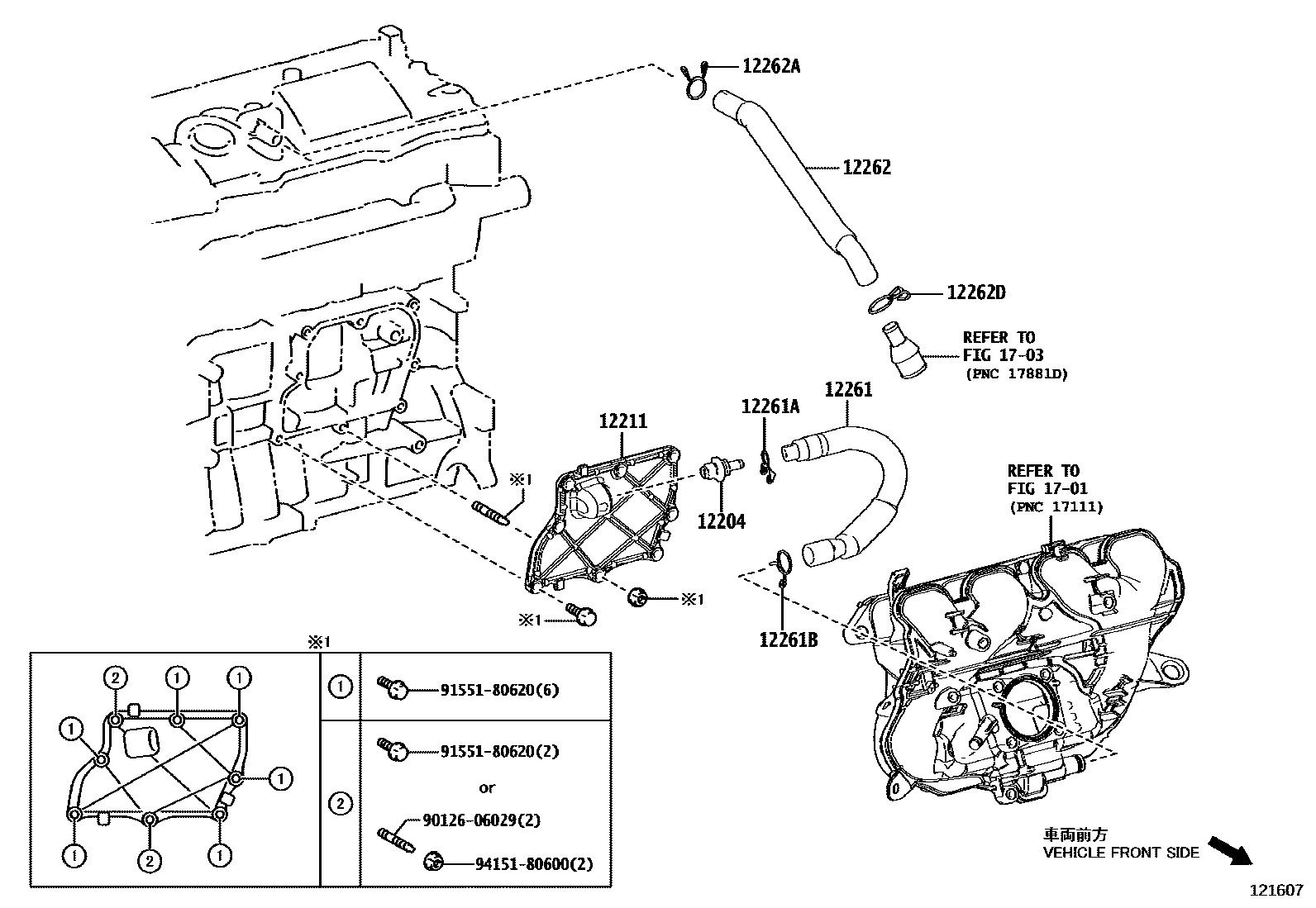

Toyota COROLLA Ventilation Hose EPC diagram — 121607
Ventilation Hose — 121607 (201908 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-37040 · 12204-37050 · 12204-47080
12211Ventilation box No. 112211-15060 · 12211-15061 · 12211-24010 · 12211-24020 · 12211-37010
12215Ventilation box isolation device12215-47010
12217Toyota part12217-47010
12229ventilation duct12229-21010
12261Ventilation Hose12261-37040 · 12261-37070 · 12261-47110
12261AClip or clip (for vent hose)90467-15120 · 90467-22010
12261BClip or clip (for vent hose)90466-22005
12262Ventilation hose No. 212262-15160 · 12262-24020 · 12262-37020 · 12262-37060
12262AClamp (for vent hose No. 2)90467-21004
12262DClamp (for vent hose No. 2)90467-21004
12264No. 4 ventilation hose12264-47010
12264AClip (for ventilation hose)96137-41901
12273Boil separator gasket12273-47010 · 12273-47020
12273EToyota part12273-15010 · 12273-24010
