Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103
Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 10 images and 2 PNC and OE references.

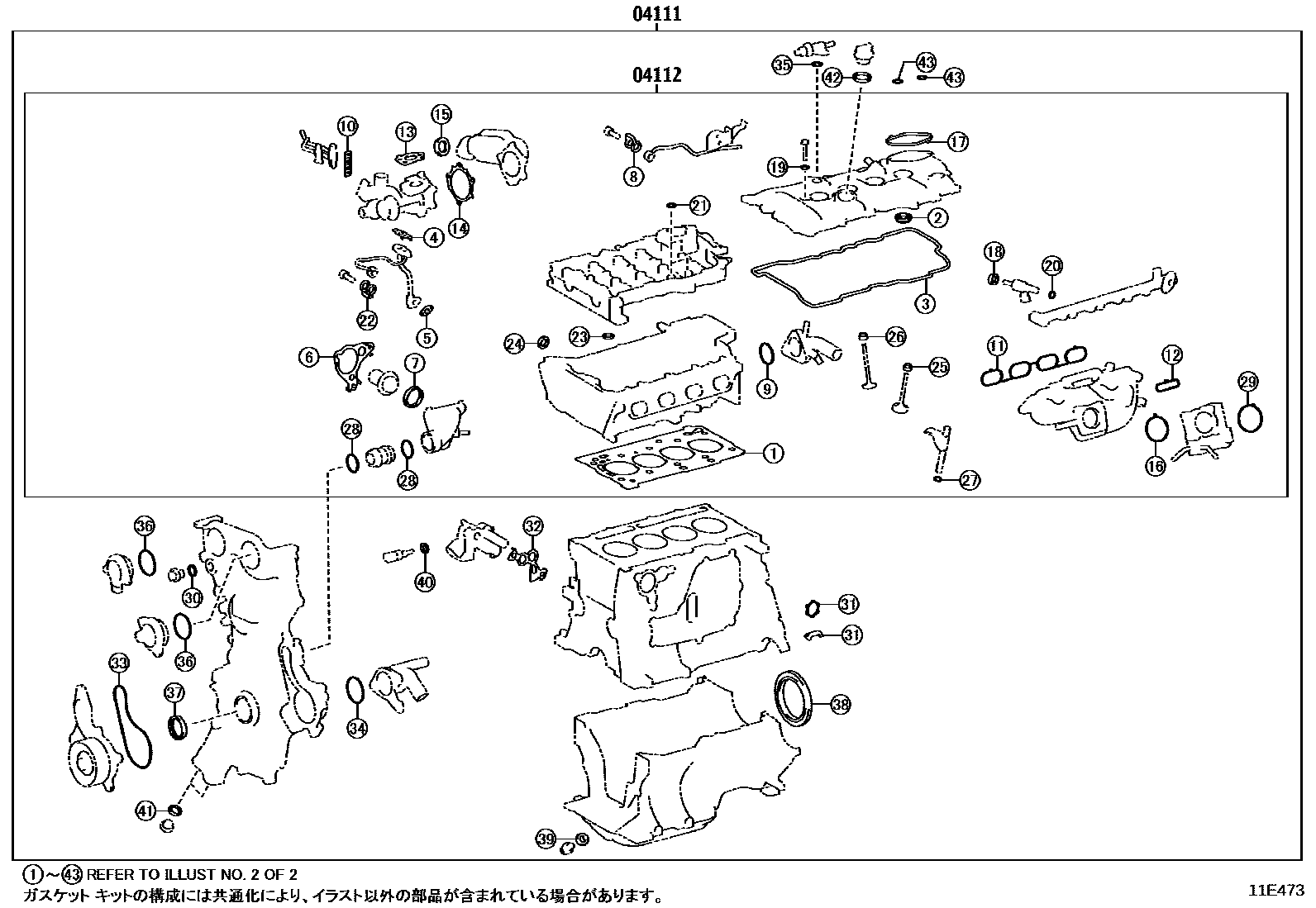

Engine Overhaul Gasket Kit — 11E473 (201908 – 999999)

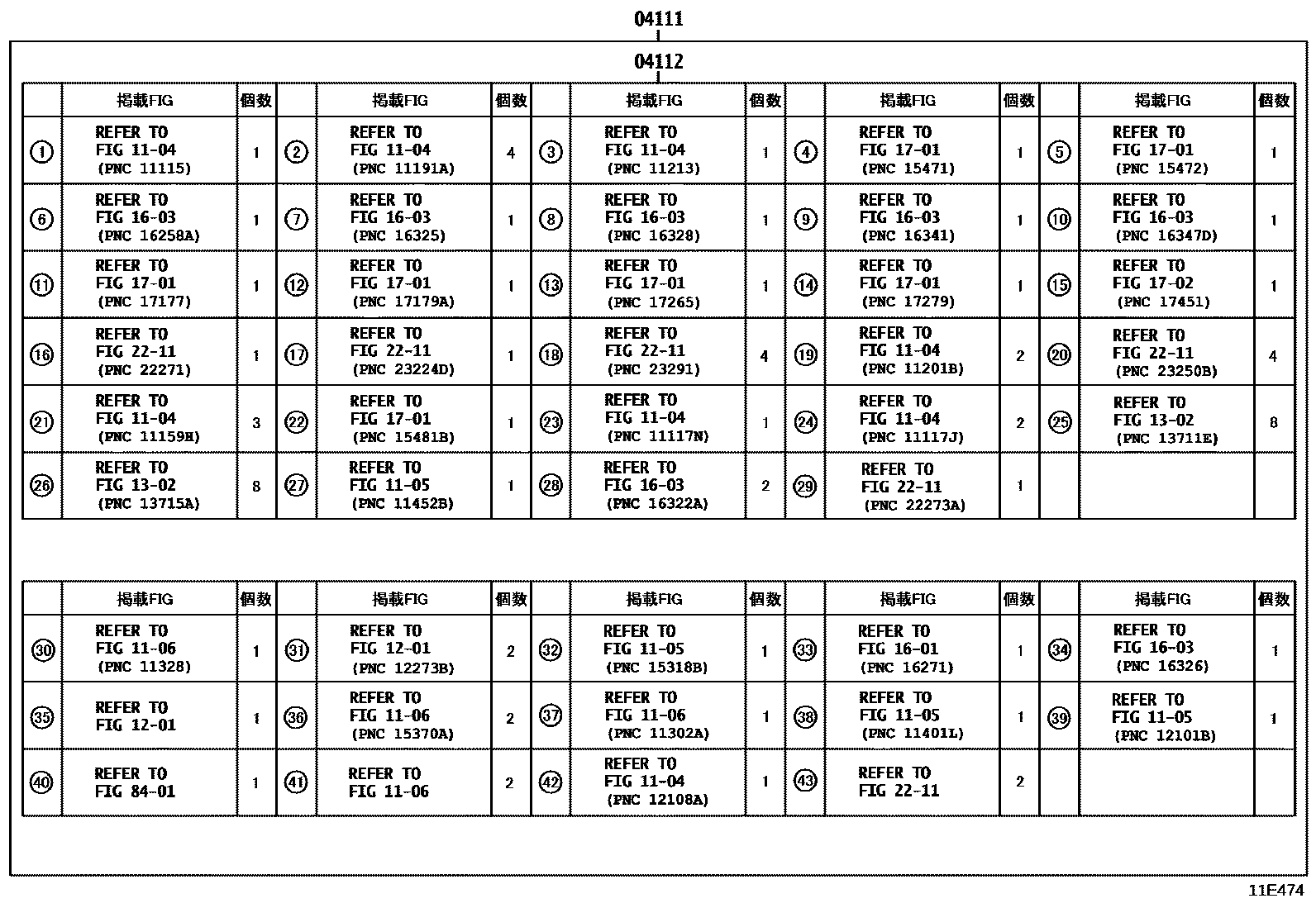

Engine Overhaul Gasket Kit — 11E474 (201908 – 999999)

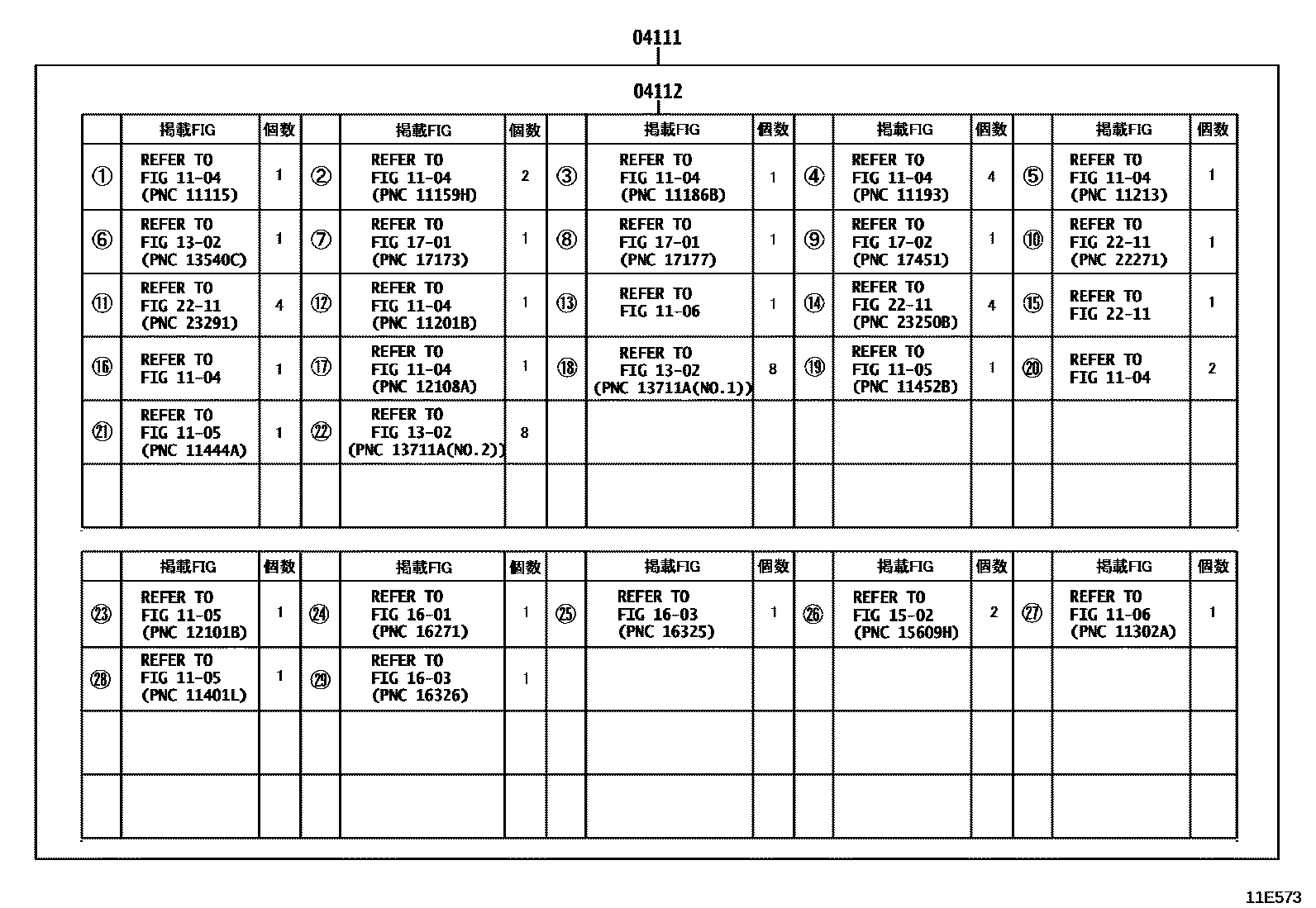

Engine Overhaul Gasket Kit — 11E573 (201908 – 999999)

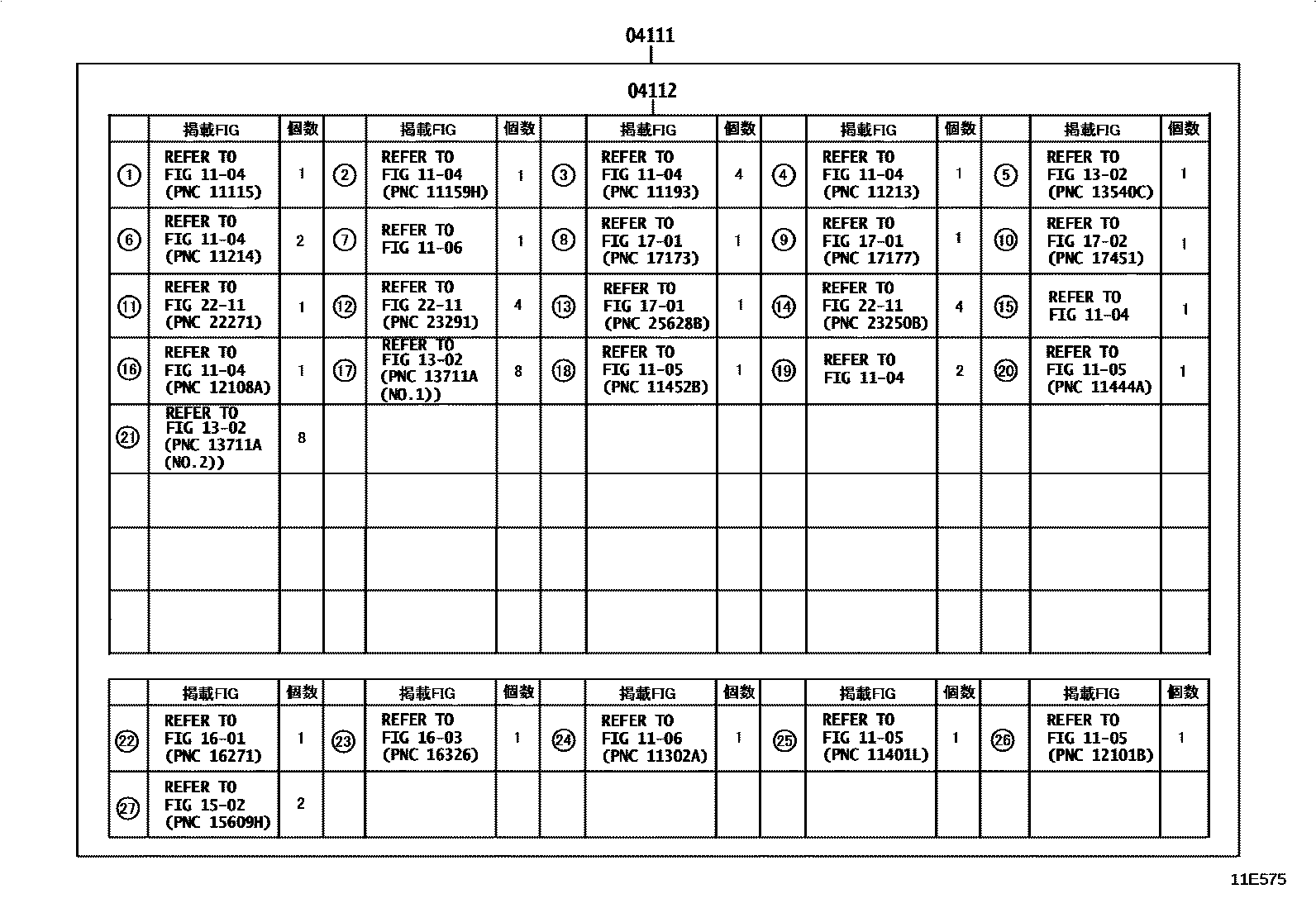

Engine Overhaul Gasket Kit — 11E575 (201908 – 999999)

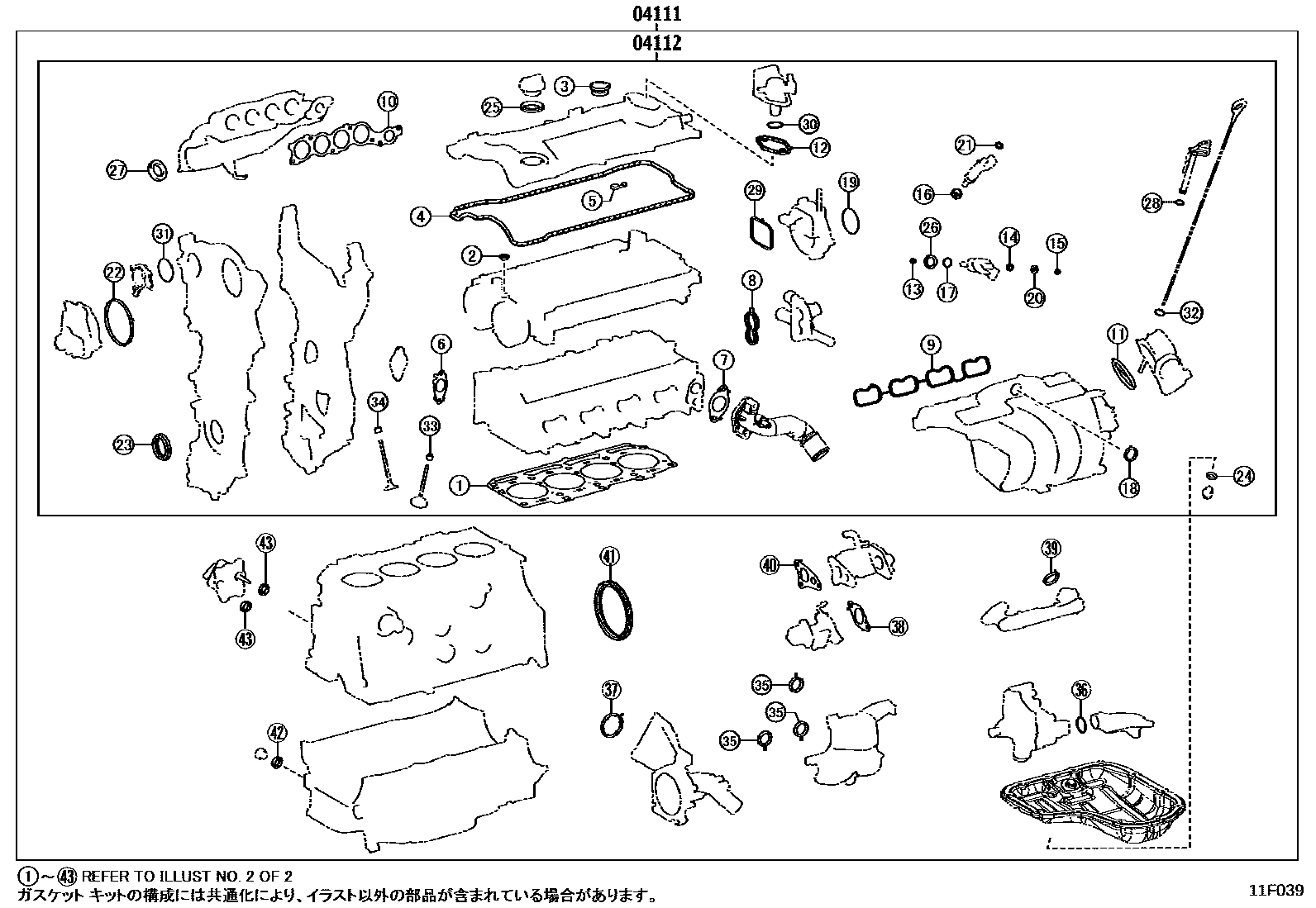

Engine Overhaul Gasket Kit — 11F039 (202006 – 999999)

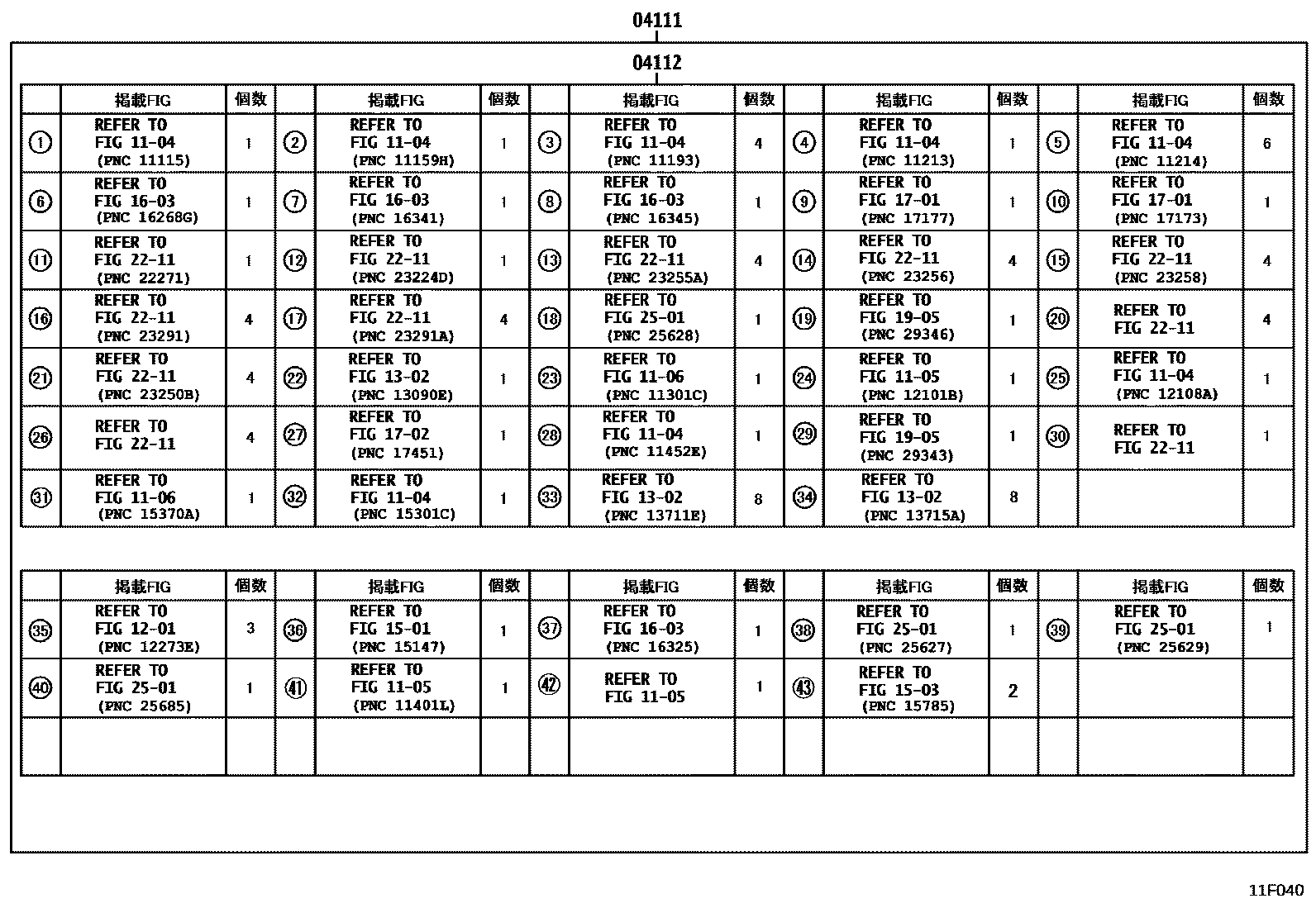

Engine Overhaul Gasket Kit — 11F040 (202006 – 999999)

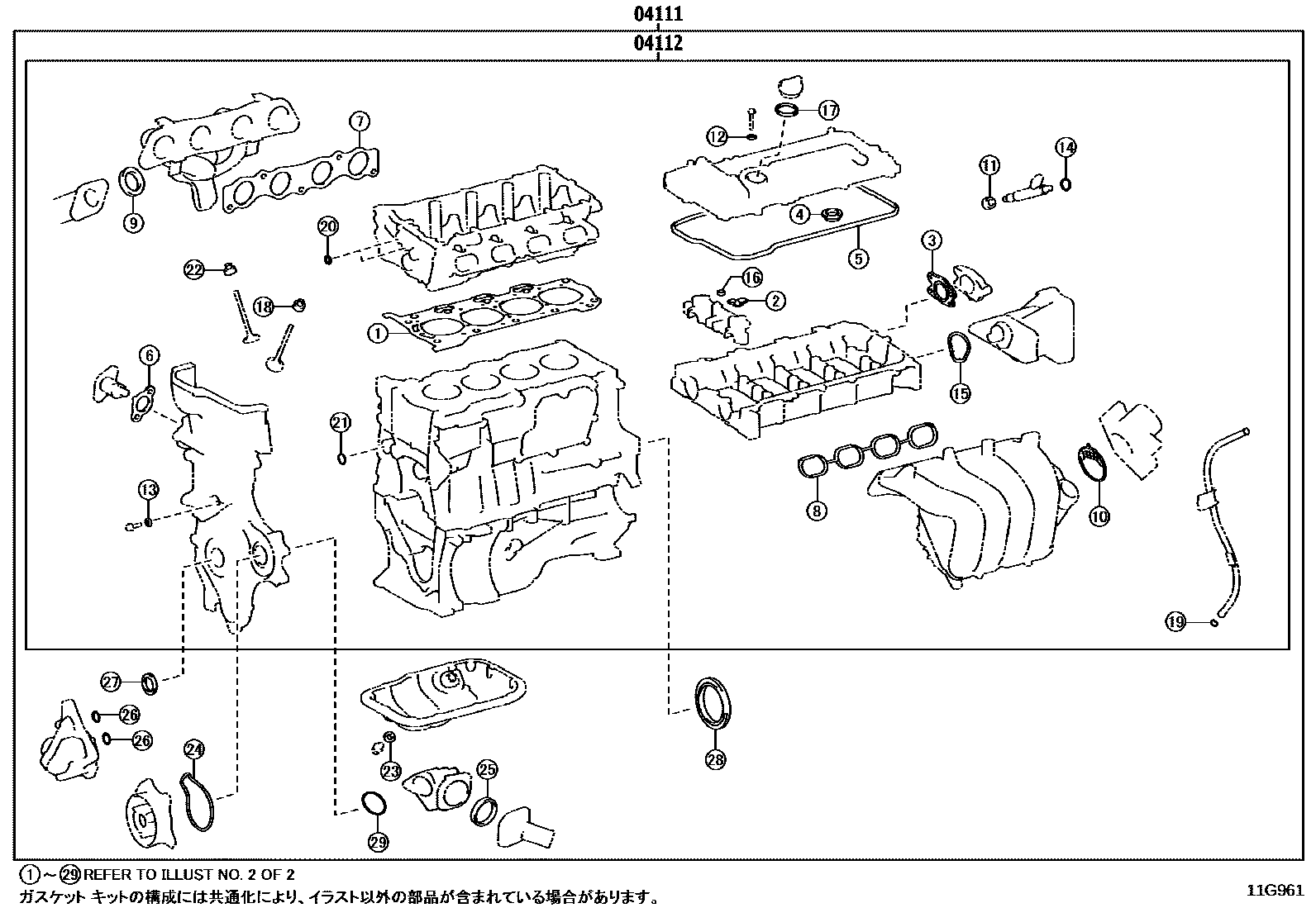

Engine Overhaul Gasket Kit — 11G961 (201908 – 999999)

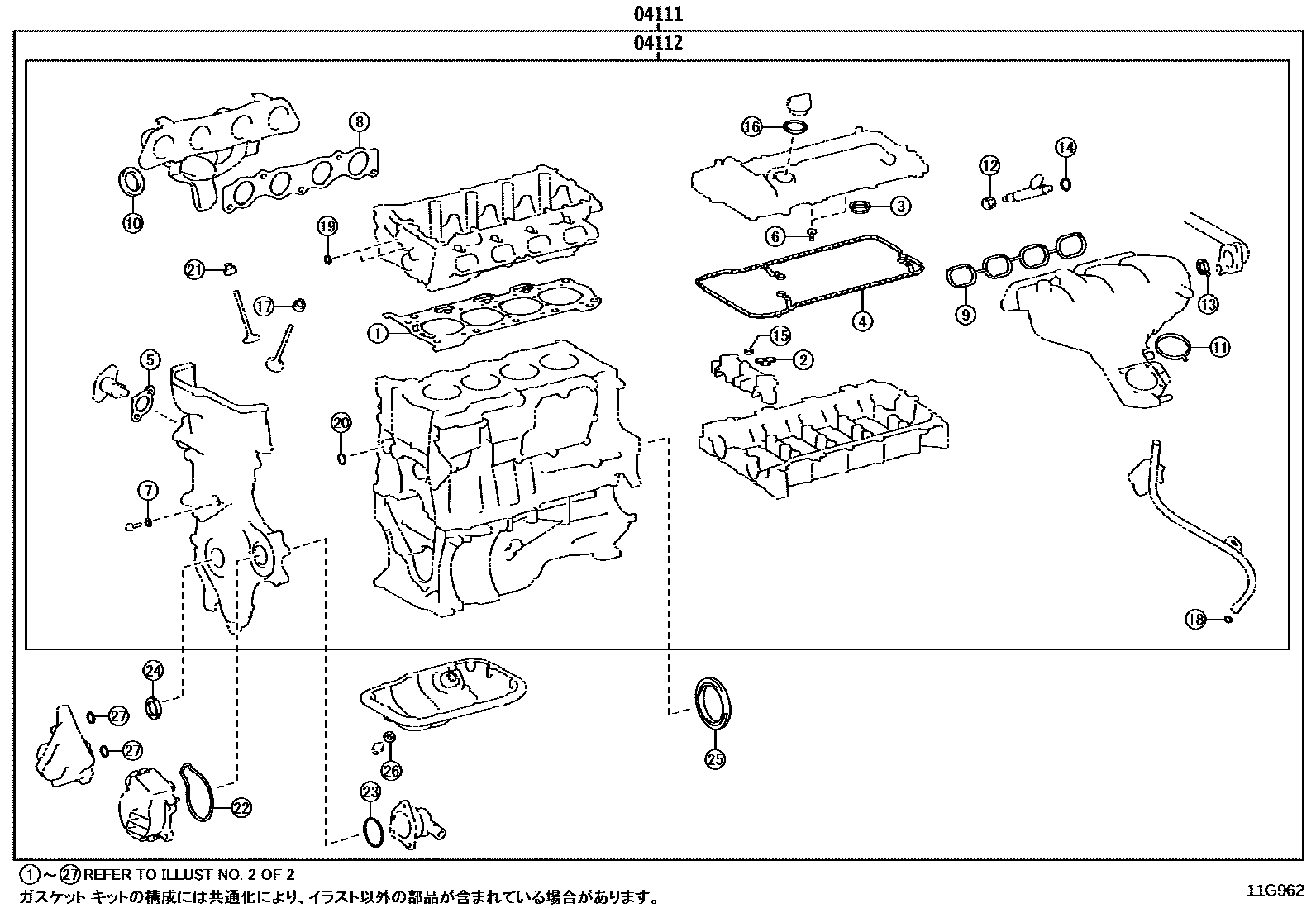

Engine Overhaul Gasket Kit — 11G962 (201908 – 999999)

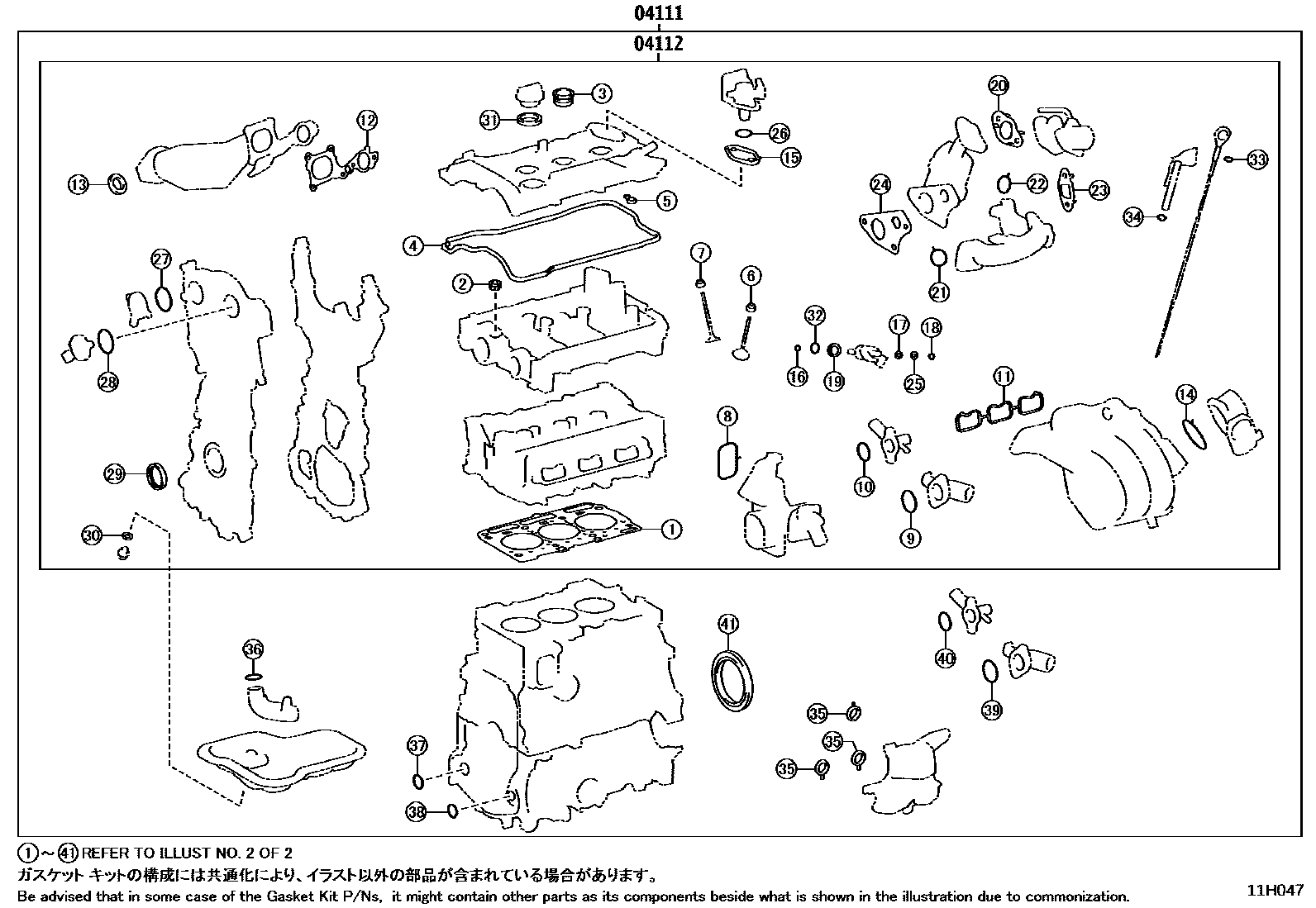

Engine Overhaul Gasket Kit — 11H047 (202210 – 999999)

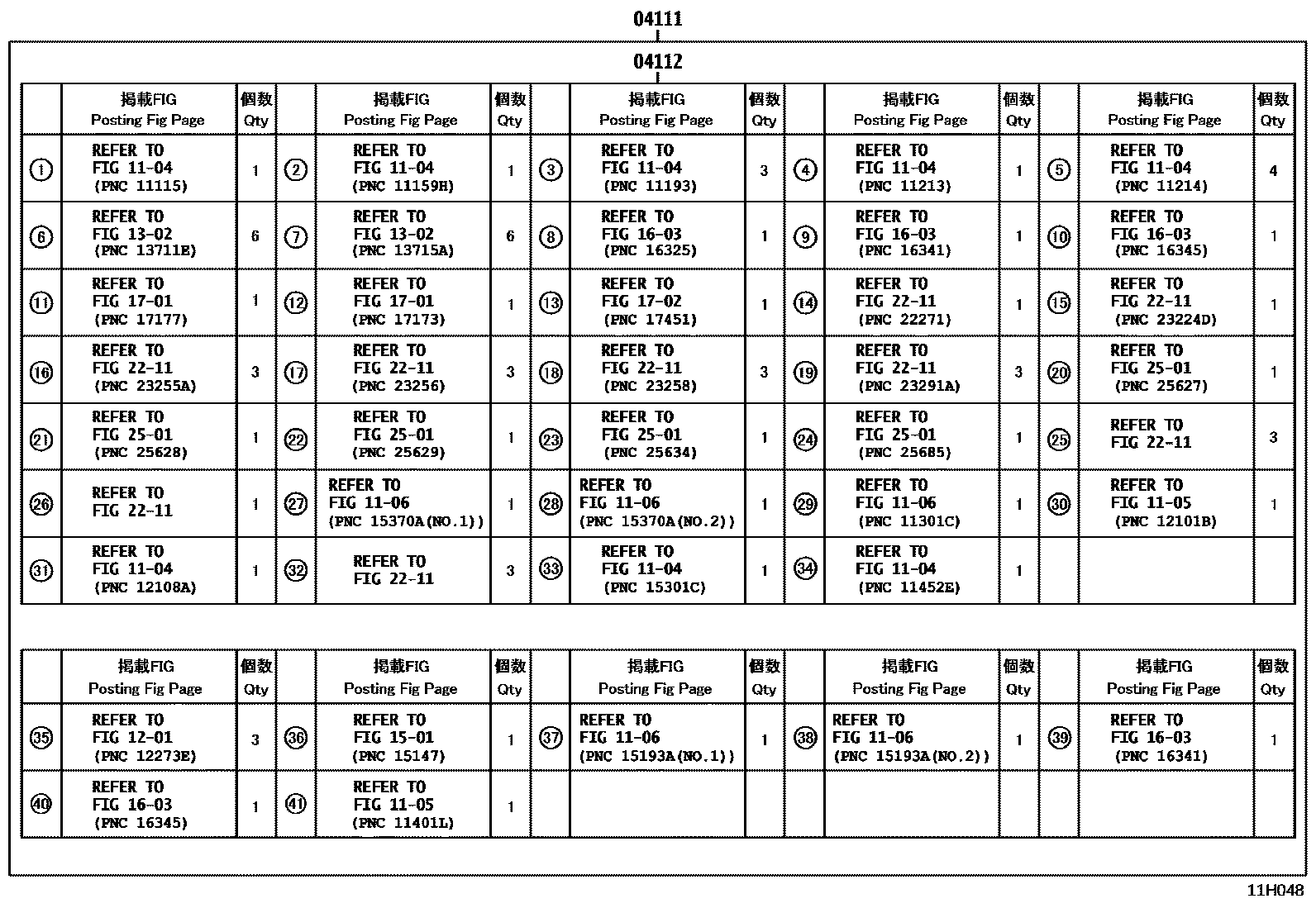

Engine Overhaul Gasket Kit — 11H048 (202210 – 999999)PNC and OE references
| PNC | Part name | OE numbers |
|---|
| 04111 | Engine overhaul gasket assembly | 04111-15111 · 04111-24120 · 04111-24121 · 04111-37501 · 04111-37540 · 04111-37541 · 04111-37560 · 04111-37561 · 04111-47272 |
| 04112 | Engine valve grinding pad assembly | 04112-15121 · 04112-24060 · 04112-24061 · 04112-37224 · 04112-37225 · 04112-37381 · 04112-37400 · 04112-37401 · 04112-47182 |
