Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

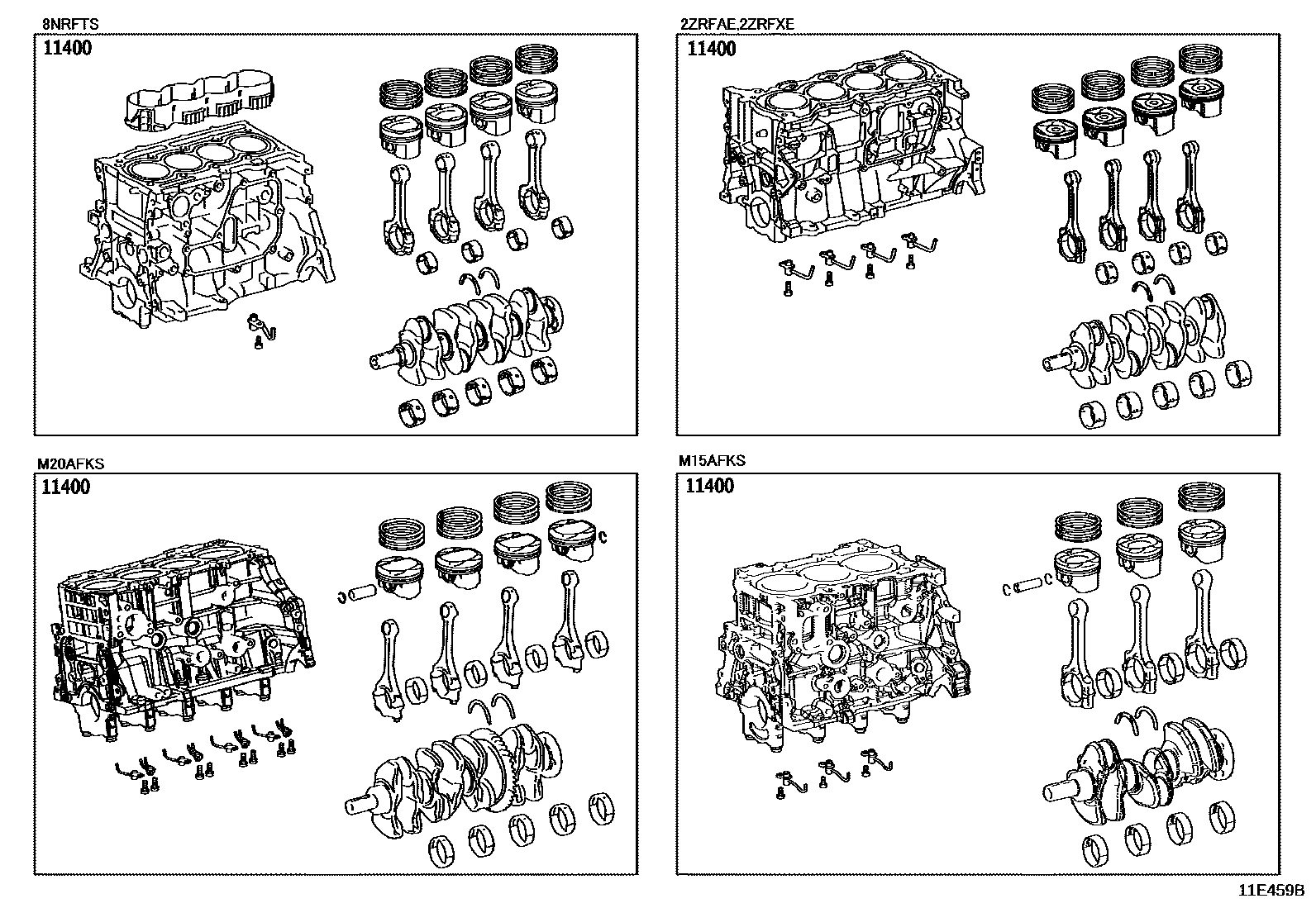

Toyota COROLLA Short Block Assembly EPC diagram — 11E459B
Short Block Assembly — 11E459B (201908 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-15090 · 11400-24040 · 11400-37280 · 11400-37310 · 11400-37370 · 11400-37380 · 11400-47230
