Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 2 images and 1 PNC and OE references.

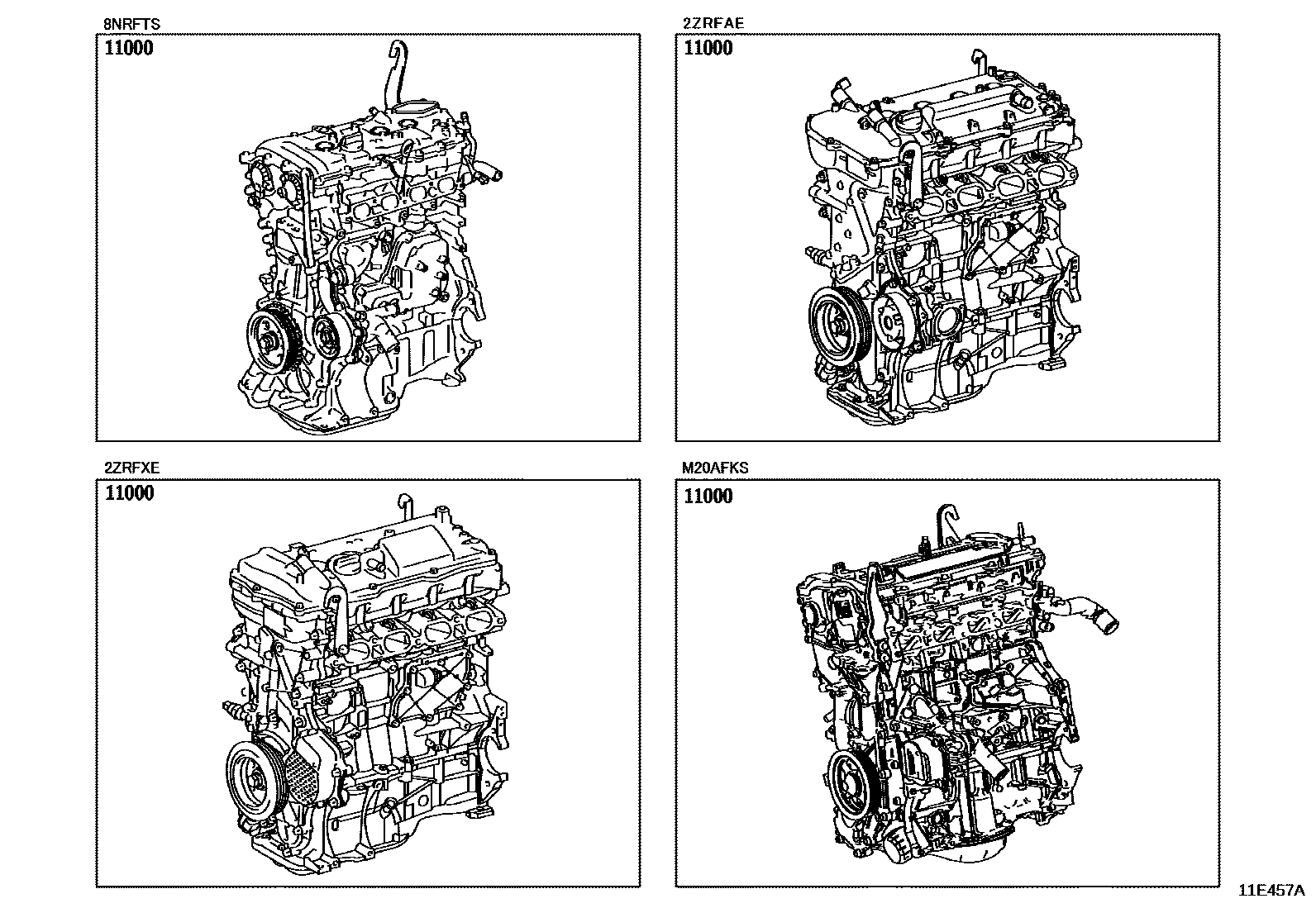

Toyota COROLLA Partial Engine Assembly EPC diagram — 11E457A
Partial Engine Assembly — 11E457A (201908 – 999999)

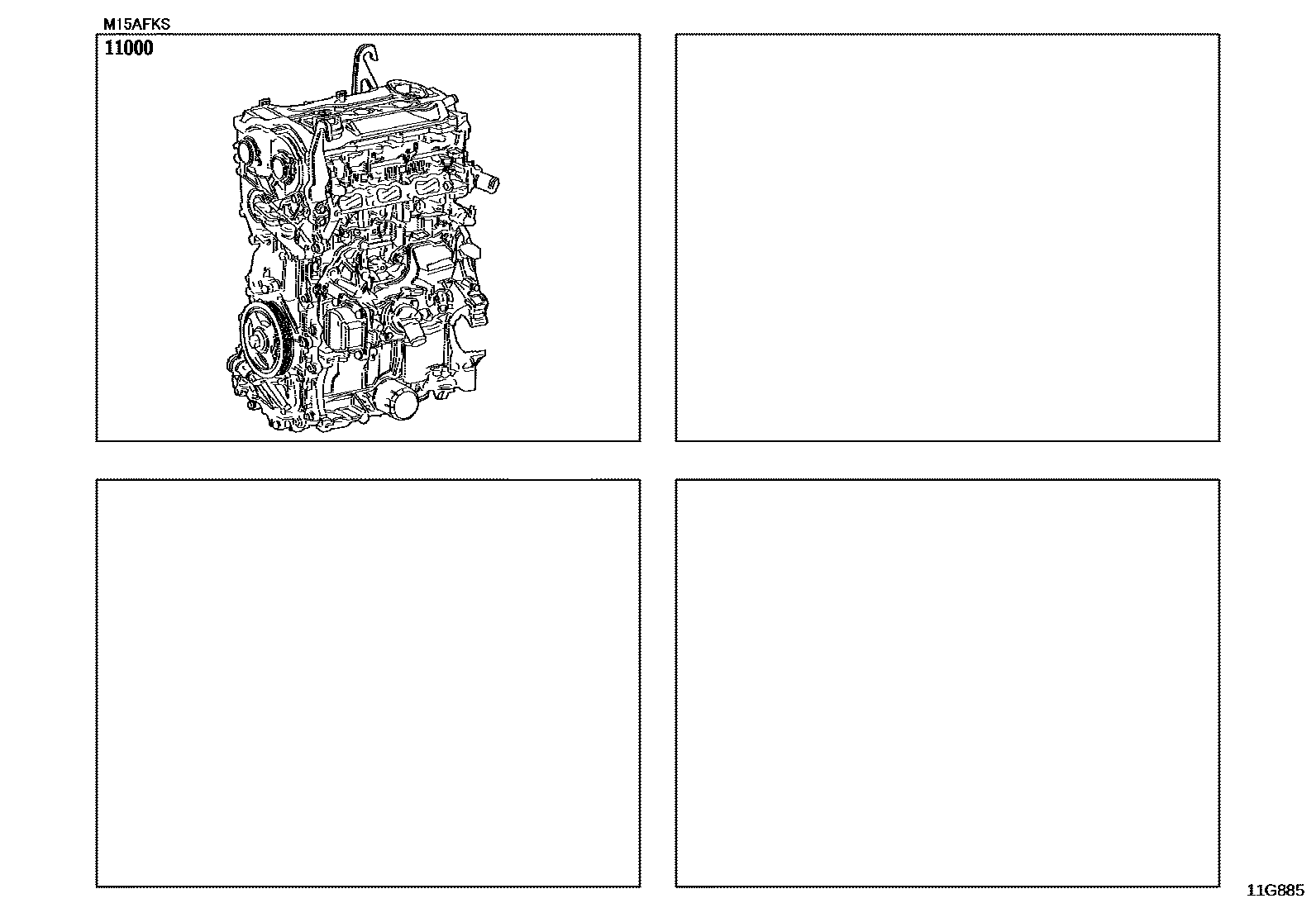

Toyota COROLLA Partial Engine Assembly EPC diagram — 11G885
Partial Engine Assembly — 11G885 (202210 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-15370 · 19000-24310 · 19000-37790 · 19000-37870 · 19000-37A80 · 19000-37A90 · 19000-47470
