Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719

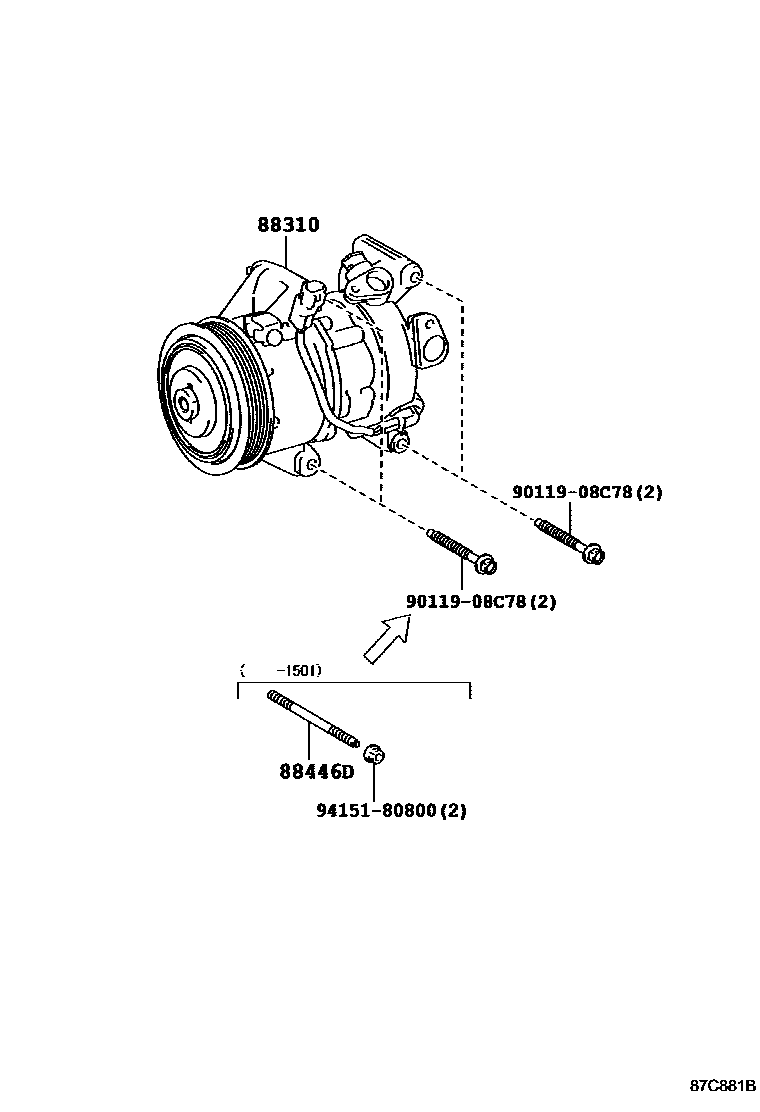

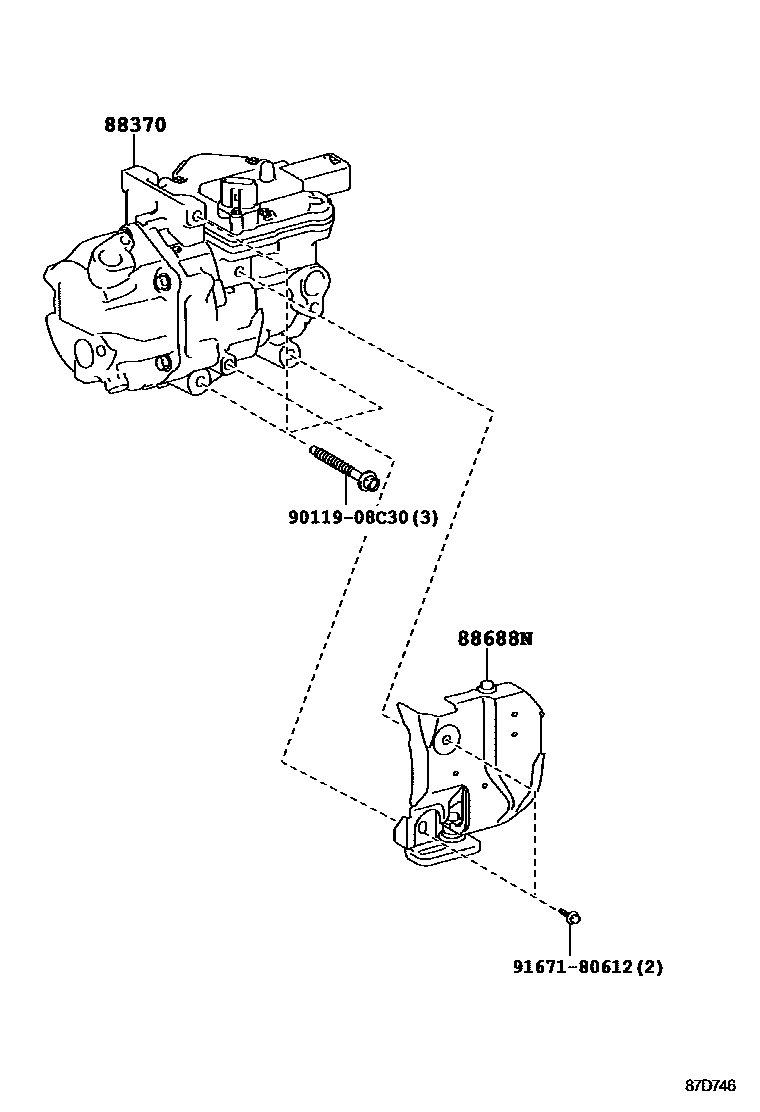

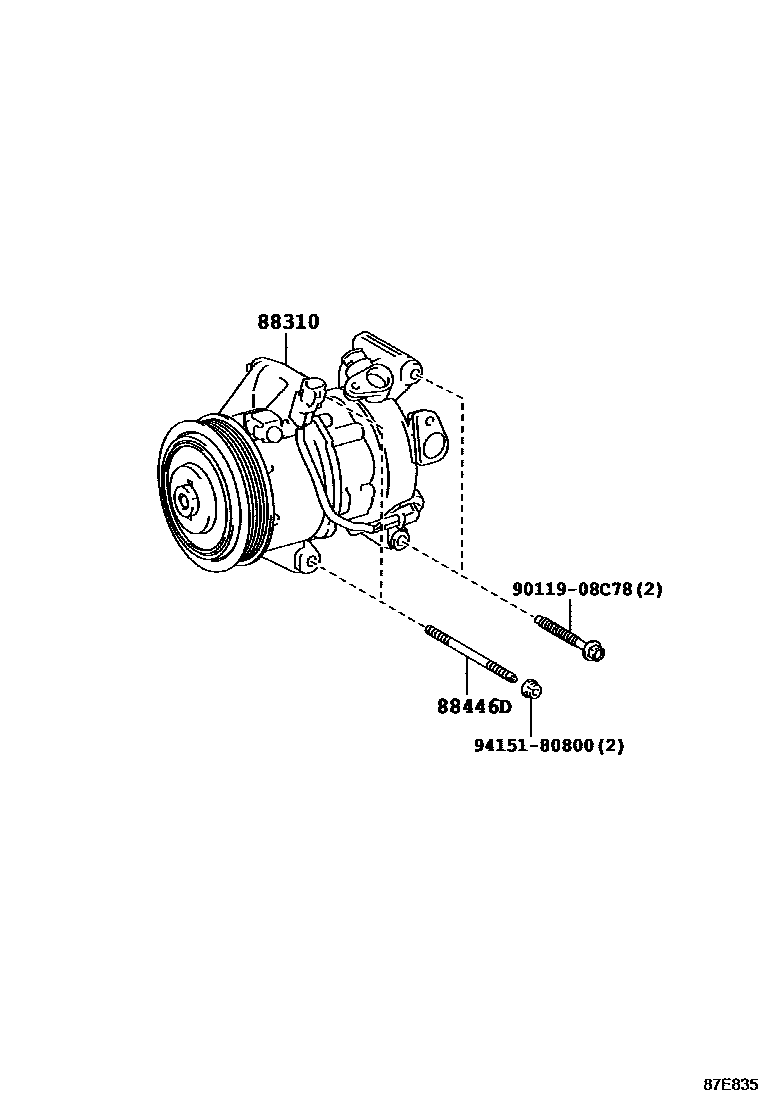

Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88310 | Compressor assembly with pulley | 88310-12A90 · 88310-12B00 · 88310-1A840 · 88310-1A841 |
| 88370 | Compressor assembly with motor | 88370-12010 · 88370-12011 · 88370-12060 |
| 88446D | cooler bolt | 88446-42030 |
| 88688N | cooler bracket | 88688-12A00 |
