Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718

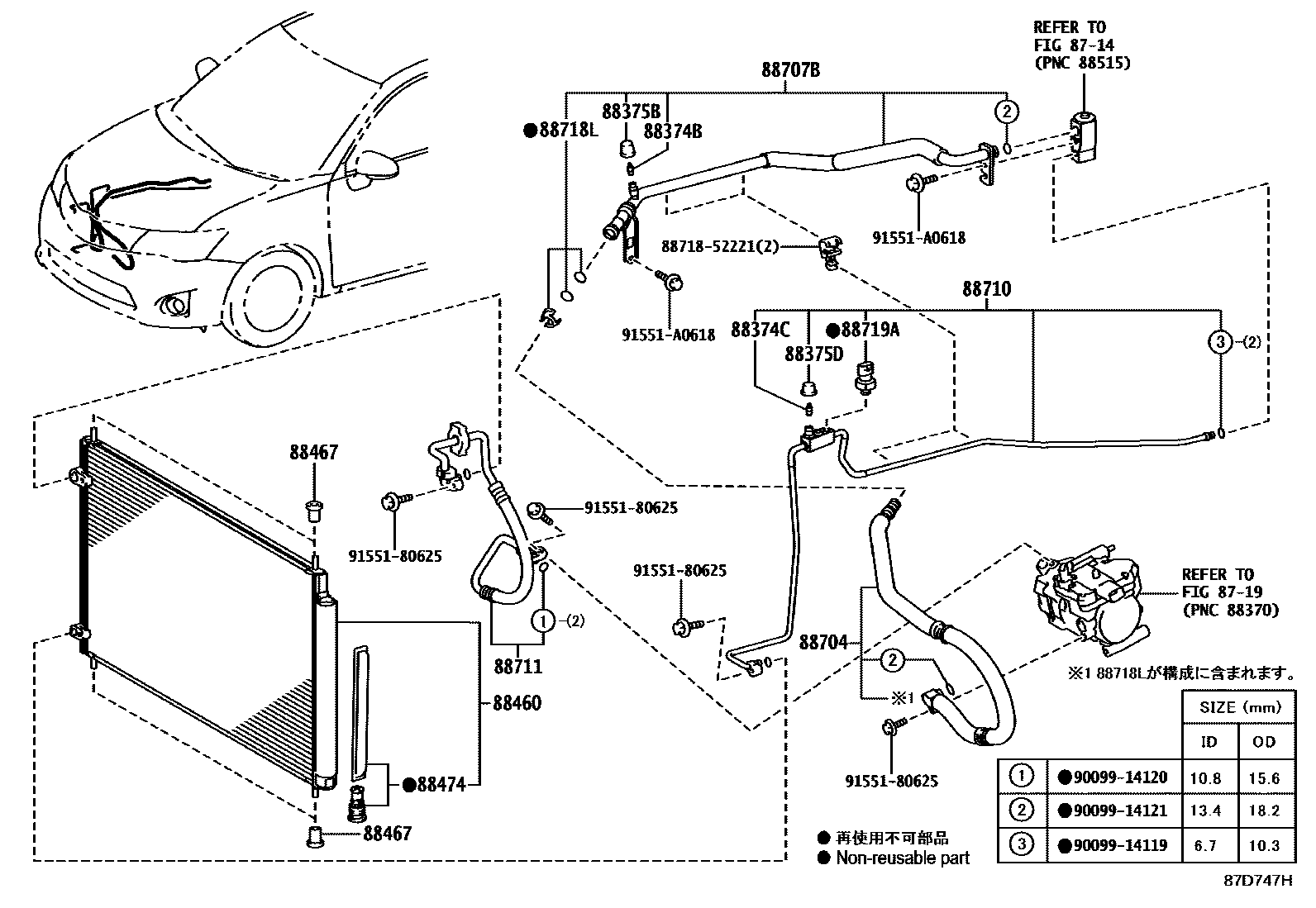

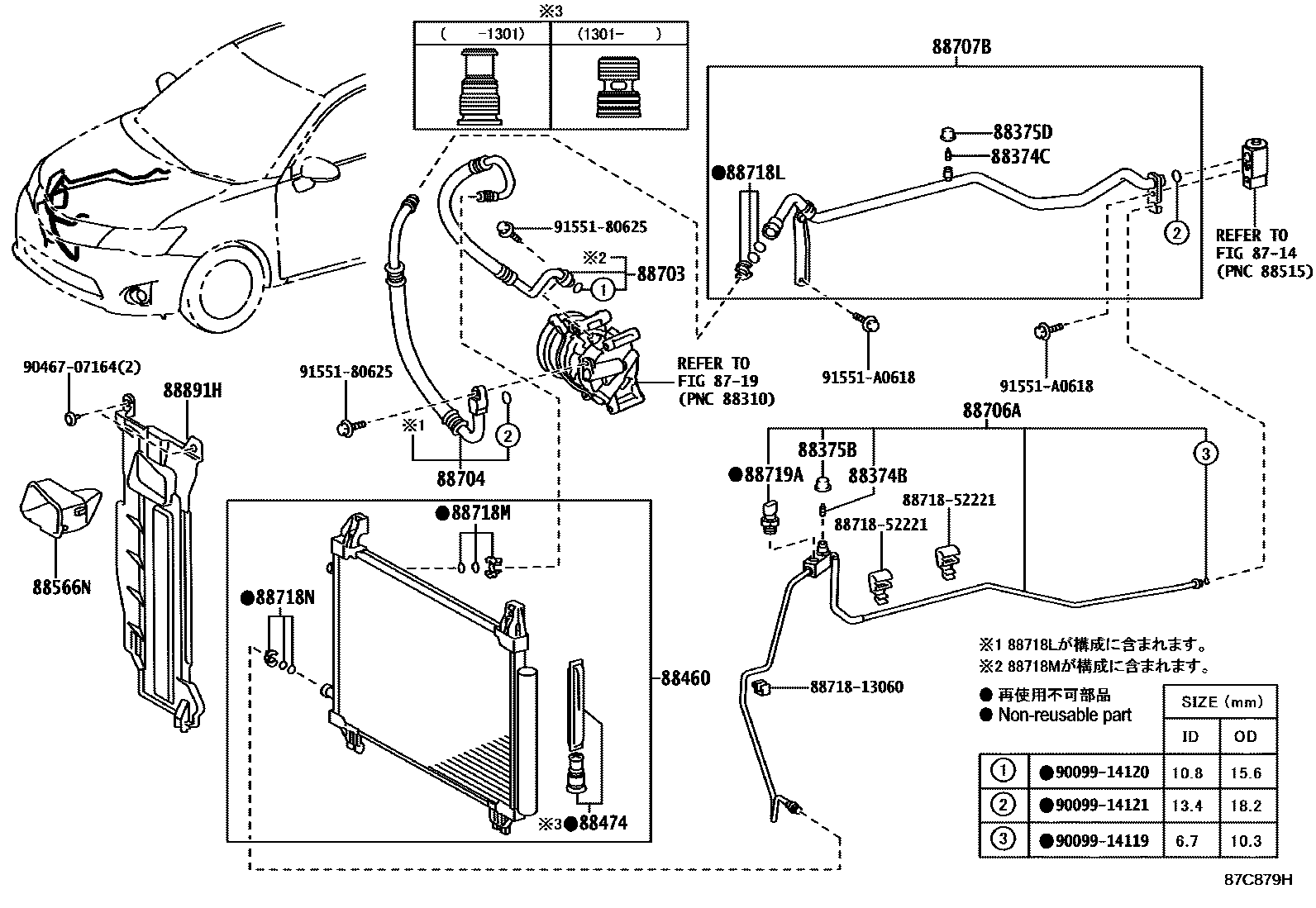

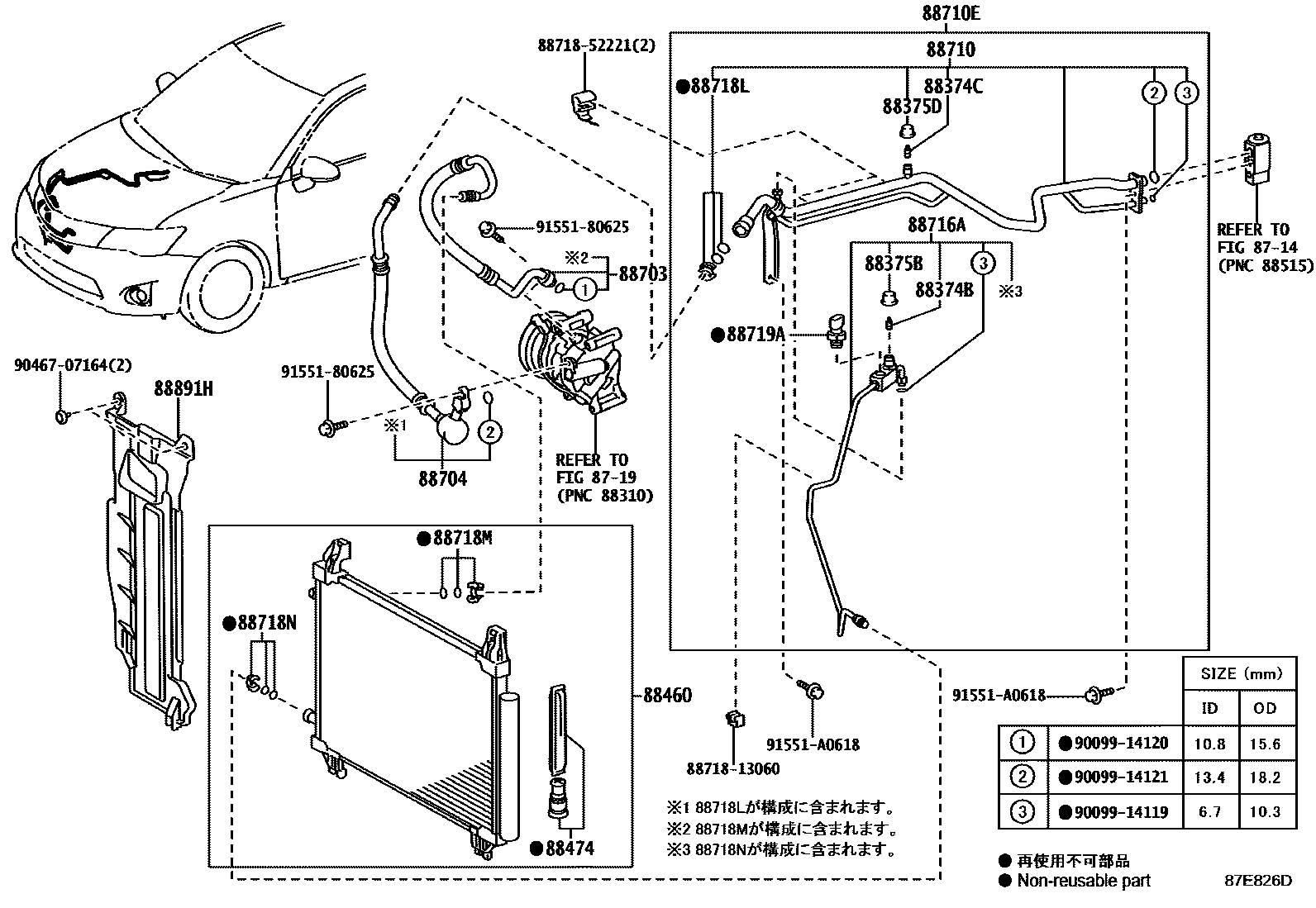

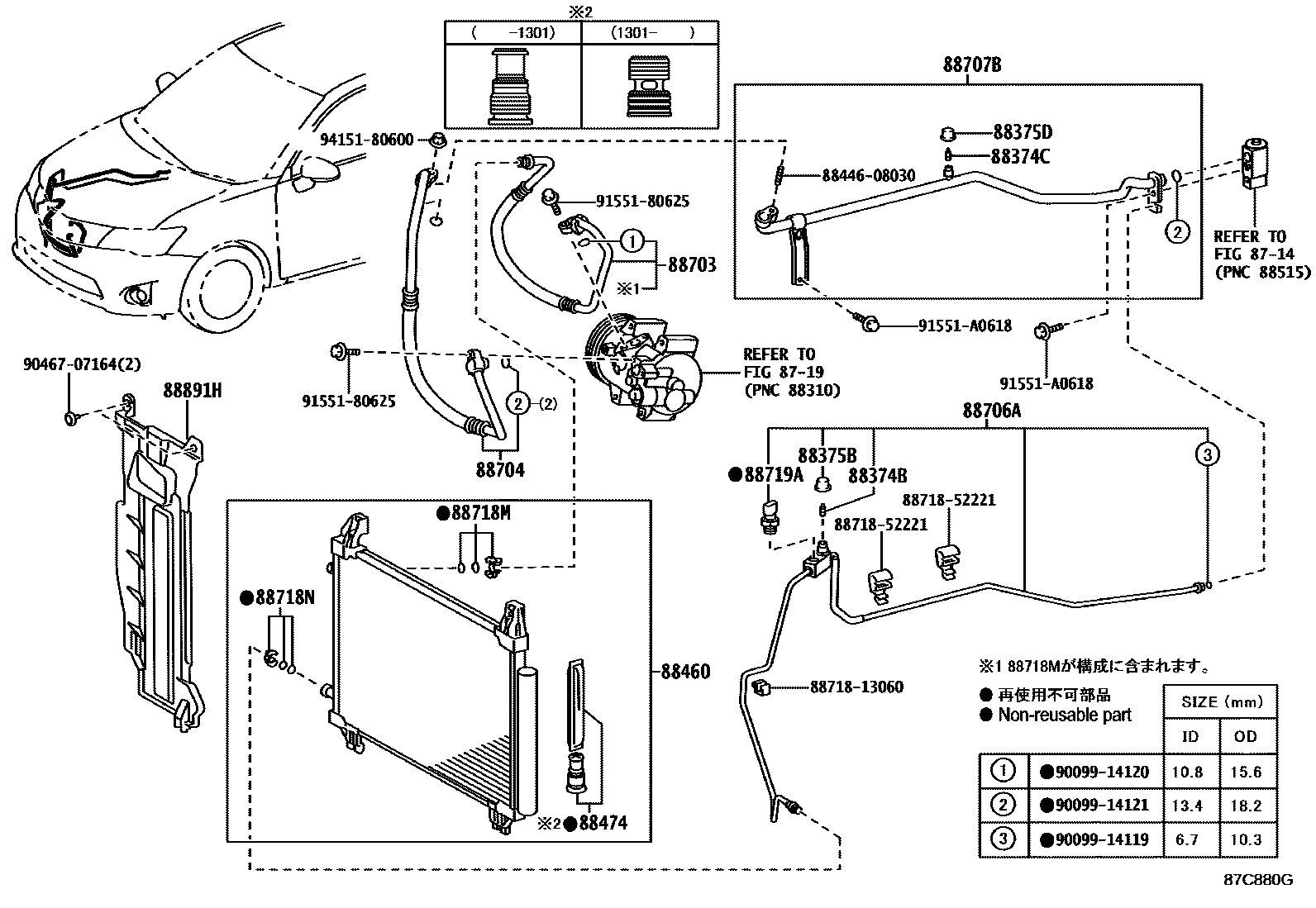

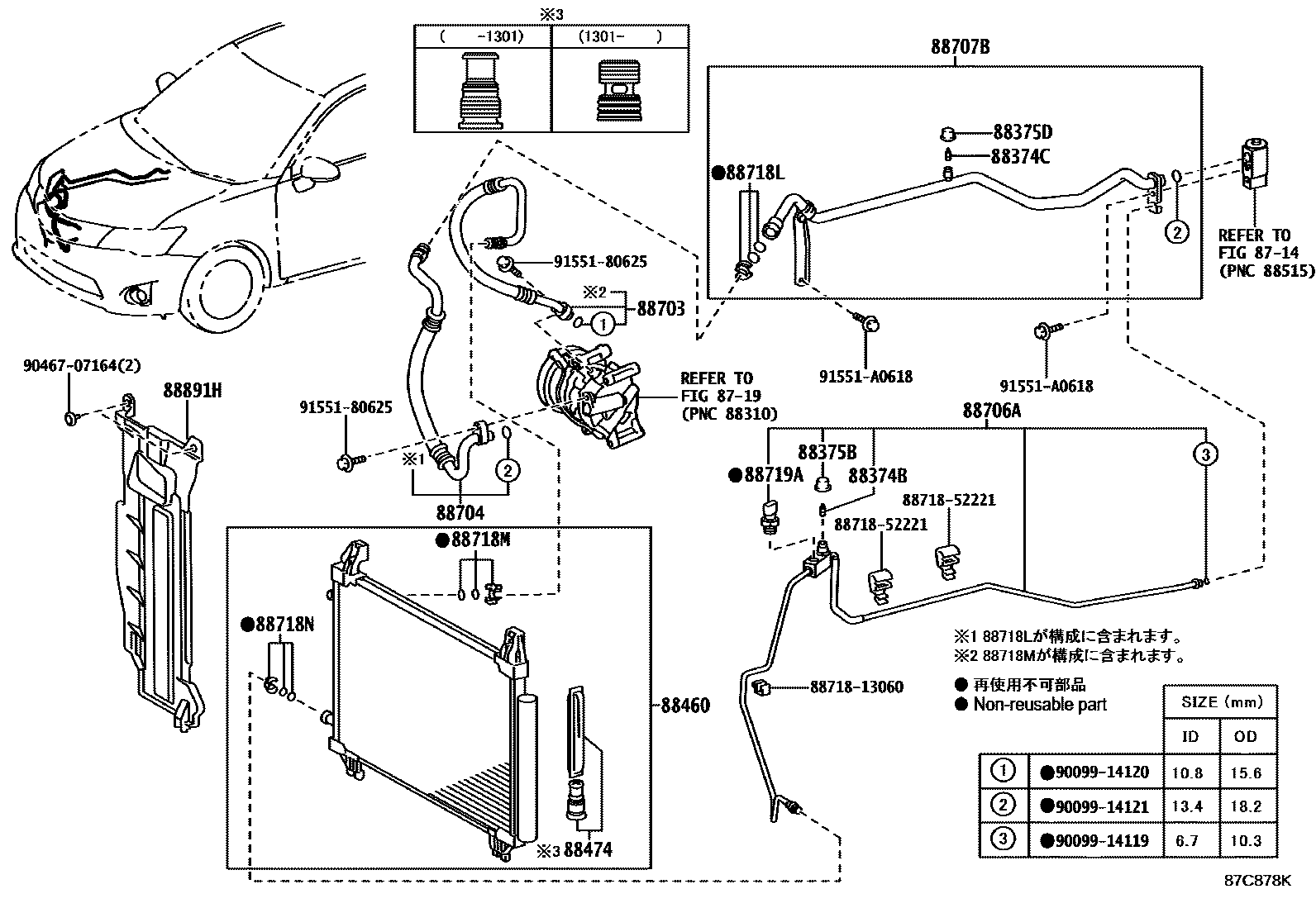

Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 5 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30280 · 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 · 88375-30290 |
| 88460 | Air conditioning condenser assembly | 88460-12570 · 88460-12590 · 88460-12600 |
| 88467 | No. 1 air conditioning condenser buffer pad | 16716-28010 |
| 88474 | cooler dryer | 88474-12010 · 88474-12020 · 88474-17010 |
| 88566N | Cooler No. 1 air duct | 88566-52110 |
| 88703 | Discharge hose sub-assembly | 88703-1A200 · 88703-1A201 · 88703-1A210 · 88703-1A211 · 88703-1A220 |
| 88704 | Oil suction hose sub-assembly | 88704-1A400 · 88704-1A401 · 88704-1A410 · 88704-52260 · 88704-52261 · 88704-52320 · 88704-52321 · 88712-1E120 |
| 88706A | Liquid pipe A sub-assembly | 88706-12770 |
| 88707B | Suction pipe B sub-assembly | 88707-12350 · 88707-12360 · 88707-52340 · 88707-52390 |
| 88710 | Air conditioning pipe assembly | 88710-12A10 · 88710-12A80 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-12A70 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-12A00 · 88711-12A01 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-12A50 |
| 88718L | Pipe clamp | 88718-52280 |
| 88718M | Toyota part | 88718-1E140 |
| 88718N | Toyota part | 88718-1E150 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
| 88891H | Cooler cover No. 1 | 88891-12230 · 88891-12240 |
