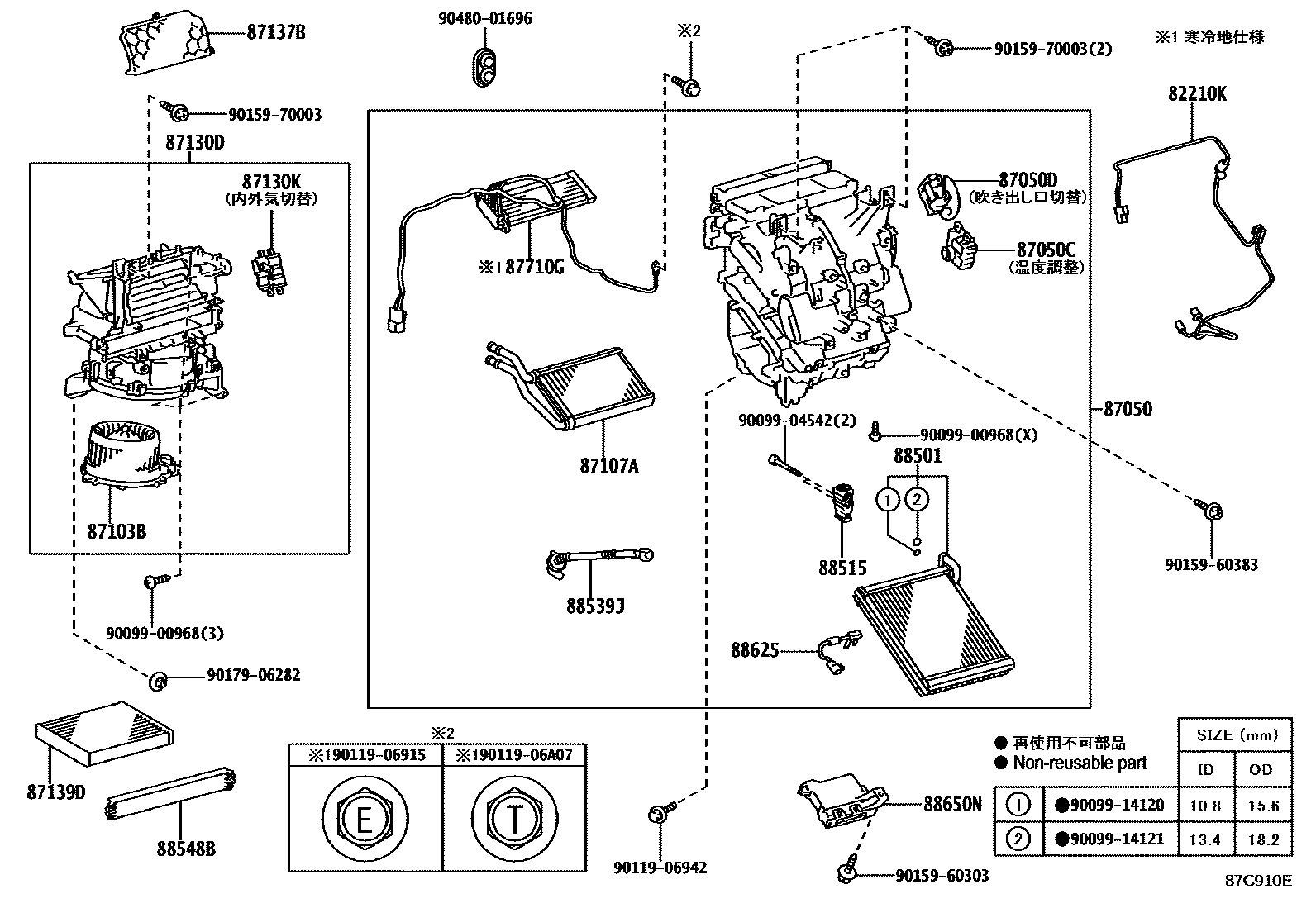

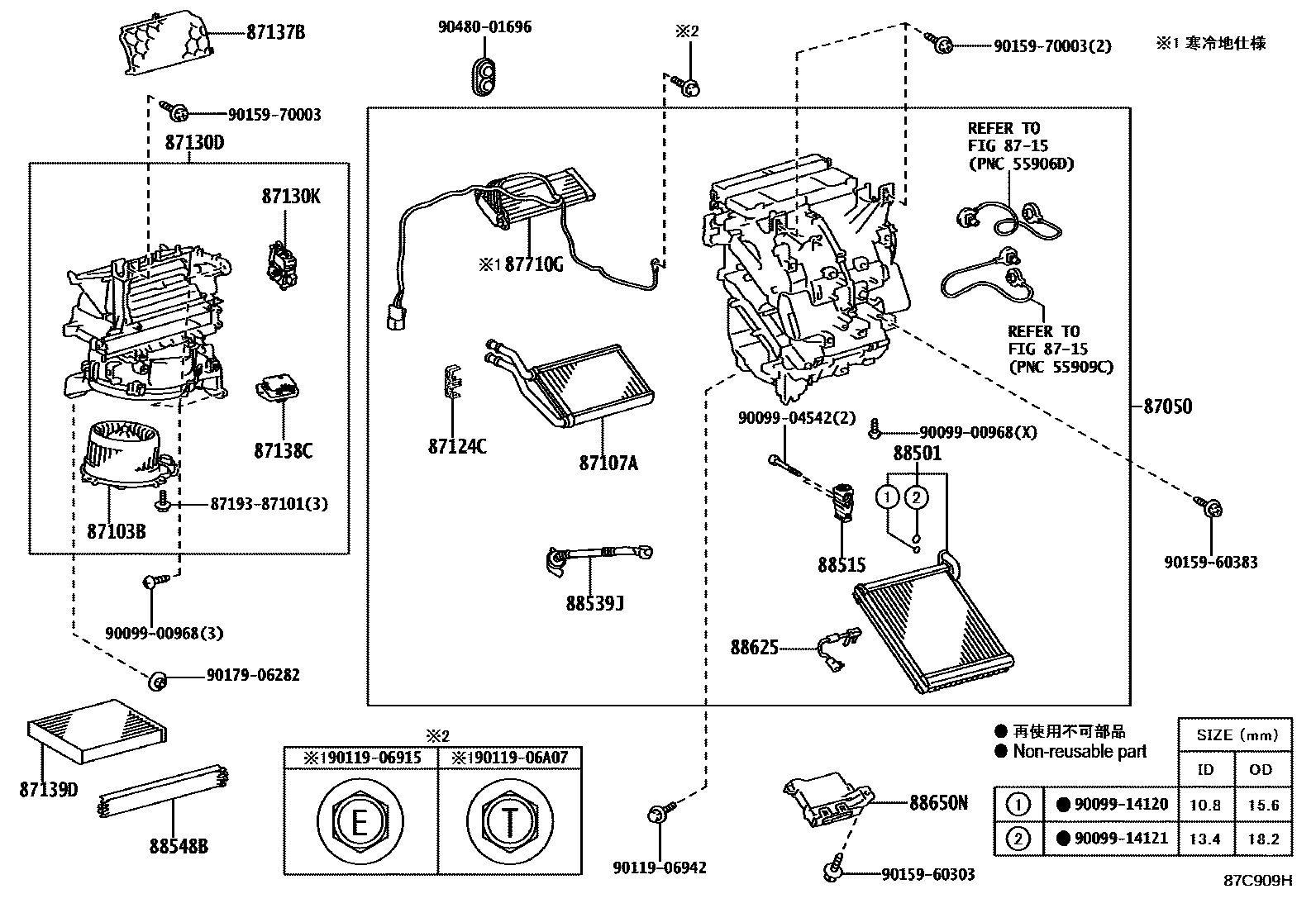

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-52070 |
| 87050 | Air conditioning radiator assembly | 87050-12690 · 87050-12691 · 87050-12700 · 87050-12701 · 87050-12720 · 87050-12721 · 87050-12730 · 87050-12731 · 87050-52300 · 87050-52301 · 87050-52340 · 87050-52341 · 87050-52480 · 87050-52481 · 87050-52490 · 87050-52491 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-52130 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-52140 |
| 87103B | Blower motor sub-assembly with fan | 87103-12110 · 87103-52200 |
| 87107A | Heater radiator device sub-assembly | 87107-52070 |
| 87124C | heater clip | 87124-33070 |
| 87130D | Blower assembly | 87130-12500 · 87130-52190 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-12180 · 87106-52150 |
| 87137B | heater blower cover | 87137-52010 |
| 87138C | Blower resistor | 87138-52030 |
| 87139D | Air fine filter element | 87139-50060 · 87139-50100 · 87139-52040 |
| 87710G | Rapid heater assembly | 87710-12030 · 87710-52080 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-12520 · 88501-52120 · 88501-52130 |
| 88515 | Cooler expansion valve | 88515-48110 · 88515-52090 · 88515-52100 · 88515-52110 · 88515-68010 |
| 88539J | Cooler drain hose | 88539-52030 · 88539-52060 |
| 88548B | air filter housing | 88548-52040 |
| 88625 | Cooler No. 1 Thermistor | 88620-12090 · 88620-52010 |
| 88650N | Air conditioning amplifier assembly | 88650-12J20 · 88650-12J30 · 88650-12J40 · 88650-12J50 · 88650-12J60 · 88650-12J70 · 88650-12J80 · 88650-12J81 · 88650-12K60 · 88650-12L00 · 88650-12L10 · 88650-12L20 · 88650-12L30 |
