Toyota COROLLA 喇叭 — Figure 8611

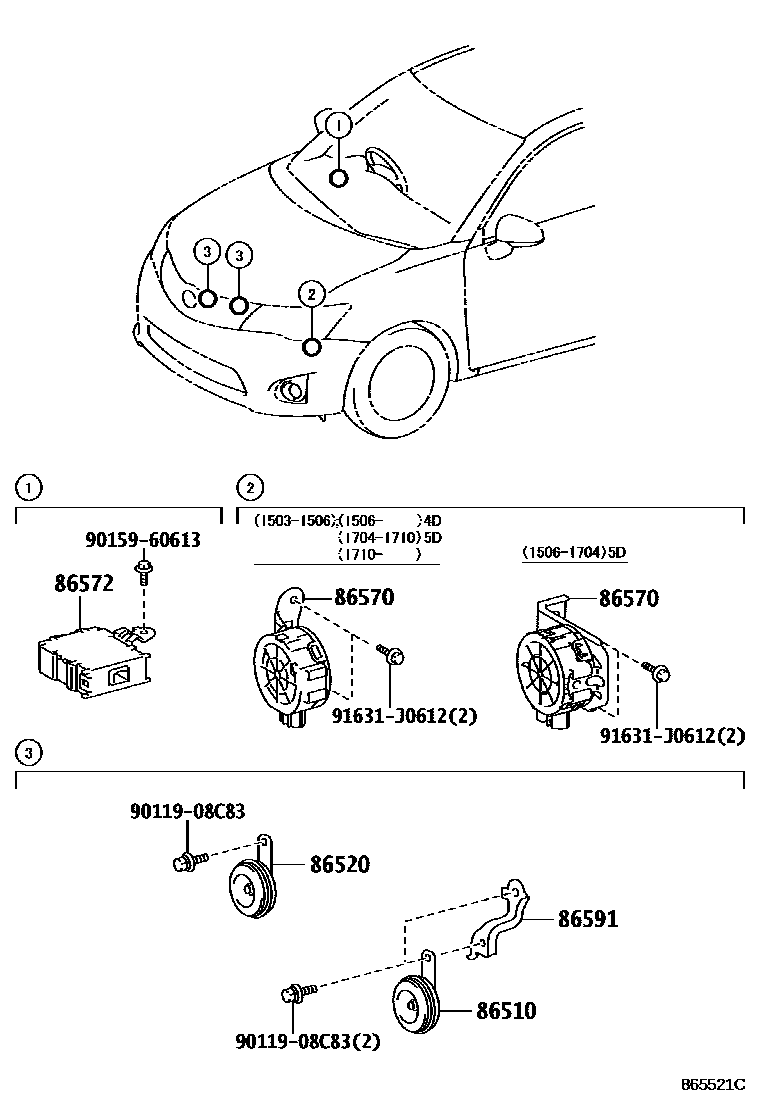

Toyota COROLLA EPC diagram 8611, 喇叭, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510 | tweeter assembly | 86510-48070 |
| 86520 | Subwoofer assembly | 86520-10270 · 86520-68010 |
| 86570 | Vehicle intrusion speaker assembly | 86570-12010 · 86570-52020 · 86570-52070 |
| 86572 | vehicle hacking speaker controller | 86572-12010 · 86572-12020 · 86572-12160 |
| 86591 | speaker bracket | 86591-12030 |
