Toyota COROLLA antenna — Figure 8604

Toyota COROLLA EPC diagram 8604, antenna, with 2 images and 5 PNC and OE references.

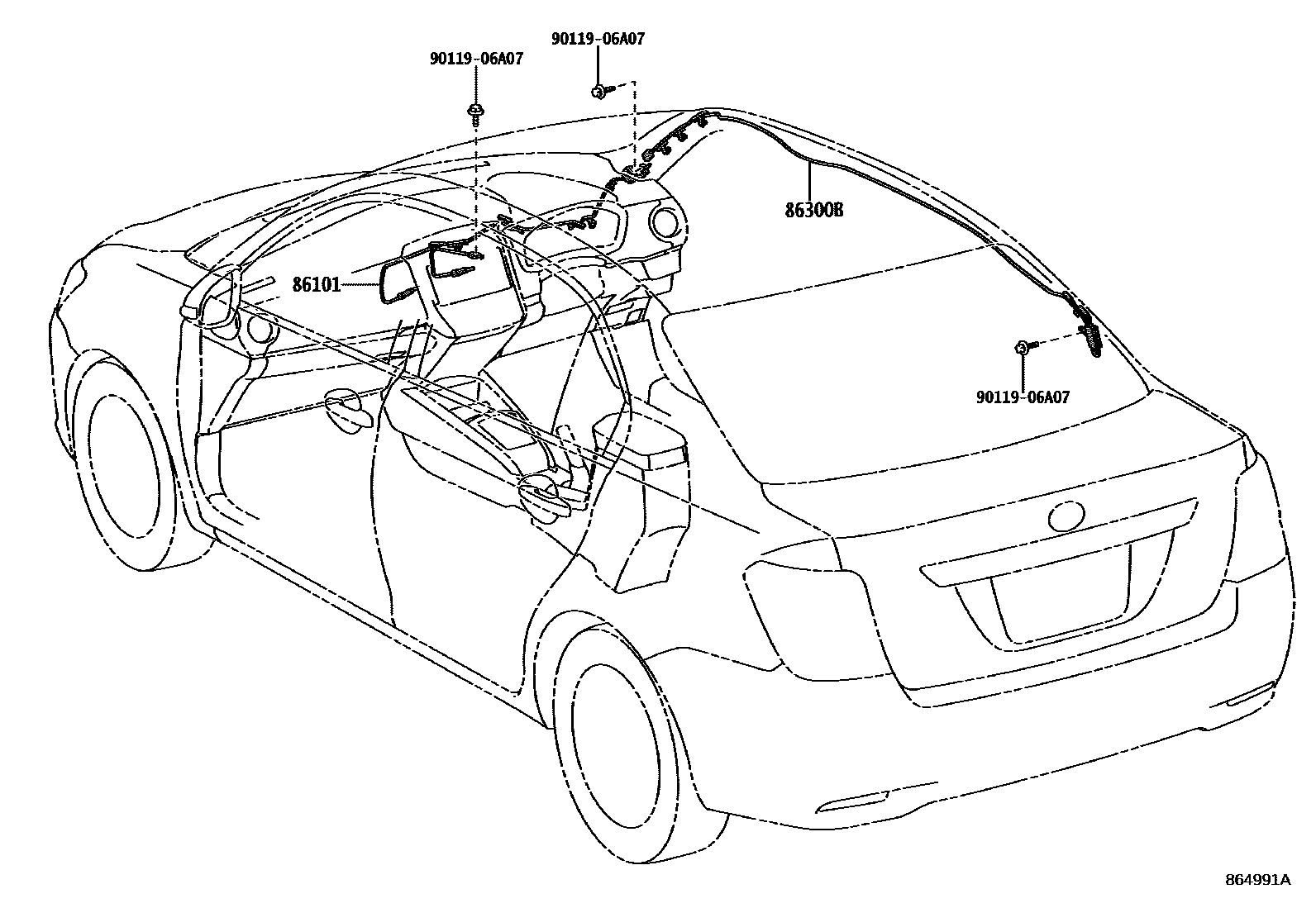

Toyota COROLLA antenna EPC diagram — 864991A
antenna — 864991A (201204 – 999999)

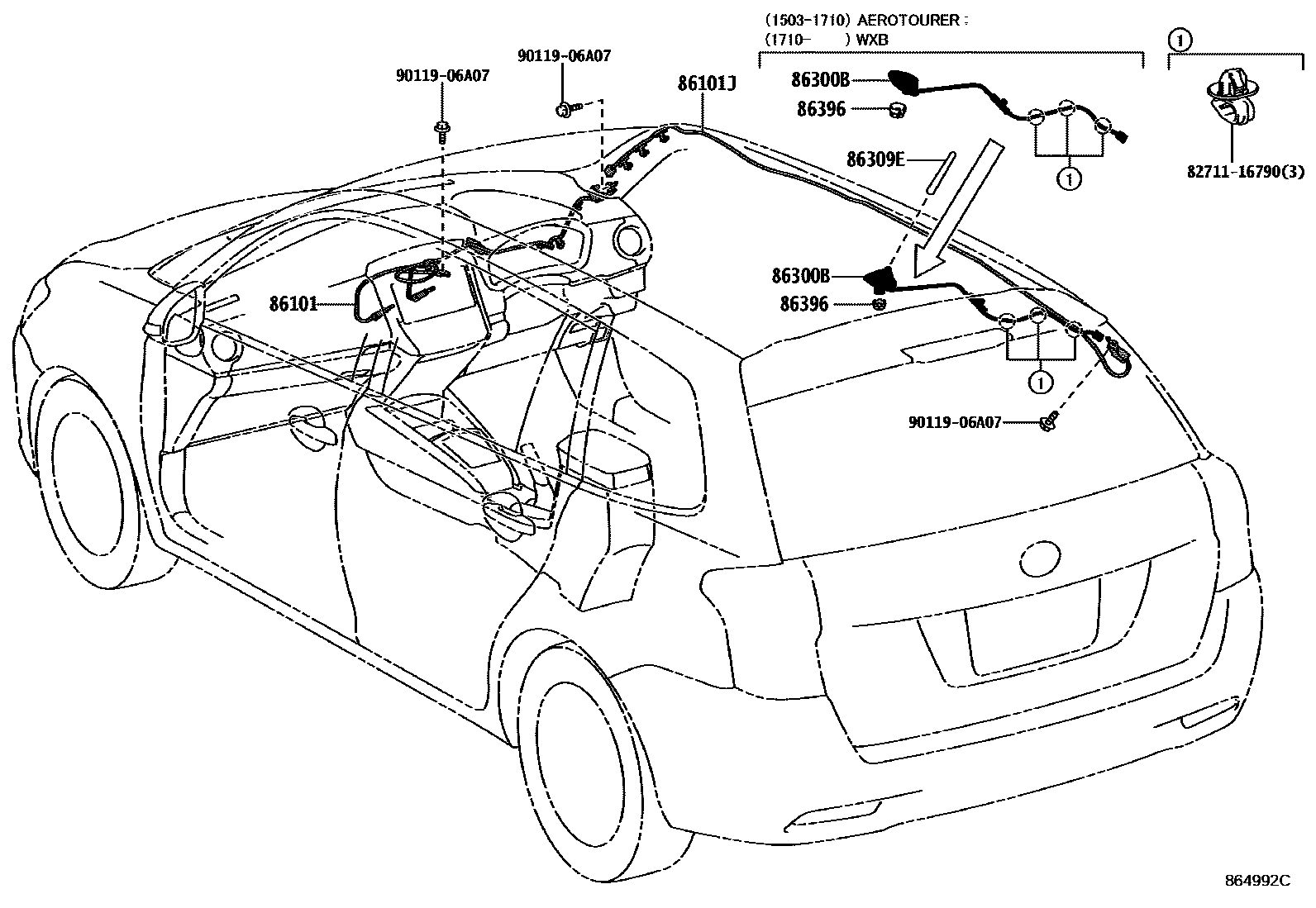

Toyota COROLLA antenna EPC diagram — 864992C
antenna — 864992C (201204 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-12880 · 86101-12A00
86101JNo. 2 antenna wire sub-assembly86101-13160
86300BAmplifier antenna assembly86300-12B10 · 86300-13060
86309ERoof antenna sub-assembly86309-13020
86396Antenna nut86396-47010
