Toyota COROLLA 后清洗器 — Figure 8504

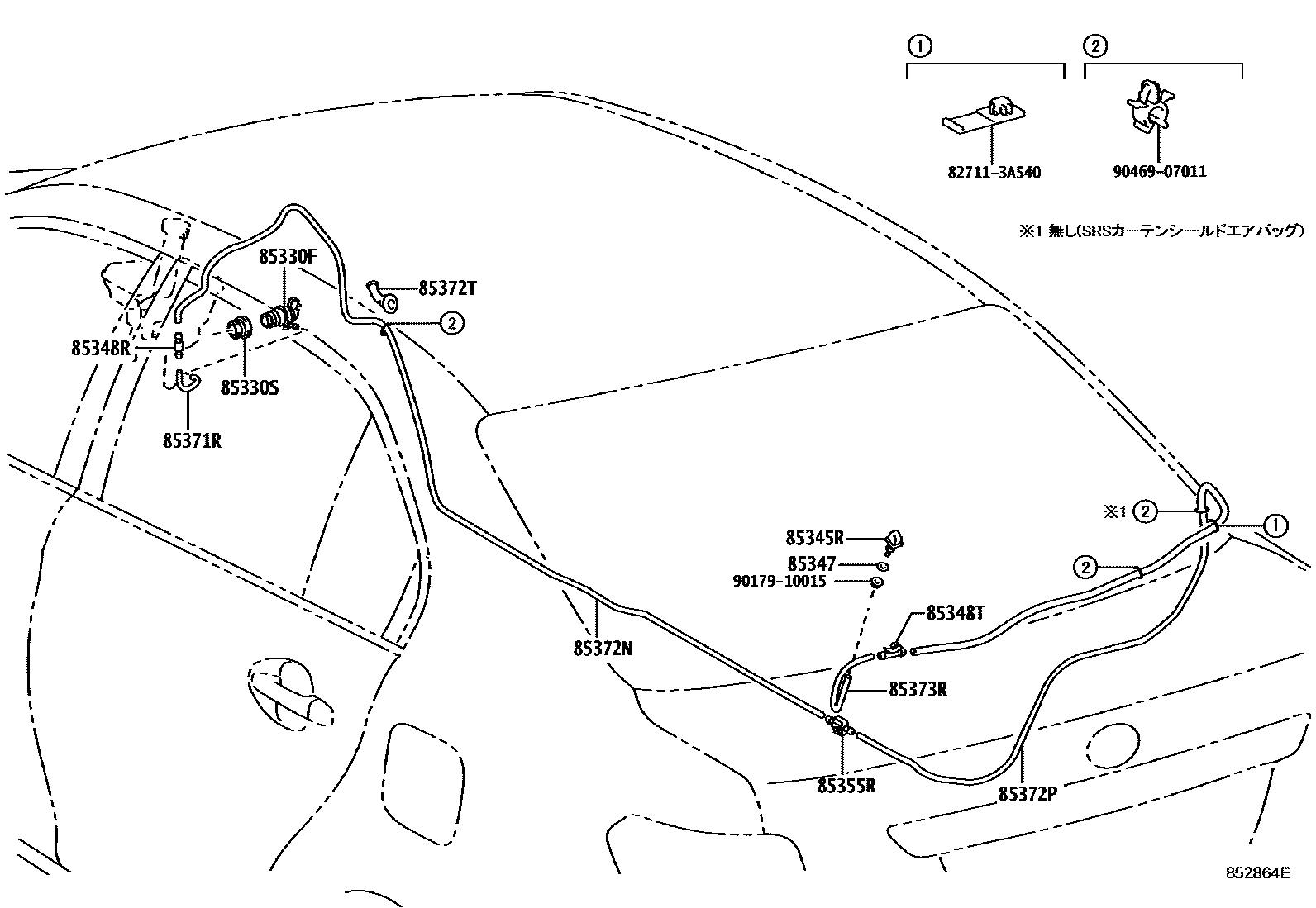

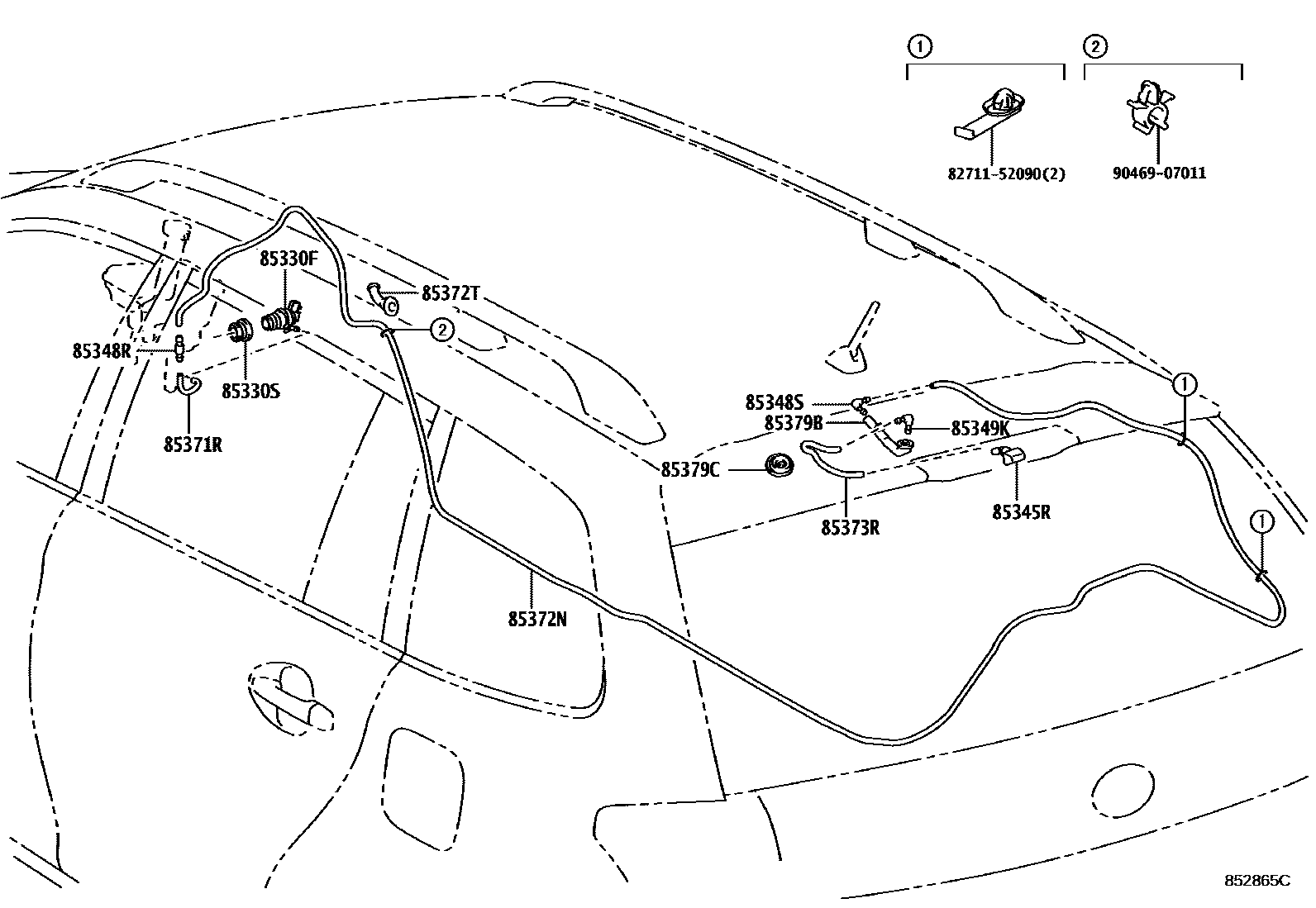

Toyota COROLLA EPC diagram 8504, 后清洗器, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85330F | Rear washer motor and pump assembly | 85330-60160 |
| 85330S | Rear washer fluid tank bushing | 85336-60300 |
| 85345R | Rear washer nozzle | 85391-12080 · 85391-13060 |
| 85347 | Rear washer seal | 85347-12010 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348S | No. 1 rear cleaner elbow joint | 85355-20200 |
| 85348T | No. 2 rear washer hose connector | 85375-20800 |
| 85349K | No. 2 rear cleaner elbow joint | 85355-20200 |
| 85355R | Rear washer hose valve | 85321-26020 |
| 85372N | No. 1 rear washer hose (from connector to connector) | 90099-59369 |
| 85372T | Cleaner seal | 85379-52530 |
| 85373R | Rear washer hose (from connector to nozzle) | 85374-12050 |
| 85379B | Cleaner seal A | 85372-20040 · 85373-12030 |
| 85379C | No. 1 rear washer hose seal | 85373-13020 |
