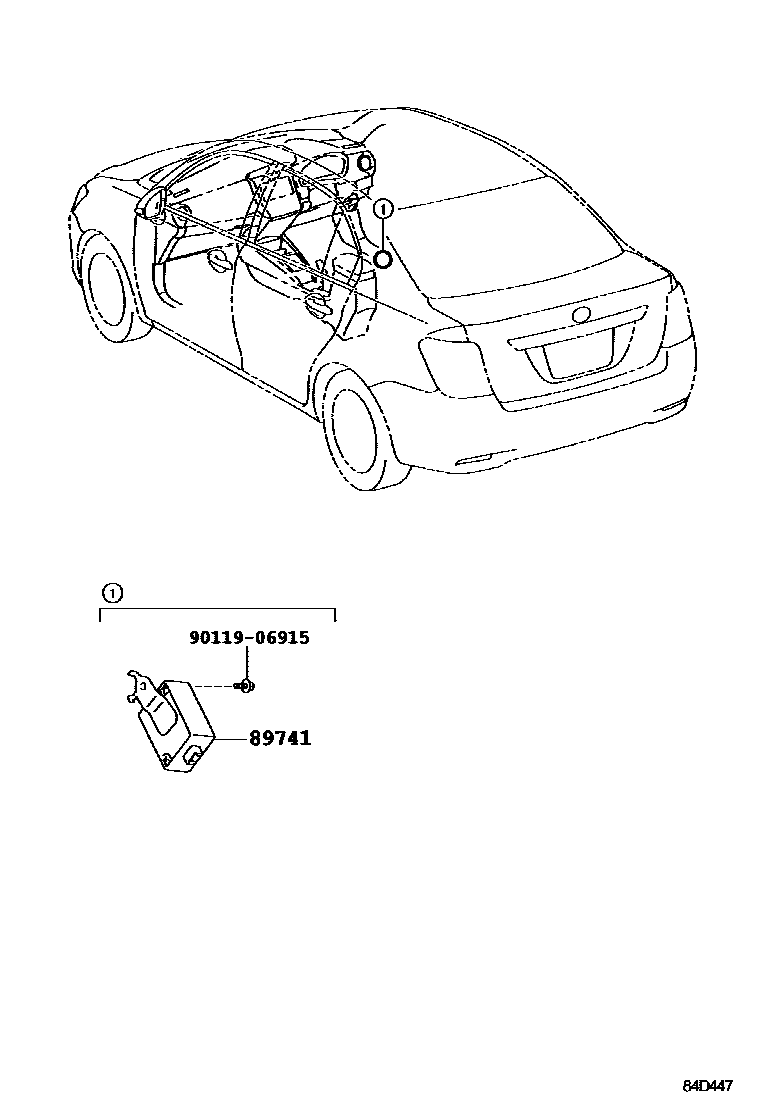

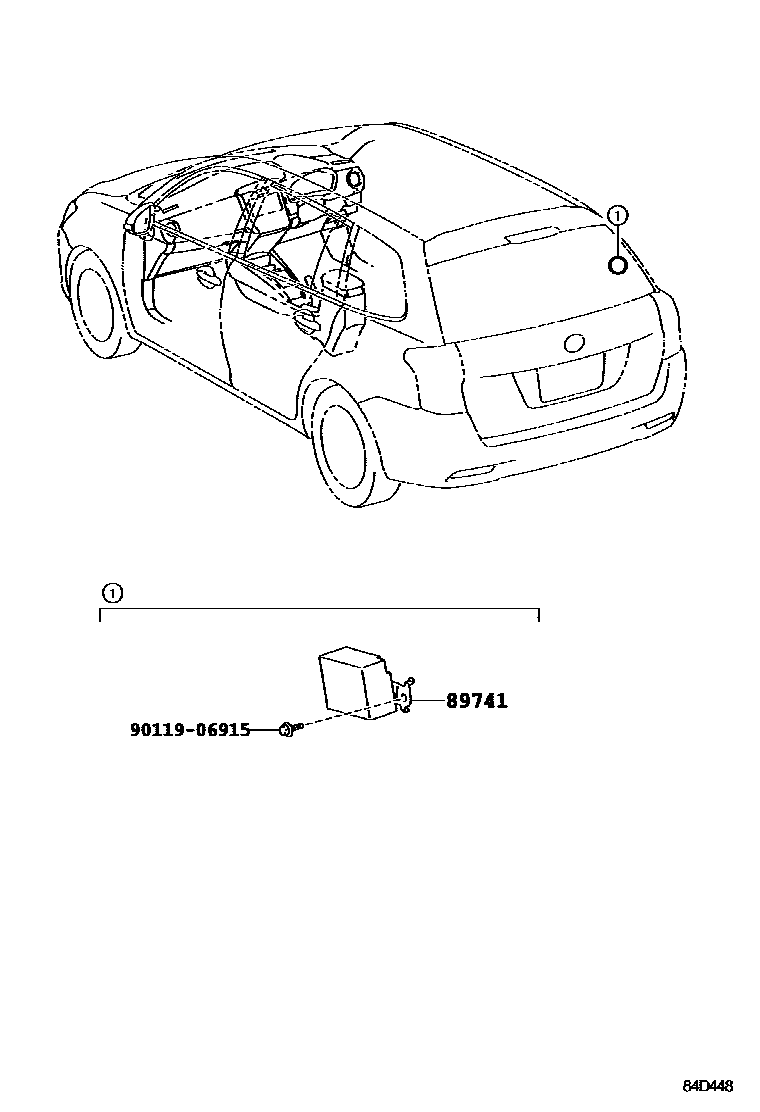

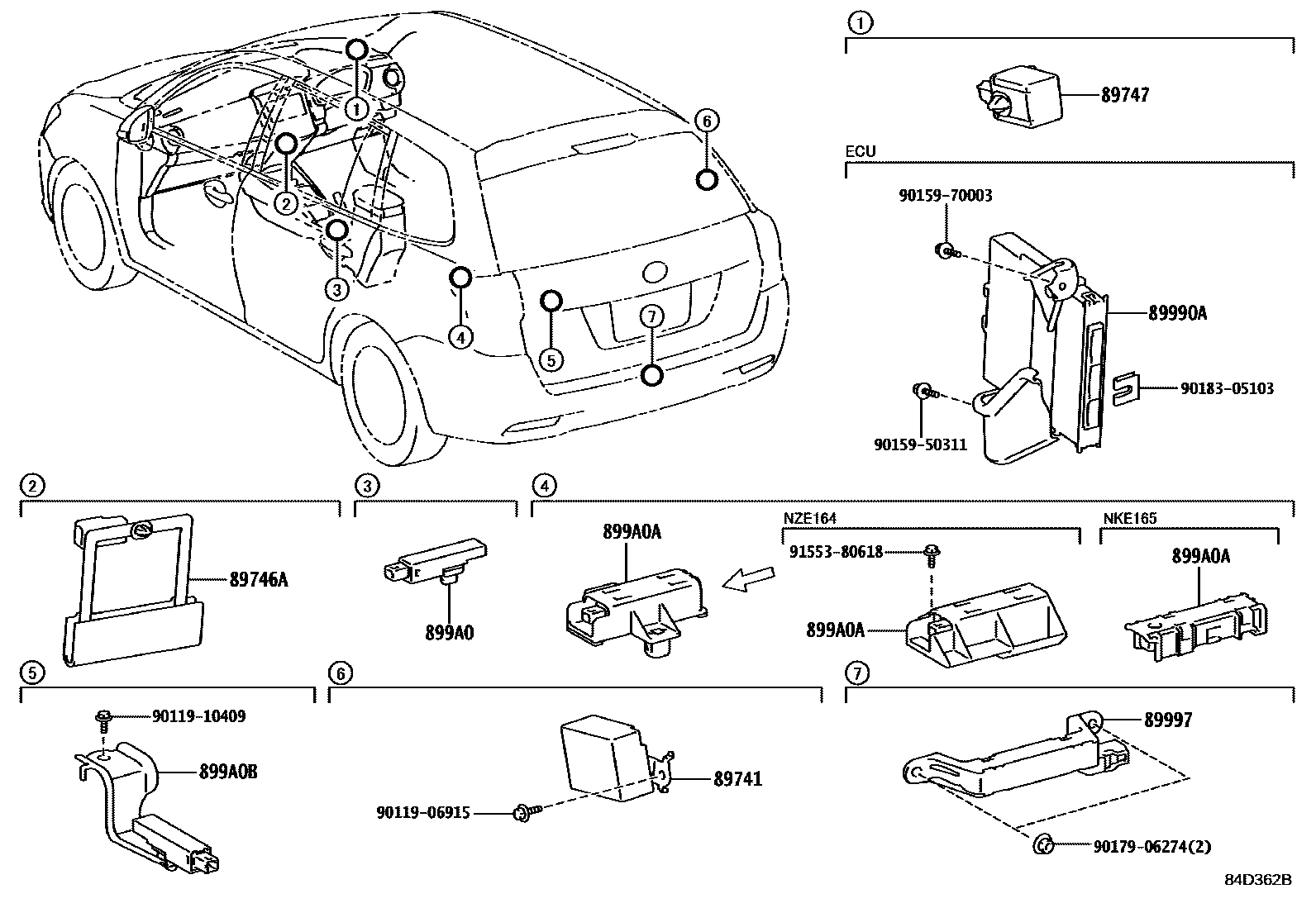

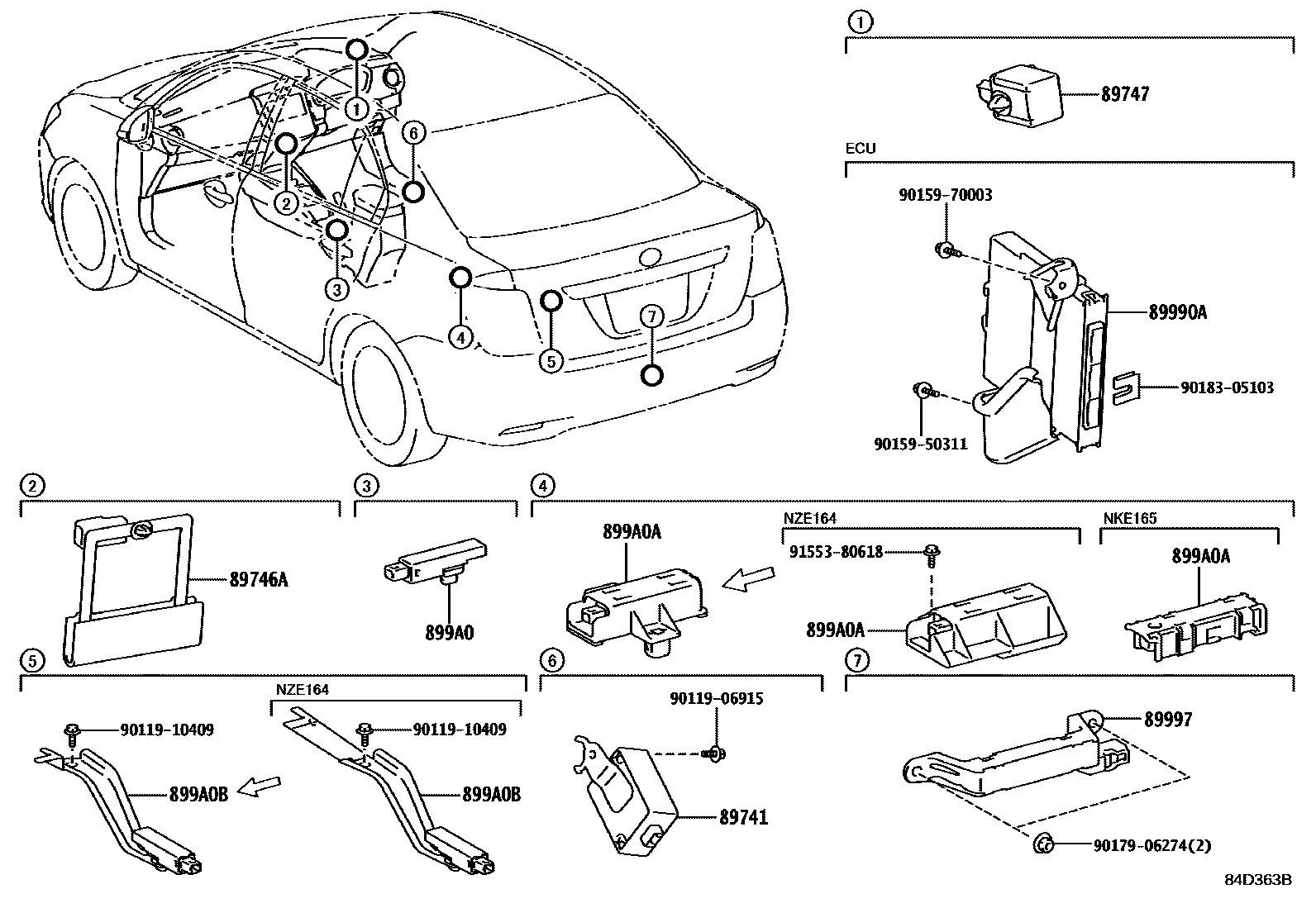

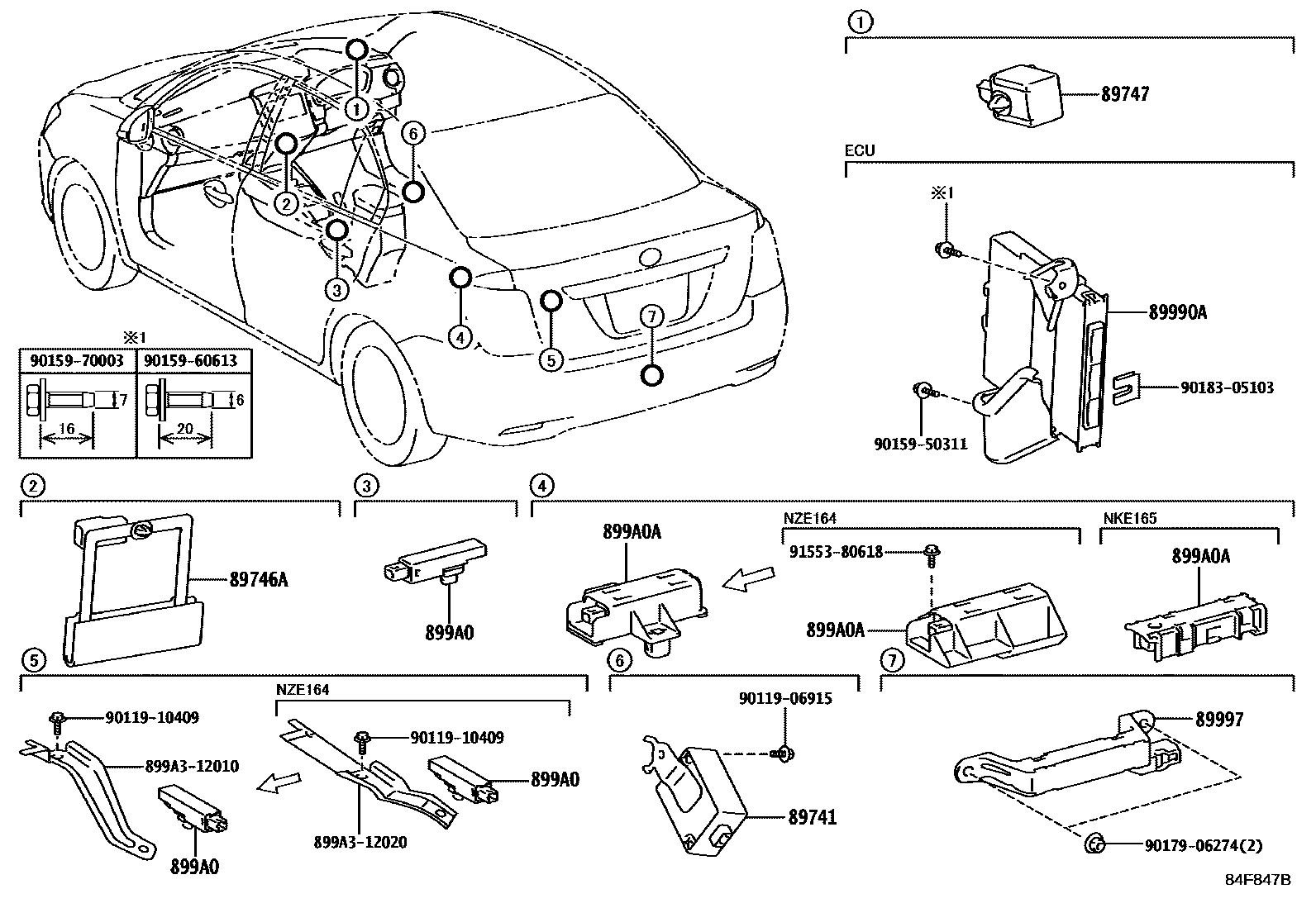

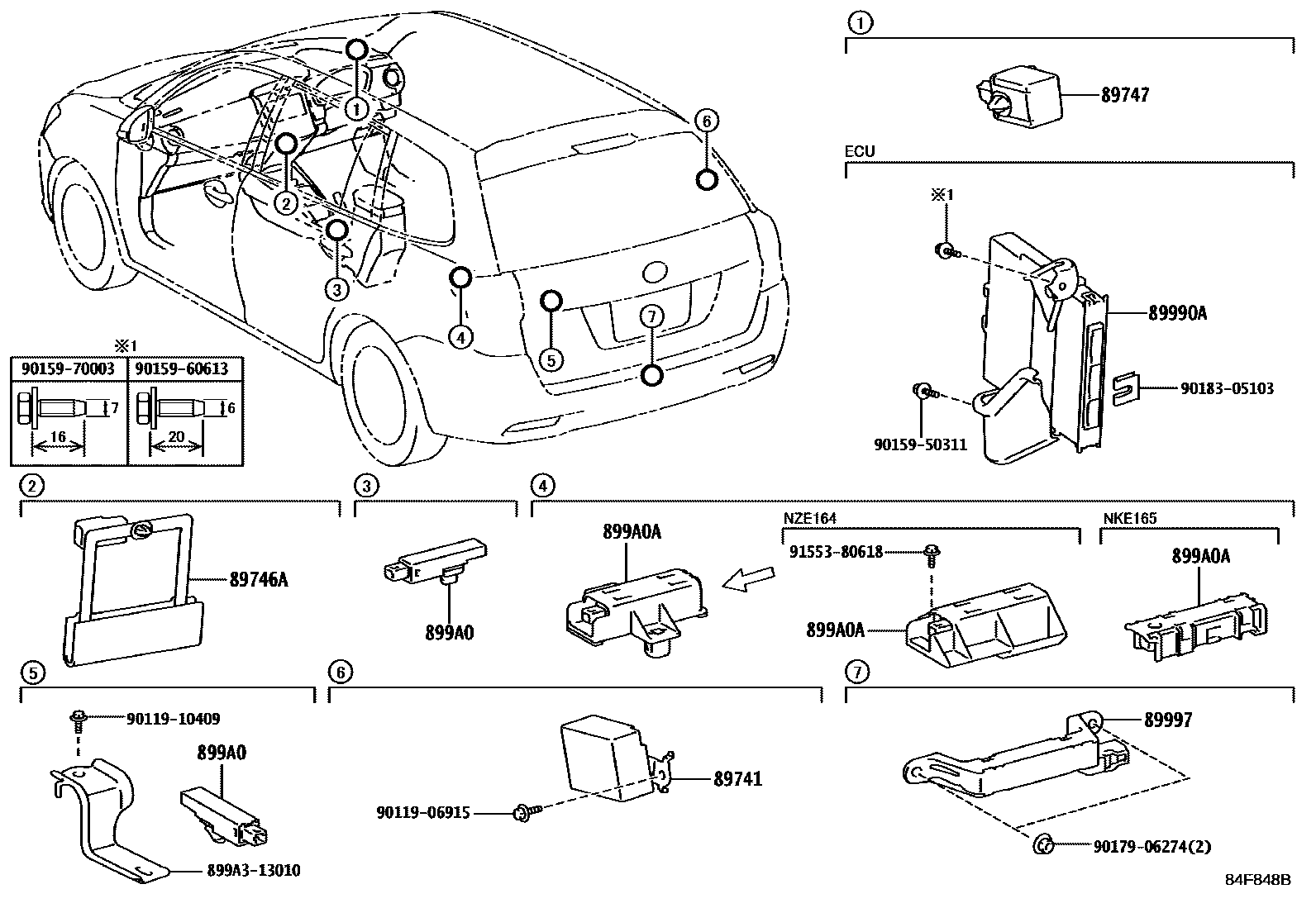

Toyota COROLLA 遥控门锁 — Figure 8420
Toyota COROLLA EPC diagram 8420, 遥控门锁, with 6 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89741 | door control receiver | 89740-12290 · 89740-13050 · 89741-12620 · 89741-12621 · 89741-12770 · 89741-13090 · 89741-13091 · 89741-13110 |
| 89746A | Electronic key wiring harness | 89746-12070 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 89990-12160 · 89990-12161 · 89990-12162 · 89990-12200 · 89990-12210 · 89990-12211 · 89990-12460 · 89990-12470 · 89990-13030 · 89990-13031 · 89990-13032 · 89990-13040 · 89990-13050 · 89990-13051 · 89990-13060 · 89990-13070 |
| 89997 | electronic key antenna | 89997-30070 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-47010 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-52020 · 899A0-52040 · 899A0-52070 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-12040 · 899A0-12050 · 899A0-13010 |
