Toyota COROLLA ABS 和 VSC — Figure 8414

Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 2 images and 8 PNC and OE references.

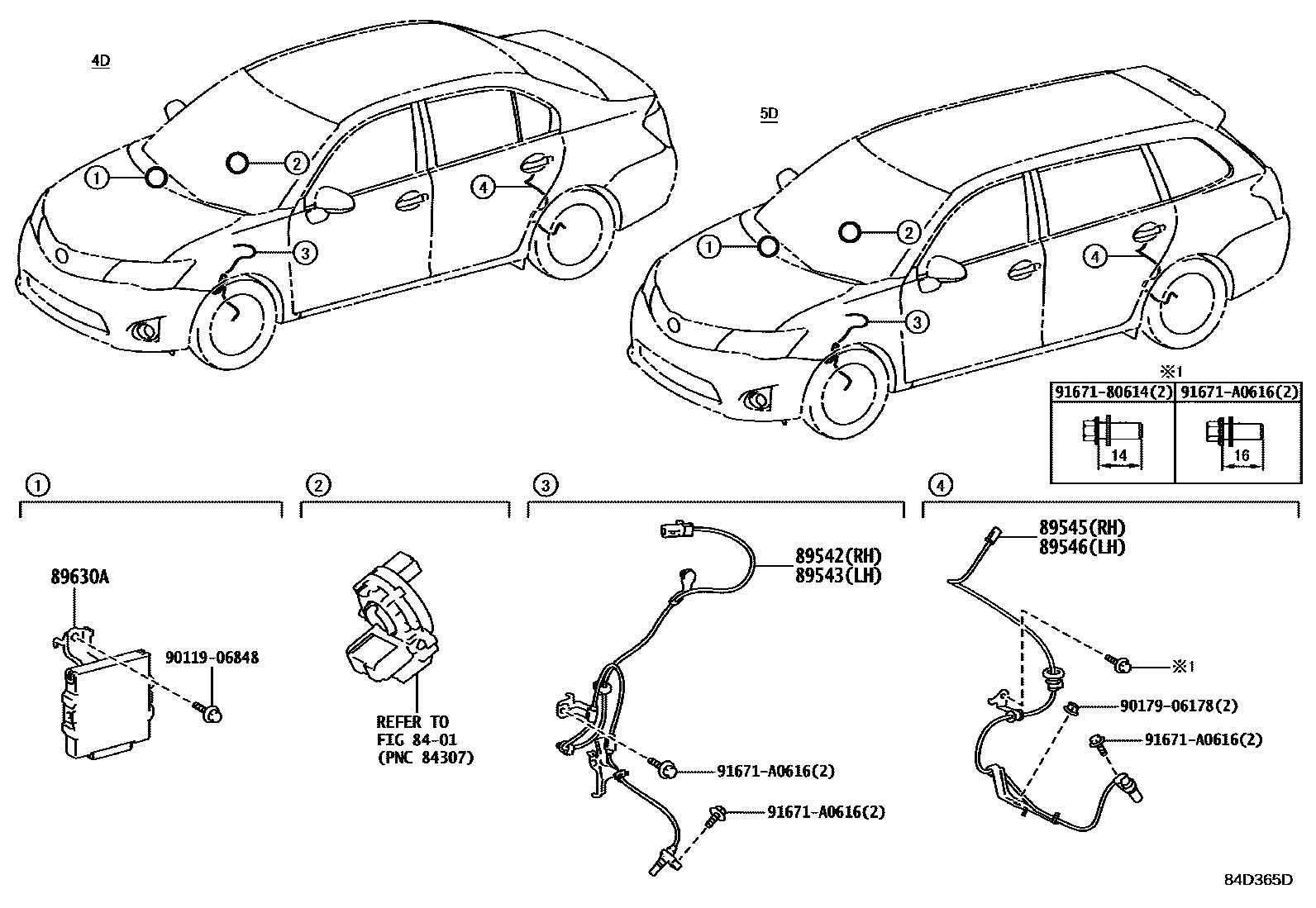

Toyota COROLLA ABS 和 VSC EPC diagram — 84D365D
ABS 和 VSC — 84D365D (201204 – 999999)

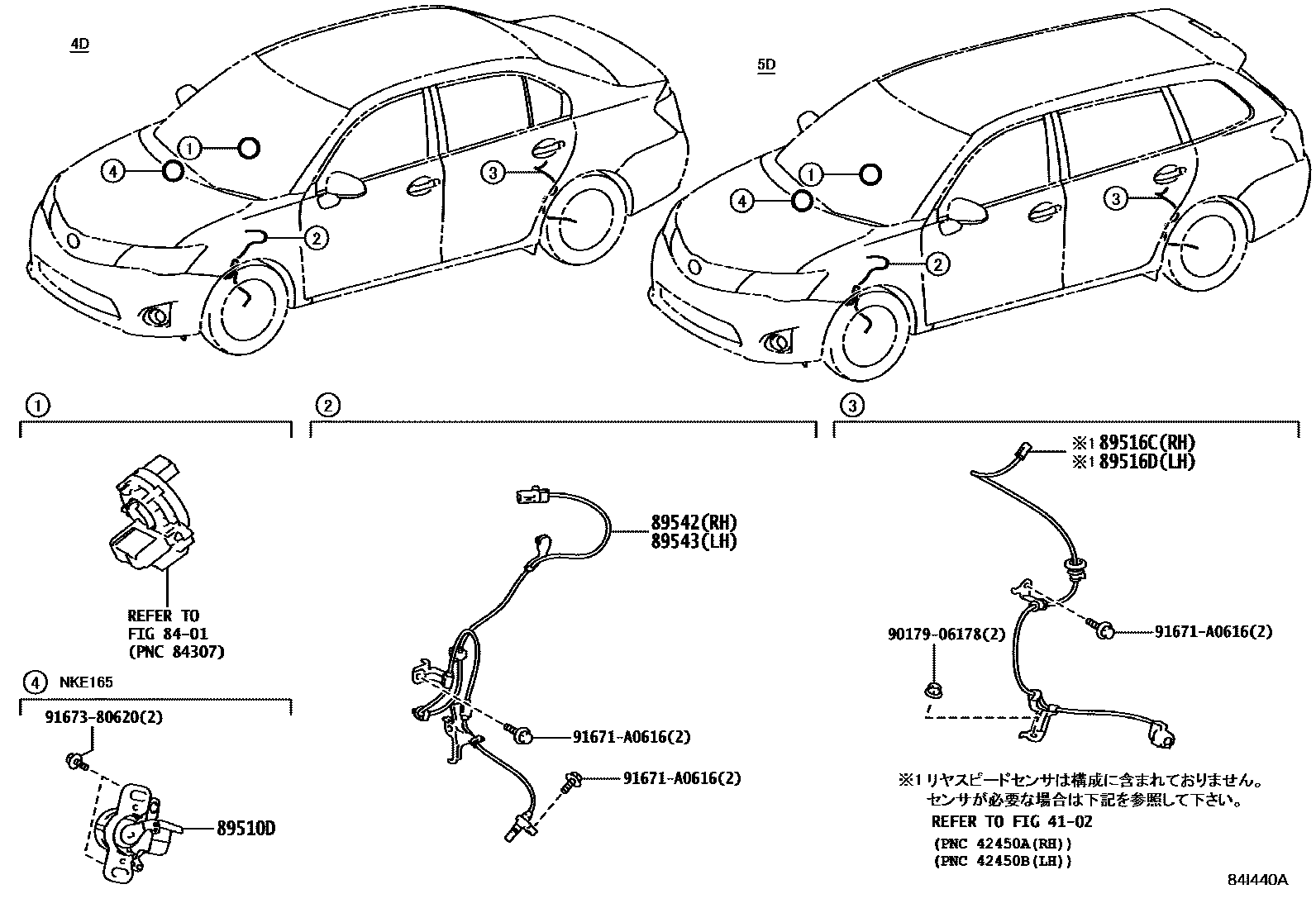

Toyota COROLLA ABS 和 VSC EPC diagram — 84I440A
ABS 和 VSC — 84I440A (201204 – 999999)

PNC and OE references

PNCPart nameOE numbers
89510DBrake pedal stroke sensor assembly89510-33020
89516CRight anti-skid control sensor harness89516-52130
89516DLeft anti-skid control sensor wiring harness89516-52140
89542Right front wheel speed sensor89542-52100 · 89542-52130
89543Left front wheel speed sensor89543-52100 · 89543-52130
89545Right rear wheel speed sensor89545-52050
89546Left rear wheel speed sensor89546-52050
89630AFour-wheel drive ECU assembly89630-12080
