Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201

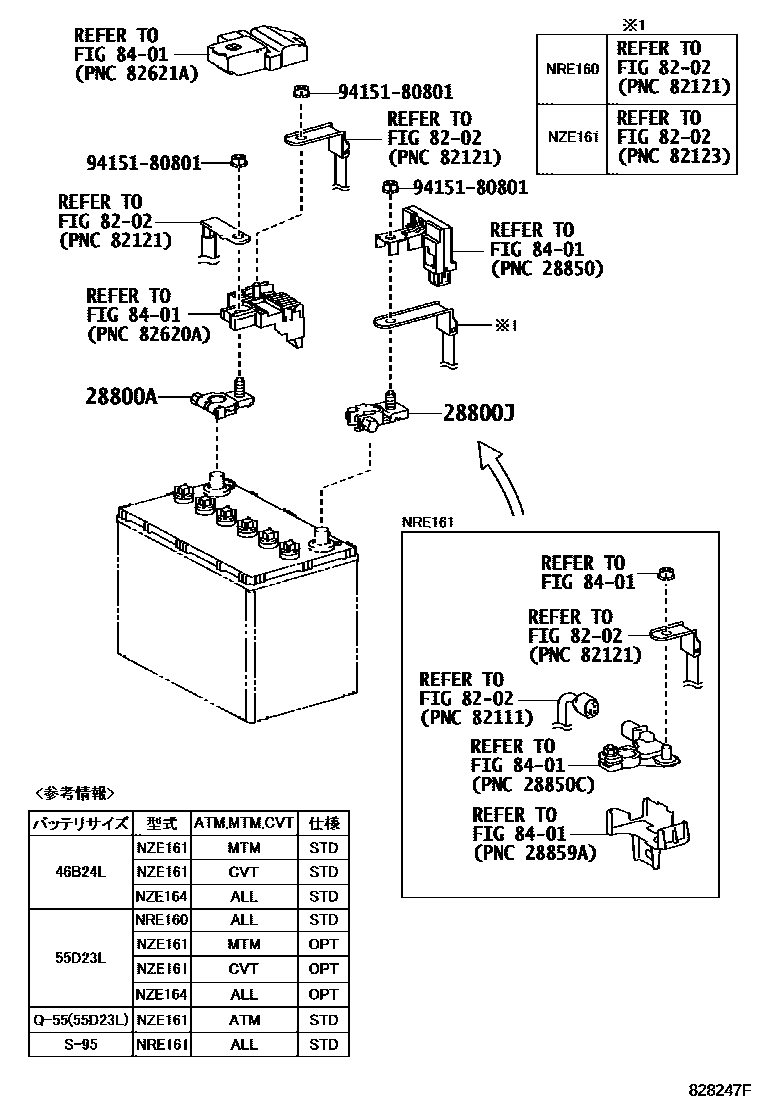

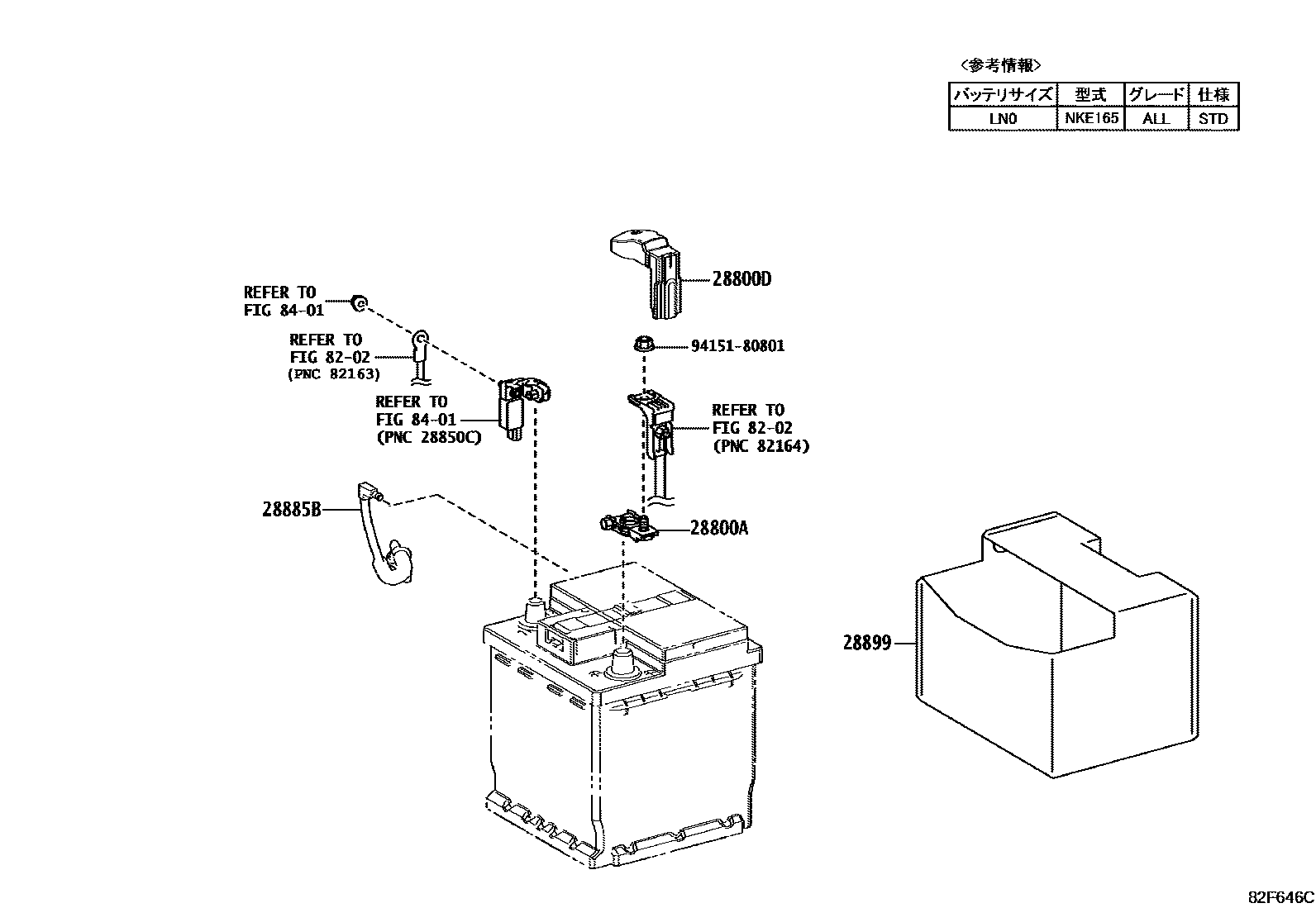

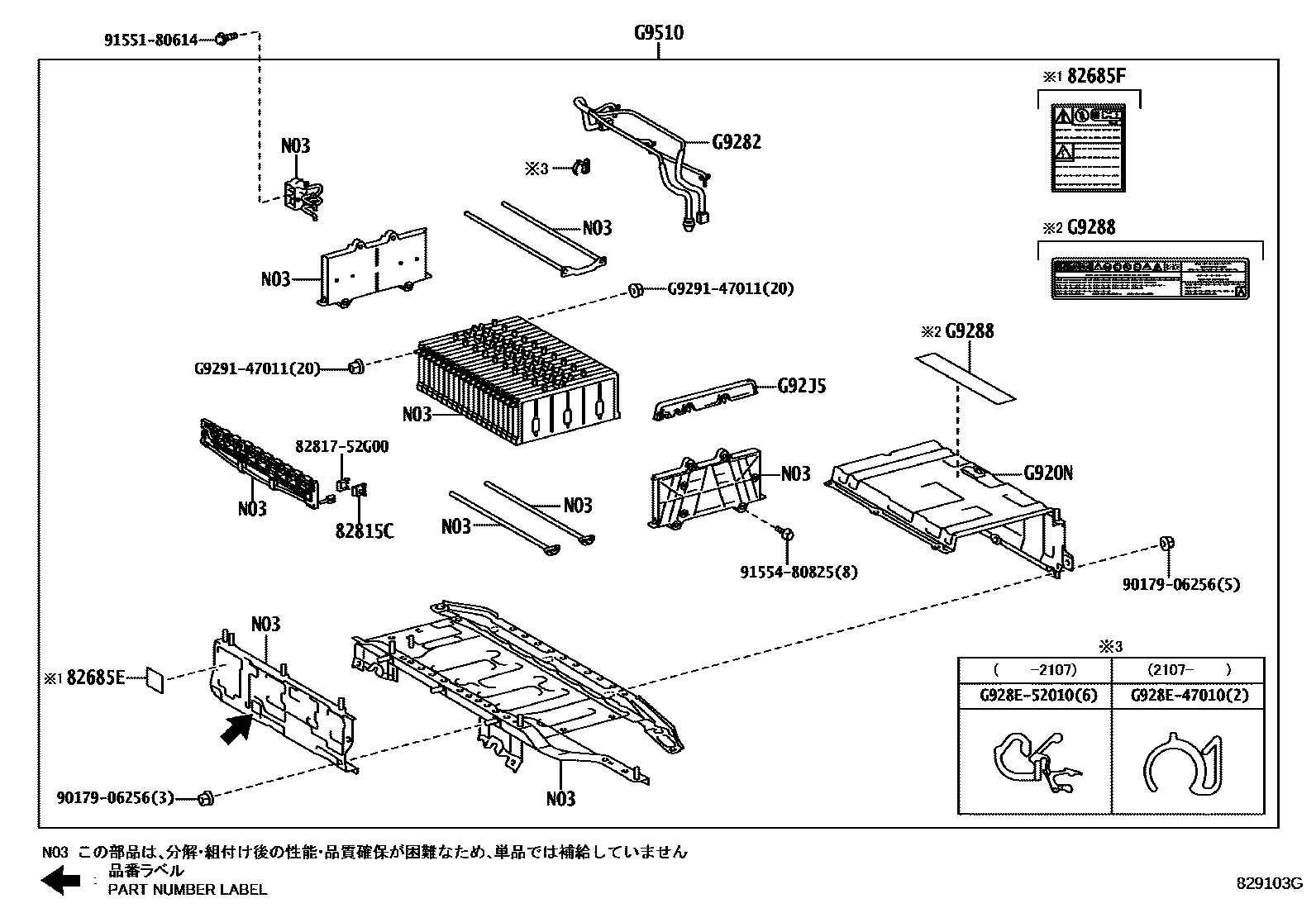

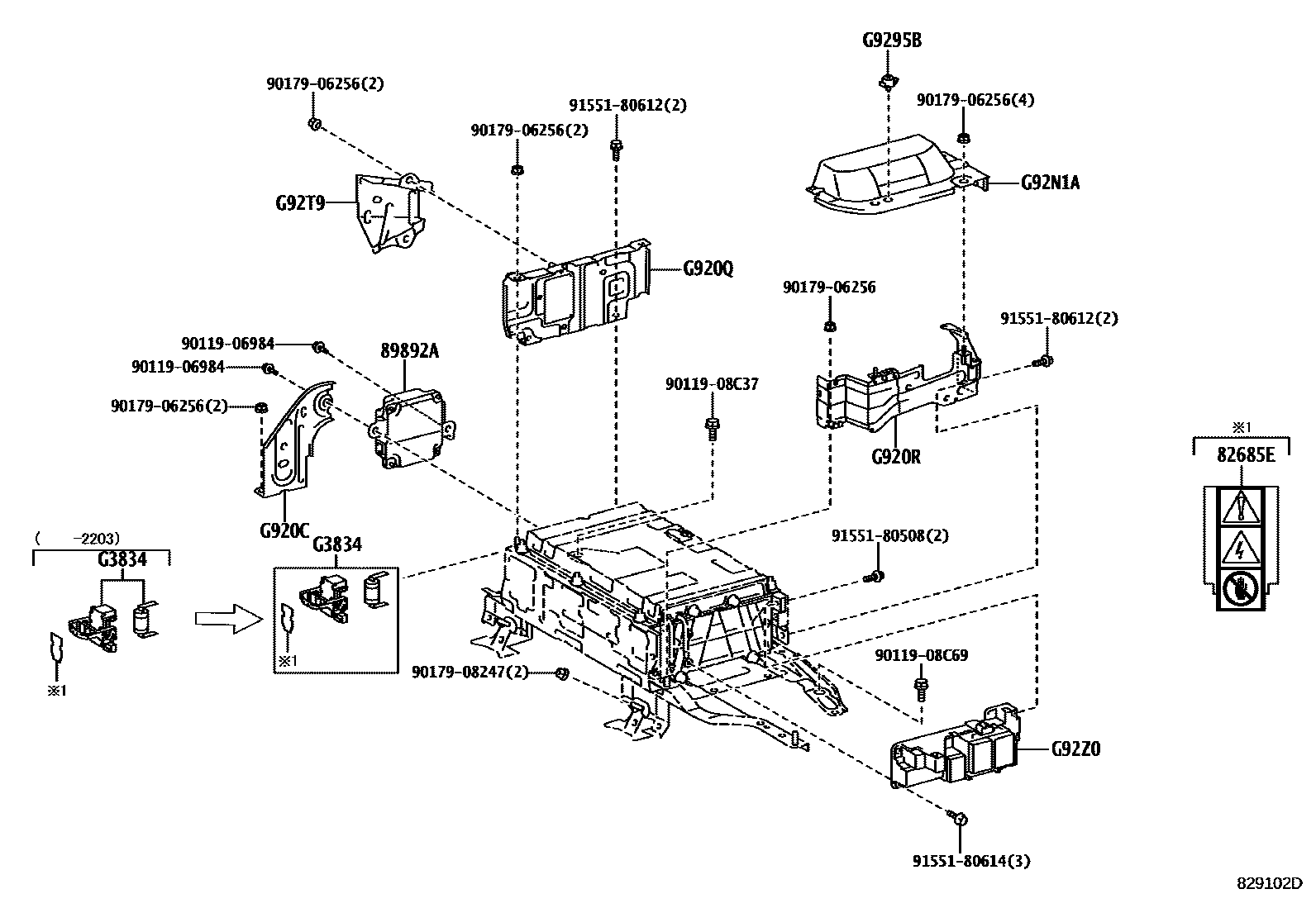

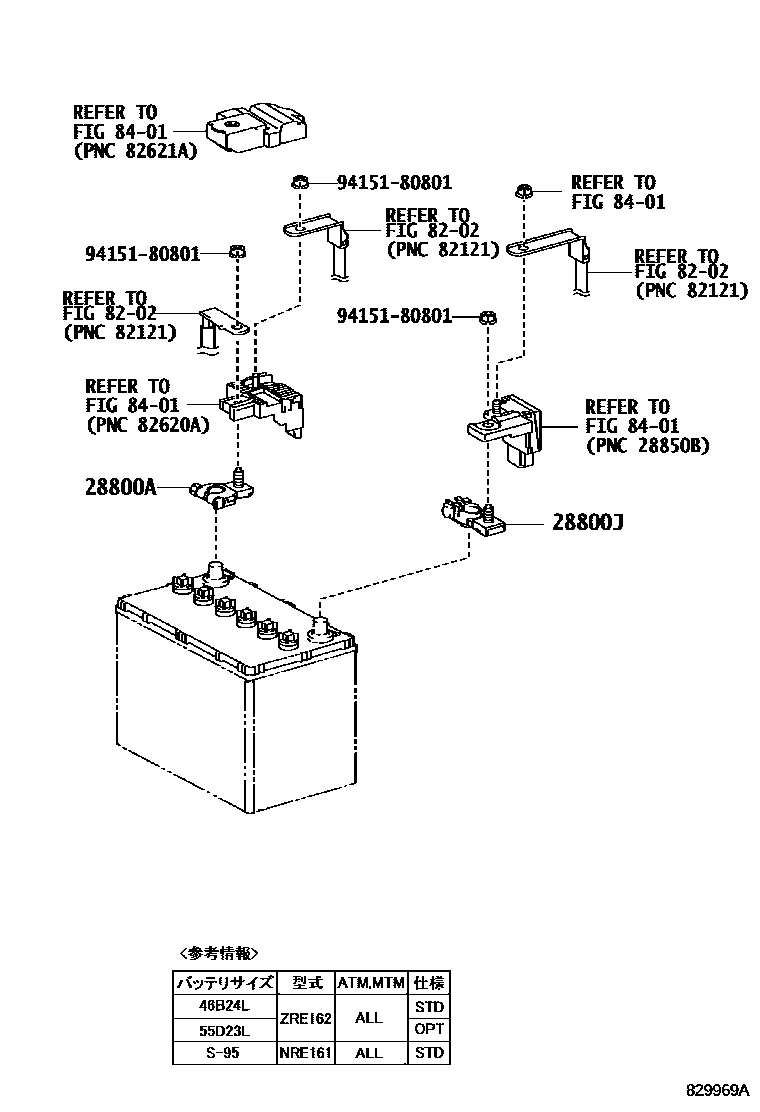

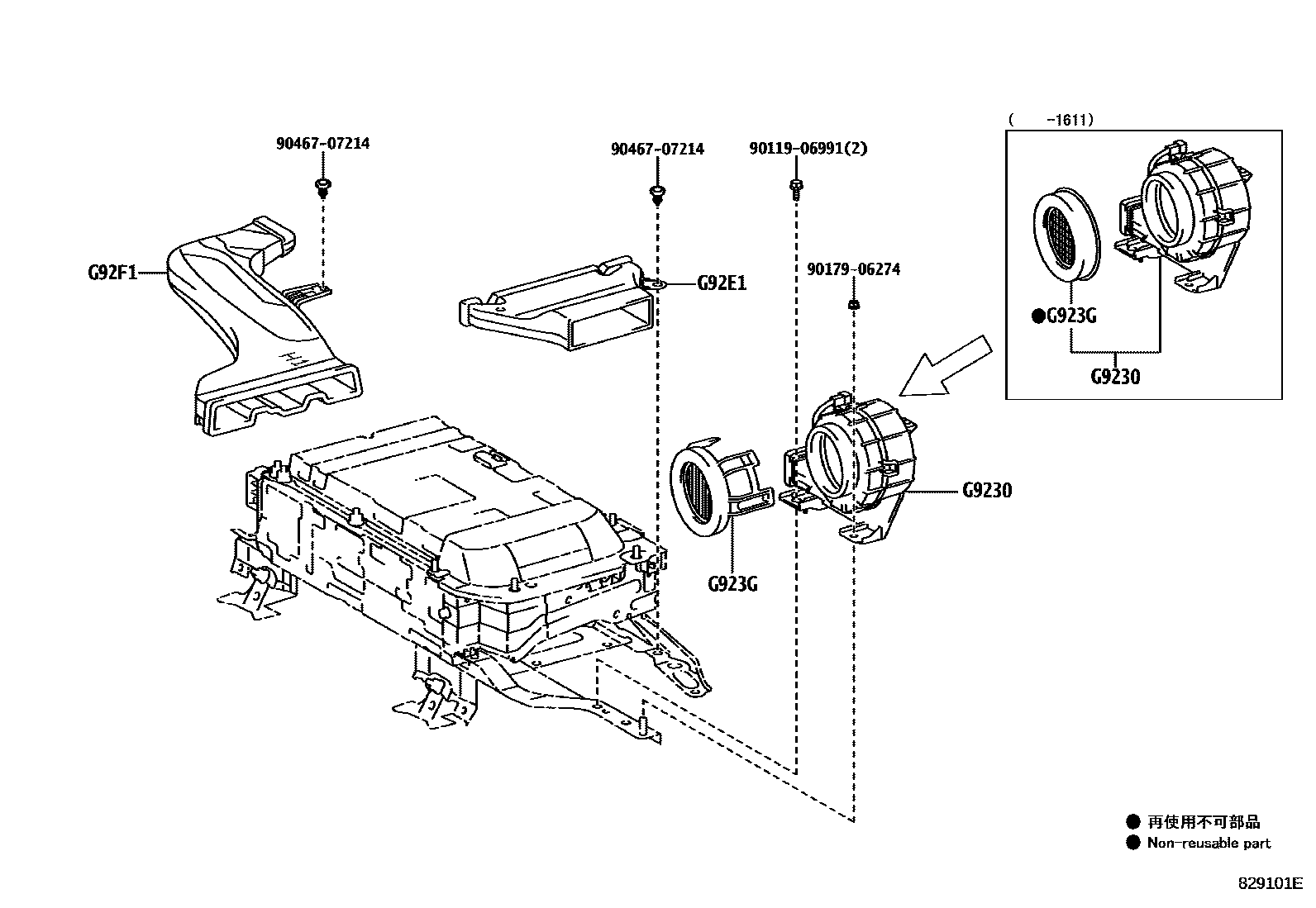

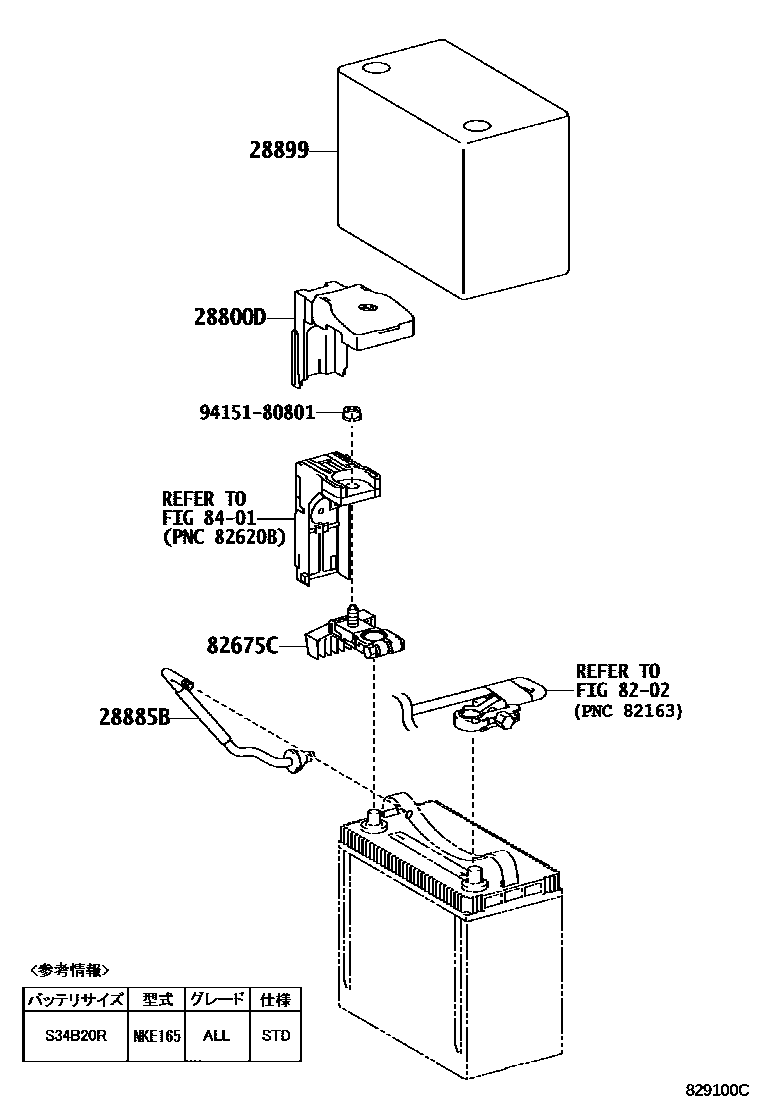

Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 7 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800A | battery positive terminal | 90982-05055 · 90982-05061 · 90982-05062 |
| 28800D | Connector cover (for battery terminals) | 82821-47110 · 82821-52320 |
| 28800J | battery negative terminal | 90982-06058 · 90982-06059 · 90982-06070 · 90982-06071 |
| 28885B | battery hose | 28885-21070 · 28885-21100 |
| 28899 | Battery insulation cover | 28877-21030 · 28877-21040 |
| 82675C | Terminal block | 82675-52160 |
| 82685E | Maintenance plug warning nameplate | 82685-76020 · 82685-76021 |
| 82685F | Main battery No. 1 warning nameplate | 82685-76010 |
| 82815C | No. 1 wire harness protector cover | 82815-52430 |
| 89892A | battery voltage sensor | 89892-52011 |
| G3834 | Service plug handle | G3834-48010 · G9530-52010 |
| G920C | No. 2 hybrid vehicle battery bracket bracket sub-assembly | G92LB-52010 |
| G920N | HV battery upper cover sub-assembly | G920N-52010 |
| G920Q | No. 1 HV battery shielding sub-assembly | G920Q-52010 |
| G920R | No. 2 HV battery shielding sub-assembly | G920R-52010 |
| G9230 | Battery cooling blower assembly | G9230-52010 · G9230-52020 · G9230-52040 |
| G923G | Toyota part | G923G-52010 · G923G-52020 |
| G9282 | HV battery thermistor | G9282-52010 · G9282-52020 |
| G9288 | Battery charging precautions label | G9288-48070 · G9288-50010 |
| G9295B | Battery cover lock | G9295-30020 |
| G92E1 | No. 1 HV battery cover air inlet | G92E1-52010 |
| G92F1 | No. 1 HV battery exhaust duct | G92F1-52010 · G92F1-52020 |
| G92J5 | No. 1 HV battery seal | G92J5-52010 |
| G92N1A | No. 1 cover on the left side of the hybrid vehicle battery | G92NE-52010 |
| G92T9 | HV battery repair plug hole cover | G92T9-52010 |
| G92Z0 | HV battery junction box assembly | G3850-52010 · G92Z0-33020 · G92Z0-33030 · G92Z0-33031 |
| G9510 | HV power supply battery assembly | G9510-52031 · G9510-52060 |
