Toyota COROLLA Fog Lamp — Figure 8102

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 2 images and 7 PNC and OE references.

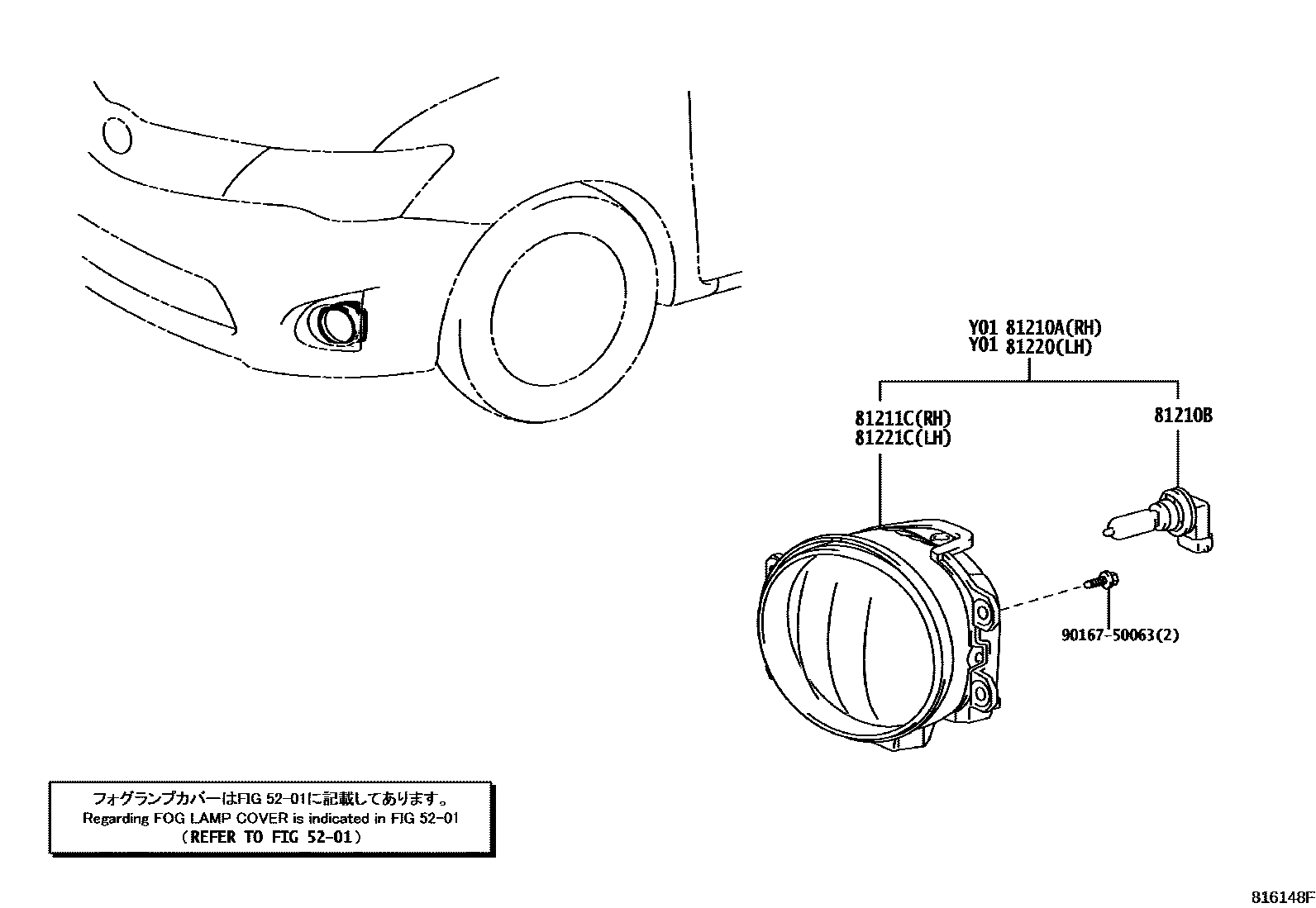

Toyota COROLLA Fog Lamp EPC diagram — 816148F
Fog Lamp — 816148F (201204 – 999999)

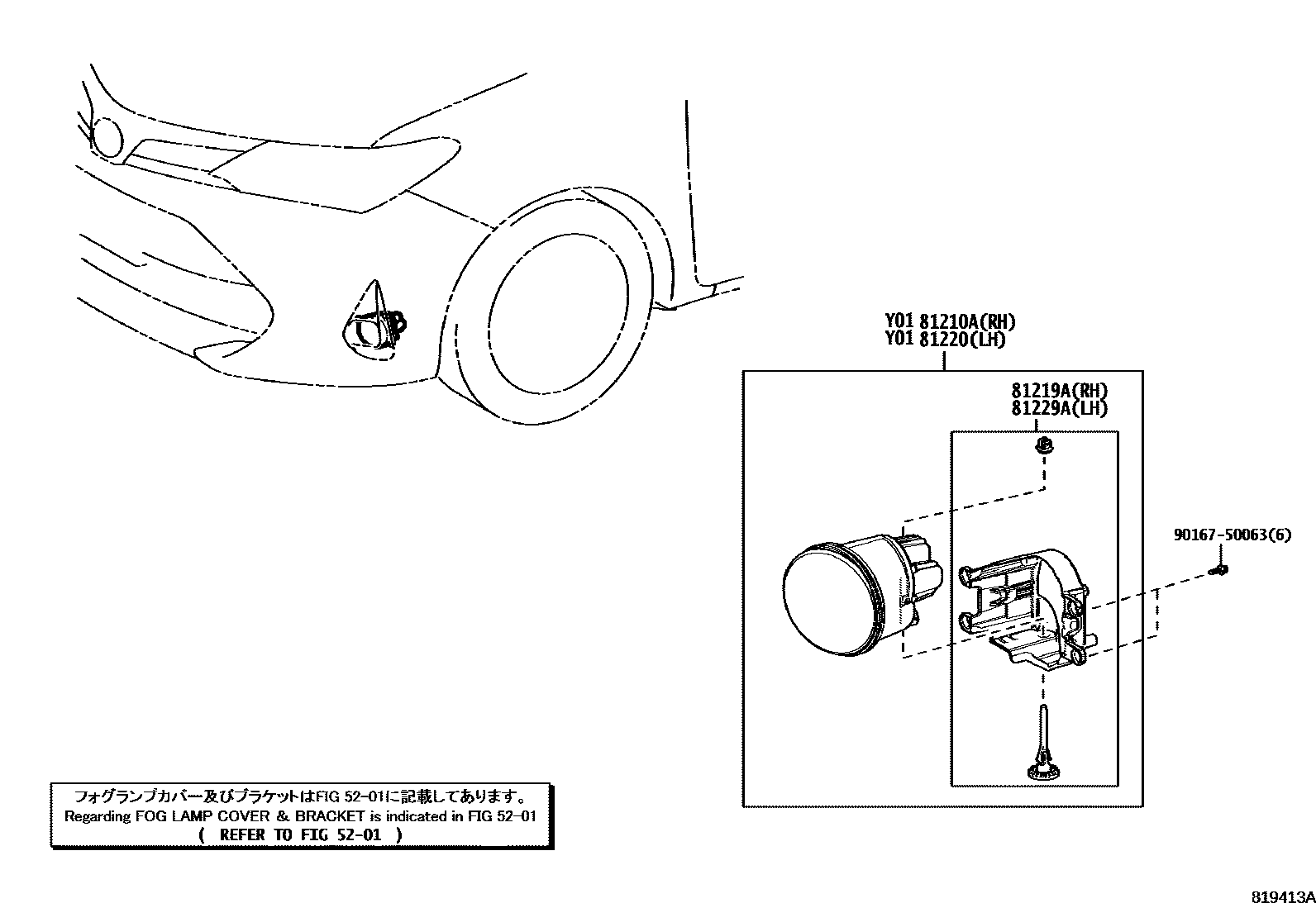

Toyota COROLLA Fog Lamp EPC diagram — 819413A
Fog Lamp — 819413A (201710 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210ARight fog light assembly81210-12230 · 81210-47010 · 81210-48051
81210Bfog light bulb90981-13090
81211CRight fog light assembly81211-12230 · 81211-47010
81219ARight fog light bracket81219-48051
81220Left fog light assembly81220-12230 · 81220-47010 · 81220-48051
81221CLeft fog light assembly81221-12230 · 81221-47010
81229ALeft fog light bracket81229-48051
