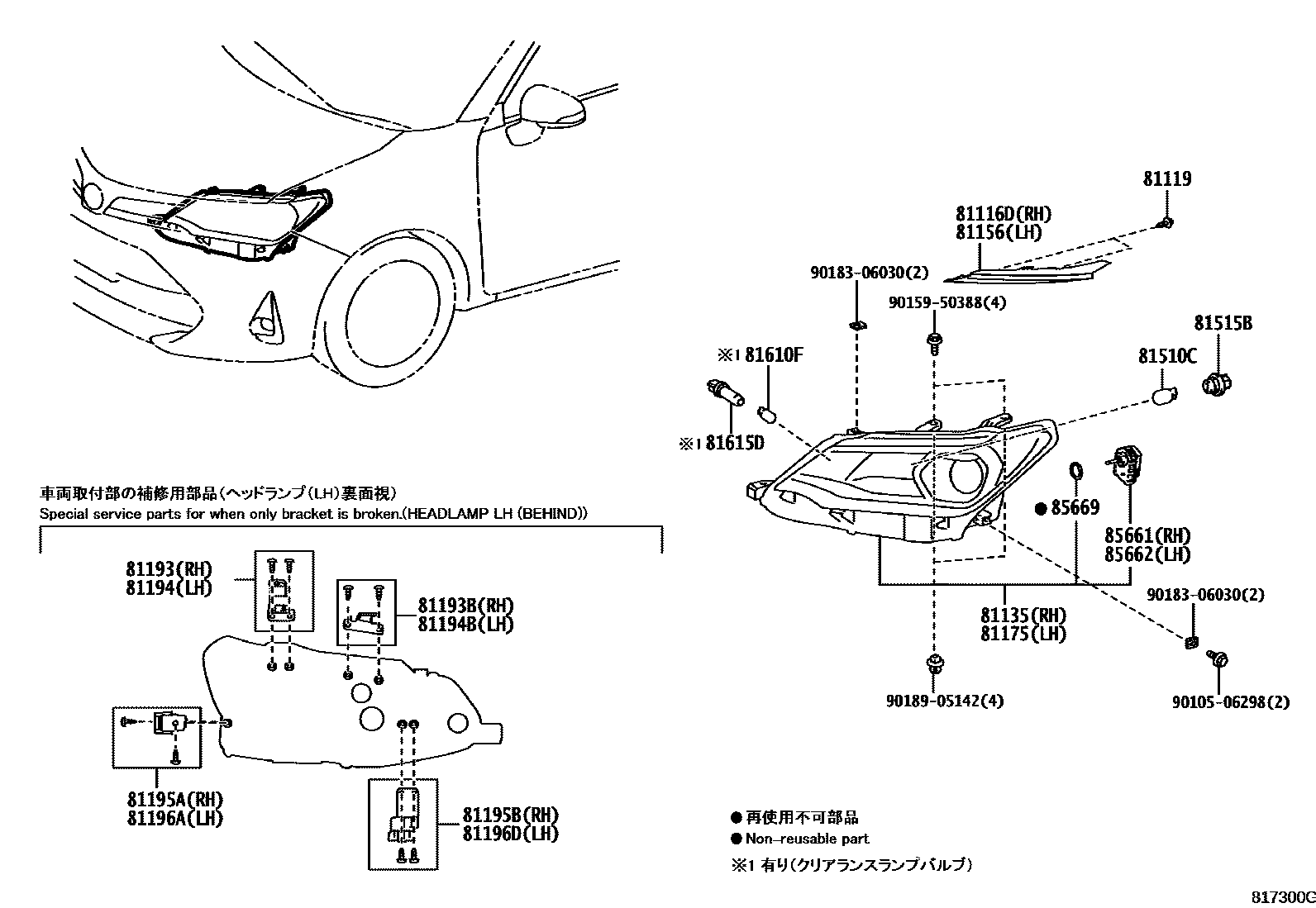

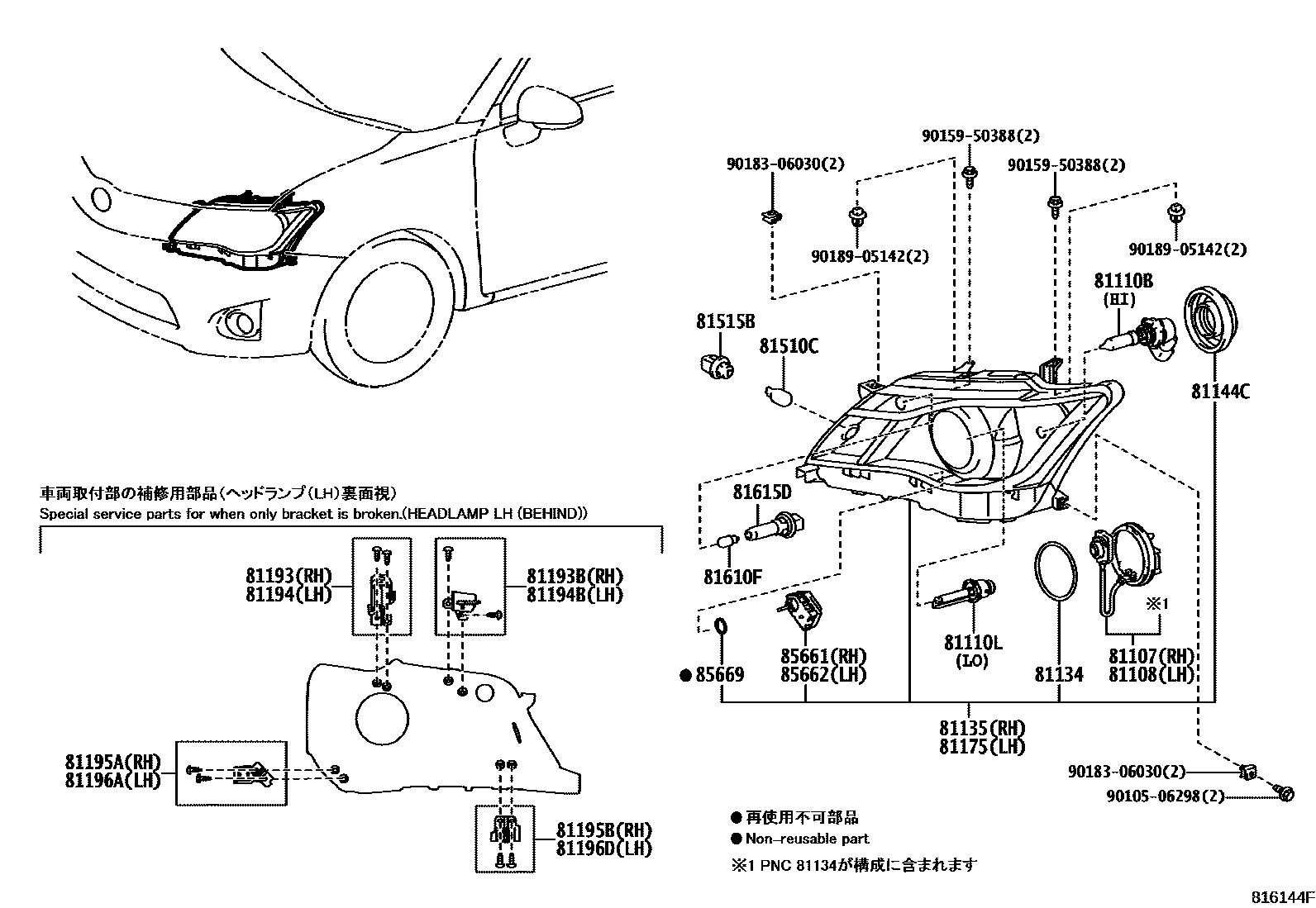

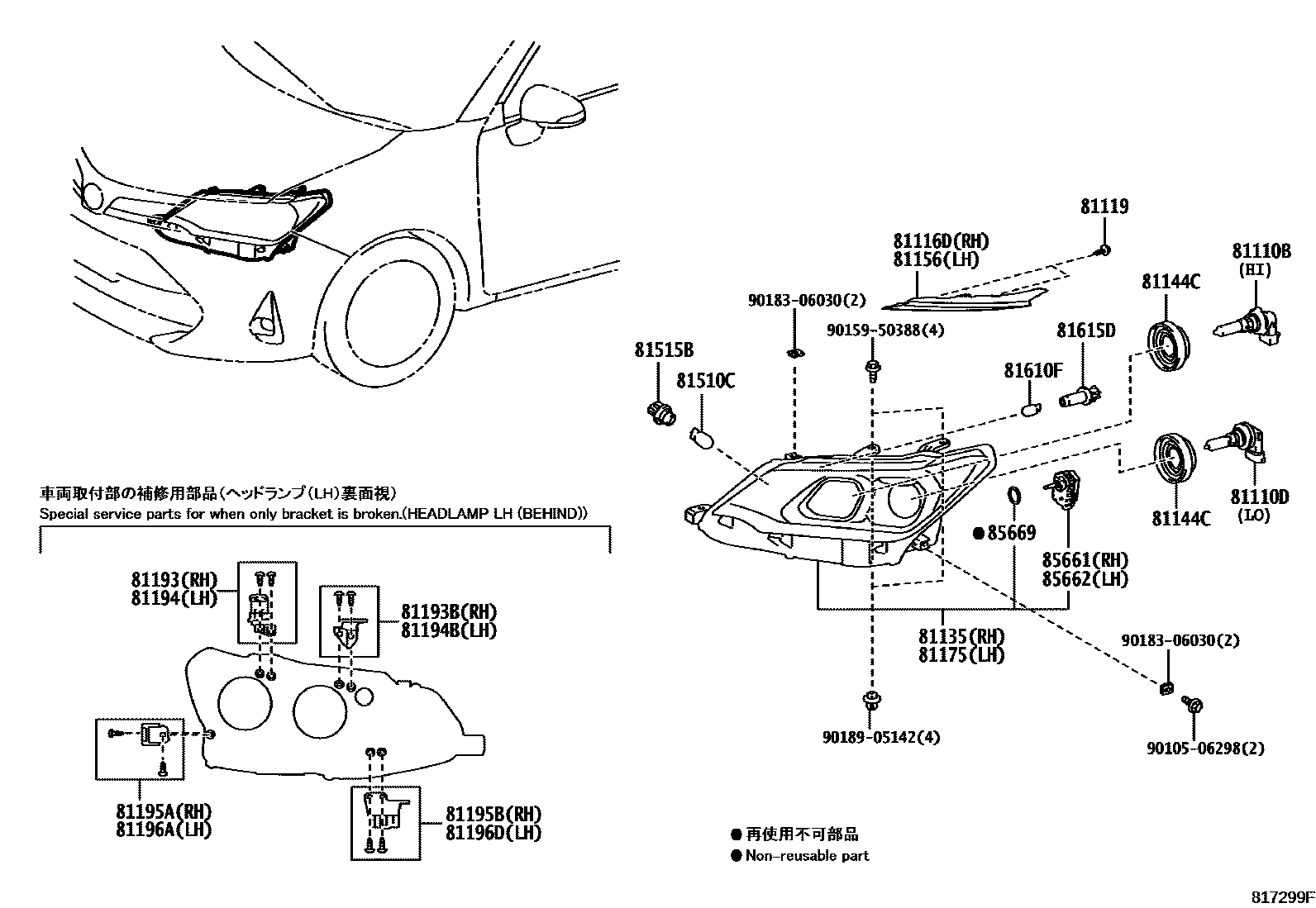

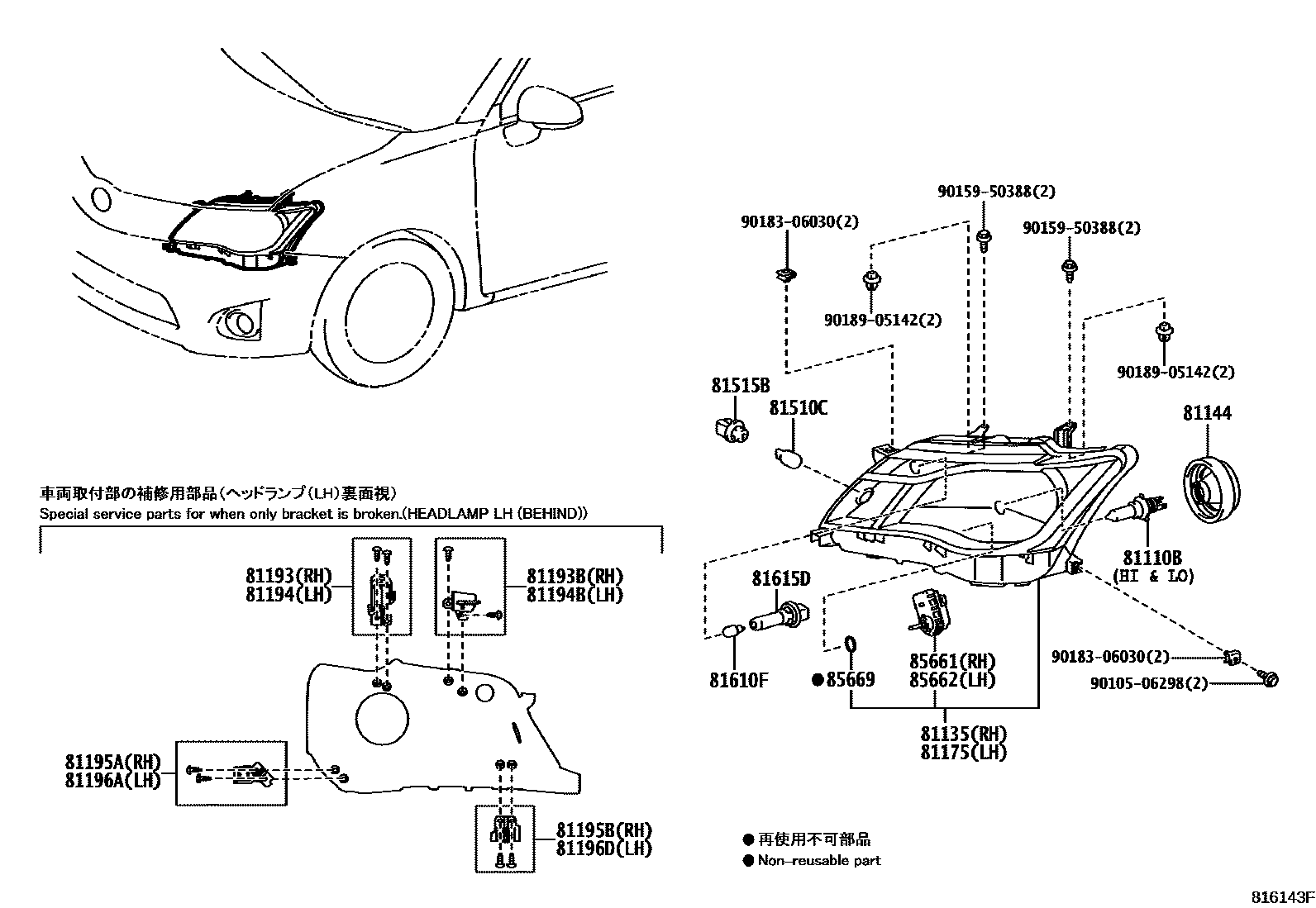

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 4 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81107 | Right headlight control ECU sub-assembly | 81107-60F10 · 81107-75020 |
| 81108 | Left headlight control ECU sub-assembly | 81107-60F10 · 81107-75020 |
| 81110B | Bulb (for headlight No. 1) | 00000-00000 · 90981-13046 · 90981-13058 |
| 81110D | Bulb (for headlight No. 2) | 00000-00000 · 90981-13075 |
| 81110L | Discharge headlight bulb | 90981-20024 |
| 81116D | Right headlight frame | 81116-12J70 · 81116-12K00 |
| 81119 | headlight screw | 90075-02029 |
| 81134 | headlight gasket | 90075-23002 |
| 81135 | Right headlight assembly | 81130-12J00 · 81130-12J70 · 81140-12J80 · 81140-12J90 · 81140-12K00 · 81140-12N60 · 81145-12J10 · 81145-12J50 · 81145-12J60 |
| 81144 | No. 1 headlight cover | 90075-65002 |
| 81144C | Headlight lamp holder cover | 90075-65006 |
| 81156 | Left headlight frame | 81156-12J70 · 81156-12K00 |
| 81175 | Left headlight assembly | 81070-12J80 · 81070-12J90 · 81070-12K00 · 81070-12N60 · 81170-12J00 · 81170-12J70 · 81185-12J10 · 81185-12J50 · 81185-12J60 |
| 81193 | Right headlight upper protective ring | 81193-12100 · 81193-12130 · 81193-12170 · 81193-12210 |
| 81193B | No. 2 headlight upper protection ring on the right | 81197-12120 · 81197-12140 · 81197-12150 · 81197-12180 |
| 81194 | Left headlight upper protective ring | 81194-12120 · 81194-12140 · 81194-12170 · 81194-12210 |
| 81194B | No. 2 headlight upper protective ring on the left | 81198-12100 · 81198-12150 · 81198-12160 · 81198-12180 |
| 81195A | Right headlight lower protection ring | 81195-12180 · 81195-12200 · 81195-12220 · 81195-12290 |
| 81195B | Right headlight lower right protection piece | 81195-12210 · 81195-12280 · 81195-12300 |
| 81196A | Left headlight lower protection ring | 81196-12180 · 81196-12200 · 81196-12220 · 81196-12290 |
| 81196D | No. 2 left headlight lower protection ring | 81196-12210 · 81196-12280 · 81196-12300 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 00000-00000 · 90981-11069 · 99132-12050 |
| 81615D | Width light lamp holder | 00000-00000 · 90075-60077 · 90075-60089 |
| 85661 | Right headlight beam height adjustment motor | 85661-12010 · 85661-12020 |
| 85662 | Left headlight beam height adjustment motor | 85661-12010 · 85661-12020 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
