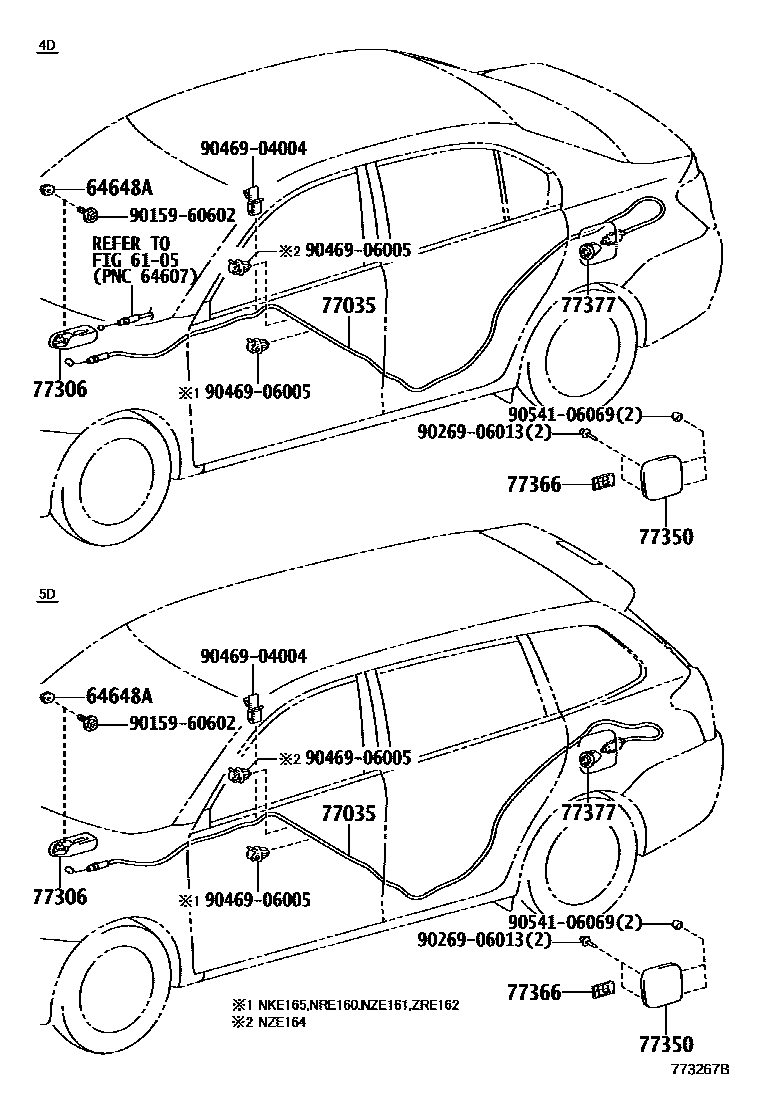

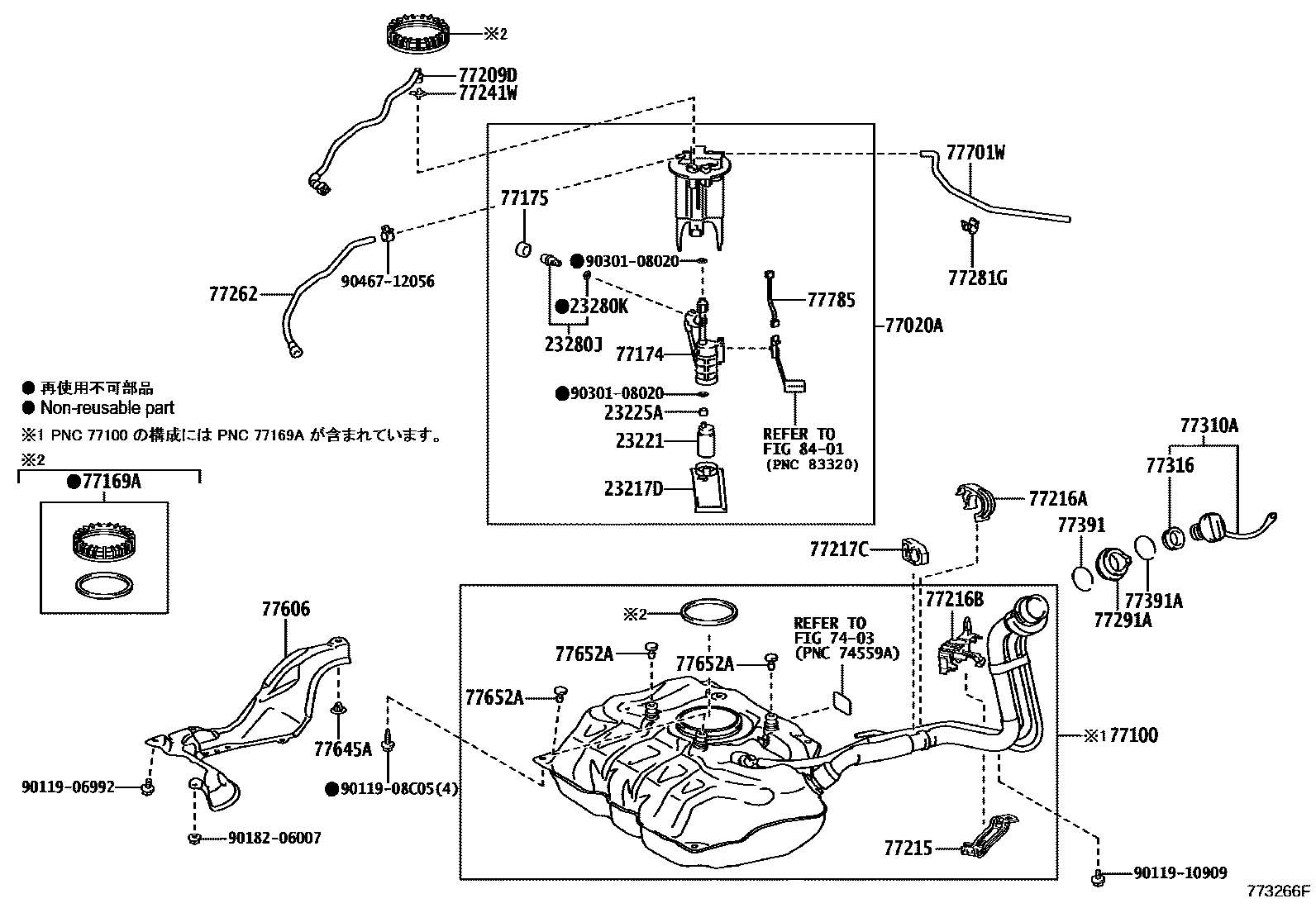

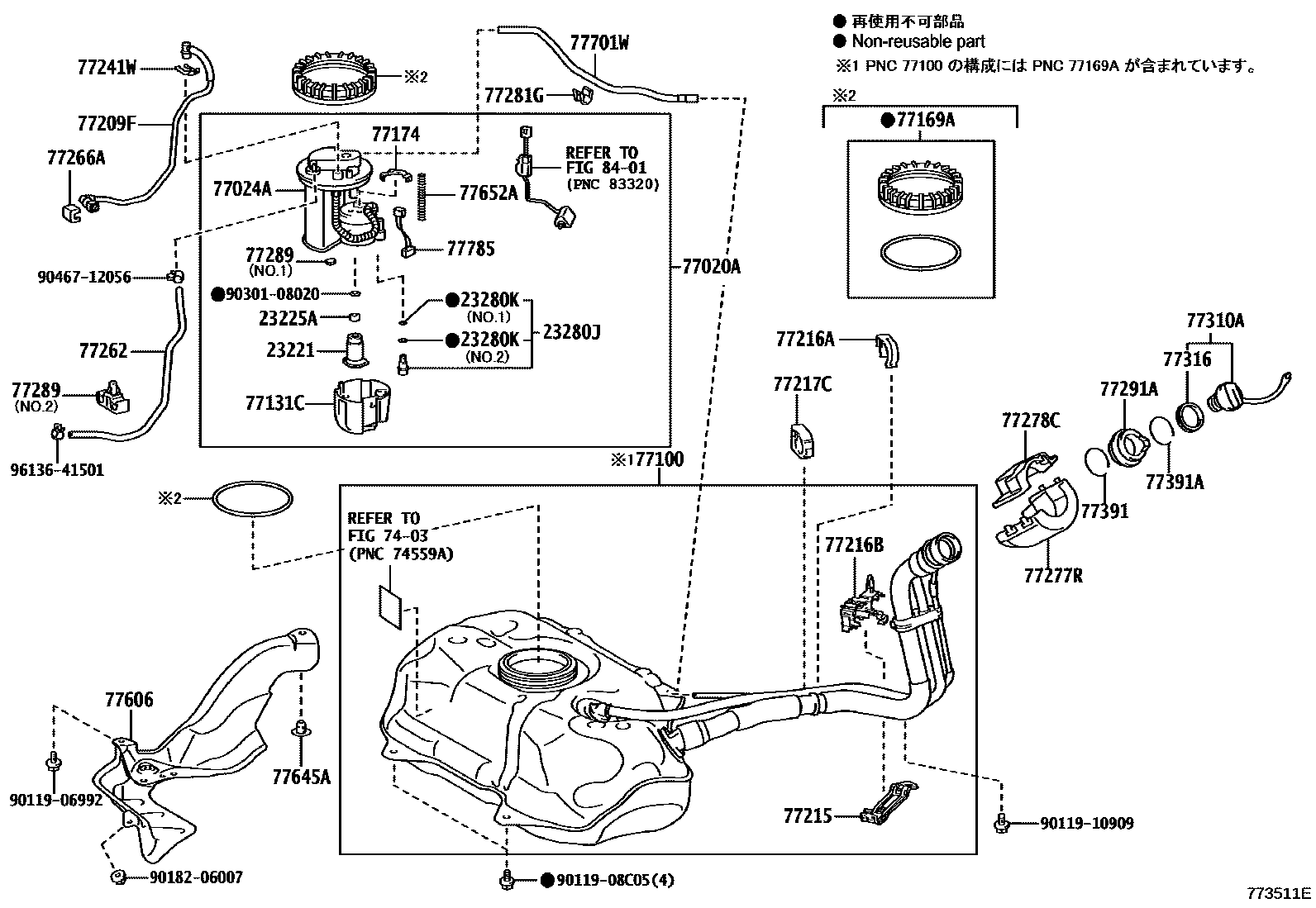

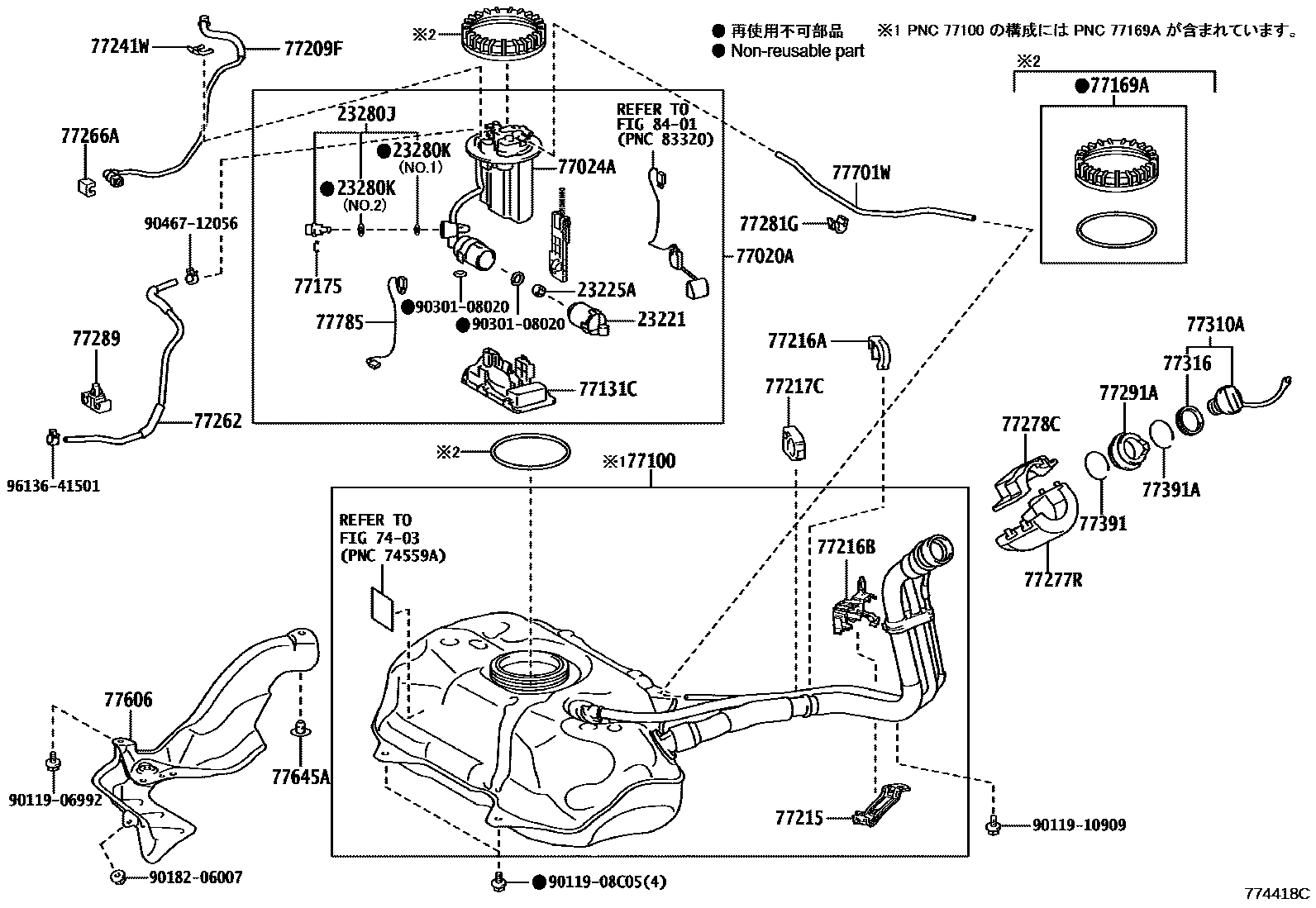

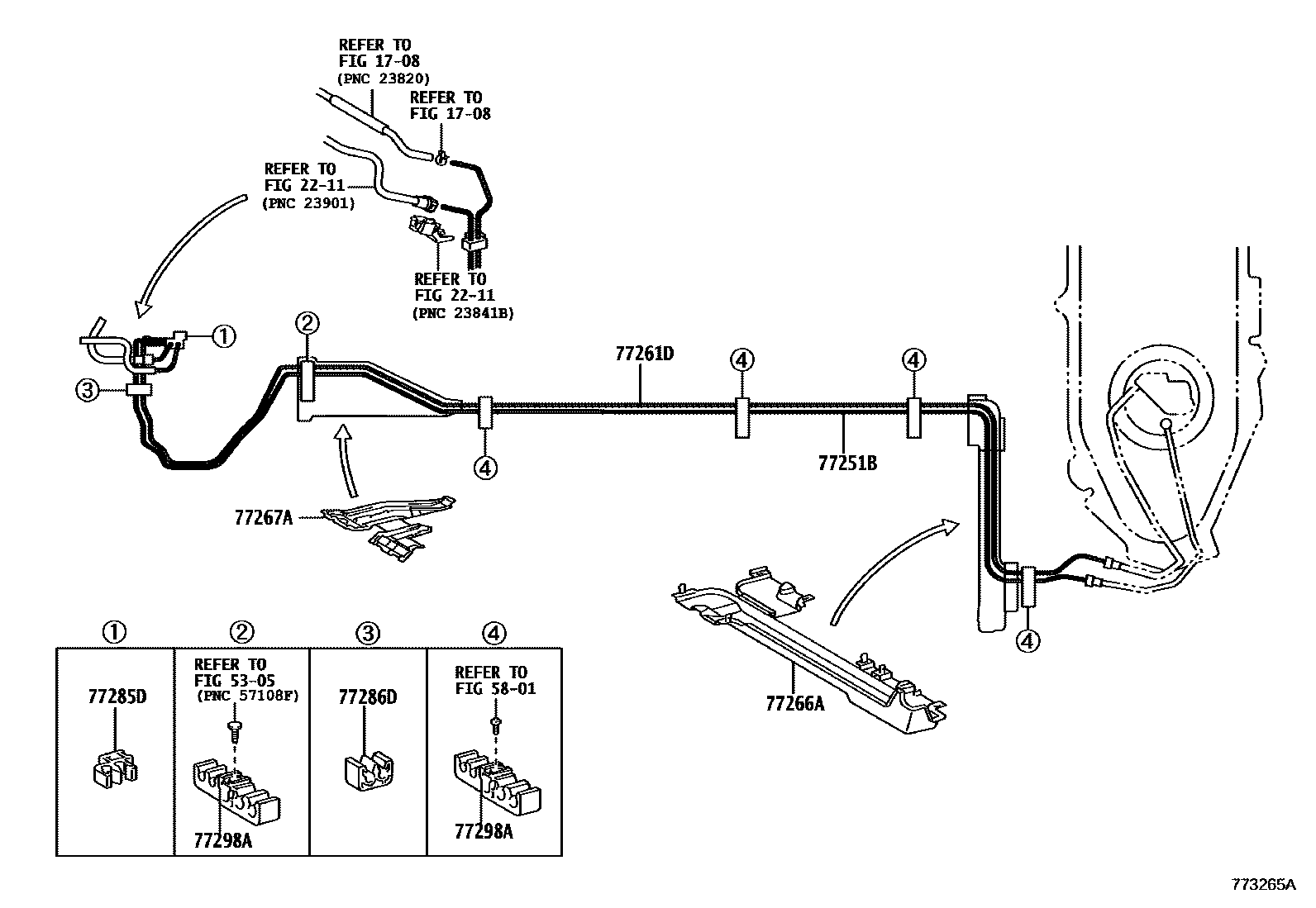

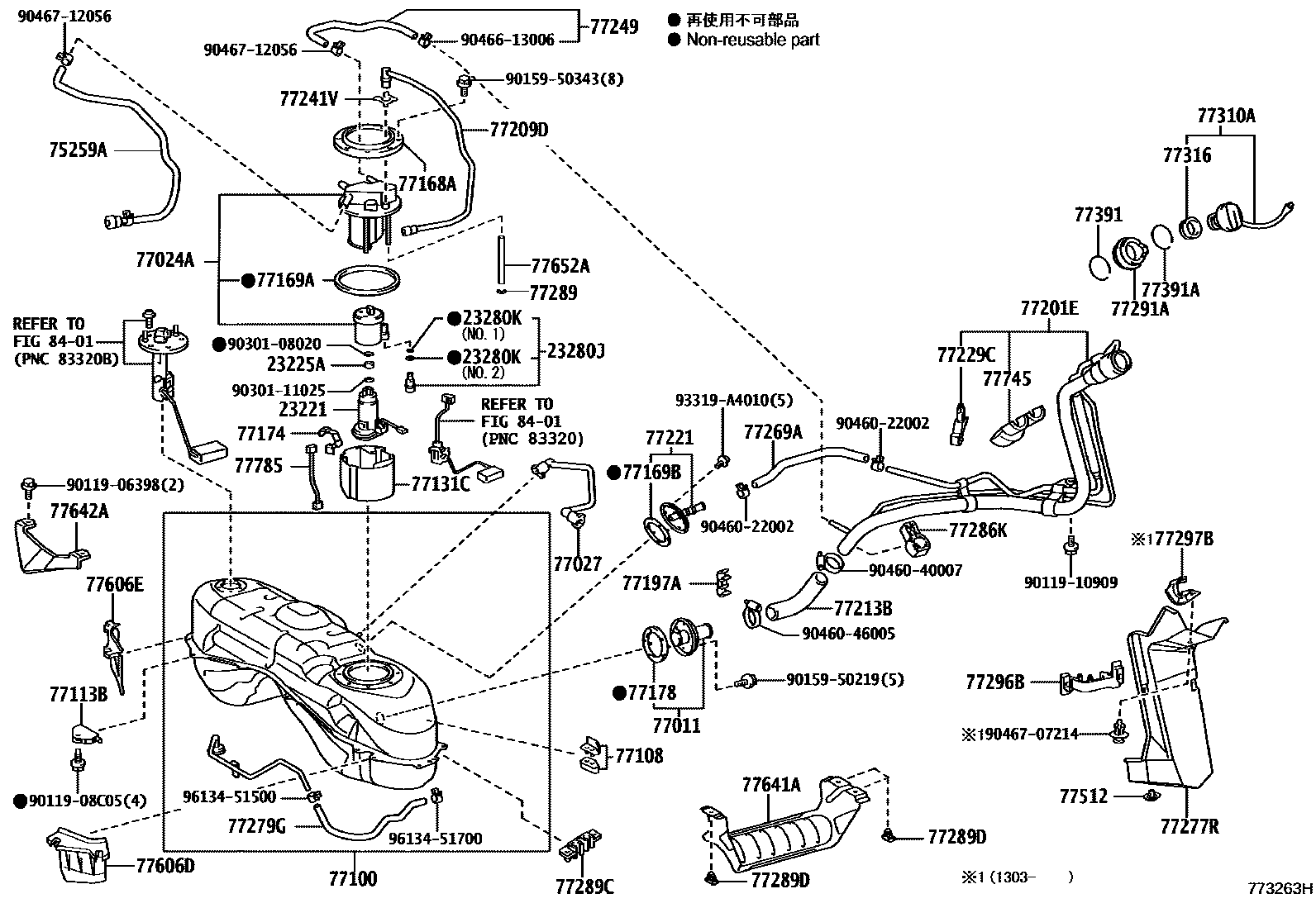

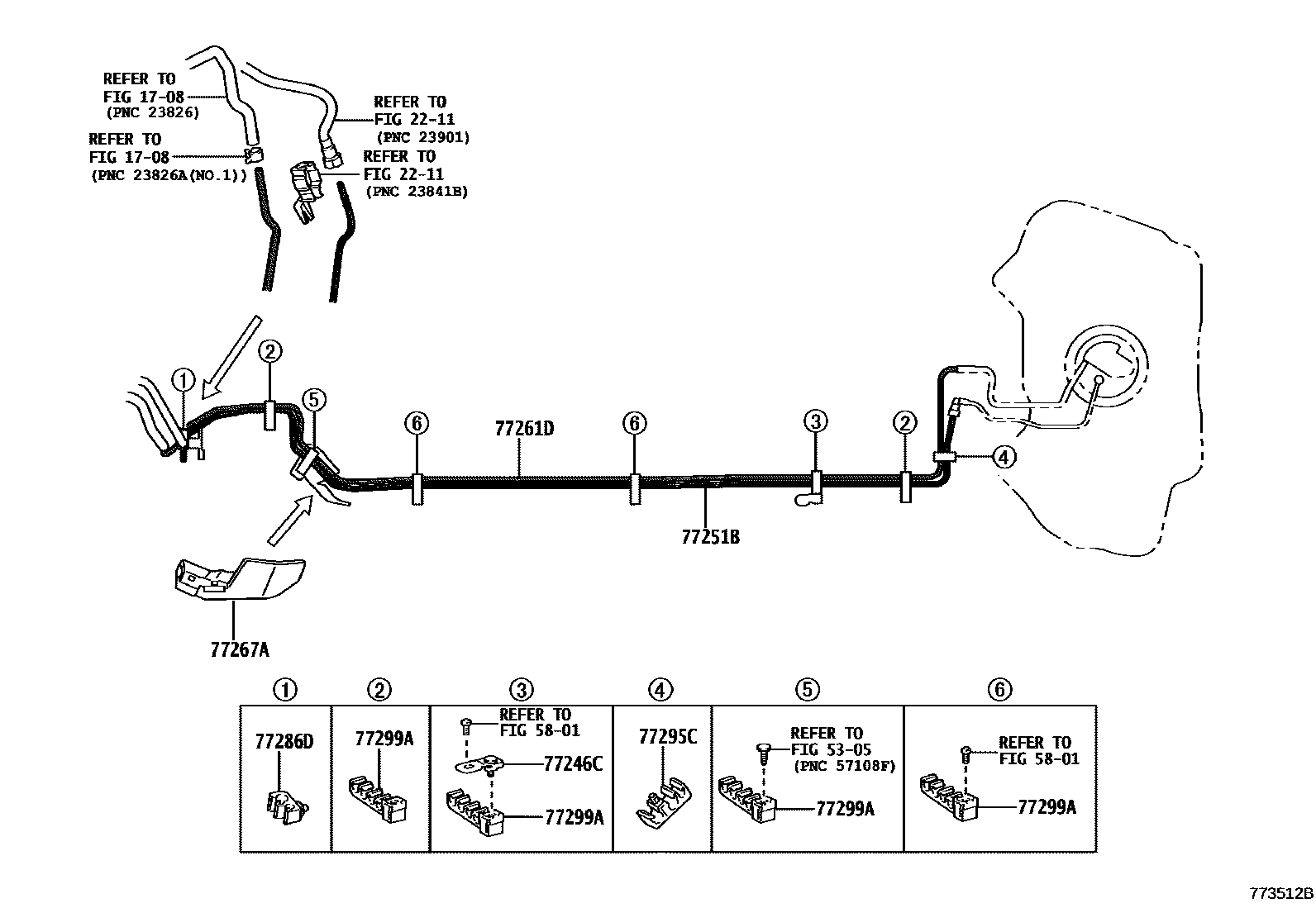

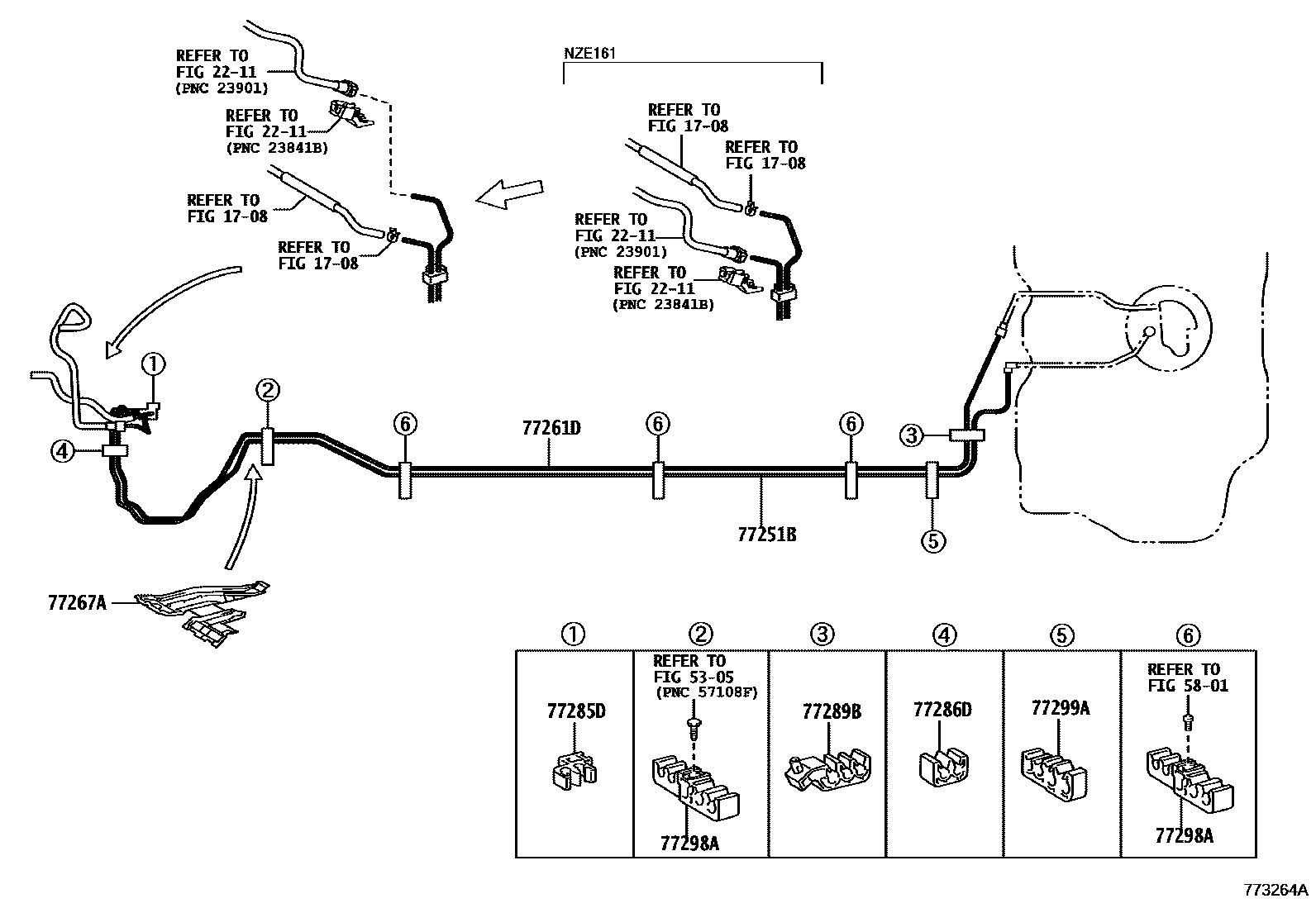

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 9 images and 79 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23217D | fuel pump filter | 23217-21010 |
| 23221 | fuel pump | 23210-21010 · 23210-21020 · 23220-21211 · 23220-21221 · 23221-37040 · 23221-47031 · 23221-47032 |
| 23225A | fuel pump septum | 23225-21020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 · 23280-22010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-07020 · 90301-15024 |
| 64648A | Trunk door lock opener seal | 64648-32020 |
| 75259A | fuel hose | 77259-52050 |
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-28010 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-12860 · 77020-12861 · 77020-52420 · 77020-52421 · 77020-52441 · 77020-52520 · 77020-52540 · 77020-52541 |
| 77024A | Fuel absorber sub-assembly | 77024-52172 · 77024-52191 · 77024-52192 · 77024-52300 |
| 77027 | No. 2 fuel evaporation pipe sub-assembly | 77027-52140 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-12600 · 77035-12650 · 77035-13140 · 77035-13160 |
| 77100 | fuel tank assembly | 77001-12C70 · 77001-12D20 · 77001-12D21 · 77001-12E40 · 77001-12E41 · 77001-52161 |
| 77108 | Fuel tank protective shell sub-assembly | 77607-52010 |
| 77113B | fuel tank side panel | 77113-52010 |
| 77131C | No. 1 auxiliary fuel tank | 77103-52080 · 77131-52071 · 77131-52082 · 77131-52110 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-52020 |
| 77169A | Fuel suction pipe fixed gasket | 77169-52010 · 77169-52040 · 77169-53010 · 77169-76010 |
| 77169B | No. 1 fuel suction pipe fixing pad | 77169-14020 |
| 77174 | No. 1 oil suction pipe bracket | 77174-52040 · 77174-52070 |
| 77175 | No. 2 oil suction pipe bracket | 77175-52040 · 77175-78010 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-20030 |
| 77197A | No. 2 evaporation vent pipe clamp | 77197-52010 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-52321 · 77201-52541 · 77201-52542 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-52110 · 77209-52111 · 77209-52170 · 77209-52171 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-52190 · 77209-52240 · 77209-52241 |
| 77213B | Fuel tank to filler pipe hose | 77213-13100 · 77213-52150 |
| 77215 | Fuel tank filler pipe flange piece | 77219-52060 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-12180 |
| 77216B | No. 2 fuel tank filler pipe bracket | 77216-12150 · 77216-52160 |
| 77217C | No. 2 fuel tank filler pipe bracket | 77217-12150 |
| 77221 | No. 1 fuel evaporation vent pipe | 77203-52020 |
| 77229C | Snorkel clamp | 77229-52040 |
| 77241V | Pipe joint clip | 77241-32060 |
| 77241W | Pipe joint clip | 77241-33011 |
| 77246C | Main fuel pipe bracket | 77246-52020 |
| 77249 | fuel drain hose | 77249-52040 |
| 77251B | main fuel pipe | 77251-12820 · 77251-12830 · 77251-12840 · 77251-12850 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-12590 · 77261-12600 · 77261-12610 · 77261-12620 |
| 77262 | No. 2 fuel evaporation exhaust pipe | 77028-52020 · 77028-52040 · 77028-52050 |
| 77266A | No. 1 fuel line protection device | 77266-52071 · 77266-52110 |
| 77267A | No. 2 fuel pipe protection device | 77267-52050 · 77267-52061 |
| 77269A | fuel tank breather hose | 77269-52070 |
| 77277R | Fuel tank filler pipe protection device | 77277-52040 · 77277-52090 · 77277-52140 |
| 77278C | No. 2 fuel tank filler pipe protection device | 77278-12070 |
| 77279G | No. 2 fuel hose | 77279-52030 |
| 77281G | fuel hose clamp | 77281-52040 |
| 77285D | No. 1 fuel pipe clamp | 77285-52060 |
| 77286D | No. 2 fuel pipe clamp | 77286-20190 · 77286-52100 |
| 77286K | No. 2 fuel pipe clamp | 77286-52081 |
| 77289 | Fuel tank pipe holder | 77289-52110 · 77289-52130 |
| 77289B | No. 3 fuel pipe clamp | 77289-52060 |
| 77289C | No. 4 fuel pipe clamp | 77289-52100 |
| 77289D | No. 5 fuel pipe clamp | 77299-52010 |
| 77291A | Fuel tank filler pipe cover | 77291-76011 |
| 77295C | Fuel pipe retaining ring | 77295-42061 |
| 77296B | No. 1 fuel line protector bracket | 77296-52020 |
| 77297B | Toyota part | 77297-52060 |
| 77298A | No. 4 fuel pipe clamp | 77298-52070 |
| 77299A | No. 5 fuel pipe clamp | 77299-52050 · 77299-52070 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-33020 · 77306-52050 |
| 77310A | Fuel tank cap assembly | 77300-52030 |
| 77316 | fuel tank cap gasket | 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-12540 |
| 77366 | Fuel filler cap hinge spring | 77360-30070 |
| 77377 | Fuel filler cap lock retainer | 77377-75010 |
| 77391 | fuel inlet ring | 77391-75010 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77512 | fuel tank rear bracket | 77512-35140 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-12210 · 77606-52090 |
| 77606D | No. 3 fuel tank protective shell | 77631-52040 |
| 77606E | No. 4 fuel tank protective shell | 77632-52010 |
| 77641A | No. 1 fuel tank protective shell | 77641-52100 |
| 77642A | No. 2 fuel tank protective shell | 77642-52060 |
| 77645A | Fuel tank protective shell fixings | 77645-52020 |
| 77652A | No. 2 fuel tank liner | 77652-52030 · 77652-52040 · 77652-52070 |
| 77701W | No. 1 carbon canister outlet hose sub-assembly | 77701-12020 · 77701-52030 · 77701-52040 |
| 77745 | No. 1 carbon canister filter | 77745-12050 · 77745-52030 |
| 77785 | fuel pump wiring harness | 77785-52091 · 77785-52110 · 77785-52140 · 77785-52141 |
