Toyota COROLLA 挡泥板和扰流板 — Figure 7601

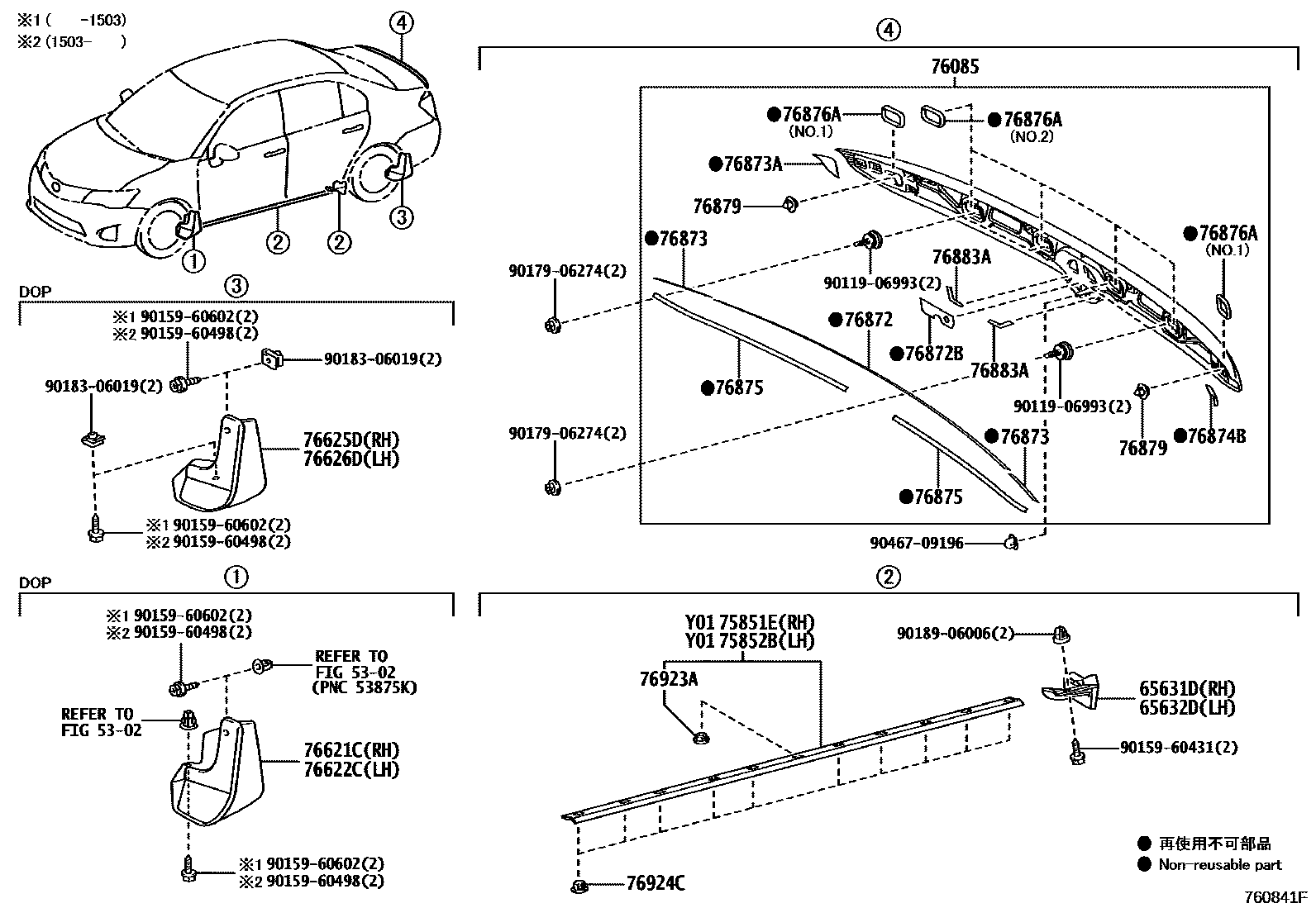

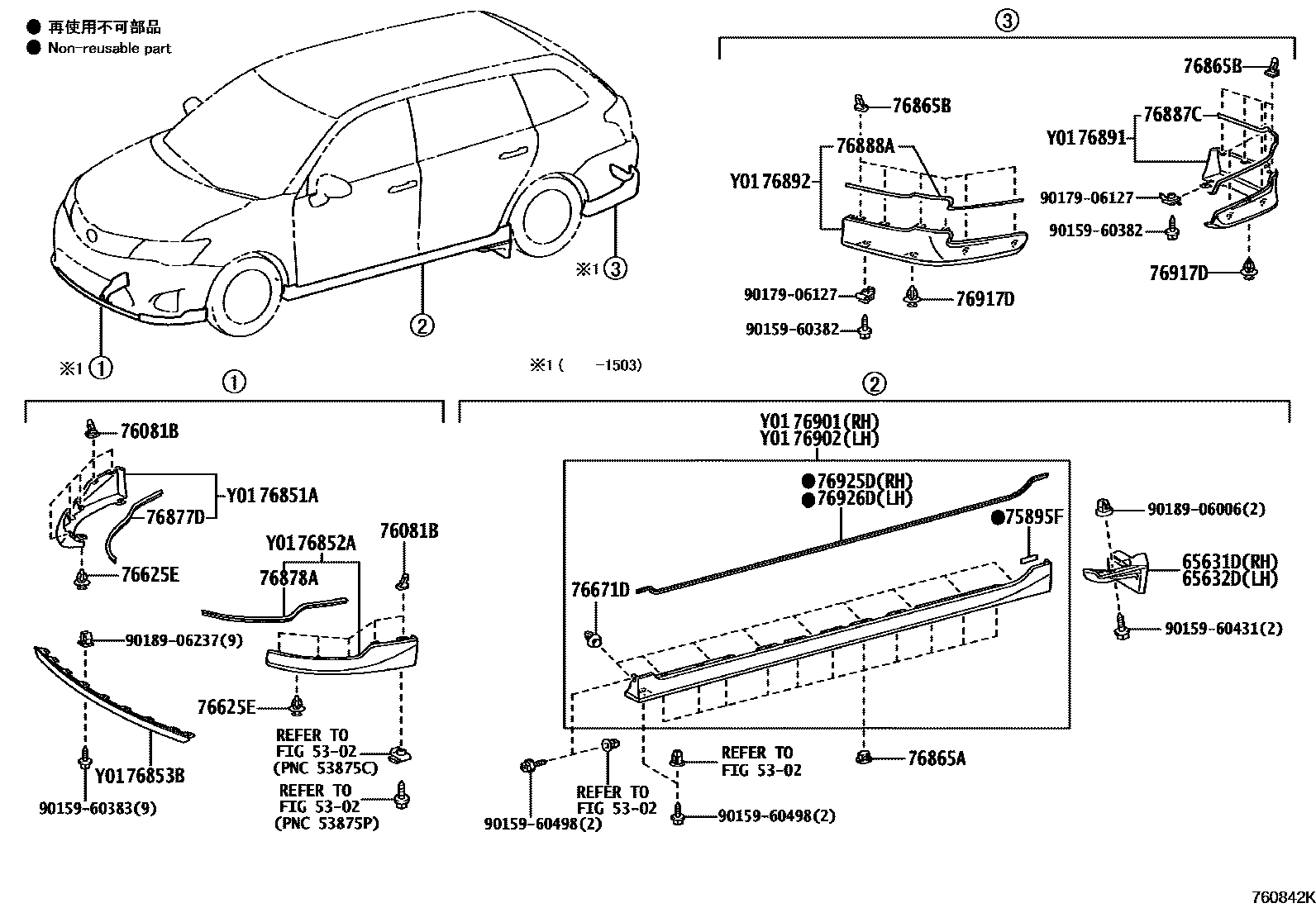

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-12100 · 65631-12130 |
| 65632D | Left rear wheel house front panel | 65632-12100 · 65632-12130 |
| 75851E | Right body door sill panel protection strip | 75851-12160 |
| 75852B | Left body door sill panel protection strip | 75852-12130 |
| 75895F | No. 1 protective strip tape | 75895-13050 |
| 76081B | Front spoiler fixings | 75392-35200 |
| 76625E | clip | 90467-07201 |
| 76671D | Side fender clips | 75867-52020 |
| 76853B | front center spoiler cover | 76853-13010 |
| 76865A | Side fender fixings | 76924-12040 |
| 76865B | Rear spoiler fixings | 75392-35200 |
| 76872 | No. 1 rear spoiler protective strip | 76872-12220 |
| 76872B | Rear center spoiler protective strip | 76872-12210 |
| 76873 | No. 2 rear spoiler protective strip | 76873-12220 |
| 76873A | Right rear spoiler protective strip | 76873-12230 |
| 76874B | Left rear spoiler protective strip | 76874-12230 |
| 76875 | No. 4 rear spoiler protective strip | 76875-12140 |
| 76876A | No. 10 rear spoiler protective strip | 76876-12040 · 76876-12050 |
| 76879 | No. 1 rear spoiler clip | 76879-12060 |
| 76883A | No. 7 rear spoiler protective strip | 76875-12150 |
| 76917D | clip | 90467-07201 |
| 76923A | Side fender fixings | 76924-12040 |
| 76924C | No. 2 side fender fixings | 76924-12040 |
