Toyota COROLLA 后防护条 — Figure 7504
Toyota COROLLA EPC diagram 7504, 后防护条, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

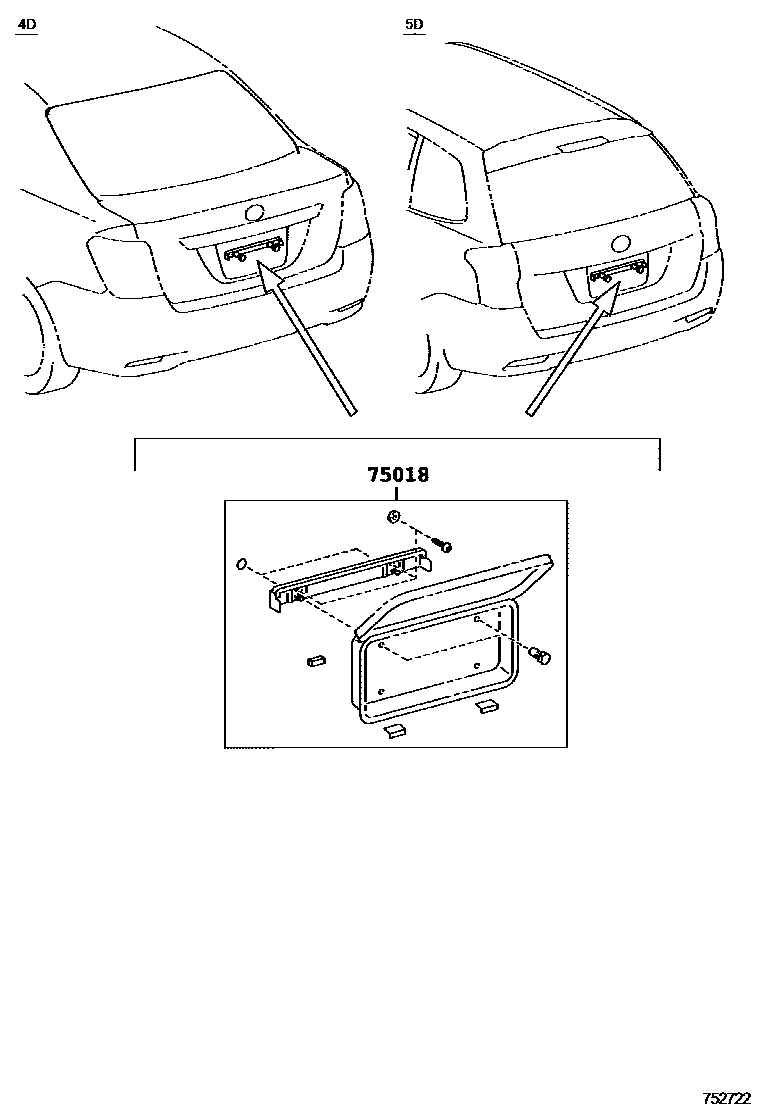

| 75018 | Rear license plate frame sub-assembly | 75010-48020 |

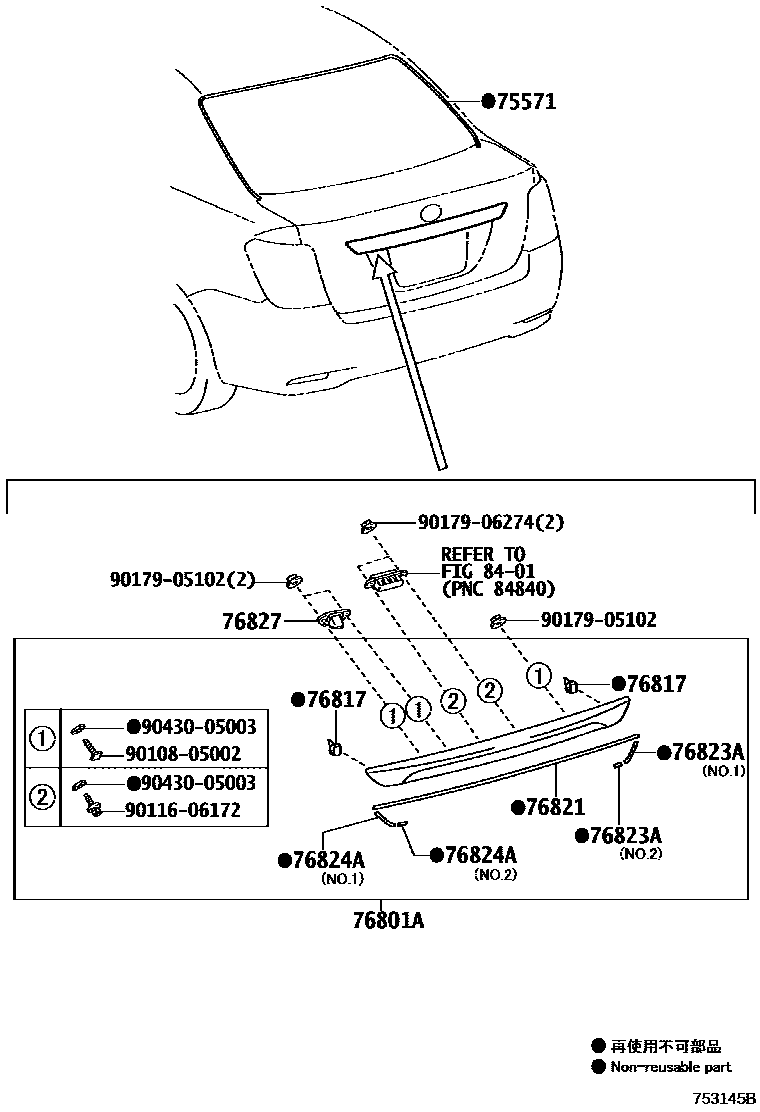

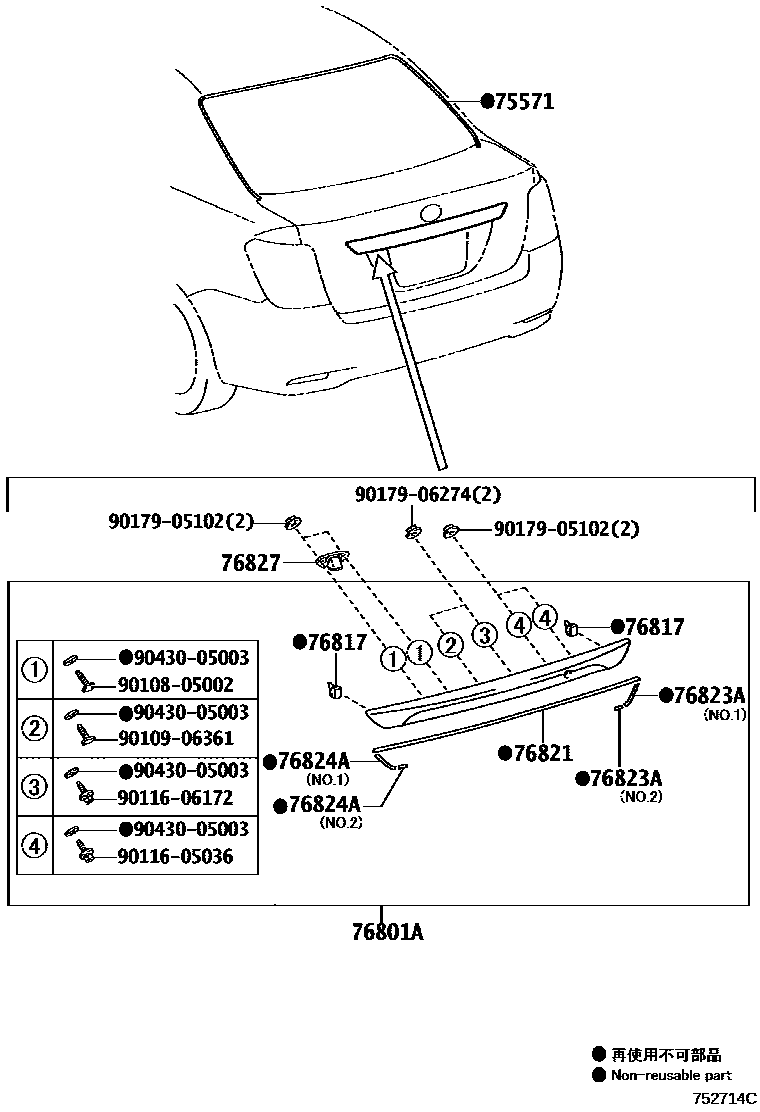

| 75571 | Protective strips on the outside of the rear window | 75571-12A60 |
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-12C50 · 76801-12C60 · 76801-12C70 · 76801-12D20 · 76801-12D30 · 76801-12D40 · 76801-12D50 |
| 76817 | Rear door exterior decorative strip clip | 76817-12090 |
| 76821 | Protective cover for rear door trim strip | 76821-12320 |
| 76823A | Trunk door trim strip right outer protective cover | 76823-12050 · 76824-12050 |
| 76824A | Luggage door trim strip left outer protective cover | 76823-12050 · 76824-12050 |
| 76827 | No. 2 rear door trim strip fixings | 76827-12070 |
