Toyota COROLLA 侧防护条 — Figure 7503

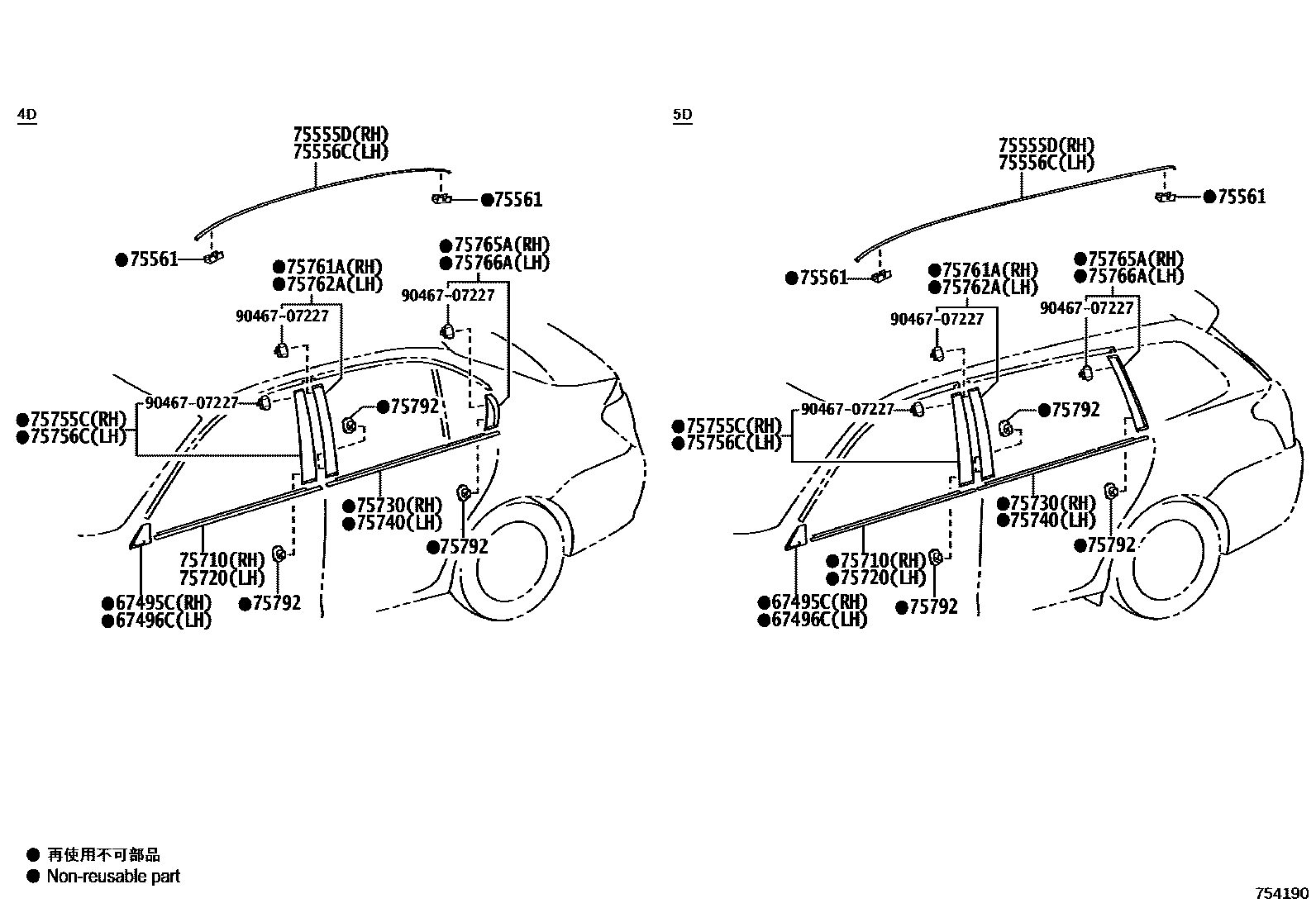

Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67495C | Right front door front lower door frame upper cover | 67495-12230 · 67495-12240 |
| 67496C | Left front door front lower door frame upper cover | 67496-12230 · 67496-12240 |
| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-12190 · 75555-13040 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75556-12200 · 75556-13040 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-33030 |
| 75710 | Right front door waistline protection strip assembly | 75710-12A20 · 75710-12A30 |
| 75720 | Left front door waistline protection strip assembly | 75720-12A00 · 75720-12A10 |
| 75730 | Right rear door waistline protection strip assembly | 75730-12410 · 75730-12420 · 75730-13070 · 75730-13080 |
| 75740 | Left rear door waistline protection strip assembly | 75740-12500 · 75740-12510 · 75740-13070 · 75740-13080 |
| 75755C | Right front door window frame rear protective strip | 75755-12130 |
| 75756C | Left front door window frame rear protective strip | 75756-12150 |
| 75761A | Right rear door window frame front protective strip | 75761-12080 |
| 75762A | Left rear door window frame front protective strip | 75762-12080 |
| 75765A | Right rear door window frame rear protective strip | 75765-12120 · 75765-13030 |
| 75766A | Left rear door window frame rear protective strip | 75766-12120 · 75766-13030 |
| 75792 | Car door window frame protective strip clip | 75792-47010 |
