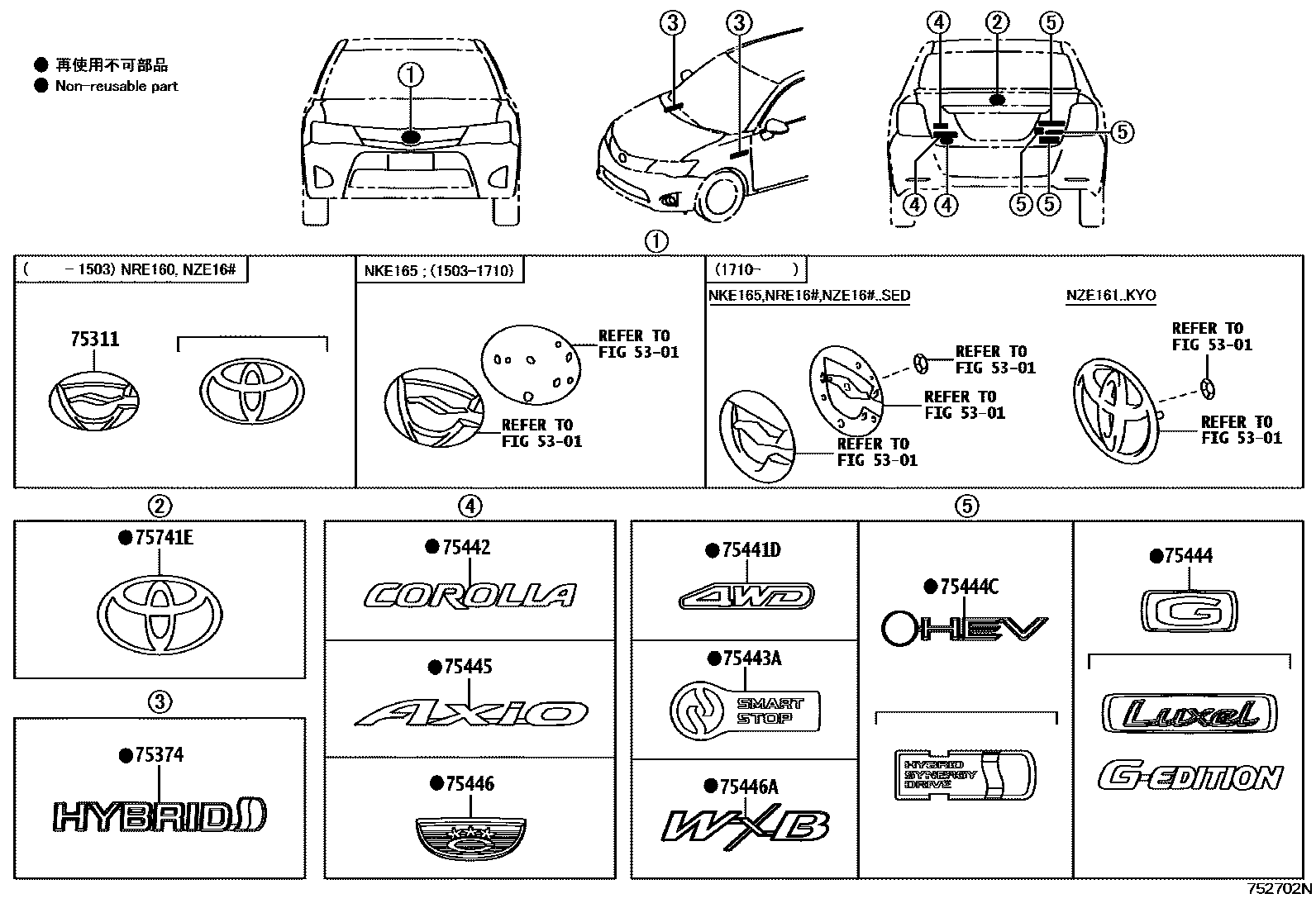

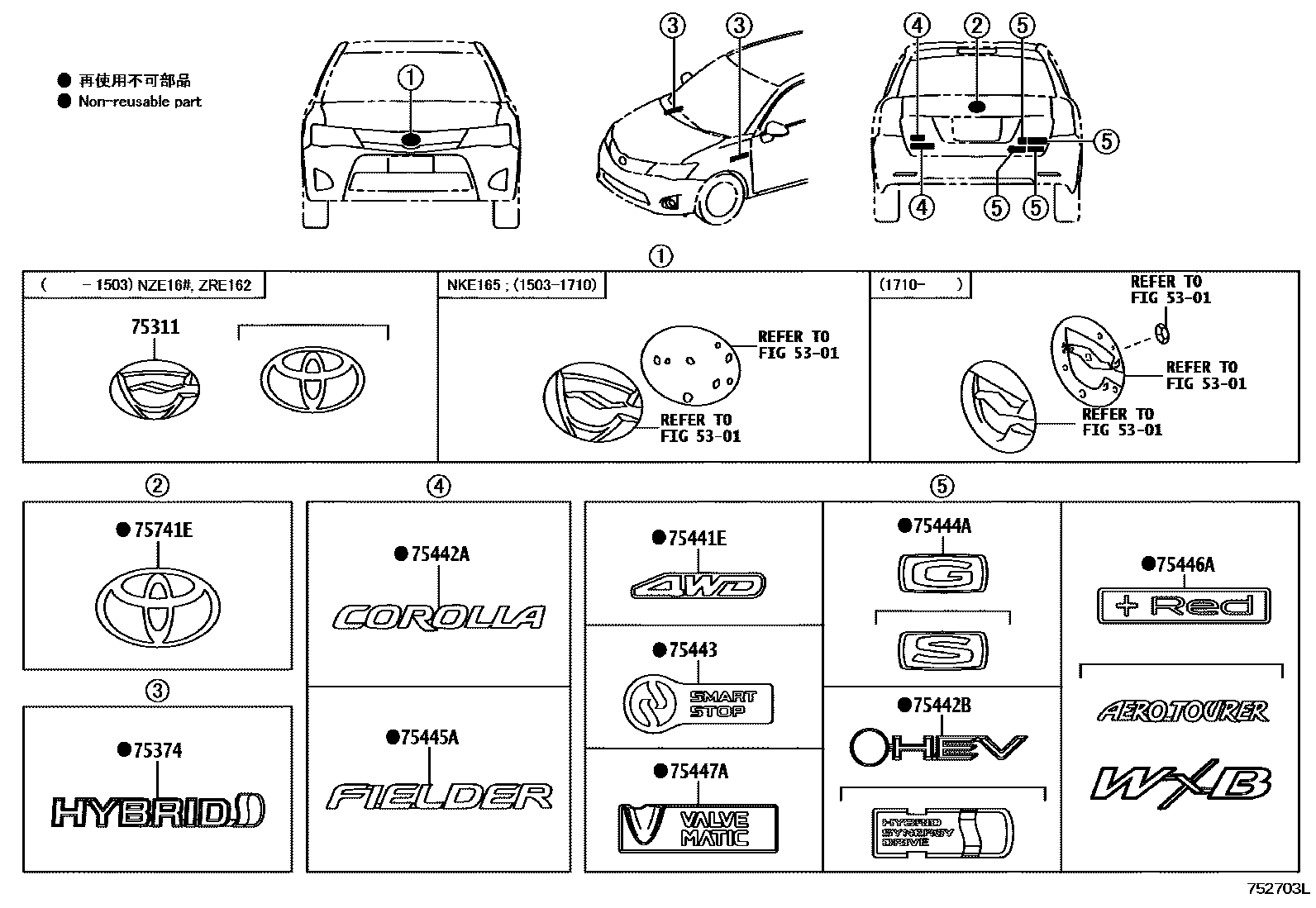

Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501
Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-12B70 · 75311-12C30 |
| 75374 | side panel sign | 75374-12050 · 75374-12060 |
| 75441D | Trunk door No. 1 name plate | 75441-46020 |
| 75441E | Back door No. 1 nameplate | 75441-46020 |
| 75442 | Trunk door number plate No. 2 | 75442-12A70 |
| 75442A | No. 2 nameplate on back door | 75442-12A70 · 75442-13400 |
| 75442B | No. 2 nameplate on back door | 75440-52010 · 75441-13270 · 75441-75011 |
| 75443 | No. 3 nameplate on back door | 75443-13380 |
| 75443A | Trunk door No. 3 nameplate | 75443-12B20 |
| 75444 | Trunk door No. 4 nameplate | 75444-12C70 · 75444-12C80 · 75444-12D10 |
| 75444A | No. 4 nameplate on back door | 75444-12C70 · 75444-13490 |
| 75444C | Trunk door No. 4 nameplate | 75440-52010 · 75441-12A70 |
| 75445 | Trunk door No. 5 name plate | 75445-12310 |
| 75445A | No. 5 nameplate on back door | 75445-13060 · 75445-13070 |
| 75446 | Trunk door No. 6 nameplate | 75444-12E30 |
| 75446A | No. 6 nameplate on back door | 75444-12D60 · 75444-13480 · 75444-13510 · 75444-13520 · 75444-13540 · 75444-13560 |
| 75447A | No. 7 nameplate on back door | 75444-13500 |
| 75741E | logo | 75403-12060 · 75403-48010 · 75403-75010 · 90975-02061 · 90975-02063 |
