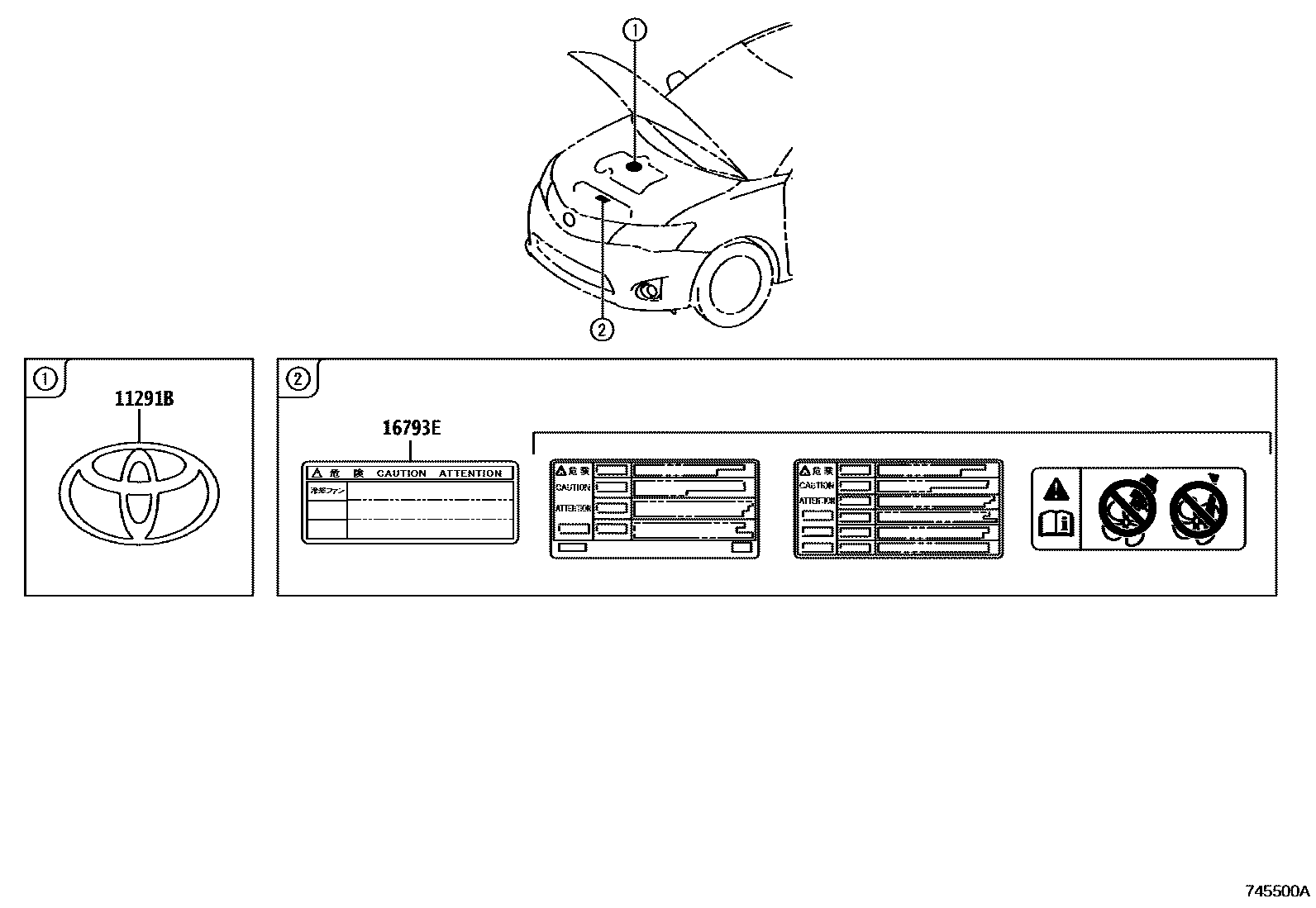

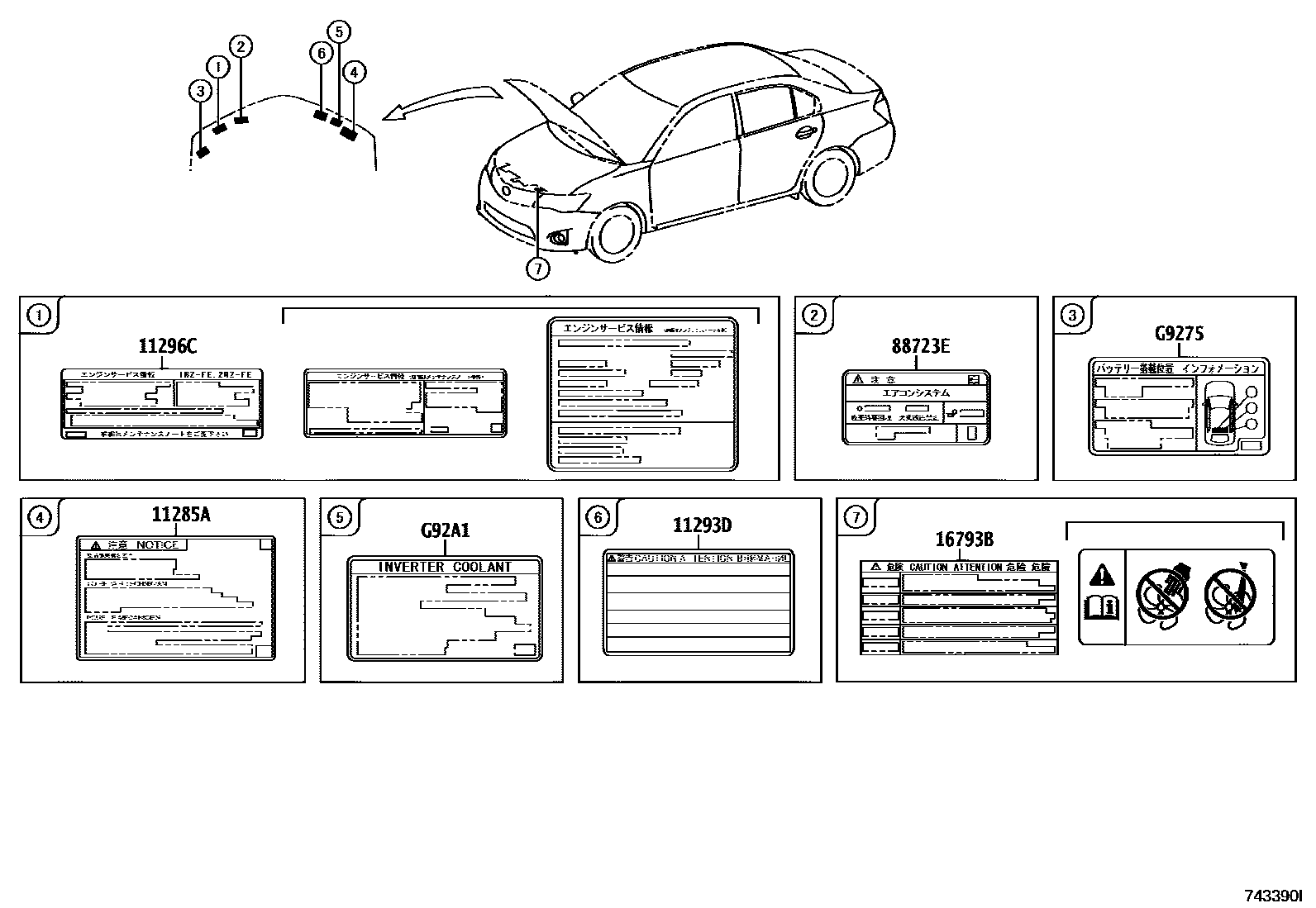

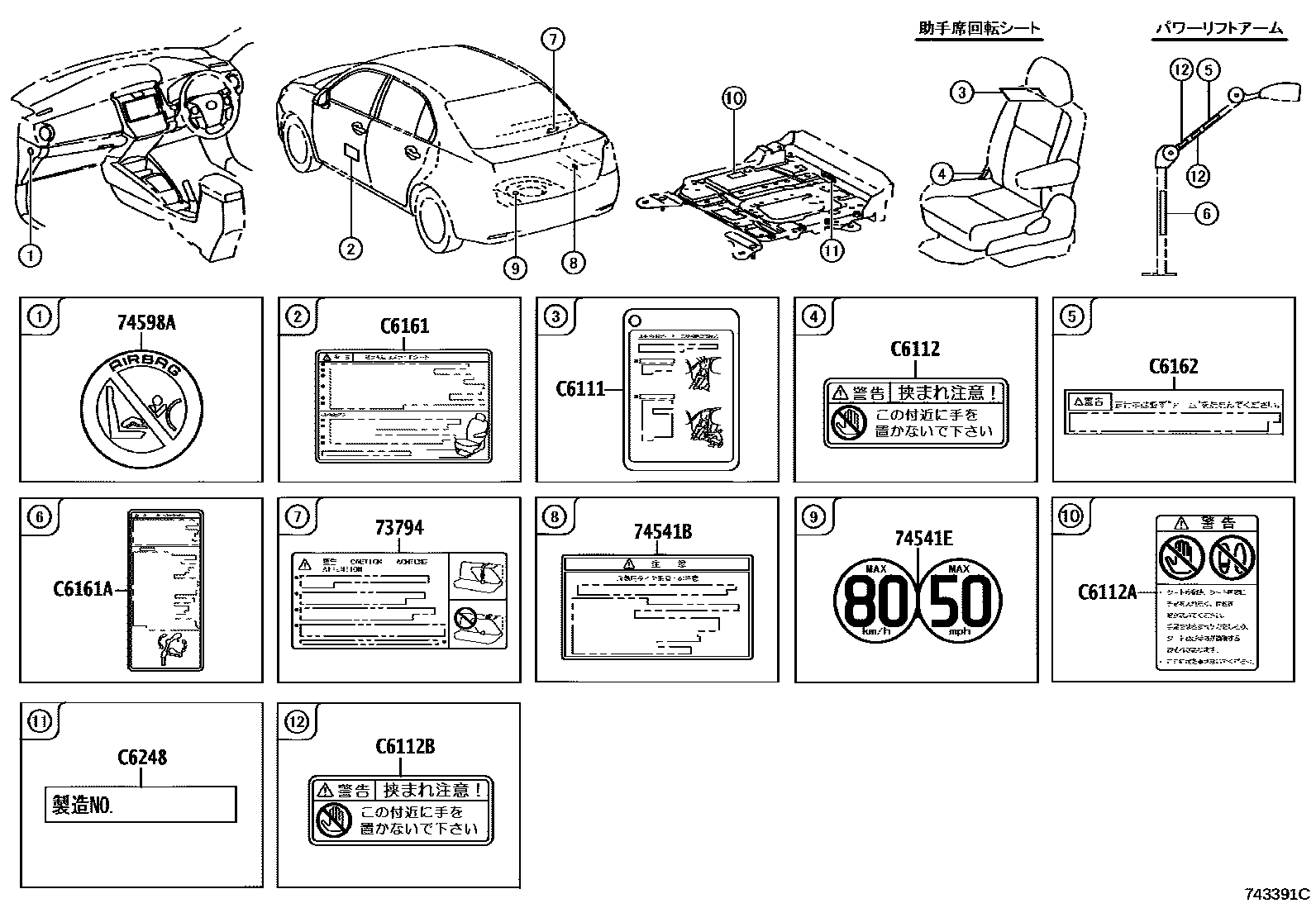

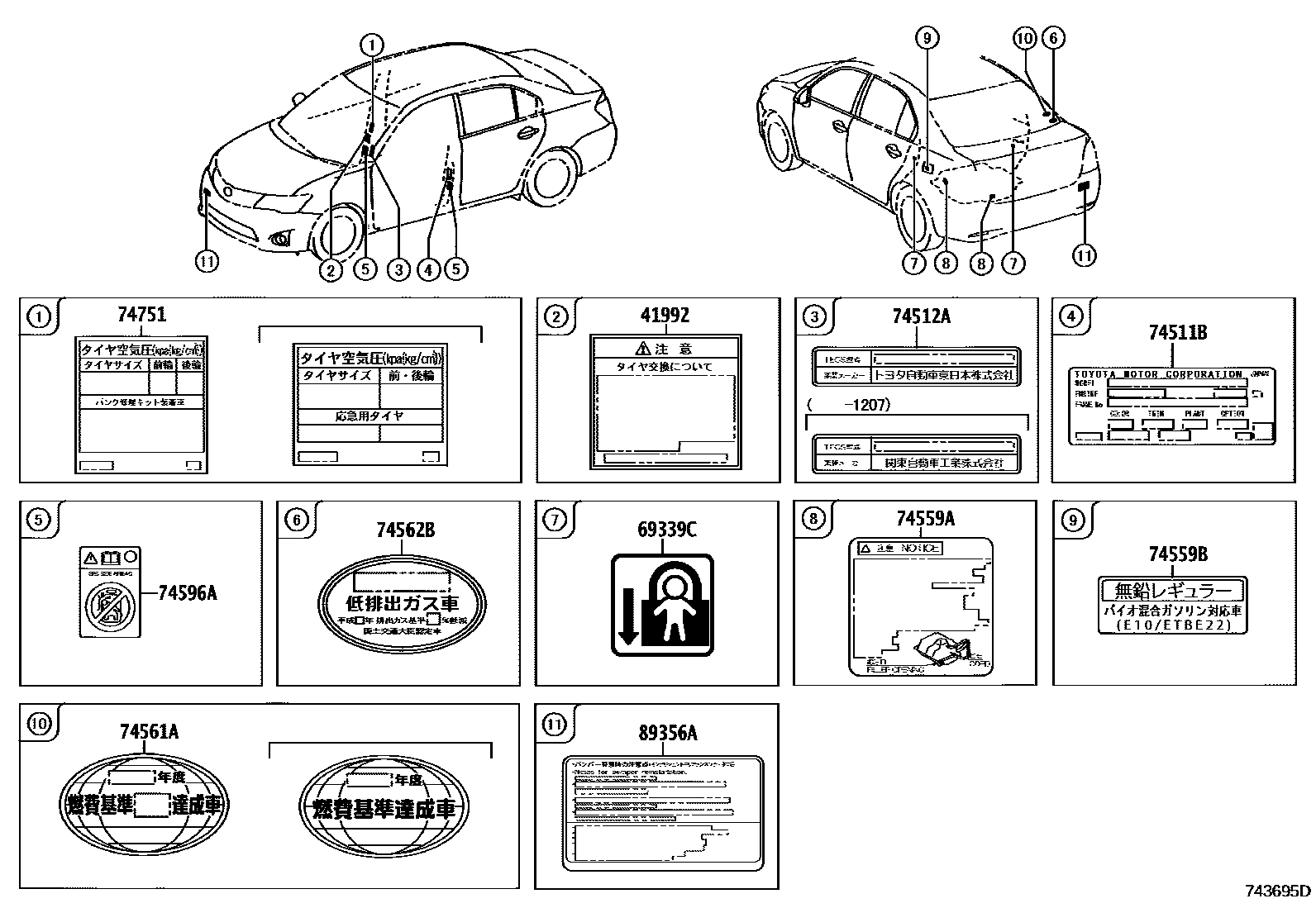

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 4 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-33030 |
| 11291B | Toyota part | 11291-50051 |
| 11293D | engine warning label | 11293-36070 |
| 11296C | Engine maintenance information label | 11296-21090 · 11296-21100 · 11296-21130 · 11296-21170 · 11296-37010 · 11296-37070 · 11296-47011 · 11296-47050 |
| 16793B | Cooling fan information label | 16793-28040 · 16793-36030 |
| 16793E | Toyota part | 16793-31030 · 16793-31070 · 16793-38010 · 88723-20081 |
| 41992 | Differential attention label | 41992-33010 |
| 69339C | Child Restraint Information Label | 69339-33040 |
| 73794 | Rear seat belt caution label | 73794-33010 |
| 74511B | Nameplate | 74511-2B300 |
| 74512A | Identification number plate | 74512-12171 · 74512-12172 · 74512-12181 · 74512-12182 · 74512-12201 · 74512-12202 · 74512-12211 · 74512-12212 · 74512-12231 · 74512-12232 · 74512-12241 · 74512-12242 · 74512-12261 · 74512-12262 · 74512-12271 · 74512-12272 · 74512-12290 · 74512-12300 · 74512-12310 · 74512-12320 · 74512-12330 · 74512-12340 · 74512-13031 · 74512-13032 · 74512-13041 · 74512-13042 · 74512-13061 · 74512-13062 · 74512-13071 · 74512-13072 · 74512-13081 · 74512-13082 · 74512-13111 · 74512-13112 · 74512-13131 · 74512-13132 · 74512-13141 · 74512-13142 · 74512-13160 · 74512-13170 · 74512-13180 · 74512-13190 · 74512-13200 · 74512-13210 · 74512-13220 · 74512-13230 · 74512-13240 · 74512-13250 |
| 74541B | Small spare tire warning plate | 42668-28060 |
| 74541E | Small spare tire warning plate | 42668-42010 |
| 74559A | Fuel warning plate | 74559-52020 |
| 74559B | fuel information label | 74559-48060 |
| 74561A | fuel consumption information label | 74561-13010 · 74561-13020 · 74561-13030 · 74561-47130 · 74561-47140 · 74561-48110 · 74561-48170 · 74561-48350 · 74561-52230 · 74561-52K40 · 74561-58010 · 74561-58020 |
| 74562B | Emission information label | 74562-24100 · 74562-30700 · 74562-47010 |
| 74596A | Side air bag warning label | 74596-53012 |
| 74598A | Passenger air bag warning label | 74598-20010 |
| 74751 | tire pressure information label | 42661-12J50 · 42661-12J60 · 42661-12J90 · 42661-12K10 · 42661-12K30 · 42661-12K40 · 42661-12K80 · 42661-12K90 · 42661-12L40 · 42661-12P00 · 42661-12P10 · 42661-12P20 · 42661-12P30 · 42661-12P40 · 42661-12P50 · 42661-12P60 · 42661-12P70 · 42661-12Q00 · 42661-12Q10 · 42661-12Q20 · 42661-12Q30 · 42661-12Q40 · 42661-12Q50 · 42661-13240 · 42661-13250 · 42661-13270 · 42661-13280 · 42661-13290 · 42661-13300 · 42661-13310 · 42661-13320 · 42661-52F90 · 42661-52J70 · 42661-52J80 |
| 88723E | Cooler maintenance warning label | 88723-12240 · 88723-12241 · 88723-12300 · 88723-12301 |
| 89356A | Toyota part | 89356-47020 |
| C6111 | Safety warning nameplate | C6111-12010 |
| C6112 | Safety Information Label No. 2 | C6112-D1170 · C6112-D1171 |
| C6112A | safety information label | C6112-D1210 · C6112-D1211 |
| C6112B | Toyota part | C6112-D1170 · C6112-D1171 |
| C6161 | Electric Lift Warning Label | C6161-12020 · C6161-12021 |
| C6161A | Electric Lift Warning Label | C6161-52021 · C6161-D1440 |
| C6162 | No. 2 Electric Lift Warning Label | C6162-18010 · C6162-18011 |
| C6248 | Body number label | C6248-D1170 |
| G9275 | No. 1 battery warning label | G9275-52020 |
| G92A1 | HV coolant system information label | G92A1-48010 |
