Toyota COROLLA 倾斜装置和电动举升机 — Figure 7105
Toyota COROLLA EPC diagram 7105, 倾斜装置和电动举升机, with 4 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58517K | Toyota part | 58517-13010 |
| 62371D | Lock | 62371-43010 |

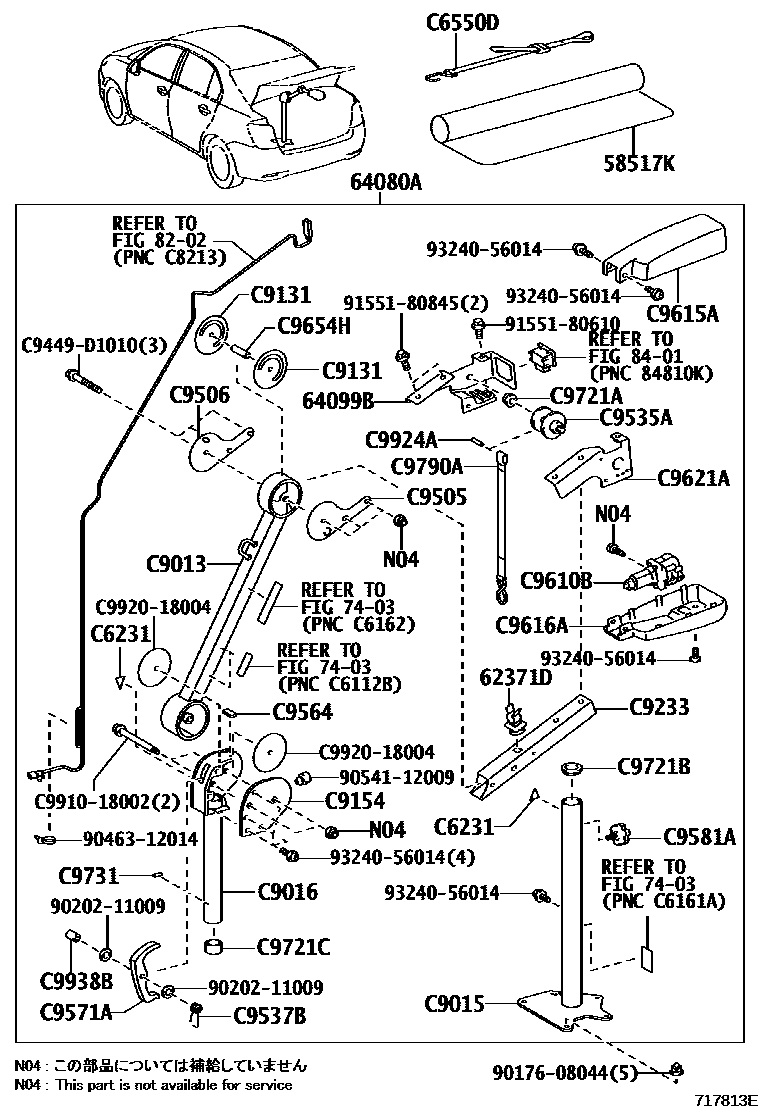

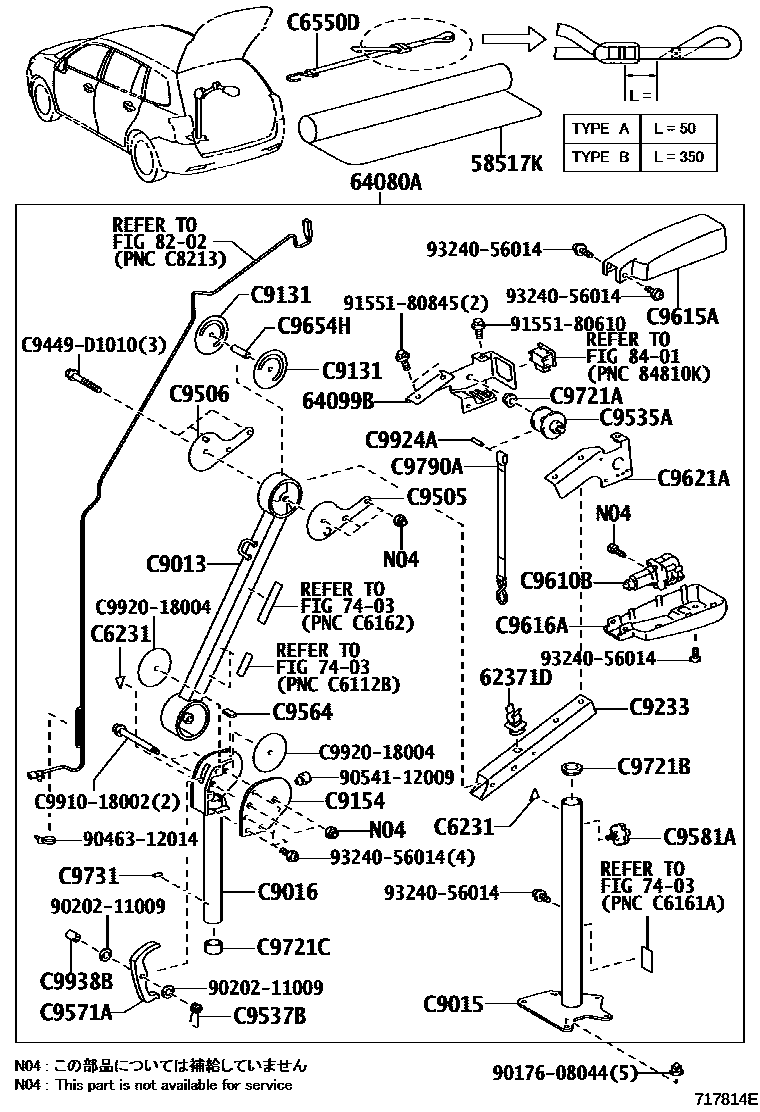

| 64080A | Electric lift arm assembly | 64080-12040 · 64080-12041 · 64080-13020 · 64080-13021 |
| 64099B | Electric lift arm guide rail base sub-assembly | 64099-D1010 |

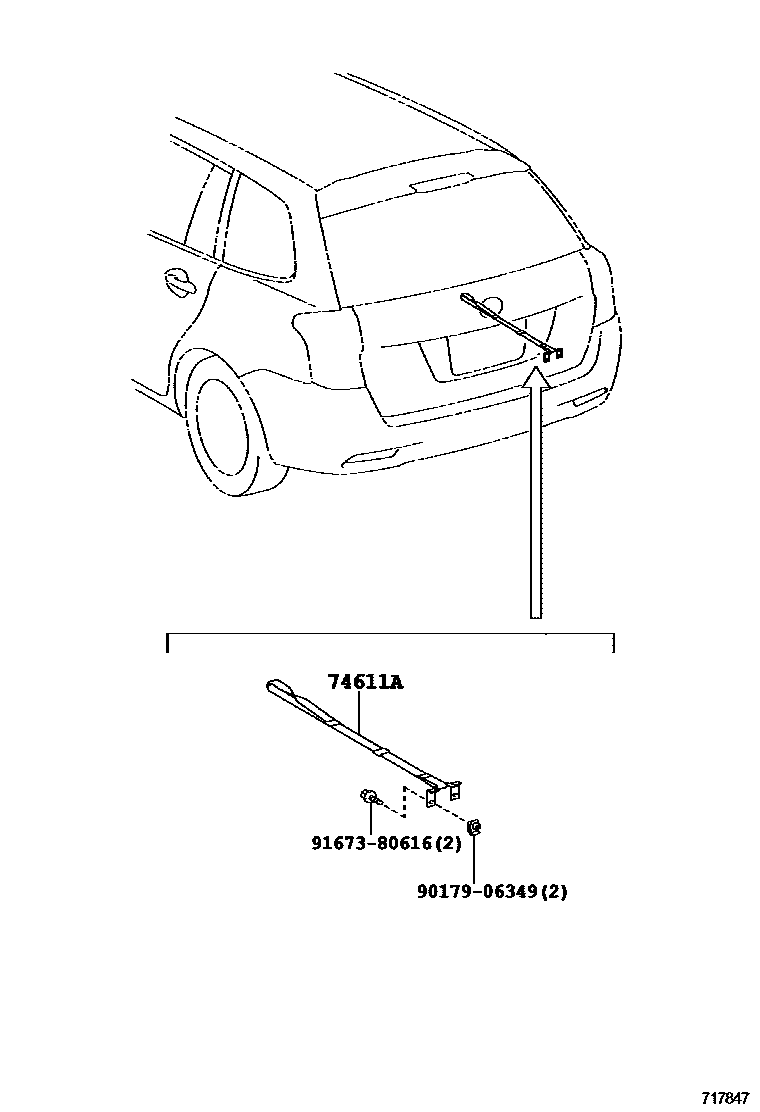

| 74611A | Auxiliary handle fixing strap | 67961-13020 |
| C6231 | side markers | C6231-18010 |

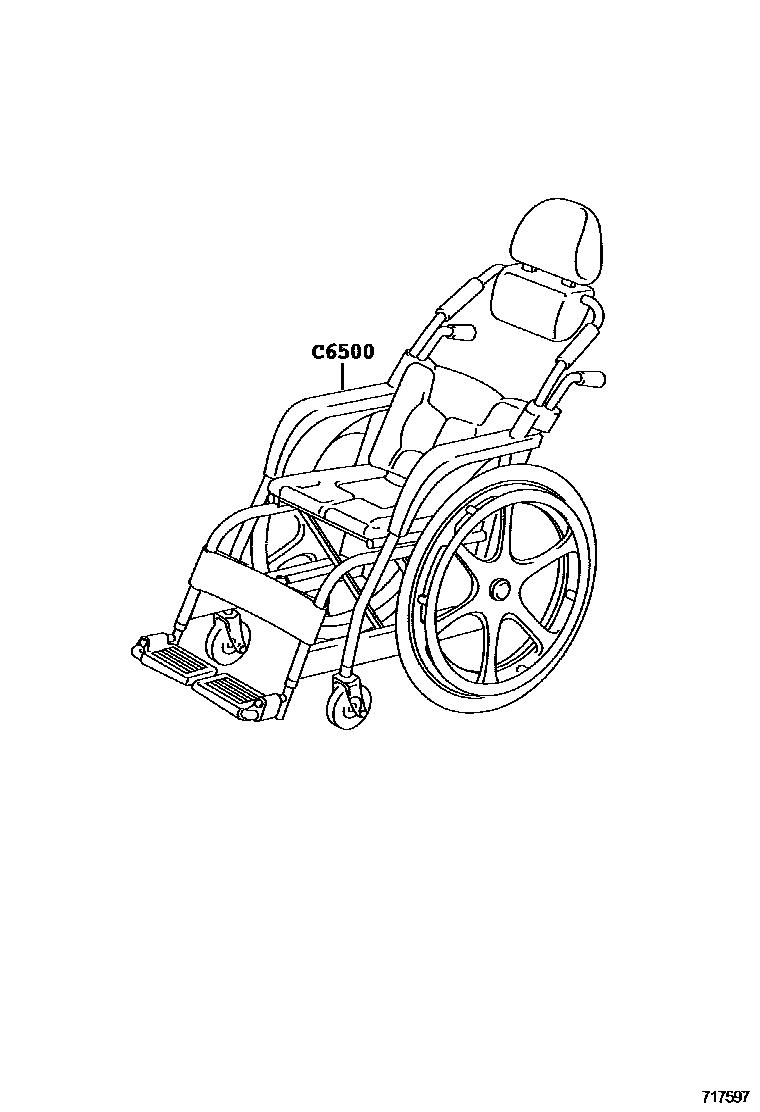

| C6500 | Wheelchair assembly | C7950-18010 |
| C6550D | No. 1 wheelchair fixing belt assembly | C6550-12010 · C6550-12020 · C6550-52040 |
| C9013 | No. 1 electric lifter arm sub-assembly | C9013-12020 · C9013-13010 |
| C9015 | Electric lift column sub-assembly | C9015-12020 · C9015-13010 |
| C9016 | Electric lifter inner column sub-assembly | C9016-12020 · C9016-12021 · C9016-13010 |
| C9131 | Lift arm plate | C9131-D1010 |
| C9154 | Electric lift arm hinge bracket | C9154-12010 · C9154-52020 · C9154-D1060 |
| C9233 | Electric lift arm | C9233-13010 · C9233-D1160 |
| C9505 | Right return spring tube bracket sub-assembly | C9505-D1020 |
| C9506 | Left return spring tube bracket sub-assembly | C9506-12010 |
| C9535A | Electric lift pulley | C9535-D1060 |
| C9537B | Electric lift return spring | C9537-D1010 |
| C9564 | Electric lifter cylinder head protection device | C9564-18010 |
| C9571A | Electric lift arm lock lever | C9571-18010 |
| C9581A | Electric lift lock handle | C9581-D1030 |
| C9610B | Electric lift motor assembly | C9610-18030 |
| C9615A | No. 1 electric lift motor cover | C9615-12020 |
| C9616A | No. 2 electric lift motor cover | C9616-12010 |
| C9621A | Electric lift motor base | C9621-D1020 |
| C9654H | Electric lifter cylinder collar | C9654-D1150 |
| C9721A | No. 2 winch No. 1 bearing | C9721-D1010 |
| C9721B | No. 2 winch No. 2 bearing | C9721-D1070 |
| C9721C | No. 2 winch No. 3 bearing | C9721-D1080 |
| C9731 | No. 1 winch roller pin | C9731-D1050 |
| C9790A | Winch belt assembly | C9790-18020 |
| C9924A | pin | C9924-18001 |
| C9938B | collar | C9938-18020 |
