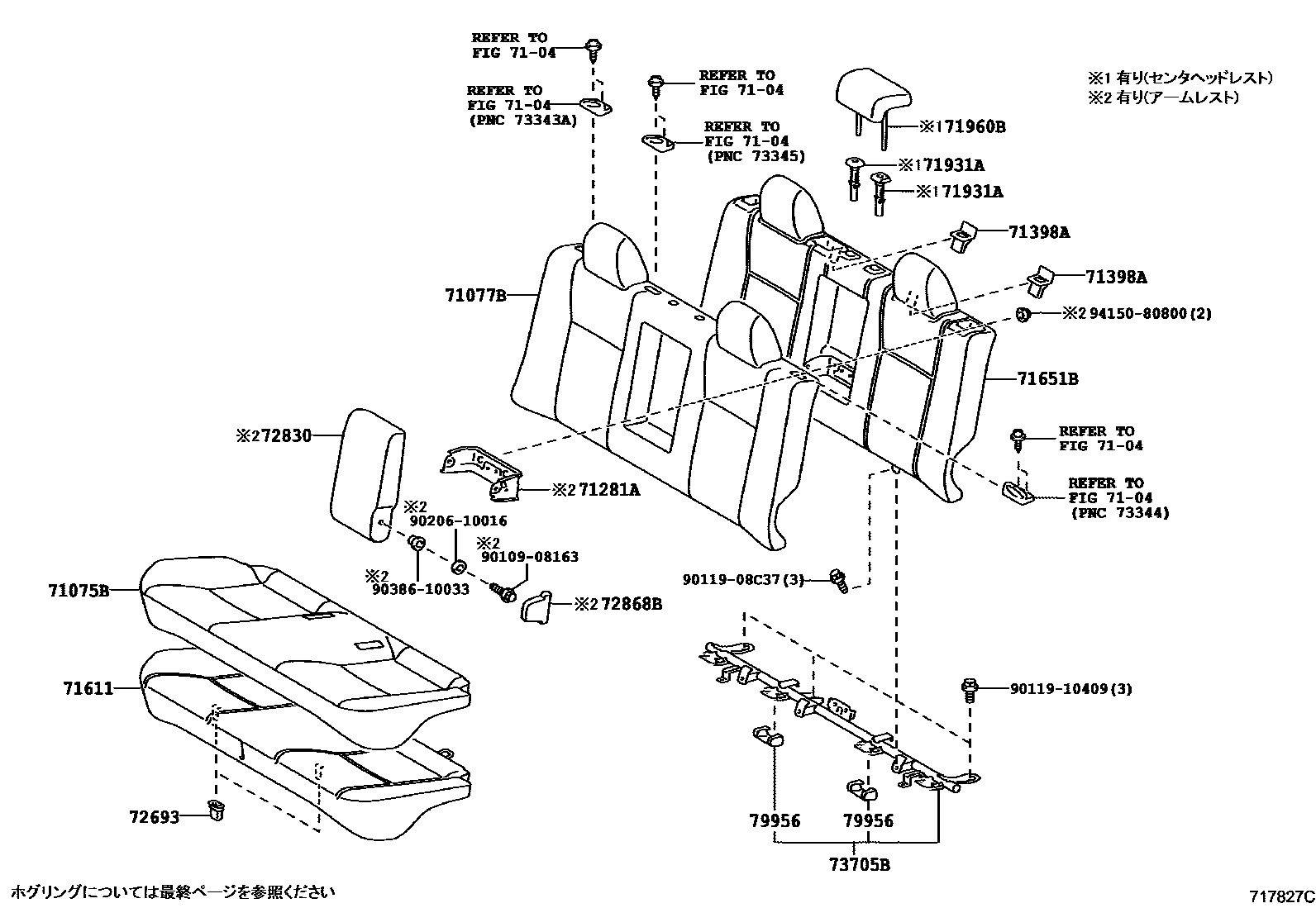

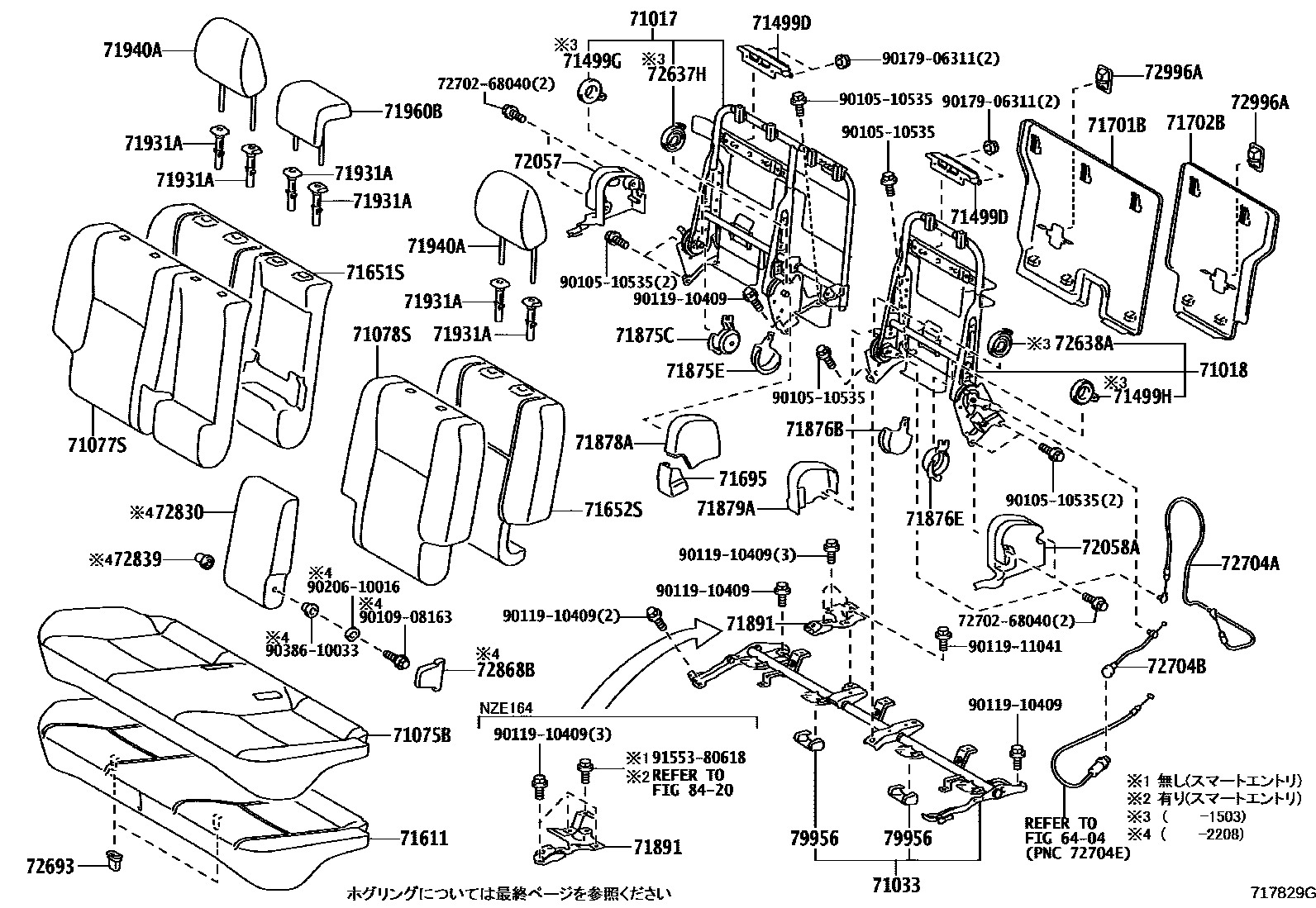

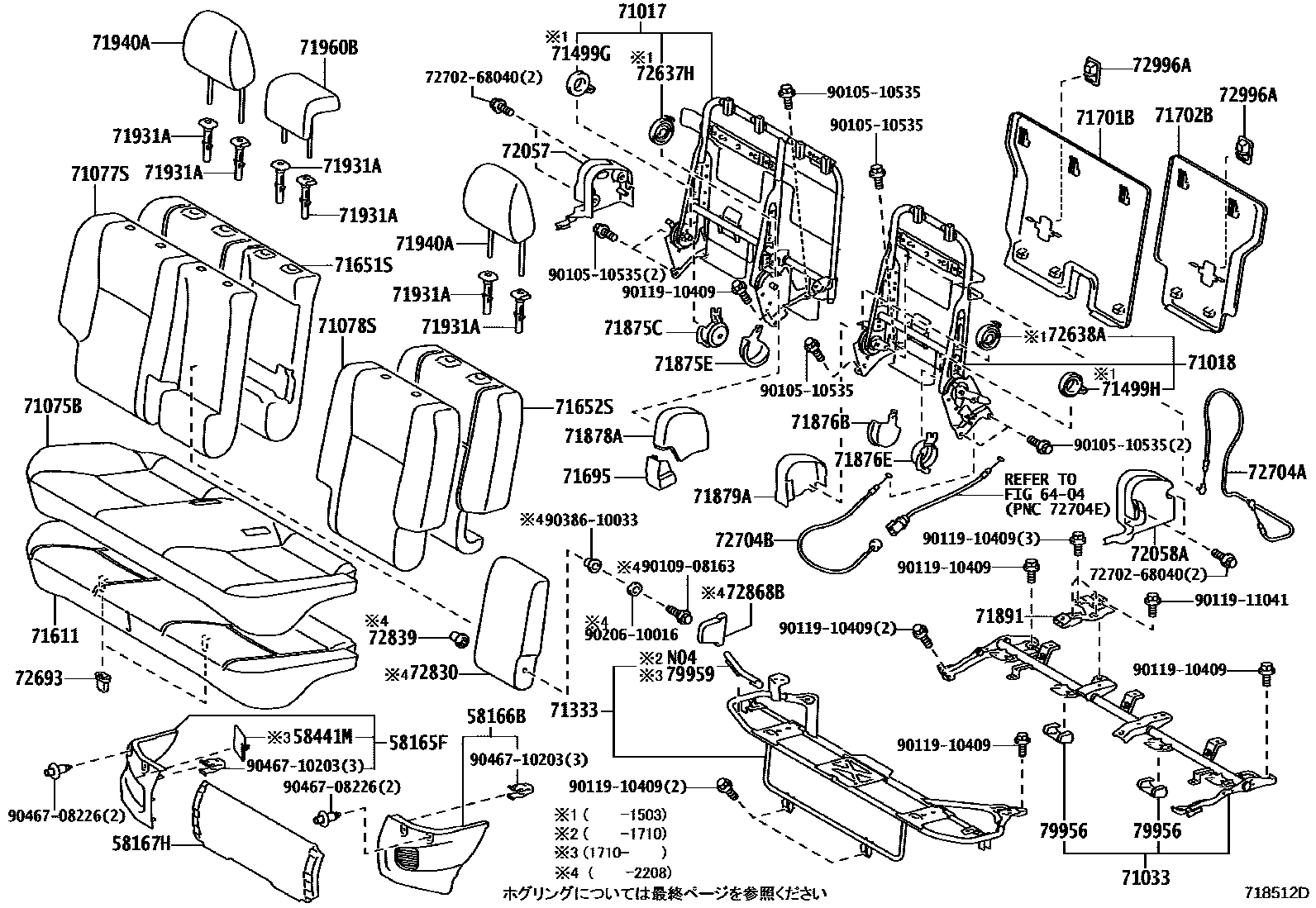

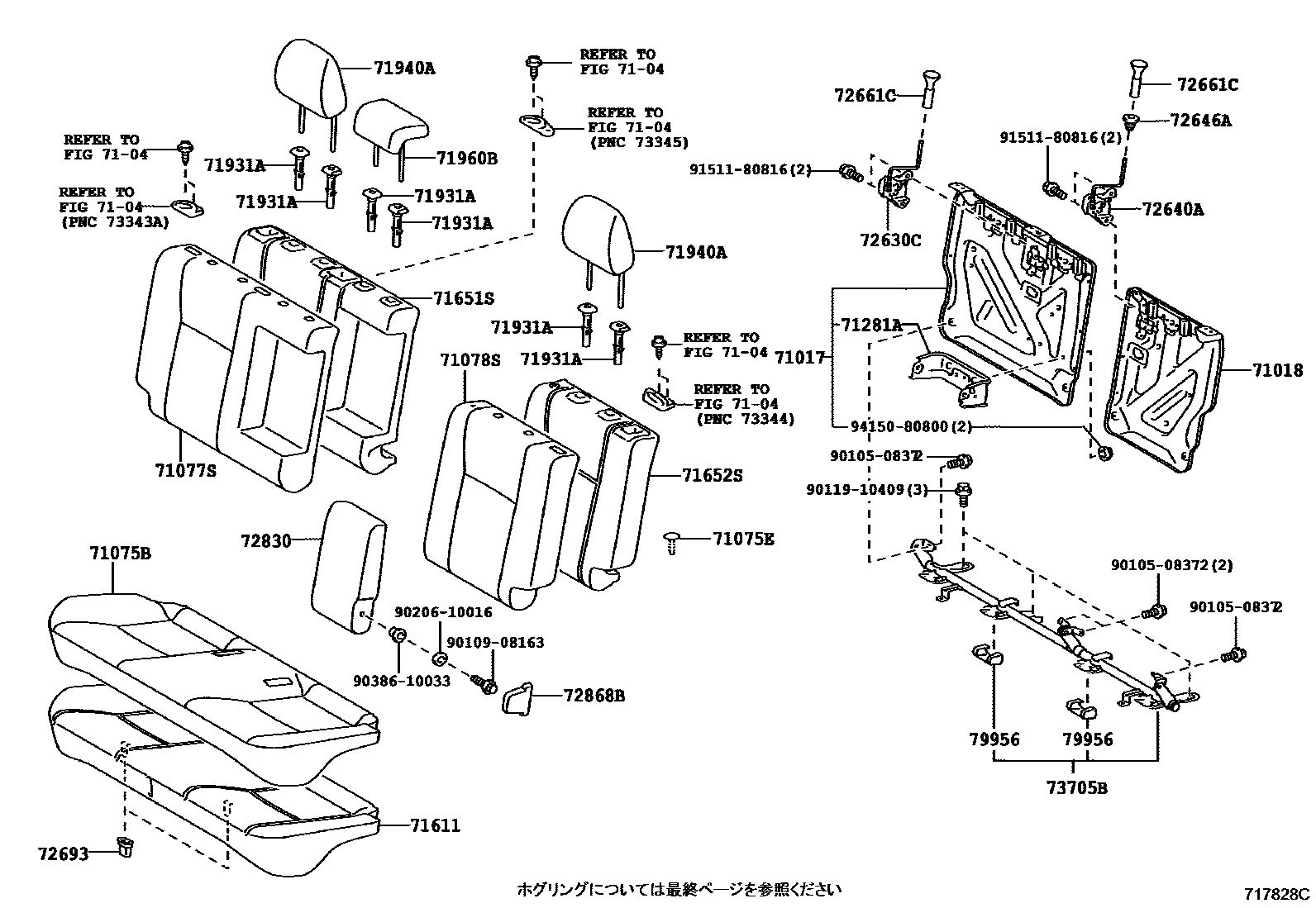

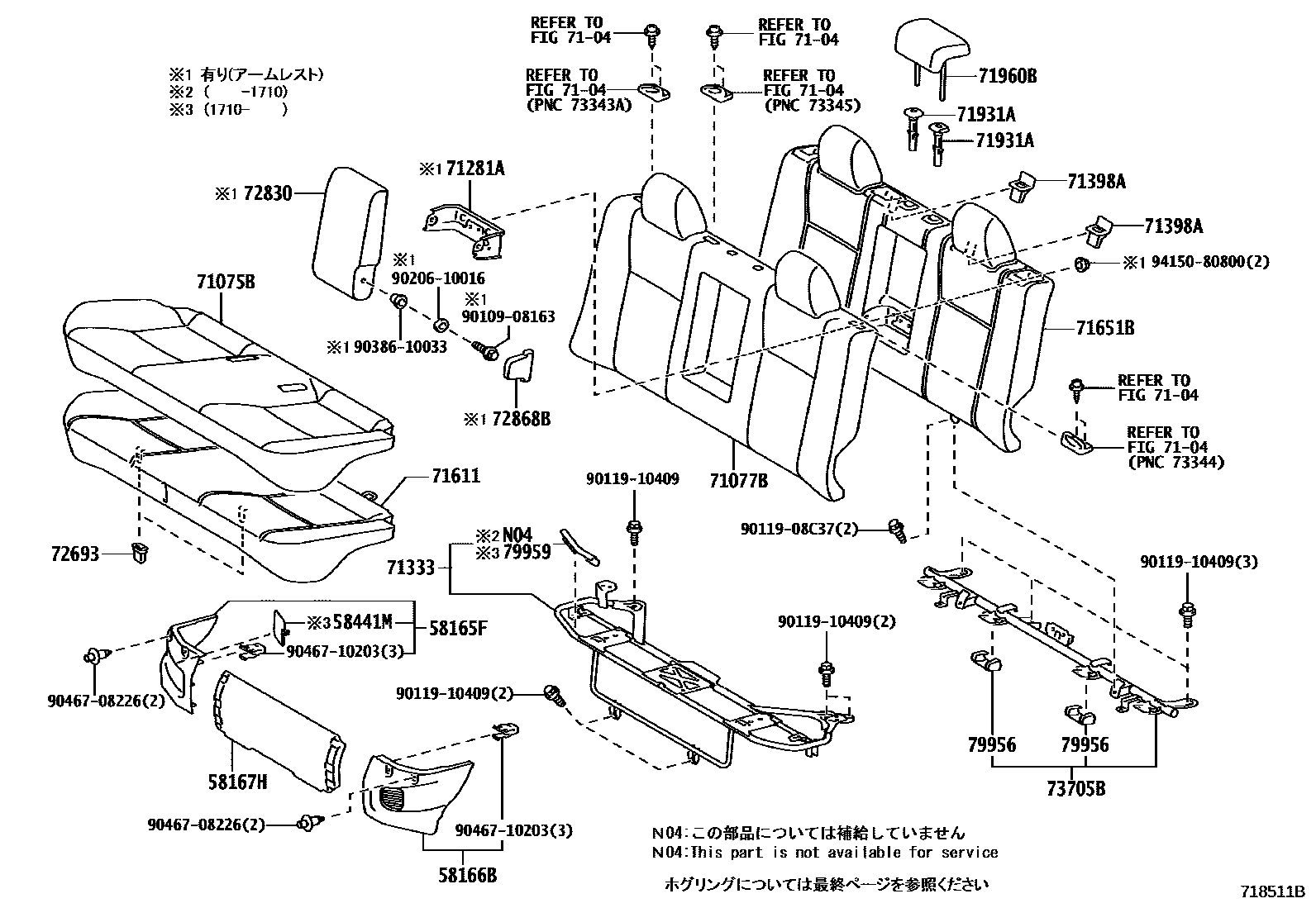

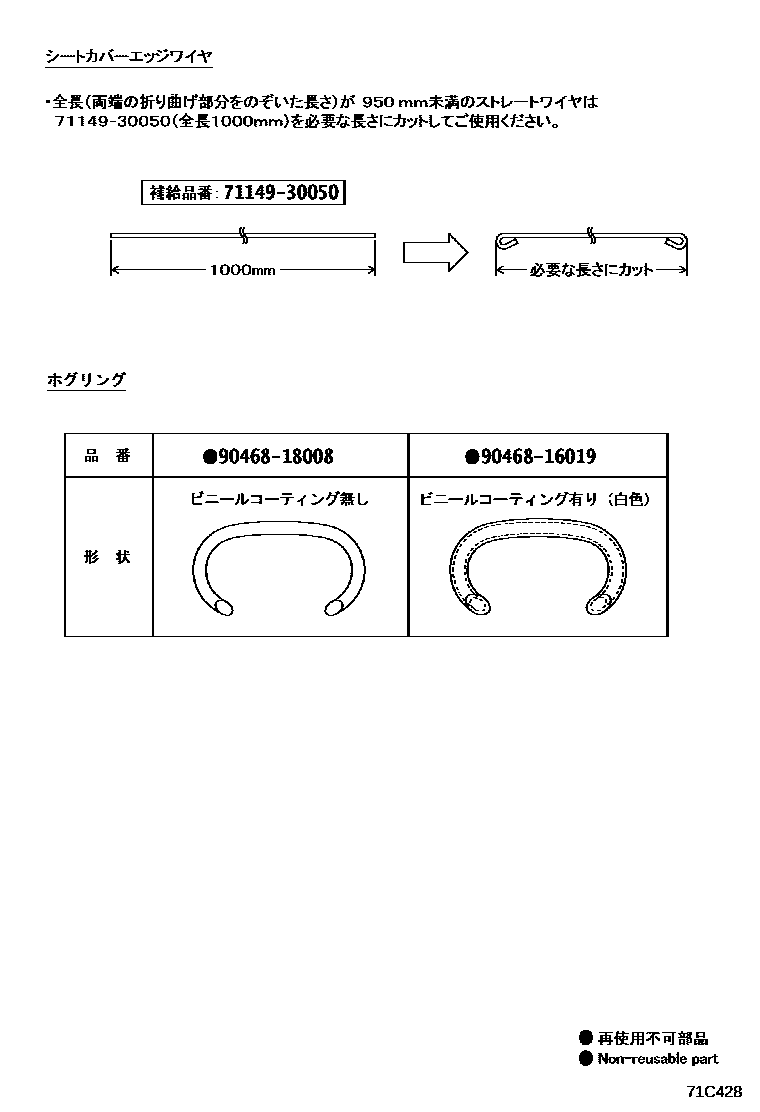

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 6 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-12A30 · 71017-13340 · 71017-13350 · 71017-13380 · 71017-13410 · 71017-13420 · 71017-13430 |
| 71018 | Rear left seat back frame sub-assembly | 71018-12470 · 71018-13160 · 71018-13170 |
| 71033 | Rear seat cushion and leg sub-assembly | 79232-13010 · 79232-13030 |
| 71281A | Rear seat center armrest hinge | 71281-12070 · 71281-12080 |
| 71333 | Rear seat No. 1 seat cushion and legs | 71033-13010 · 71033-13020 |
| 71499D | Rear seat back shock absorber | 71499-30010 · 71499-30020 |
| 71499G | Toyota part | 71499-13070 |
| 71499H | Toyota part | 71499-13100 |
| 71611 | Rear seat cushion cushion | 71503-12240 · 71503-12290 · 71503-12340 · 71503-12341 · 71503-12350 · 71503-12351 · 71503-13040 · 71503-13050 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-12331 · 71507-12341 · 71507-12351 · 71507-12360 · 71507-12370 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-12B00 · 71651-13361 · 71651-13370 · 71651-13400 · 71651-13410 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-12840 · 71652-13221 · 71652-13240 |
| 71701B | Rear right seat back panel sub-assembly | 71701-13020 |
| 71702B | Rear left seat back panel sub-assembly | 71702-13020 |
| 71891 | Rear seat No. 1 backrest fixing bracket | 71891-13010 · 71891-13020 · 71891-13030 |
| 72630C | Rear right seat back lock assembly | 72630-12360 |
| 72637H | Toyota part | 72637-13070 |
| 72638A | Rear left seat back lock spring | 72638-13040 |
| 72640A | Rear left seat back lock assembly | 72640-12330 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72704A | Rear seat backrest tilt control cable | 72704-13070 |
| 72704B | Rear No. 2 seat backrest inclination control cable | 72704-13080 · 72704-13090 |
| 72839 | Rear seat armrest hinge gasket | 72839-22010 |
| 73705B | Cross anchor bracket sub-assembly | 73705-13020 · 73705-13030 · 73705-13040 · 73705-13050 · 73705-13060 |
| 79956 | Rear seat leg bracket cover | 79957-12010 · 79957-12020 |
| 79959 | Rear seat leg cover | 79959-13020 |
