Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

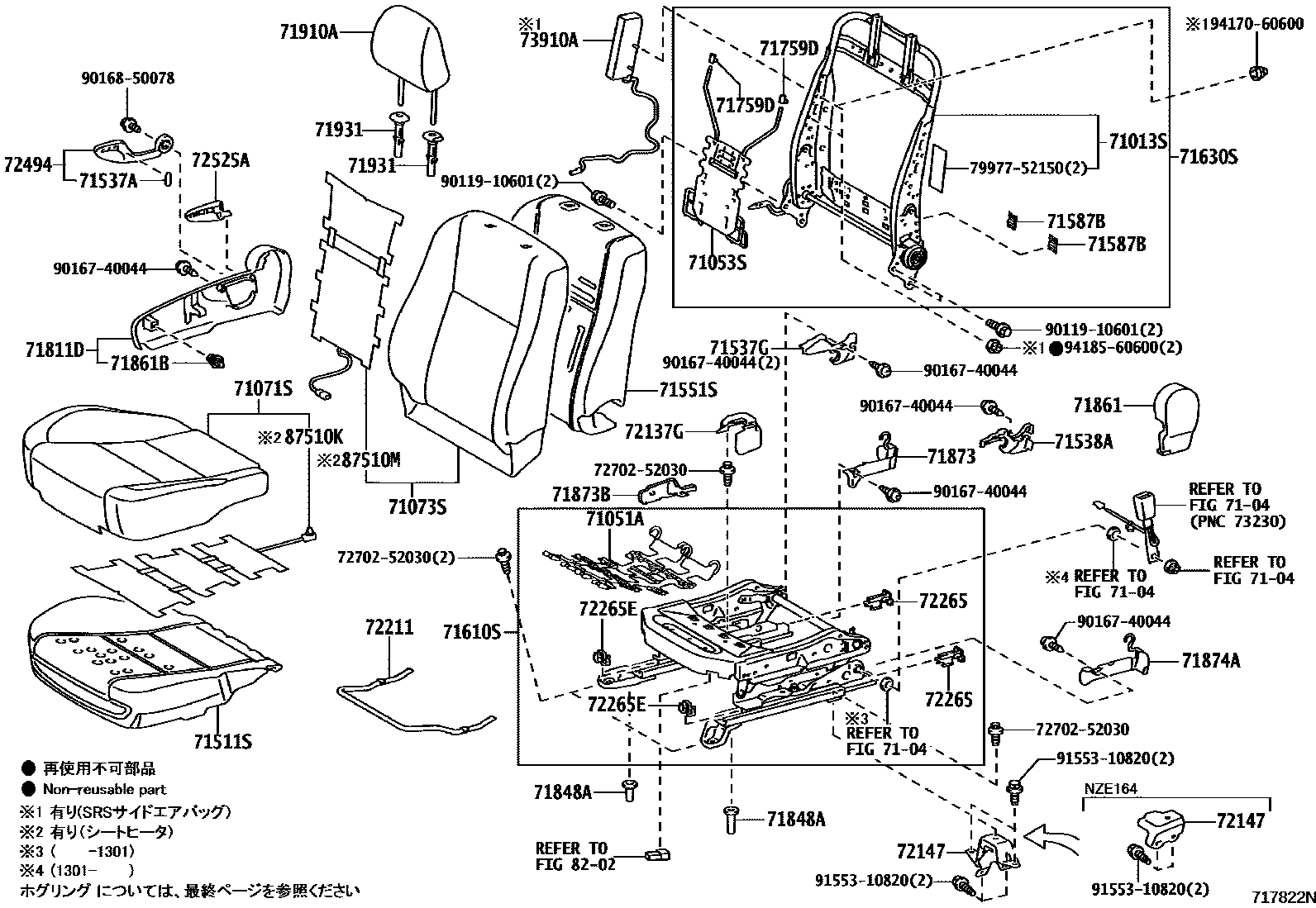

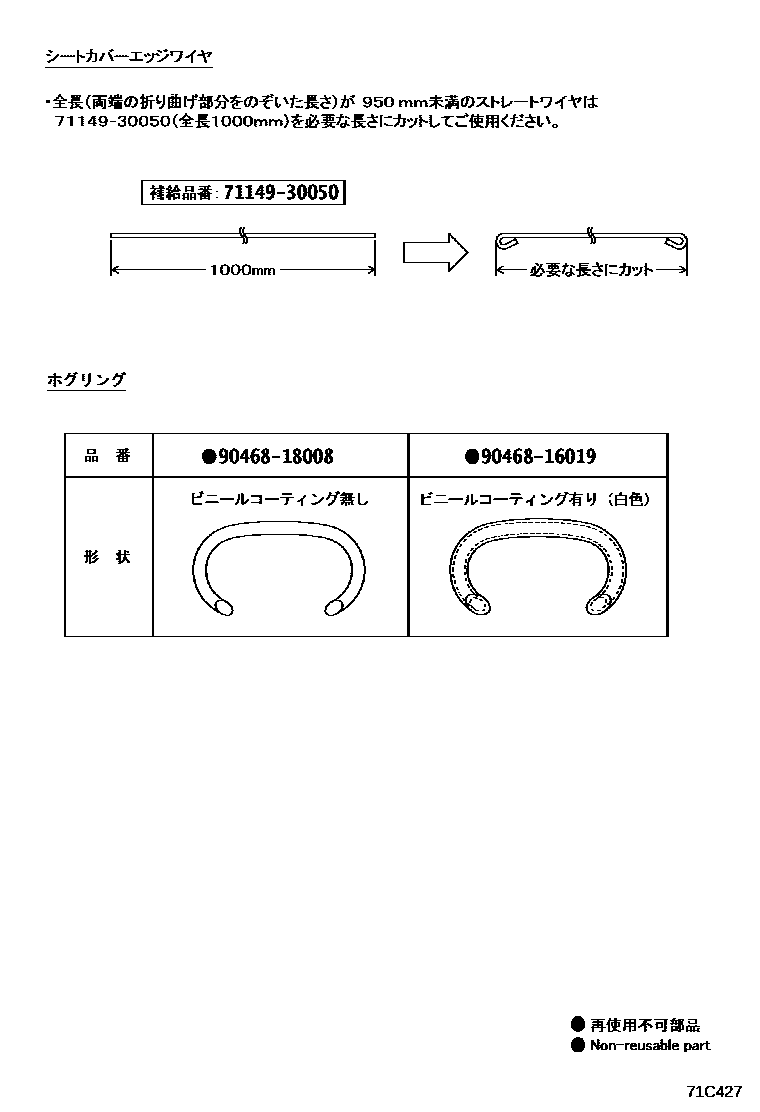

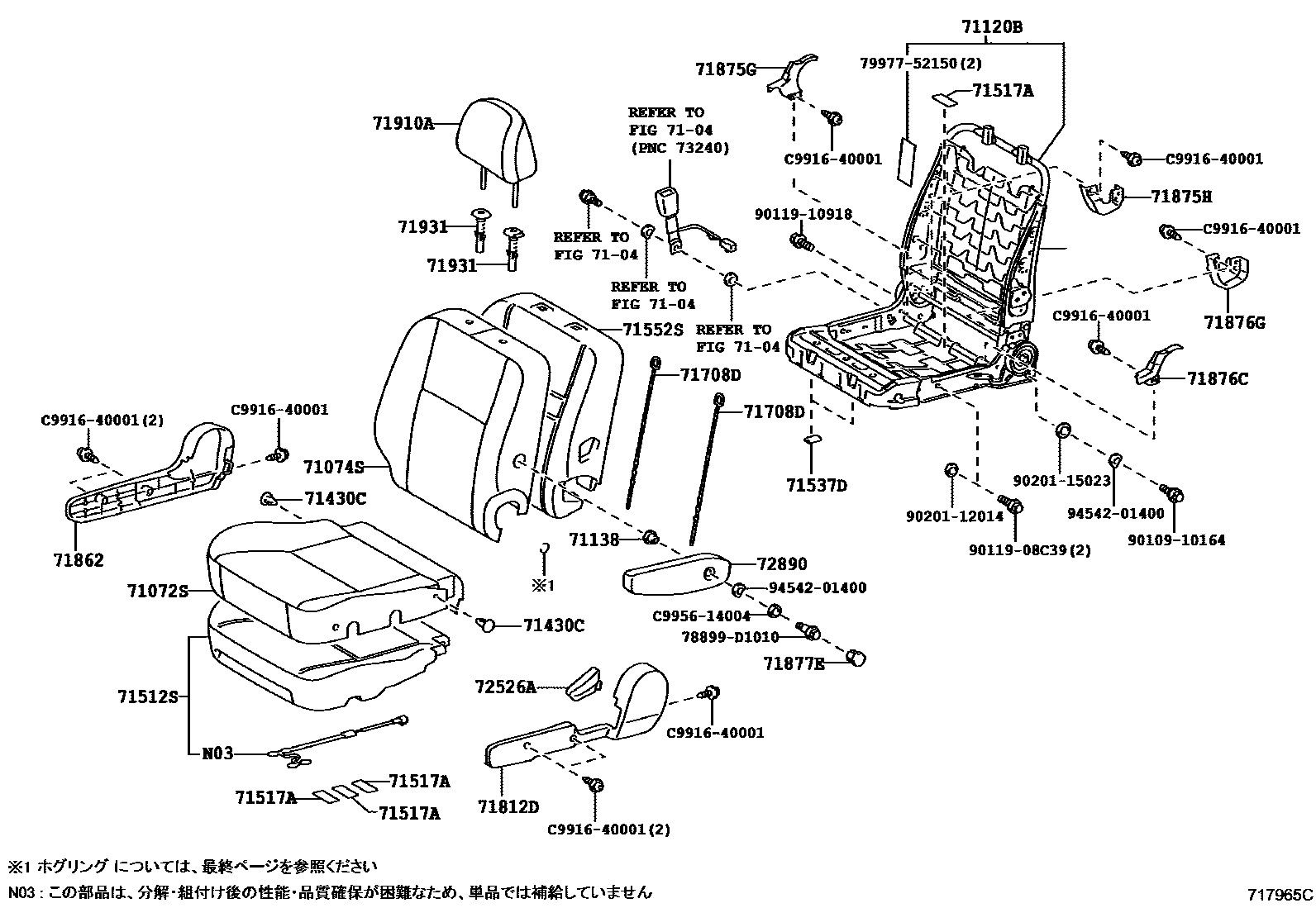

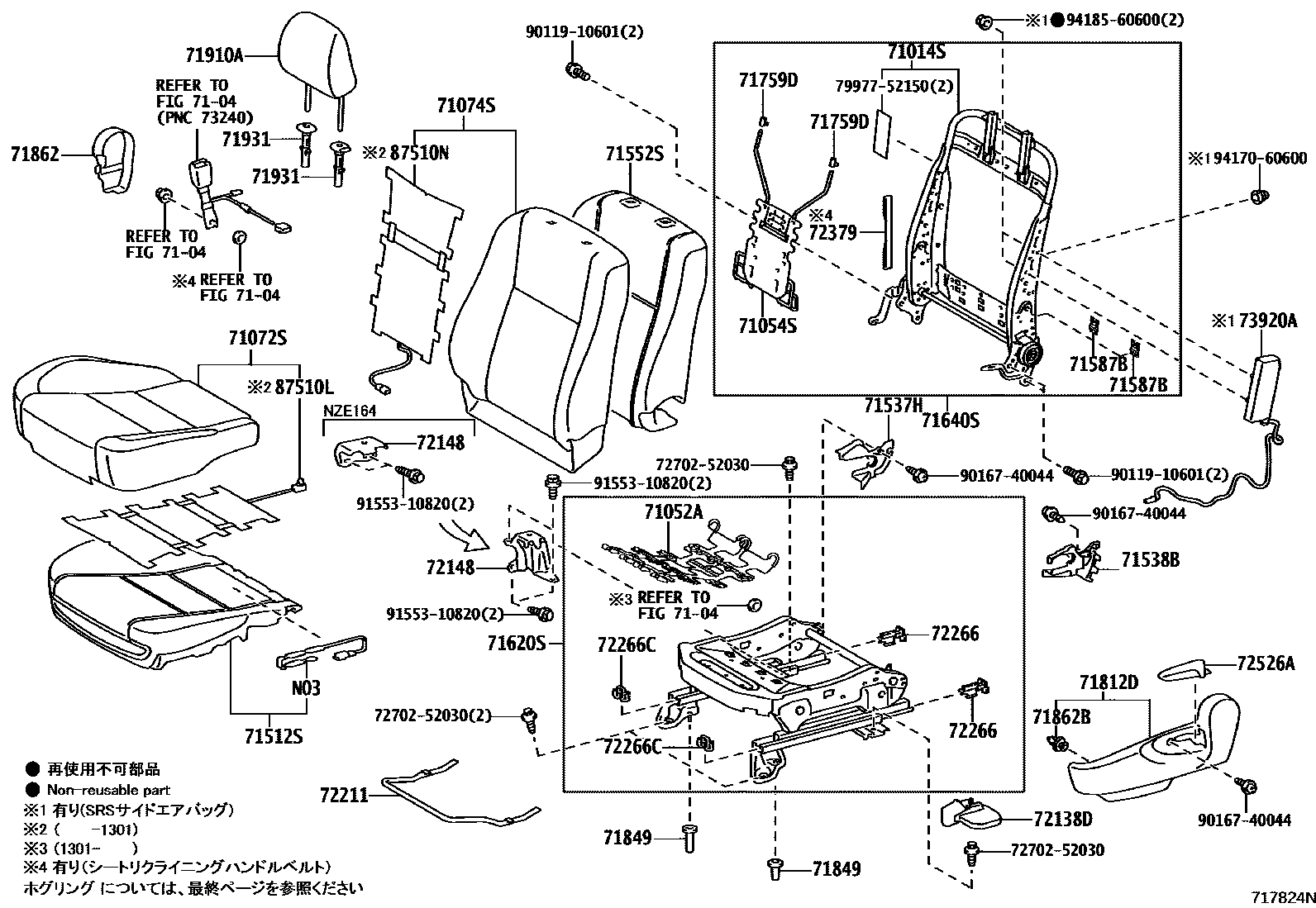

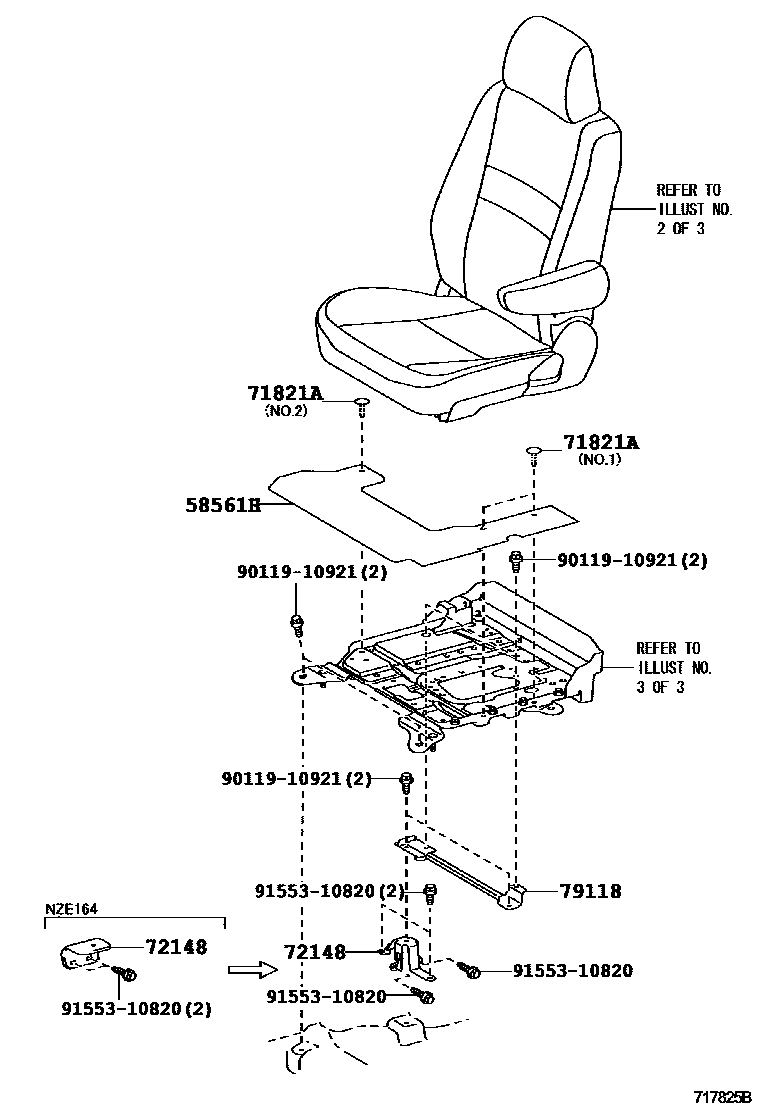

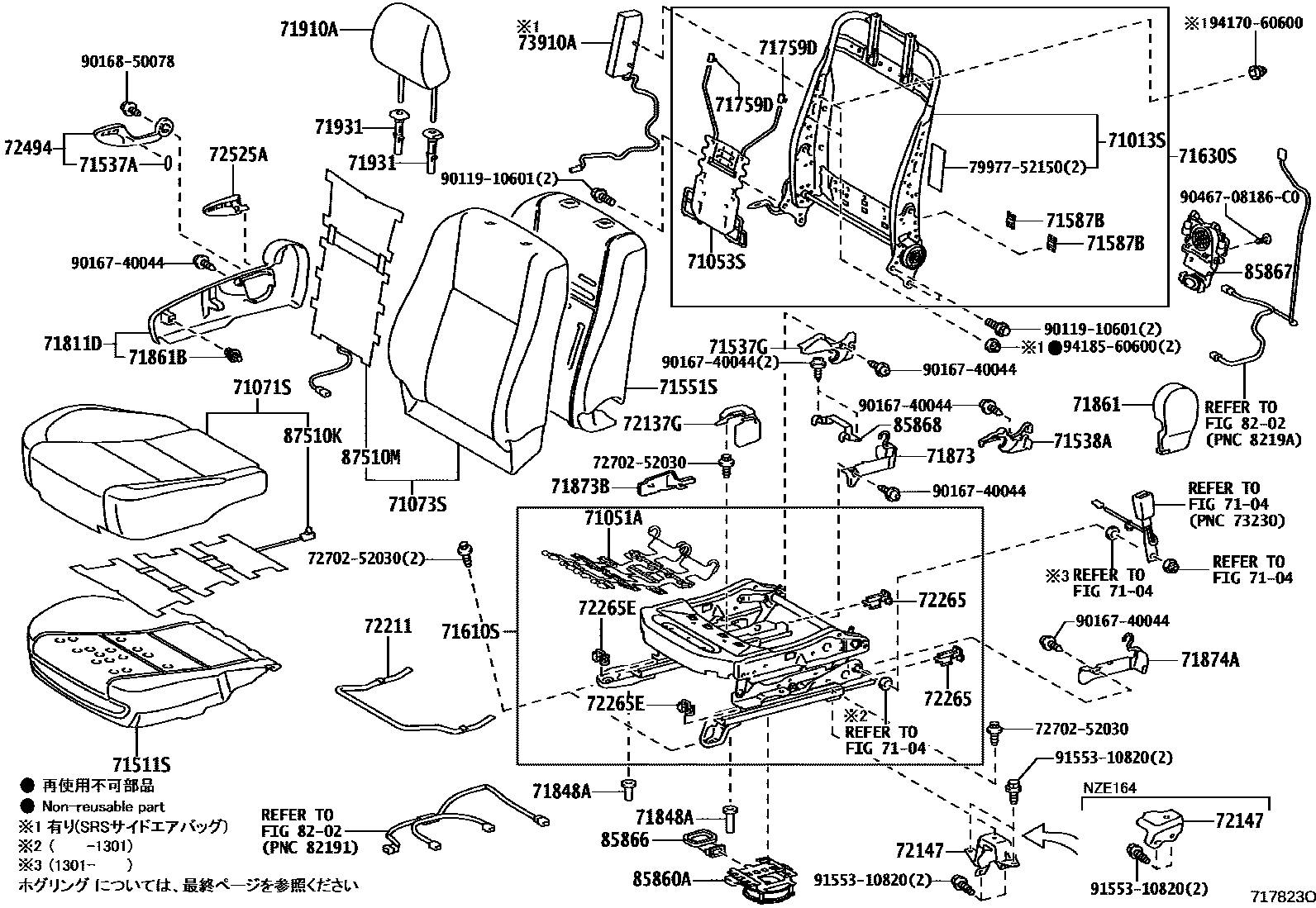

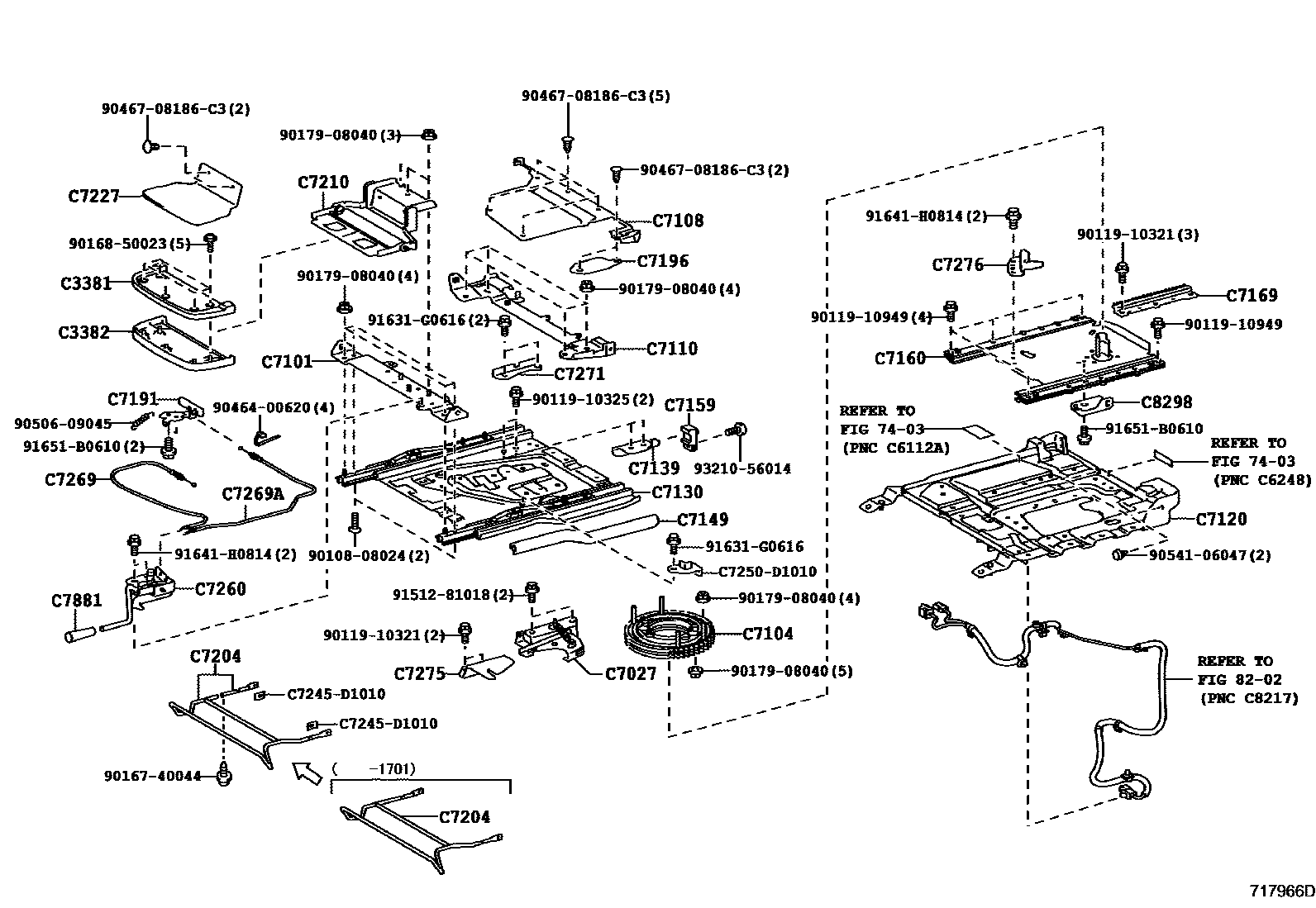

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 7 images and 72 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-13090 · 71013-13091 · 71013-13100 · 71013-13101 · 71013-13110 · 71013-13120 |
| 71014S | Front left seat back frame sub-assembly | 71014-13060 · 71014-13061 · 71014-13070 · 71014-13071 · 71014-13080 · 71014-13090 · 71014-13091 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-13010 · 71051-47060 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-47060 |
| 71053S | Front right seat back spring sub-assembly | 71053-52050 |
| 71054S | Front left seat back spring sub-assembly | 71053-52050 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-D1171 |
| 71138 | Front seat fixed partition | 35469-D1030 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-13010 · 71511-13170 · 71511-13190 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-13020 · 71502-13030 · 78735-D1100 |
| 71517A | Front seat cushion face protector | 71517-D1020 |
| 71537A | Front seat cushion protective cover | 71537-47040 |
| 71537D | Front left seat cushion edge protective cover | 71537-26010 |
| 71551S | Front right seat back cushion (for split seats) | 71505-13050 · 71505-13060 · 71551-13290 · 71551-13300 · 71551-13330 · 71551-13340 |
| 71552S | Front left seat back cushion (for split seats) | 71551-13290 · 71551-13330 · 71551-D1070 · 71552-13190 · 71552-13210 |
| 71587B | Front seat back edge protective cover | 71587-52030 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-13010 · 71610-13011 · 71610-13020 · 71610-13021 · 71610-13050 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-13010 · 71620-13011 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-13090 · 71630-13091 · 71630-13100 · 71630-13101 · 71630-13110 · 71630-13120 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-13090 · 71640-13091 · 71640-13100 · 71640-13101 · 71640-13110 · 71640-13120 · 71640-13121 |
| 71708D | Left seat cover fixed belt sub-assembly | 71708-28010 |
| 71759D | Front seat back hook 2 | 71759-47010 · 71759-47011 |
| 71848A | Right seat adjuster cover | 71848-26010 · 71848-52100 |
| 71849 | left seat adjuster cover | 71848-26010 · 71848-52100 |
| 71861B | Clip (for front right seat guard) | 71769-47020 |
| 71862B | Clip (for front left seat guard) | 71769-47020 |
| 71874A | Front left seat cushion lower guard | 71874-47040 |
| 71875H | Right backrest recliner inner cover (for left seat) | 71875-58060 |
| 71876G | Left backrest recliner inner cover (for left seat) | 71876-58060 |
| 72147 | Front right seat inner slide rail rear lower bracket | 72147-13010 · 72147-13020 |
| 72148 | Front left seat inner slide rail rear lower bracket | 72148-12110 · 72148-12120 · 72148-13010 · 72148-13020 |
| 72211 | Seat slide adjustment handle | 72211-12340 · 72211-12350 · 72211-47020 · 72211-52180 · 72211-52220 |
| 72265 | Right seat rail upper rail cover | 72265-52040 |
| 72265E | Toyota part | 72265-60110 |
| 72266 | Left seat rail upper rail cover | 72265-52040 |
| 72266C | Toyota part | 72265-60110 |
| 72379 | Seat back tilt adjustment handle strap | 72379-D1040 |
| 73910A | Front right seat airbag assembly | 73910-13030 |
| 73920A | Front left seat airbag assembly | 73920-13040 |
| 79118 | No. 1 seat leg bracket | 79329-12030 |
| 85860A | Right seat cushion temperature control blower assembly | 85860-13010 |
| 85866 | Right seat cushion temperature control air duct | 85866-13010 |
| 85867 | Right seat back temperature control blower | 85867-13010 · 85867-13011 |
| 85868 | Right seat cushion temperature control bracket | 85868-13010 |
| 87510K | Front right seat cushion heater assembly | 87510-13050 · 87510-13051 · 87510-13060 |
| 87510L | Front left seat cushion heater assembly | 87510-13070 |
| 87510M | Front right seat back heater assembly | 87530-12070 · 87530-13010 · 87530-13011 · 87530-13020 |
| 87510N | Front left seat back heater assembly | 87530-12070 · 87530-13020 |
| C7027 | WELCAB seat rotation lock sub-assembly | C7027-D1100 |
| C7101 | Front seat anchor bracket sub-assembly | C7101-D1010 |
| C7104 | Seat turntable sub-assembly | C7104-D1011 |
| C7108 | Turntable cover assembly | C7108-D1010 |
| C7110 | Rear seat anchor bracket sub-assembly | C7110-D1010 |
| C7120 | No. 1 WELCAB seat support | C7120-D1B10 |
| C7130 | Turntable plate assembly | C7130-D1010 |
| C7139 | hook bracket | C7139-D1480 |
| C7149 | Left turntable plate edge protective cover | C7149-D1060 |
| C7159 | WELCAB seat leg stop block cushion pad | C7159-D1090 |
| C7160 | Sliding plate assembly | C7160-D1050 |
| C7169 | sliding plate rack gear | C7169-D1011 |
| C7191 | Seat anchor linkage bracket | C7191-D1010 |
| C7196 | Turntable cover No. 1 | C7196-D1040 |
| C7204 | WELCAB seat slide handle sub-assembly | C7204-D1030 · C7204-D1031 |
| C7210 | WELCAB seat footrest assembly | C7210-D1020 |
| C7260 | Seat rotation lock handle assembly | C7260-D1010 |
| C7269 | Seat rotation lock release cable | C7269-D1010 |
| C7269A | Seat 1 rotation lock release cable | C7269-D1020 |
| C7271 | Interlocking upper bracket | C7271-D1010 |
| C7275 | No. 1 lock plate | C7275-D1011 |
| C7276 | No. 2 lock plate | C7276-D1011 |
| C7881 | Control linkage handle | C7881-22040 |
| C8298 | WELCAB seat wire harness clip bracket | C8298-D1030 |
