Toyota COROLLA 锁芯组件 — Figure 6712

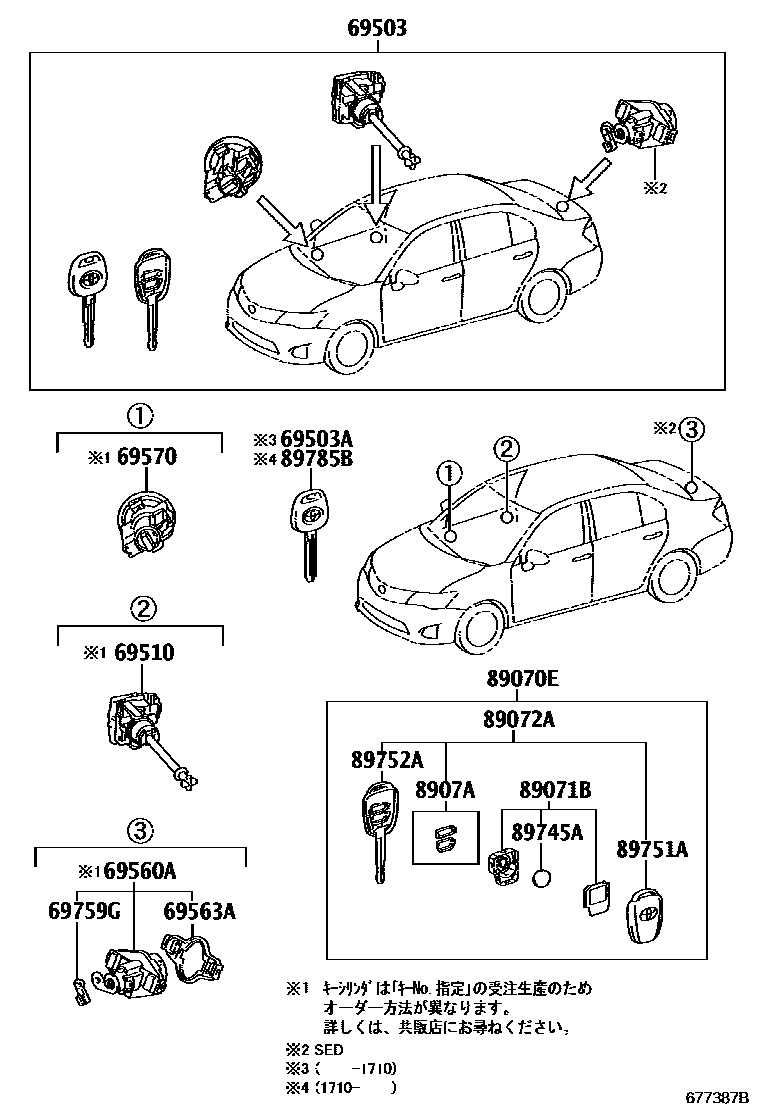

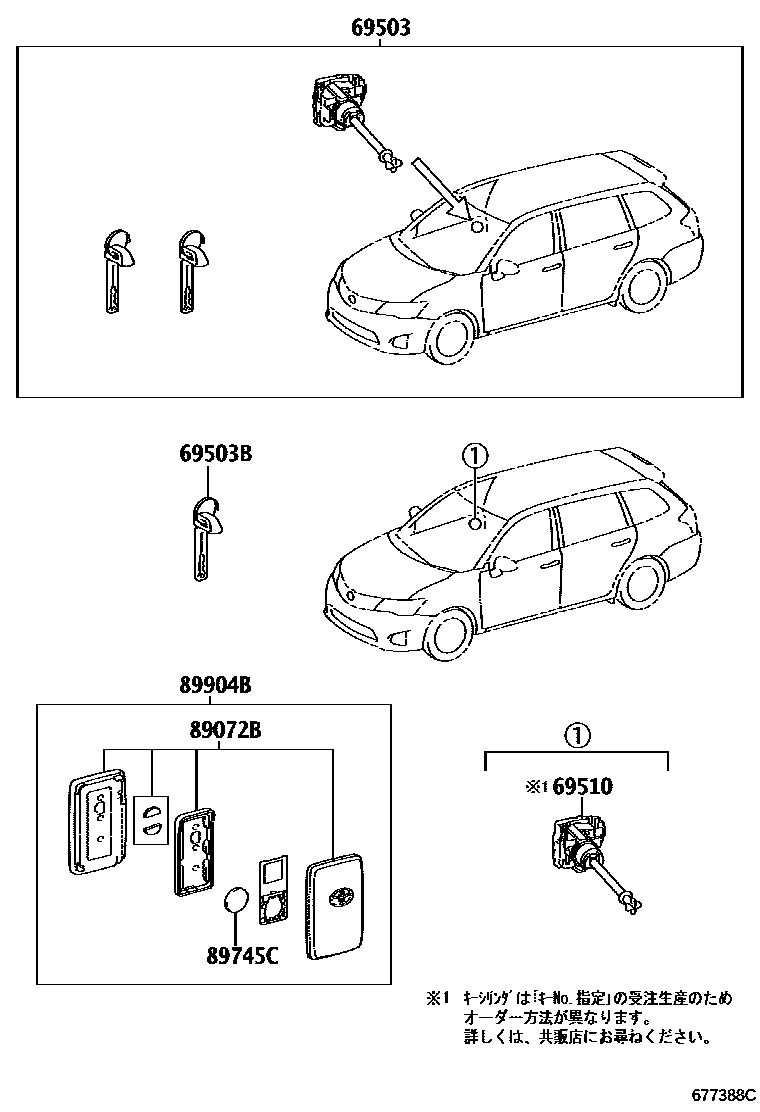

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-12F90 · 69005-12G00 · 69005-12G10 · 69005-12K10 · 69005-12K20 |
| 69503A | external tooth key | 90999-00199 |
| 69503B | internal tooth key | 69515-52110 |
| 69510 | Right front door lock cylinder assembly | 69510-12420 · 69510-12430 |
| 69560A | Trunk door lock core assembly | 69560-12730 |
| 69563A | Trunk door lock cylinder lining | 69563-52030 |
| 69570 | Ignition switch lock cylinder assembly | 69570-22130 |
| 69759G | Trunk door lock core buckle | 69759-24080 |
| 89070E | Remote key assembly | 89070-12A40 · 89070-15030 |
| 89071B | Remote key sub-assembly module assembly | 89071-12290 · 89071-52320 |
| 89072A | Remote key shell assembly | 89072-42400 · 89072-52540 |
| 89072B | Remote key shell assembly (for smart key) | 89072-33610 · 89072-47150 |
| 8907A | Transmitter switch assembly | 8907A-52010 |
| 89745A | Transmitter battery | 89745-48030 |
| 89745C | Transmitter battery | 89745-52020 |
| 89751A | Transmitter housing cover | 89751-42090 · 89751-52130 |
| 89752A | transmitter housing | 89752-42050 · 89752-52070 |
| 89785B | transceiver key master transmitter | 89785-52030 |
| 89904B | Electronic key transmitter sub-assembly | 89904-22060 · 89904-47170 |
