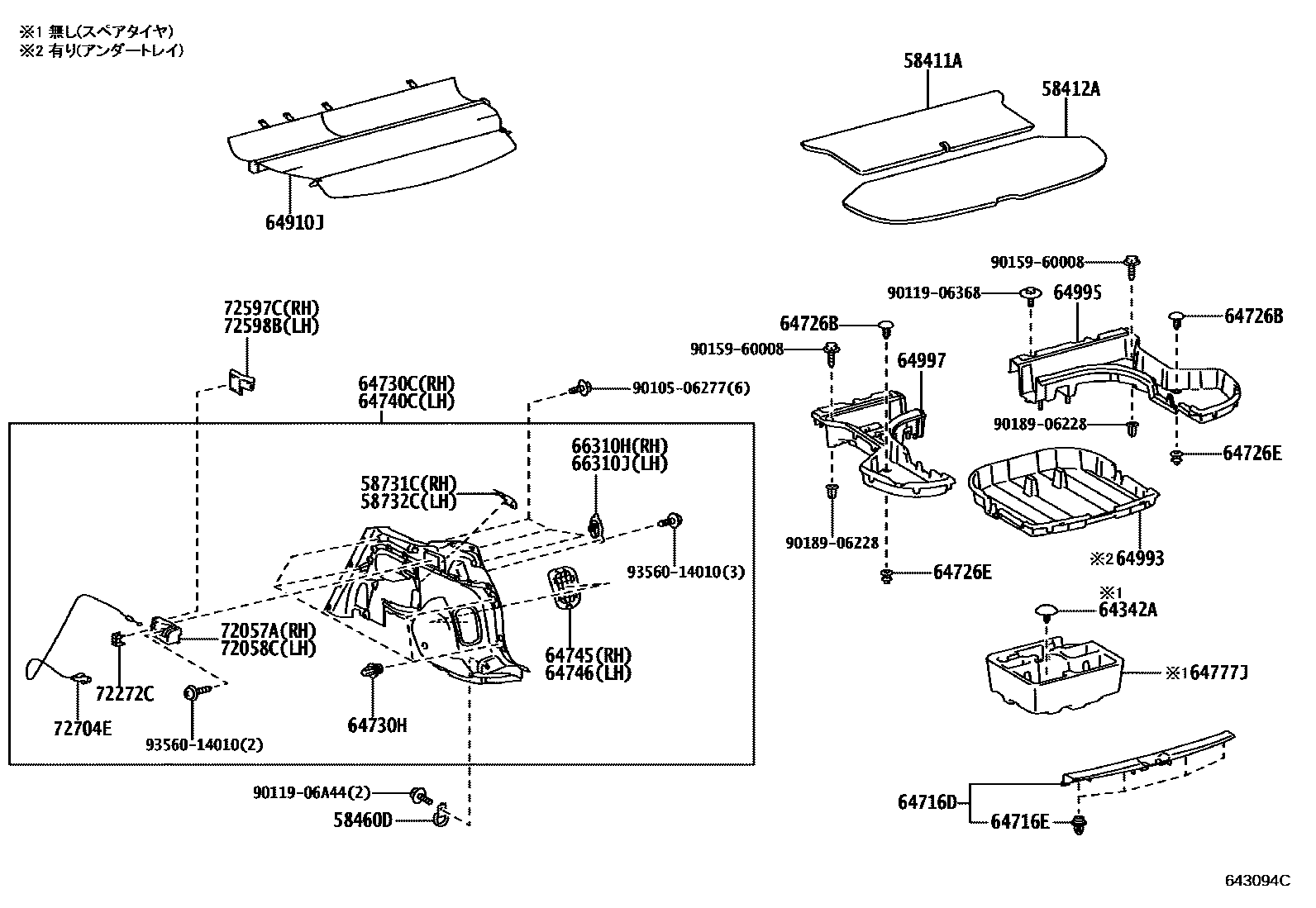

Toyota COROLLA 底板和底板装饰罩 — Figure 6404
Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58460D | Luggage fixing belt lock assembly | 58460-33020 |
| 64342A | clip | 58707-50060 |
| 64716E | Clip (for rear floor decorative cover) | 90467-10161 · 90467-10188 |
| 64726E | Rear floor trim cover fixings | 64726-12050 |
| 64730H | Clip (for bottom panel side decorative panel) | 90467-10161 |
| 64777J | Spare tire cushion | 64777-12130 · 64777-12140 · 64777-12150 |
| 72272C | Seat rail control cable clip | 72272-13020 |
| 72704E | Rear seat backrest tilt control cable | 72704-13010 · 72704-13100 · 72704-13110 |
