Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403

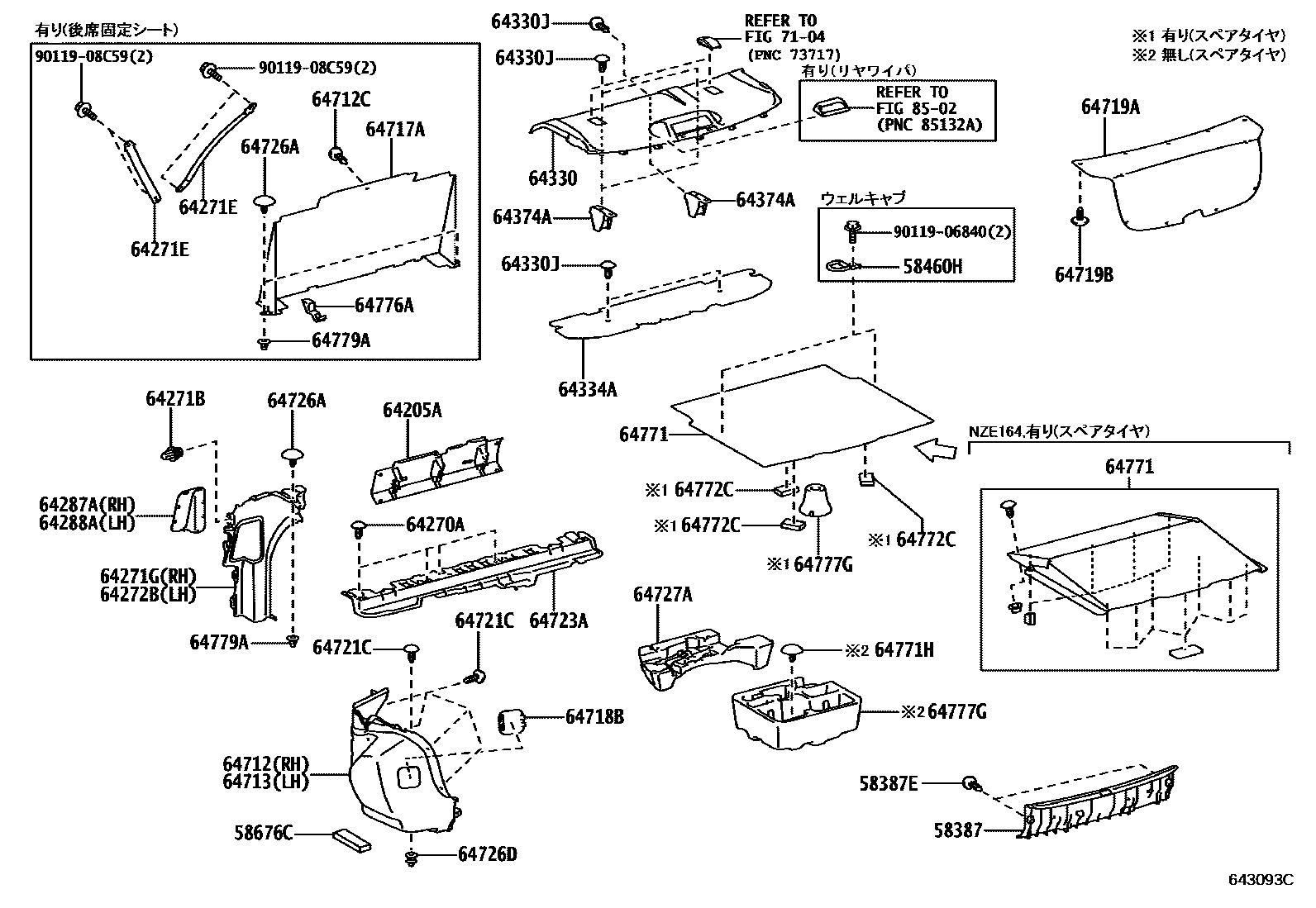

Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58460H | Luggage fixing belt lock assembly | 58460-33020 |
| 58676C | Rear floor sound absorbing mat | 58579-12010 · 58579-12011 |
| 64271B | Clip (for compartment partition) | 90467-10161 |
| 64271E | compartment partition | 64241-12060 |
| 64334A | Glove box decorative mat | 64334-12380 |
| 64374A | Glove box decorative panel bracket | 64374-12040 |
| 64718B | Trunk trim access hole cover | 64718-33010 |
| 64726D | Luggage rear trim clip | 64726-12050 |
| 64727A | Luggage interior decorative mat | 64727-12050 · 64727-12051 · 64727-12060 · 64727-12061 |
| 64771H | Clip (for spare tire cover) | 58707-50060 |
| 64772C | Spare tire cover liner | 64761-12040 |
| 64776A | Tool bag box spacer | 64765-12050 |
| 64777G | Spare tire cushion | 64777-12130 · 64777-12140 · 64777-12150 · 64777-52040 |
| 64779A | Spare tire cover stop | 64779-52020 |
