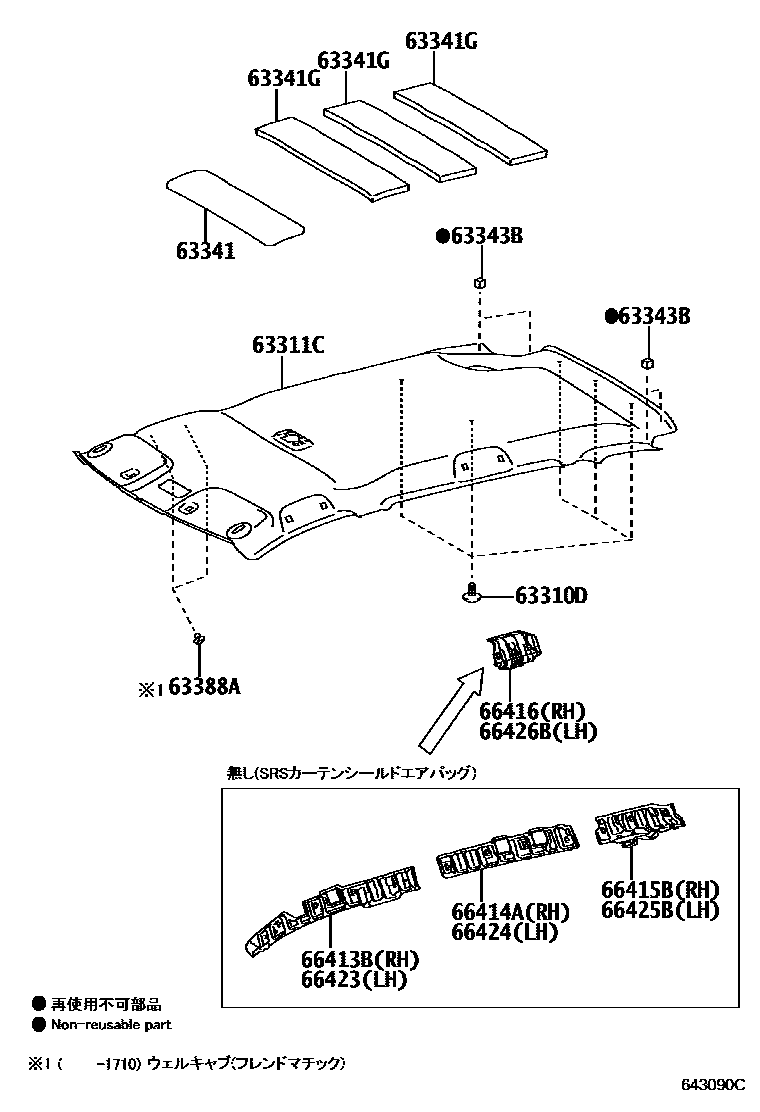

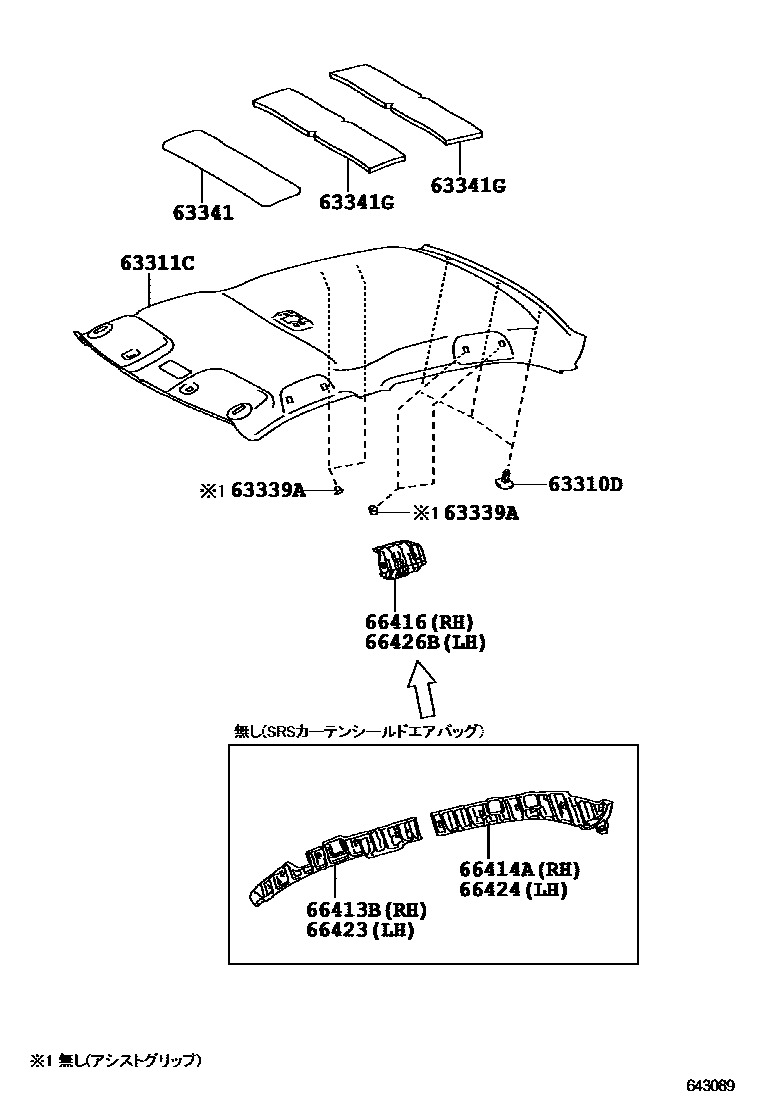

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402
Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-12360 |
| 63341G | roof muffler mat | 63343-12190 · 63343-13060 |
| 63343B | Rear roof silencer pad | 69759-12130 |
| 66413B | Right front longitudinal member spacer | 66413-12110 |
| 66414A | Right rear longitudinal member spacer | 66414-12110 · 66414-13040 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-13040 |
| 66416 | No. 3 right rear longitudinal beam spacer | 66416-12020 |
| 66423 | Left front longitudinal member spacer | 66423-12110 |
| 66424 | Left rear longitudinal member spacer | 66424-12110 · 66424-13040 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66425-13040 |
| 66426B | No. 3 left rear longitudinal beam spacer | 66426-12020 |
