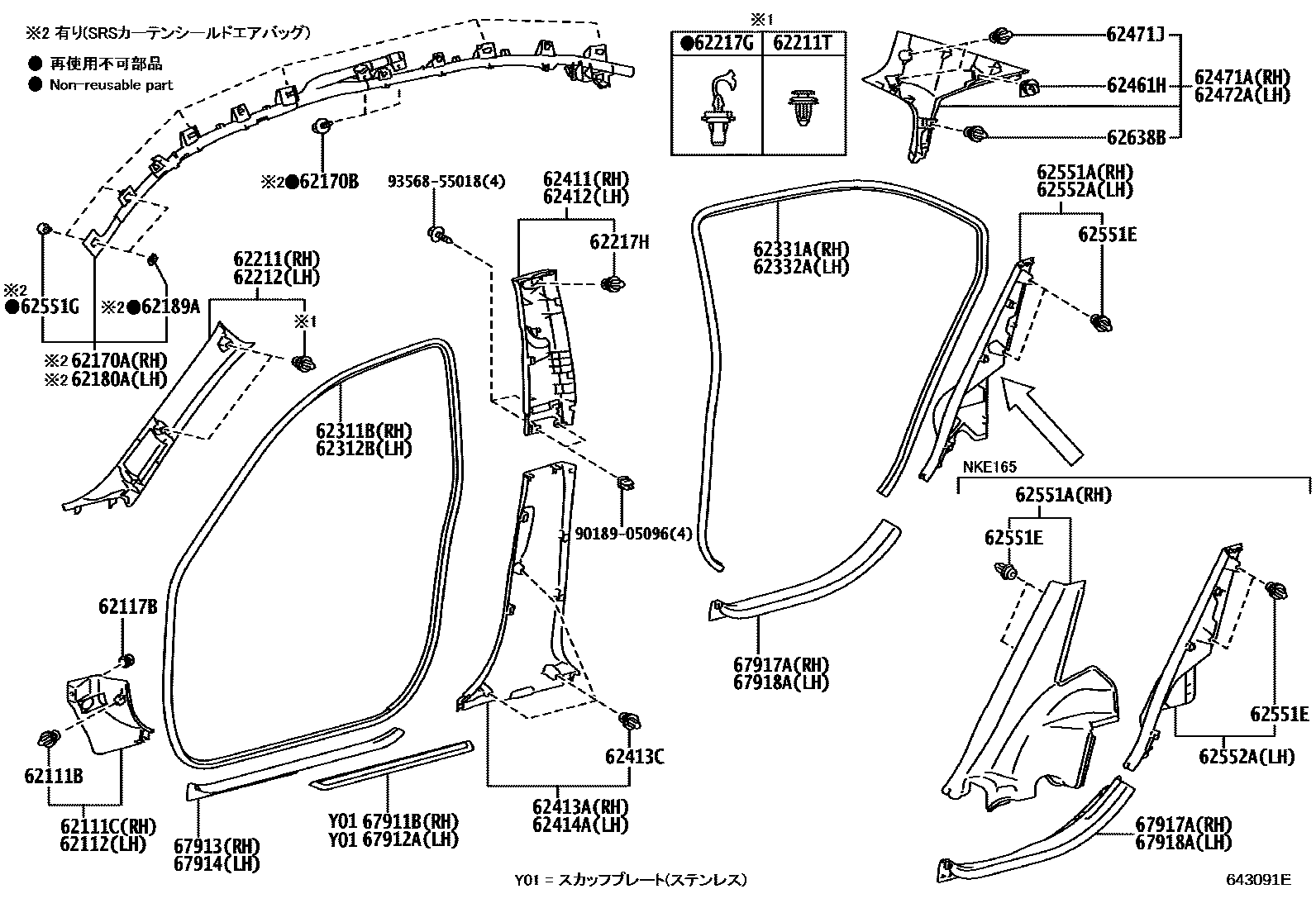

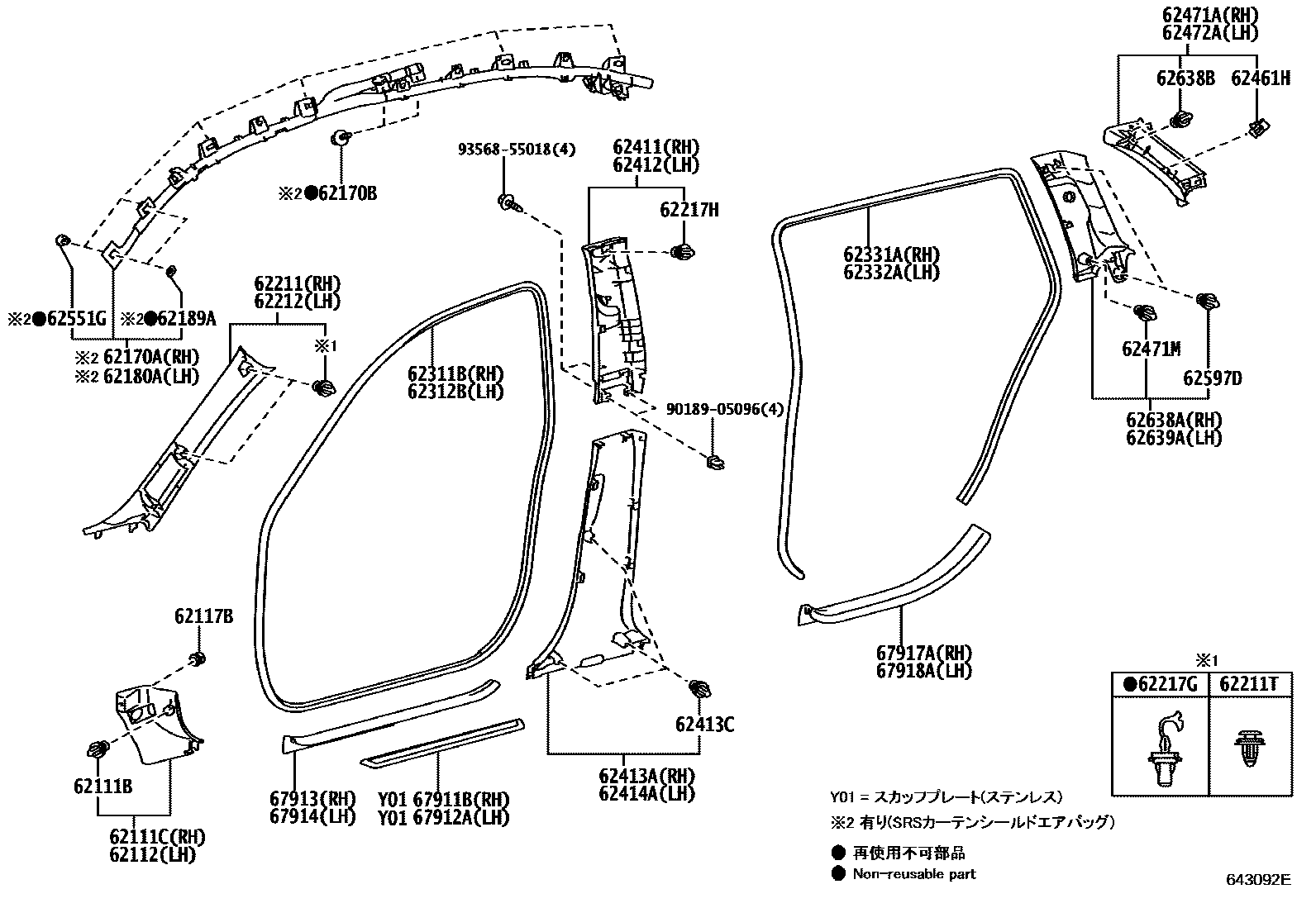

Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401
Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-10161 |
| 62117B | No. 1 clip (for cowl side trim panel) | 90467-06147 |
| 62170A | Right curtain air bag assembly | 62170-12040 · 62170-13040 |
| 62170B | Bolts with washers | 90119-06869 |
| 62180A | Left curtain air bag assembly | 62180-12040 · 62180-13040 |
| 62189A | Curtain air bag clip spacer | 62189-33010 |
| 62211T | Clip (for front pillar decorative panel) | 90467-10161 |
| 62217G | Front pillar decorative plate clip | 62217-52120 |
| 62217H | Center pillar decorative plate clip | 90467-10167 |
| 62311B | Right front door opening waterproof tape | 62311-12260 |
| 62312B | Left front door opening waterproof tape | 62312-12260 |
| 62331A | Right rear door opening waterproof tape | 62331-12200 · 62331-13070 |
| 62332A | Left rear door opening waterproof tape | 62332-12200 · 62332-13070 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10161 |
| 62461H | Clips (for roof side interior panels) | 90467-09212 · 90468-05125 |
| 62471J | Clips (for roof side trim panels) | 90467-10161 · 90467-10188 |
| 62471M | clip | 90467-09232 |
| 62551E | Clips (for rear seat side trim panels) | 90467-10161 |
| 62551G | clip | 62184-06010 |
| 62597D | clip | 90467-10161 |
| 62638B | clip | 90467-10161 |
