Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

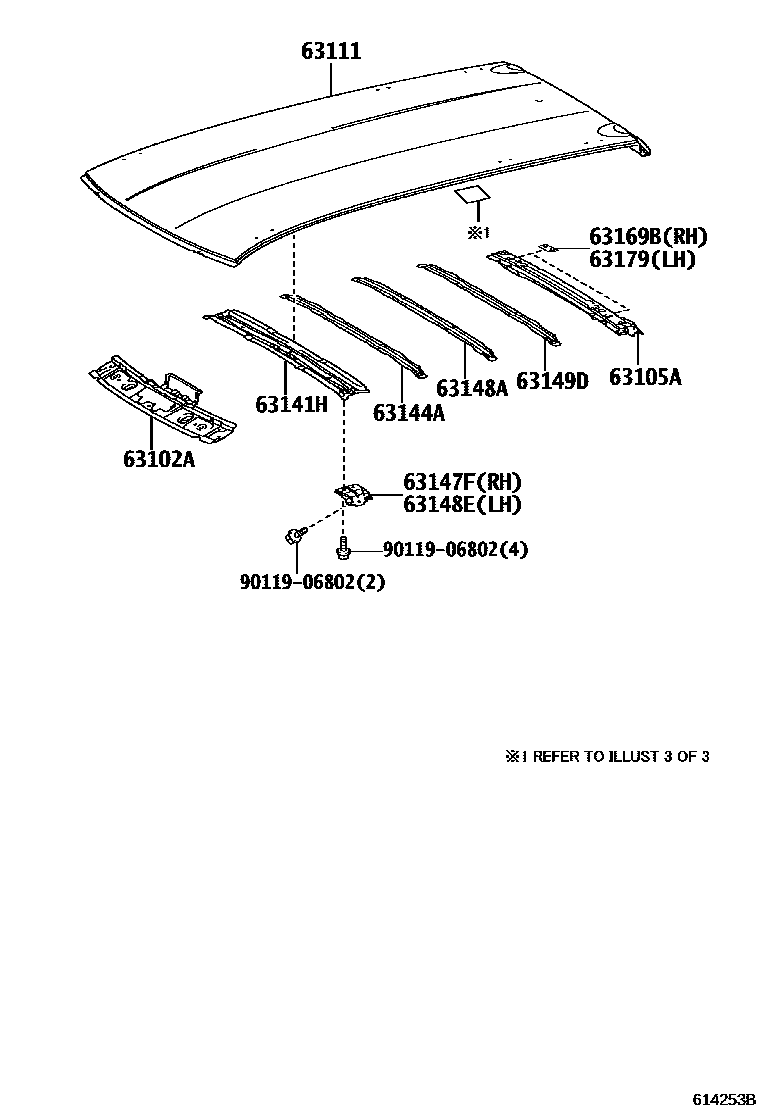

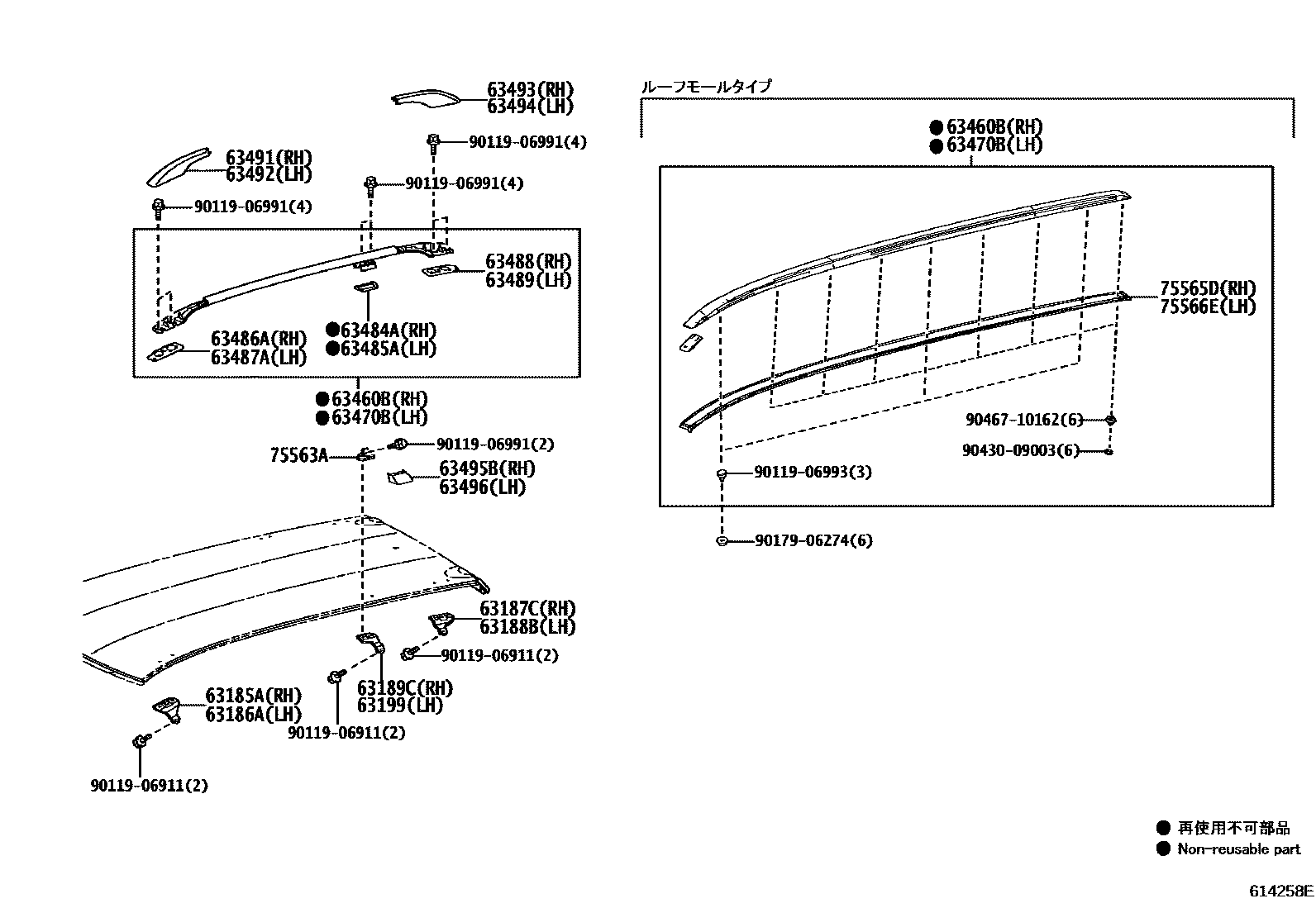

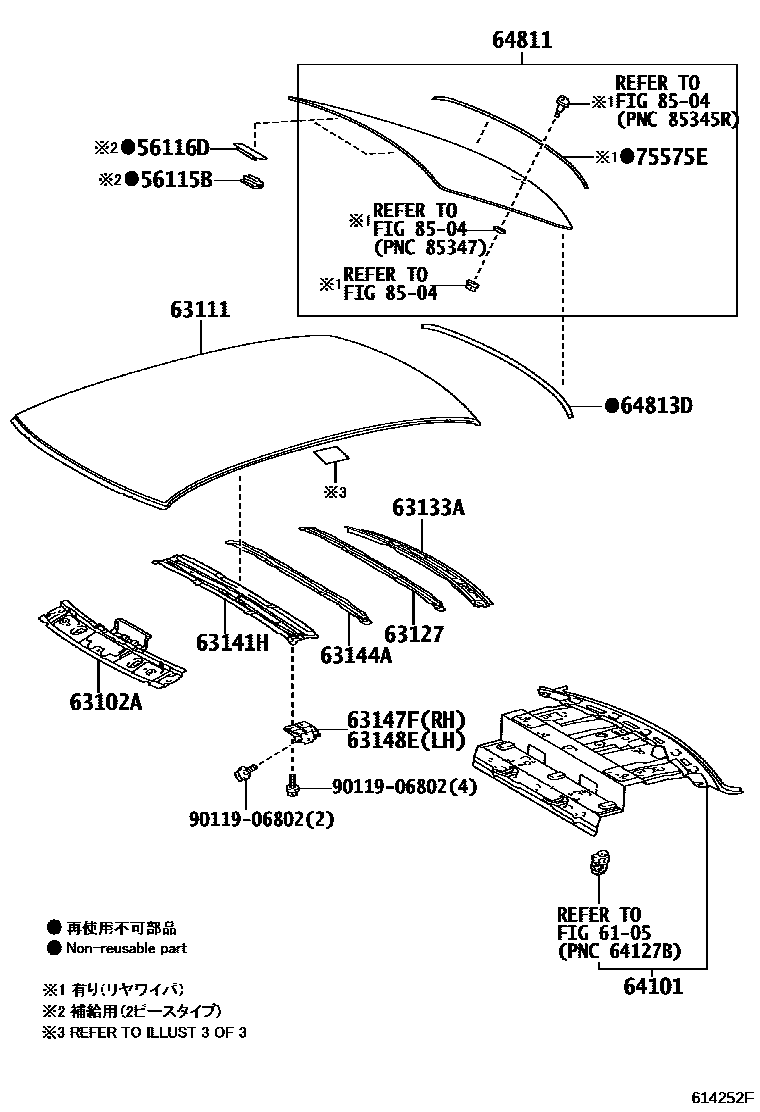

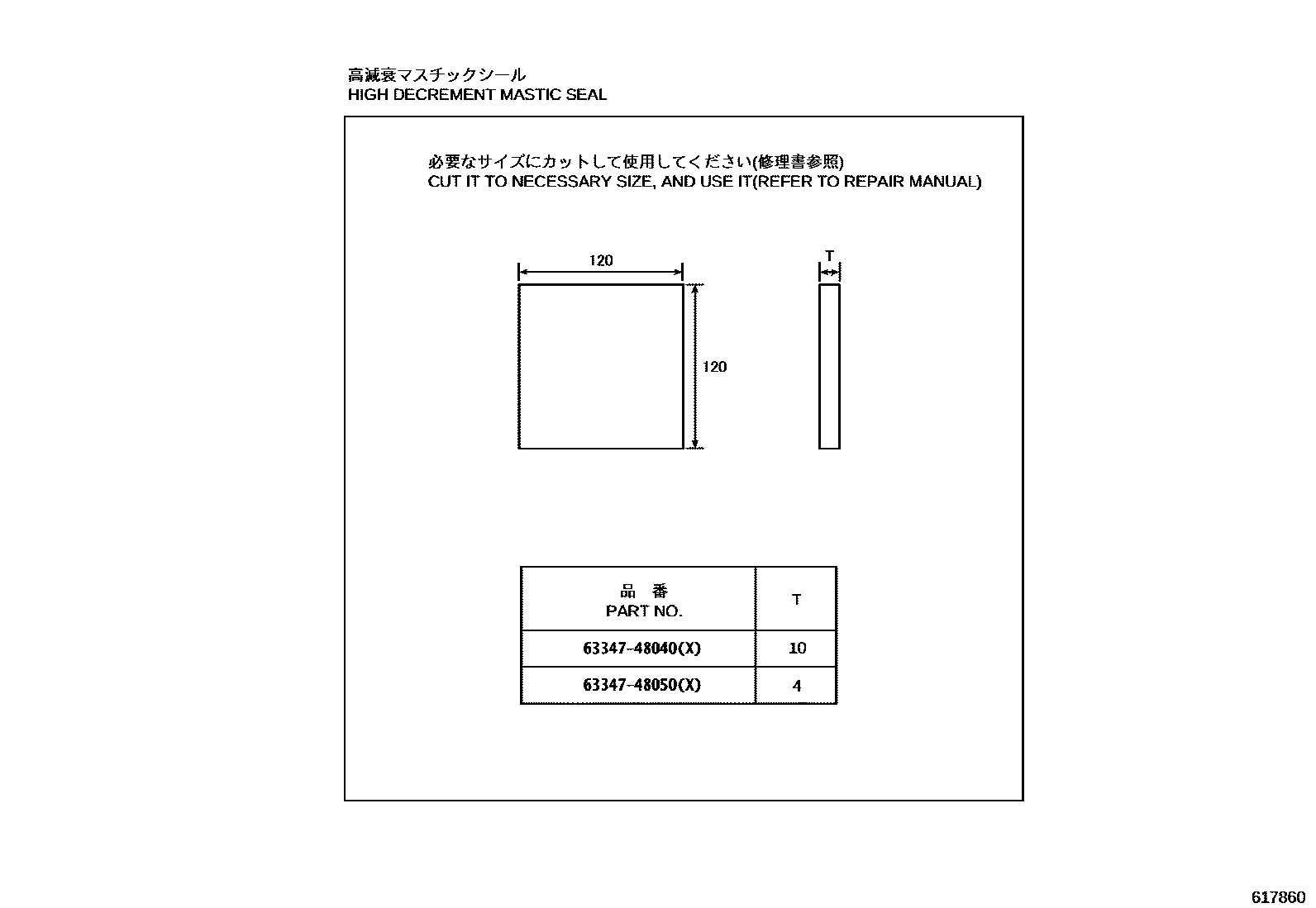

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 4 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30100 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 63102A | Windshield roof sub-assembly | 63102-12290 |
| 63105A | Back door opening frame sub-assembly | 63105-13230 |
| 63111 | roof panel | 63111-12A10 · 63111-13500 · 63111-13510 · 63111-13520 |
| 63127 | No. 5 roof panel reinforcement | 63127-12030 |
| 63133A | upper frame of back window | 63133-12340 |
| 63141H | Center roof panel reinforcement | 63141-12320 |
| 63144A | No. 4 roof panel reinforcement | 63144-12130 · 63144-13060 |
| 63147F | Right roof panel reinforcement bracket | 63147-12050 |
| 63148A | No. 7 roof panel reinforcement | 63148-13070 |
| 63148E | Left roof panel reinforcement bracket | 63147-12050 |
| 63149D | No. 8 roof panel reinforcement | 63149-13050 |
| 63169B | Right roof panel reinforcement panel | 63169-13010 |
| 63179 | Left roof panel reinforcement panel | 63169-13010 |
| 63185A | Right front roof rack bracket | 63185-13110 |
| 63186A | Left front roof rack bracket | 63186-13120 |
| 63187C | Right rear roof rack No. 1 bracket | 63187-13060 |
| 63188B | Left rear roof rack No. 1 bracket | 63188-13050 |
| 63189C | Right center roof rack bracket | 63189-13100 |
| 63199 | Left center roof rack bracket | 63199-13030 |
| 63484A | Right center roof rack foot cushion | 63484-13080 |
| 63485A | Left center roof rack foot cushion | 63485-13080 |
| 63486A | Right front roof rack support foot cushion | 63486-13080 |
| 63487A | Left front roof rack support foot cushion | 63487-13080 |
| 63488 | Right rear roof rack foot cushion pad | 63488-13090 |
| 63489 | Left rear roof rack support foot cushion pad | 63489-13090 |
| 64101 | Upper back panel sub-assembly | 64101-12880 · 64101-12890 · 64101-12A00 · 64101-12A10 |
| 64811 | back window glass | 64811-12B10 · 64811-12B20 · 64811-12B30 · 64811-12B40 · 64811-12B70 · 64811-12B80 · 64811-12C10 · 64811-12C20 · 64811-12C40 · 64811-12C50 |
| 64813D | Back window glass adhesive seal | 56117-50140 |
| 75563A | No. 1 roof drain channel side decorative strip fixings | 75563-13010 |
| 75565D | No. 1 roof side panel protector | 75565-13020 |
| 75566E | No. 2 roof side trim protector | 75566-13020 |
| 75575E | Lower protective strip on the outside of the rear window | 75575-12460 |
