Toyota COROLLA 地板垫和地毯 — Figure 5804

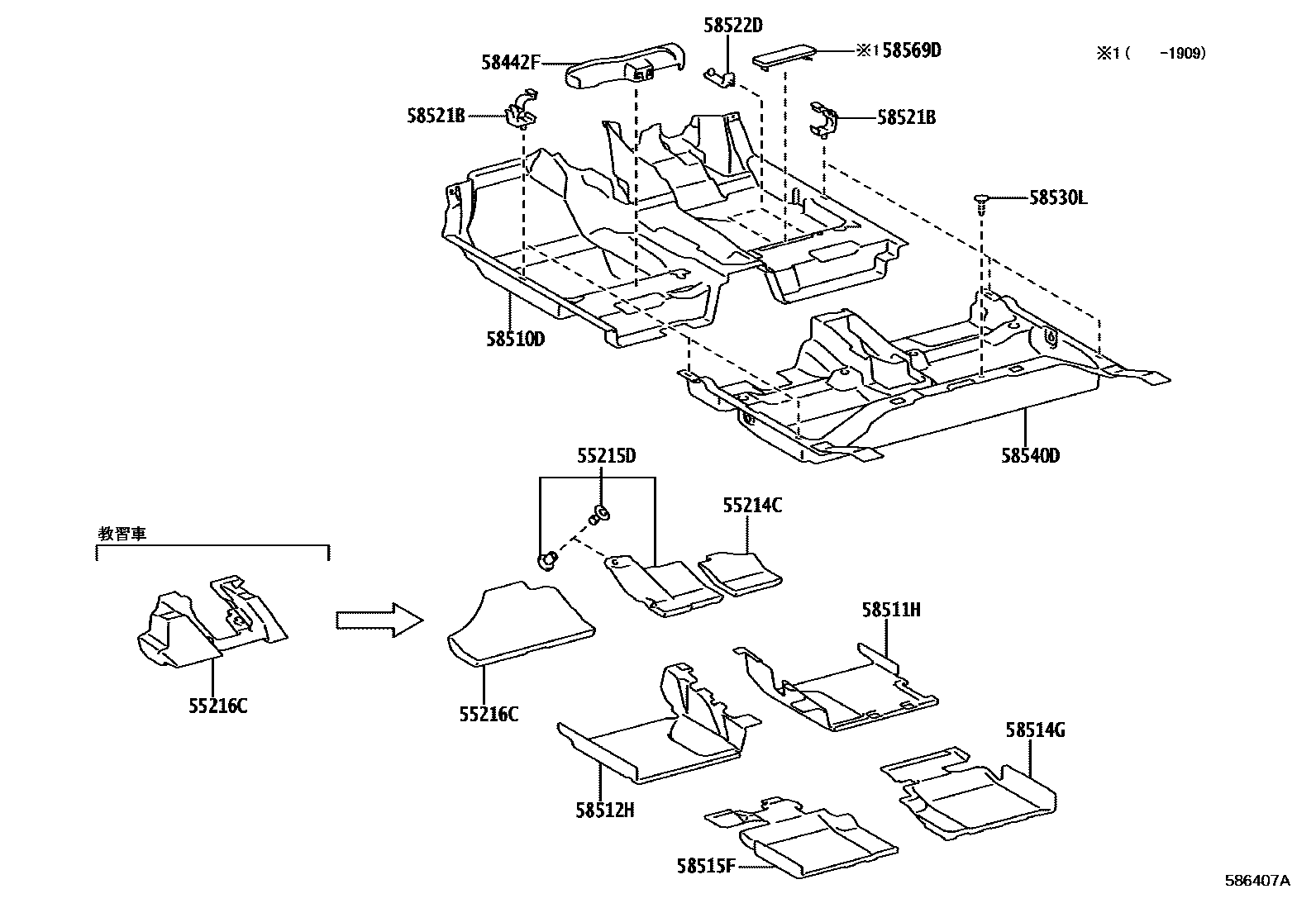

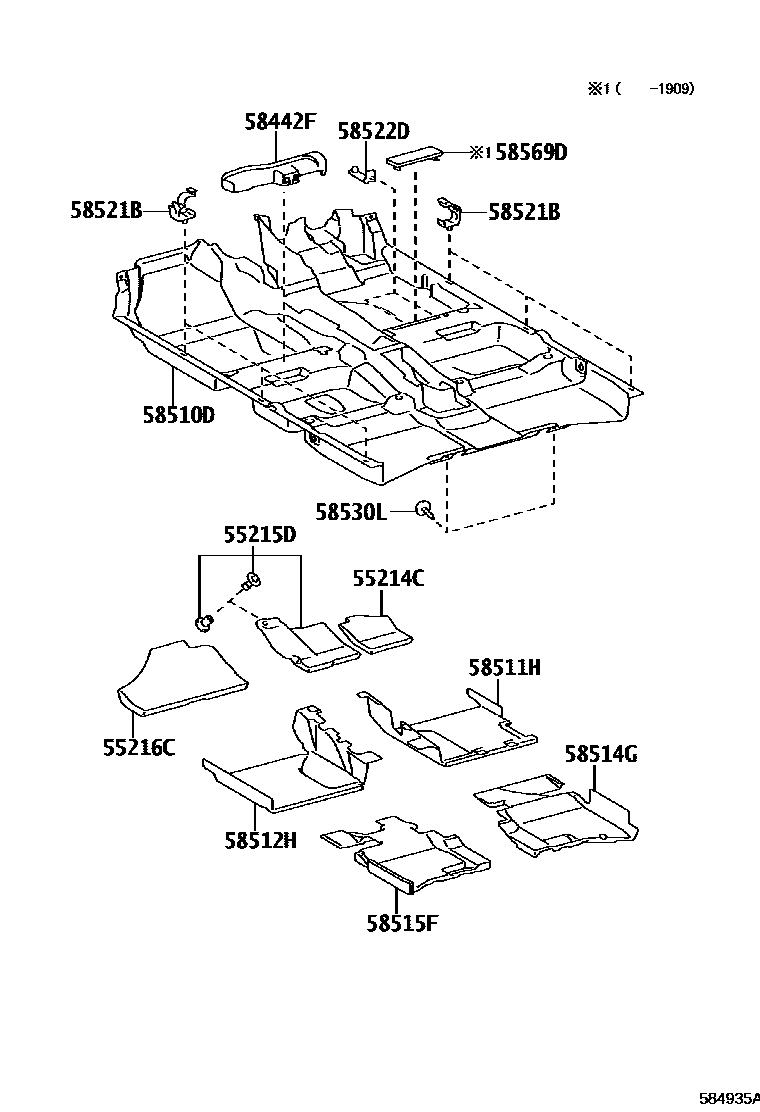

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55214C | No. 2 insulation pad for front wall panel | 55214-52160 |
| 55215D | No. 3 insulation pad for front wall panel | 55215-12160 · 55215-52101 · 55215-52150 |
| 55216C | No. 4 heat insulation pad for front wall | 55216-12040 · 55216-12060 |
| 58442F | jack cover | 58442-52060 |
| 58511H | Front floor right mat | 58511-12710 · 58511-12720 |
| 58512H | Front floor left mat | 58512-12290 · 58512-12300 |
| 58514G | Rear floor right mat | 58513-12290 · 58513-12300 · 58513-12320 · 58513-12330 |
| 58515F | Rear floor left mat | 58514-12610 · 58514-12620 · 58514-12630 |
| 58521B | carpet hook | 58521-52050 |
| 58522D | Carpet hook number 2 | 58522-52030 |
