Toyota COROLLA 地板隔热垫 — Figure 5802

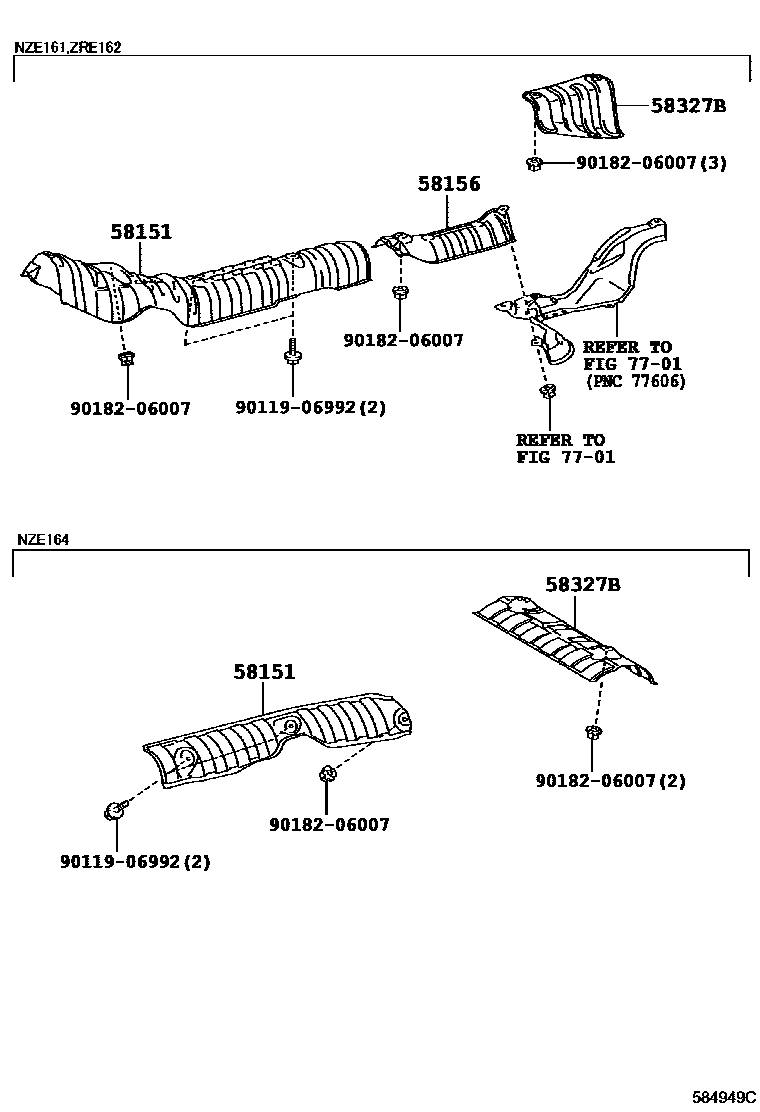

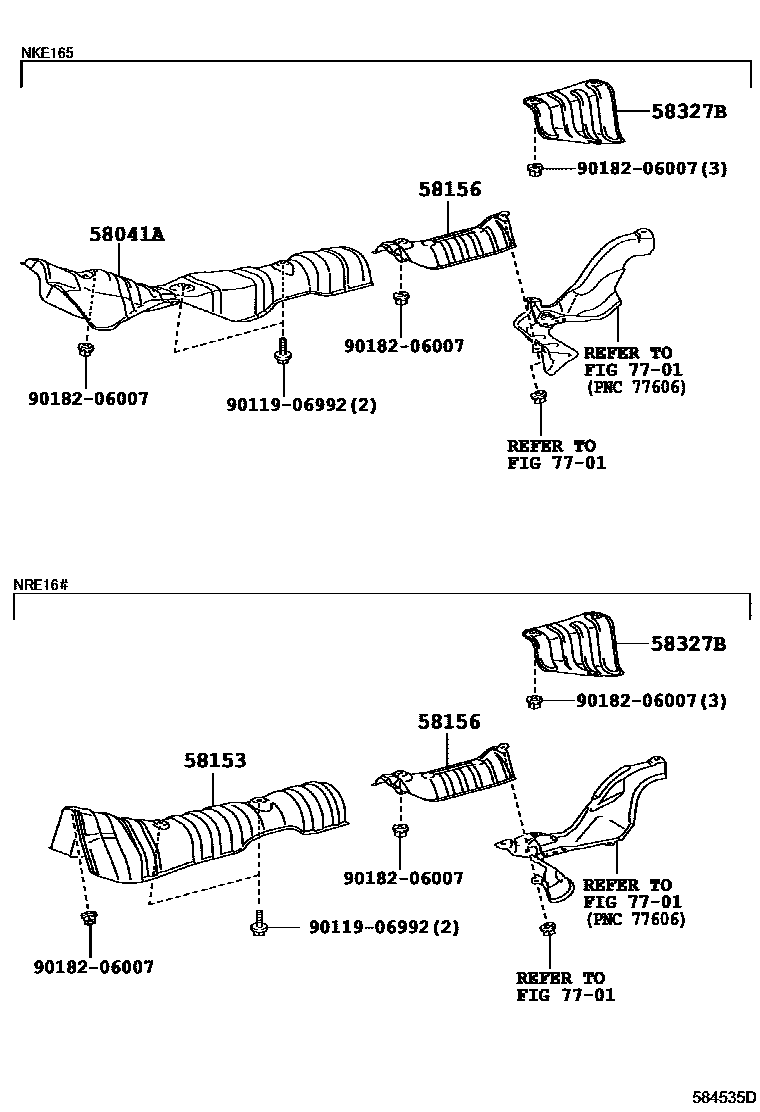

Toyota COROLLA EPC diagram 5802, 地板隔热垫, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58041A | Front floor insulation pad sub-assembly No. 1 | 58041-52010 |
| 58151 | Front floor insulation mat No. 1 | 58151-52062 · 58151-52071 |
| 58153 | Front floor insulation mat No. 2 | 58153-52091 |
| 58156 | Front floor insulation mat No. 4 | 58156-52020 |
| 58327B | Main muffler heat insulation pad | 58327-52121 · 58327-52151 |
