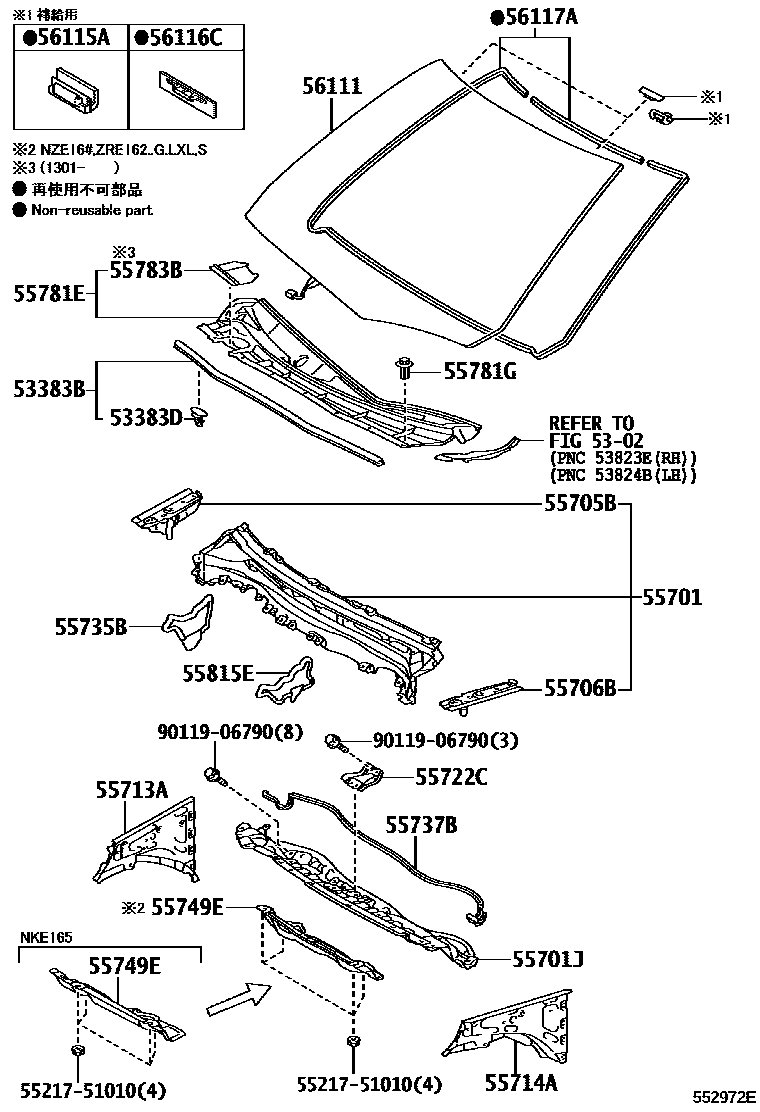

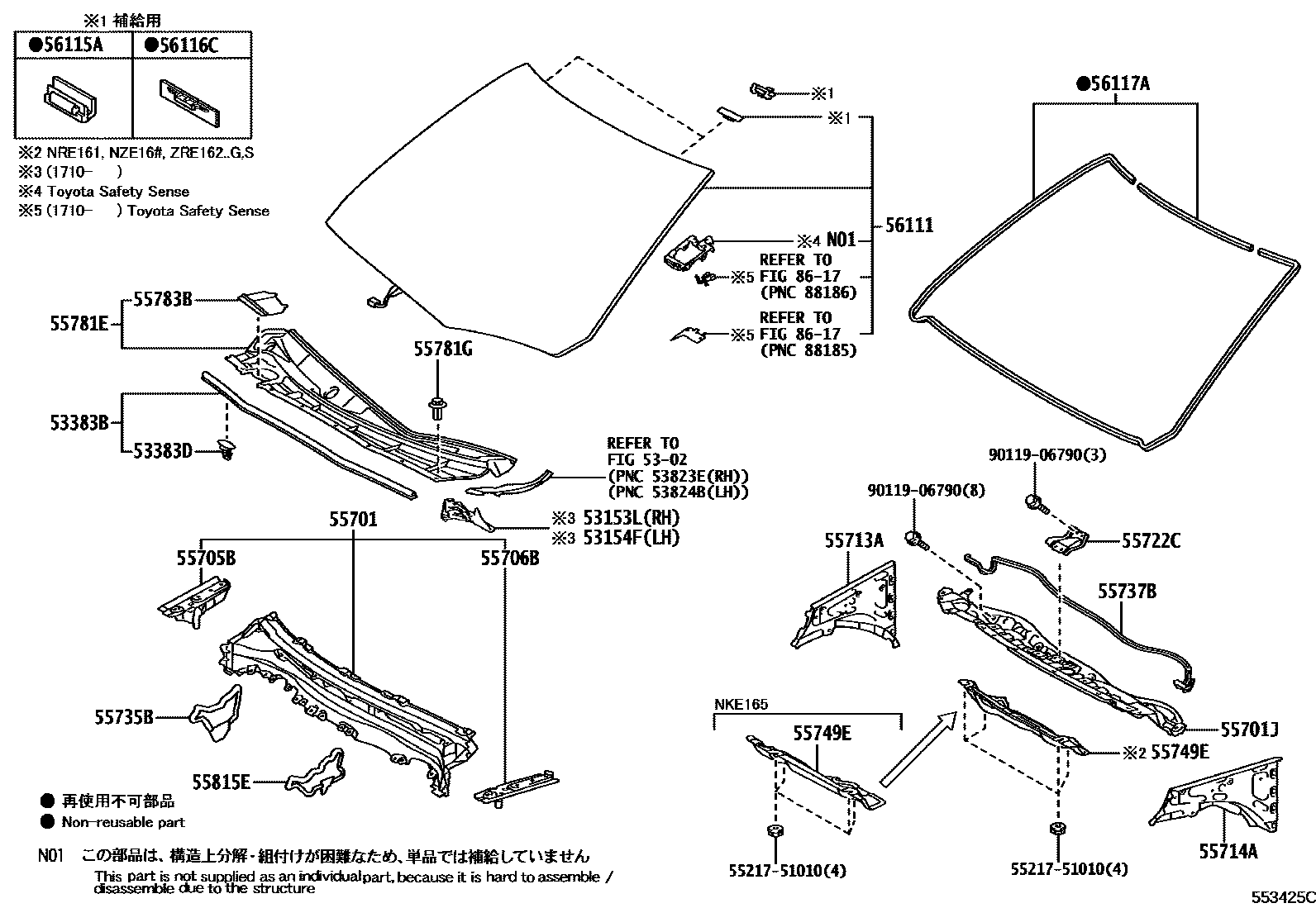

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53153L | Toyota part | 53153-12050 |
| 53154F | Toyota part | 53154-12040 |
| 53383B | Engine cover to cowl upper cover seal | 53383-12200 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-12150 |
| 55701 | Front apron sub-assembly | 55700-12C00 · 55700-12C01 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-12B40 · 55701-12B60 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-12130 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-12140 |
| 55713A | Right front wall upper side panel | 55713-12170 |
| 55714A | Left front wall upper side panel | 55714-12170 |
| 55722C | From the cowl upper cover to the cowl inner bracket | 55722-12100 |
| 55735B | Front air door seal | 55735-12090 · 55735-12091 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-12150 |
| 55749E | Front wall upper cover No. 2 heat insulation panel | 55749-12110 · 55749-12120 · 55749-12130 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-12490 · 55708-12491 · 55708-12500 · 55708-12501 |
| 55783B | Ventilation grille on center cowl No. 1 | 55783-12321 |
| 55815E | No. 1 front vent seal | 55815-12040 |
| 56111 | windshield | 56101-12700 · 56101-12800 · 56101-12801 · 56101-12A30 · 56101-12A31 · 56101-12A40 · 56101-12A41 · 56101-12A70 · 56101-12A71 · 56101-12B40 · 56101-12B50 · 56101-12B60 · 56101-12B70 · 56101-12B80 · 56101-12B90 · 56101-12C40 · 56101-12C50 · 56101-12C51 · 56101-12C60 · 56101-12C61 · 56101-12D30 · 56101-12D31 · 56101-12D40 · 56101-12D41 · 56101-12J50 · 56101-12J60 · 56101-12J70 · 56101-12J80 · 56101-12J90 · 56101-12K00 · 56101-12K10 · 56101-12K20 · 56101-12P60 · 56101-12P70 · 56101-12P80 · 56101-12P90 · 56101-12Q00 · 56101-12Q10 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
